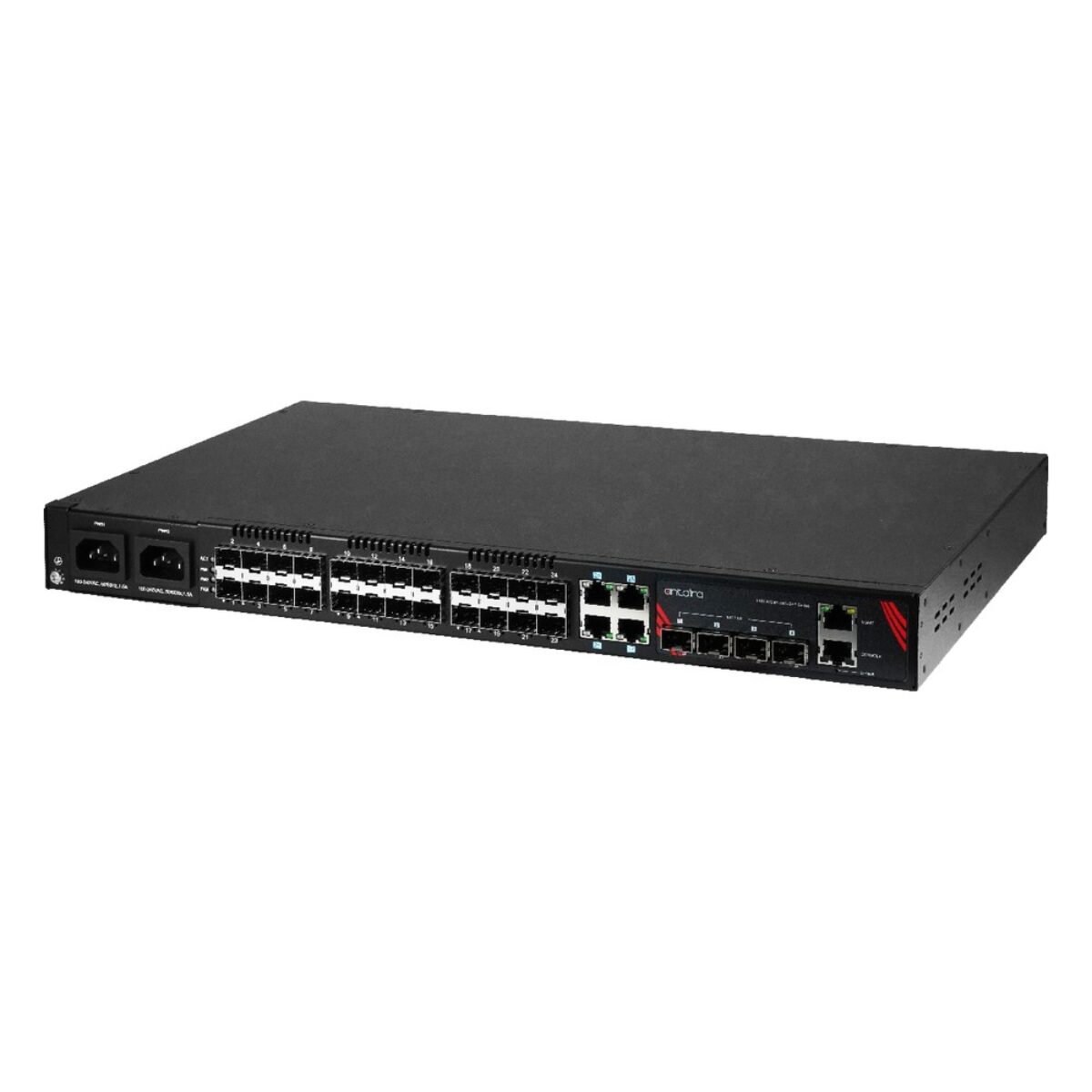

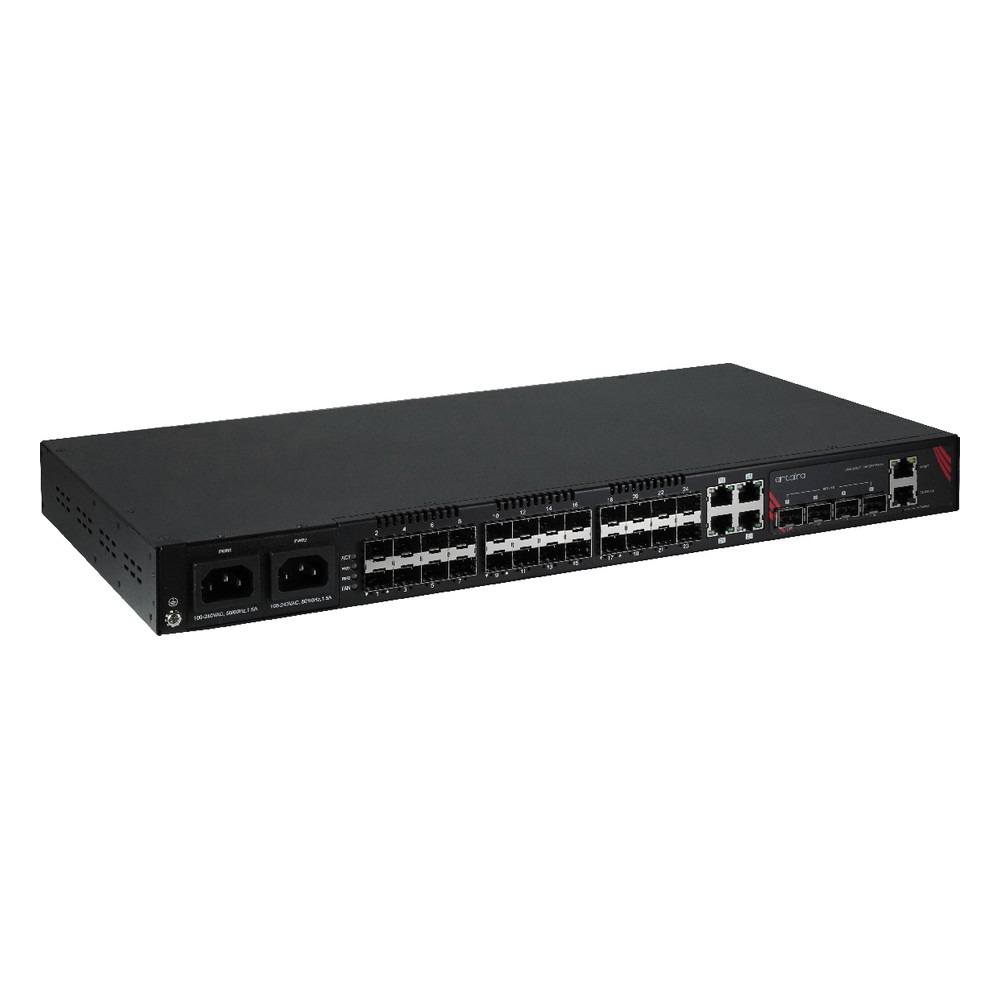

Antaira LMX-3228G-10G-SFP-AA 32-Port 10G Managed Rackmount Industrial Switch with 24x SFP, 4x 10G SFP+ and Dual AC Power

The LMX-3228G-10G-SFP-AA is the dual AC power build of the Antaira LMX-3228G-10G-SFP series: a 32-port managed rackmount fiber aggregation switch with 24 SFP slots, four 10G SFP+ slots and four gigabit RJ45 ports, powered by dual AC supplies.

  • Dual AC Power: Dual 100 to 240 V AC supplies let the switch keep running if one supply or one mains feed fails.
  • 24 SFP Slots for Aggregation: Twenty-four 100/1000 SFP slots gather fiber runs from across a site into one 1U rackmount switch.
  • Four 1G/10G SFP+ Uplinks: Four 1G/10G SFP+ slots carry 10 Gbps uplinks to the core on a 136 Gbps switching fabric.
  • Layer 2 Management and Security: 4K VLANs, QoS, IGMP snooping with MVR, LACP and RSPAN, secured with 802.1X, RADIUS, TACACS+, ACLs and SNMP v3.
  • 1U Rackmount, 0 to 50 °C: A 1U 19-inch rackmount metal housing rated 0 °C to 50 °C, with Antaira’s 5-year warranty.
View LMX-3228G-10G-SFP Series
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

LMX-3228G-10G-SFP-AA Overview

A fiber aggregation switch carries every link that runs through it, so losing its power supply can take a whole section of the network down at once. The LMX-3228G-10G-SFP-AA is the dual AC power build of the Antaira LMX-3228G-10G-SFP series: a 32-port managed rackmount industrial switch built as a backbone fiber aggregation switch, with 24 SFP slots and four 10G SFP+ slots.

Twenty-four 100/1000 SFP slots gather fiber runs, four 1G/10G SFP+ slots carry 10 Gbps uplinks to the core, and four 10/100/1000Tx RJ45 ports serve local equipment, with the transceiver setting the mode and reach of each run. Switching is store-and-forward on a 136 Gbps fabric with a 32K MAC table, a 32 Mbit packet buffer and 10K jumbo frames. STP, RSTP and MSTP handle redundant paths, and LACP link aggregation adds bandwidth between switches.

Switching is Layer 2 managed, with DHCP option 82 relay. The firmware covers 4K VLAN groups with voice, private and MAC-based VLANs, eight priority queues per port, storm control, IGMP snooping with MVR, port mirroring with RSPAN, and RMON, LLDP and syslog, with 802.1X, RADIUS, TACACS+, ACLs, IP source guard, SSHv2, HTTPS and SNMP v3 securing access. We can pre-configure IP addressing and VLANs before delivery.

Power comes from dual 100 to 240 V AC power supplies, so a second supply can carry the load if one fails, and the LMX-3228G-10G-SFP-AA draws up to 60 W. It operates from 0 °C to 50 °C with 10 to 90% non-condensing humidity, which suits heated equipment rooms and indoor cabinets, and stores from -25 °C to 70 °C. The metal housing is a 1U 19-inch rackmount design, and Antaira backs it with a 5-year warranty. The LMX-3228G-10G-SFP-AD pairs one AC supply with one -48 V DC supply, and the LMX-3228G-10G-SFP-DC uses a single -48 V DC supply.

LMX-3228G-10G-SFP-AA Specifications

Overview
Brand & ModelAntaira LMX-3228G-10G-SFP-AA
FeaturesIndustrial
Managed Ethernet Switch
Networking
Switching LayerLayer 2+
Switch TypeManaged
Ethernet Ports4x 10/100/1000 BASE-TX [RJ45]
Number of Ethernet Ports4x Ethernet Ports
Number of Fiber Ports24x 100/1000 [SFP]
4x 1G/10G [SFP+]
Networking StandardsIEEE 802.1AB LLDP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1X Port-Based Network Access Control
IEEE 802.3 10BaseTx Ethernet
IEEE 802.3ab 1000BaseTx Gigabit Ethernet
IEEE 802.3ad Link Aggregation
IEEE 802.3ae 10 Gigabit Fiber
IEEE 802.3u 100BaseTx Fast Ethernet
IEEE 802.3z Gigabit Fiber
Power
Power Input100-240V AC
Environmental Conditions
Operating Temperature0°C to 50°C [32°F to 122°F]
Storage Temperature-25°C to 70°C [-13°F to 158°F]
Humidity10-90% (Non-condensing)
Mechanical Properties
Weight3.3 Kg (7.3 Lbs)
Dimensions440mm x 250mm x 44mm (17.32" x 9.84" x 1.71")
Mounting Options19" Rack Mount

Official Antaira USA Distributor

Things Embedded is an official Antaira USA distributor, and we supply the LMX-3228G-10G-SFP-AA with matching SFP transceivers and rack cabling, with IP addressing, VLANs and ring settings pre-configured on request. Within the Antaira range, the LMX-3228G-10G-SFP-AD pairs one AC supply with one -48 V DC supply.
