US M12 Ethernet Switches
IP67 M12 Switches for Vibration, Dust and Water
An M12 Ethernet switch replaces RJ45 sockets with screw-locking M12 connectors and seals the housing to IP67, so links stay connected under vibration and the switch can sit outside a cabinet. The range runs from five-port unmanaged units to managed gigabit switches with PoE+ and 10G SFP+ uplinks.
Options include 24 to 110 V DC railway inputs with EN 50121 railway EMC compliance, ERPS ring redundancy on managed models and -40 °C builds, suited to rolling stock, trackside cabinets and outdoor sites where a sealed switch saves a separate enclosure.
Speak to an industrial networking specialist to match the ports, power and sealing to your installation.
Browse Our IP67 Ethernet Switches
- Ethernet Connectors: M12
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [M12]
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 2x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 24-55V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -40°C to 70°C [-40°F to 158°F]
- Ethernet Connectors: M12
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [M12]
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 2x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 24V-110V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -40°C to 70°C [-40°F to 158°F]
- Ethernet Connectors: M12
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [M12]
- PoE Standard: PoE+ 30W [802.3at]
- Power: 24-55V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -40°C to 70°C [-40°F to 158°F]
- Ethernet Connectors: M12
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [M12]
- PoE Standard: PoE+ 30W [802.3at]
- Power: 24V-110V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -40°C to 70°C [-40°F to 158°F]
- Ethernet Connectors: M12
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [M12]
- Fiber: 2x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 24V-110V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -10°C to 65°C [14°F to 149°F]
- Ethernet Connectors: M12
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [M12]
- Fiber: 2x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 24-55V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -10°C to 65°C [14°F to 149°F]
- Ethernet Connectors: M12
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [M12]
- Power: 24-55V DC [M12]
- Temp: -40°C to 70°C [-40°F to 158°F]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Ethernet Connectors: M12
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [M12]
- Power: 24V-110V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -40°C to 70°C [-40°F to 158°F]
- Ethernet Connectors: M12
- Switch Type: Unmanaged
- Ethernet: 8x 10/100/1000 BASE-TX [PoE+] [M12]
- PoE Standard: PoE+ 30W [802.3at]
- Power: 24-55V DC [M12]
- IP Rating: IP67
- Certification: CE, FCC, RoHS, UL 61010-1
- Mounting Options: Wall Mount
- Temp: -40°C to 70°C [-40°F to 158°F]
- Ethernet Connectors: M12
- Switch Type: Unmanaged
- Ethernet: 1x 10/100/1000 BASE-TX [M12], 4x 10/100/1000 BASE-TX [PoE+] [M12]
- PoE Standard: PoE+ 30W [802.3at]
- Power: 48-56V DC [M12]
- Temp: -40°C to 75°C [-40°F to 167°F]
- IP Rating: IP67
- Certification: EN62368-1, CE, EN50121-3-2, EN50121-4, EN50155, FCC, LVD, NDAA, TAA, UL 62368-1
- Mounting Options: DIN Mount, Wall Mount
- Ethernet Connectors: M12
- Switch Type: Unmanaged
- Ethernet: 8x 10/100 BASE-TX [M12]
- Power: 12-48V DC Input [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, NDAA, RoHS, TAA, UL 61010-1
- Mounting Options: DIN Mount, Wall Mount
- Temp: -10°C to 65°C [14°F to 149°F]
- Ethernet Connectors: M12
- Switch Type: Unmanaged
- Ethernet: 5x 10/100 BASE-TX [M12]
- Power: 12-48V DC Input [M12]
- IP Rating: IP67
- Certification: CE, FCC, RoHS, UL 61010-1
- Mounting Options: DIN Mount, Wall Mount
- Temp: -40°C to 75°C [-40°F to 167°F]
M12 Ethernet Switch Ranges Supplied by Things Embedded
We work with a leading manufacturer of M12 industrial switches, so the ranges below are the ones we specify for sealed installations. Compare unmanaged, managed and PoE builds, then browse the models above or ask an industrial networking specialist which suits your site.

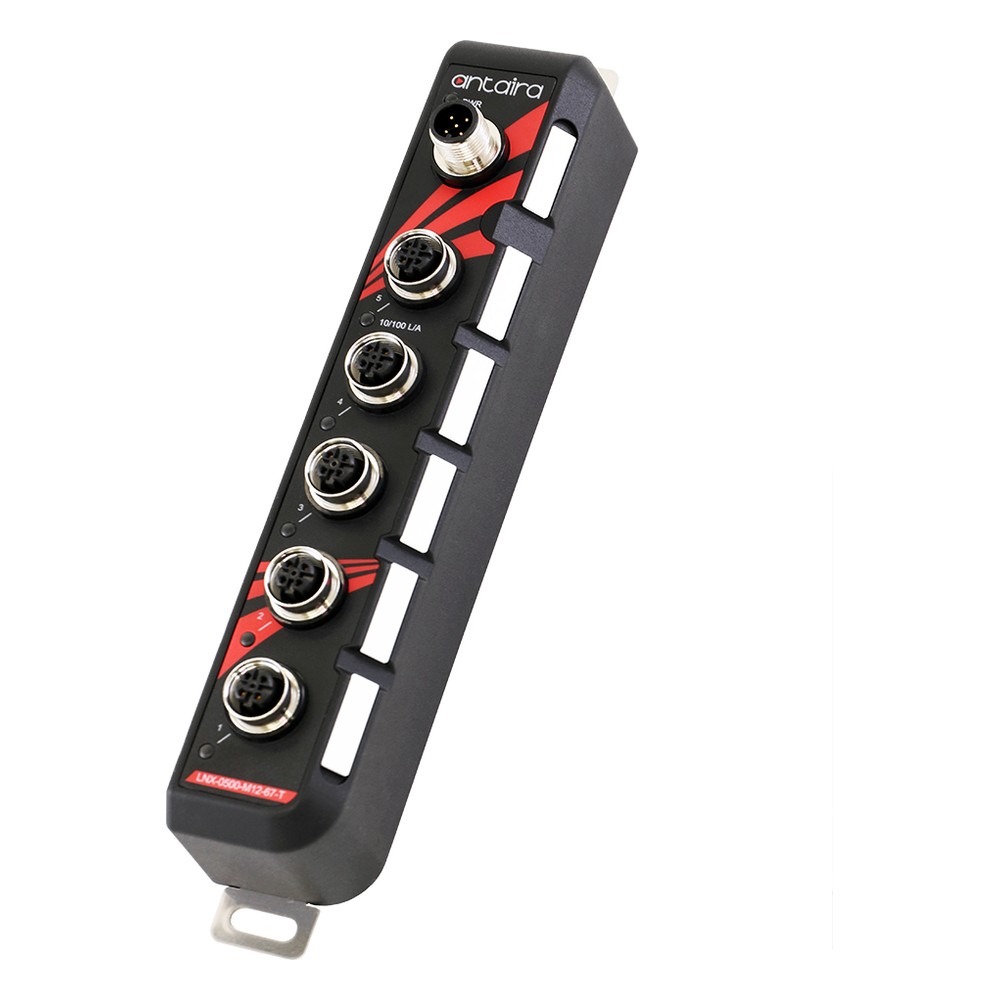

LNX and LNP Unmanaged M12 Switches
Five and eight port unmanaged M12 switches, Fast Ethernet or gigabit, with PoE+ on the LNP models and -40 °C builds.
LMX Managed M12 Switches
Managed gigabit M12 switches with ERPS ring redundancy, 10G SFP+ uplinks on the 1802G and 24 to 110 V DC railway inputs.
LMP Managed PoE+ M12 Switches
Managed M12 switches that power cameras and sensors over PoE+, with low-voltage or 24 to 110 V DC input options.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an IP67 Switch
Our industrial networking specialists check these points with you before recommending an M12 switch.
M12 Connectors
Screw-locking M12 connectors for data and power hold under vibration where RJ45 plugs can work loose.
IP67 Sealing
Sealed housings keep out dust and temporary immersion, so the switch can mount outside an enclosure.
Railway Power Input
24 to 110 V DC inputs on -110 models, with EN 50121-3-2 and EN 50121-4 railway EMC compliance.
PoE for Cameras
PoE+ M12 models power cameras and sensors over the same sealed cable run.
Explore Our Network Switches by Type
Compare every networking category, from board-level switch modules to sealed rugged switches and DIN-rail PoE switches, and go straight to the switches that fit your system.
M12 Ethernet Switch Innovation & Rail and Outdoor Networking Insights
Speak to an M12 Switch Specialist.
Tell us the devices the switch must connect, the vehicle, enclosure or cabinet it goes into and the power and temperature it has to handle. We will recommend the right switch, supply it with the manufacturer's documentation and support you as you bring it into your system.
