US Embedded Ethernet Switches
Board-Level Ethernet Switches for OEM Systems
An embedded Ethernet switch puts a managed network inside the product itself, so a vehicle, robot or rugged enclosure carries its own switching without a separate box. Choose a standalone switch board with latching connectors, or a compact switch module that mounts on a carrier board you design, from eight gigabit ports up to 28 with 10G uplinks.
Options include Layer 2+ and Layer 3 software, IEEE-1588 PTP and TSN builds, PC/104 boards for stacked systems, heat sinks or heat spreaders and -40 to 85 °C operation, suited to military vehicles, unmanned systems and rail equipment where shock, vibration and wide supply ranges rule out commercial switches.
Speak to an embedded networking specialist to match the port count, software and form factor to your design.
Browse Our Embedded Switches
- Switch Type: Managed
- Ethernet: 8x 10/100/1000 BASE-TX [Board]
- Ethernet Connectors: Board Connectors
- Fiber: 2x 1G/2.5G [Board]
- Fiber Connectors: Board Connectors
- Power: 5V DC [Board]
- Temp: -40°C to 85°C [-40°F to 185°F]
-
EPS-12002L-HSK-L3
EPS-12002L with Layer 3 routing software and an integrated heat sink -
EPS-12002L-HSK
EPS-12002L with Layer 2+ software and an integrated heat sink -
EPS-12002L-HSP
EPS-12002L with Layer 2+ software and a heat spreader plate -
EPS-12002L-HSP-L3
EPS-12002L with Layer 3 routing software and a heat spreader plate
- Serial: 1x RS232 [Board]
- Switch Type: Managed
- Ethernet: 12x 10/100/1000 BASE-TX [Latching]
- Ethernet Connectors: Latching
- Fiber: 2x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 5-36V DC [Latching]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Switch Type: Managed
- Ethernet: 8x 10/100/1000 BASE-TX [Latching]
- Ethernet Connectors: Latching
- Fiber: 2x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 5-36V DC [Latching]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC, RoHS
- Serial: 1x RS232 [Board]
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [Latching]
- Ethernet Connectors: Latching
- Fiber: 4x 10G [SFP+]
- Fiber Connectors: SFP
- Power: 7-40V DC [Latching]
- Temp: -40°C to 80°C [-40°F to 176°F]
- Certification: RoHS
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [Board]
- Ethernet Connectors: Board Connectors
- Fiber: 4x 10G [SFI]
- Fiber Connectors: Board Connectors
- Power: 5V DC [Board]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: RoHS
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [Board]
- Ethernet Connectors: Board Connectors
- Fiber: 2x 10G [SFI]
- Fiber Connectors: Board Connectors
- Power: 5V DC [Board]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: RoHS
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [Board]
- Ethernet Connectors: Board Connectors
- Fiber: 2x 1G/2.5G [Board]
- Fiber Connectors: Board Connectors
- Power: 5V DC [Board]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: RoHS
- Serial: 1x RS232 [Board]
- Switch Type: Managed
- Ethernet Connectors: Latching
- Fiber: 2x 1G/2.5G [SFP]
- Fiber Connectors: SFP
- Power: 5-34V DC [Latching]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: RoHS
- Ethernet: 16x 10/100/1000 BASE-TX [Latching]
- Serial: 1x RS232 [Board]
- Switch Type: Managed
- Ethernet: 12x 10/100/1000 BASE-TX [Latching]
- Ethernet Connectors: Latching
- Power: 7-34V DC [Latching]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: RoHS
- Serial: 1x RS232 [Board]
- Switch Type: Managed
- Ethernet: 12x 10/100/1000 BASE-TX [Latching]
- Ethernet Connectors: Latching
- Power: 5-40V DC [Latching]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: RoHS
- Serial: 1x RS232 [Board]
- Switch Type: Managed
- Ethernet: 8x 10/100/1000 BASE-TX [Latching]
- Ethernet Connectors: Latching
- Power: 5-36V DC [Latching]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: RoHS
Embedded Ethernet Switch Ranges Supplied by Things Embedded
We work with a leading manufacturer of board-level Ethernet switches, so the ranges below are the ones we specify for vehicle, defense and OEM systems. Compare them by ports, software and form factor, then browse the models above or ask an embedded networking specialist which range suits your design.

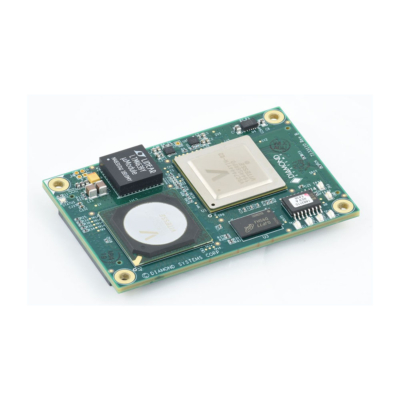

EPSM-10GX Diamond Systems Ethernet Switch Modules
26-port 55 x 84 mm modules with 24 gigabit ports and two 10G SFI ports, in Layer 2+ and Layer 3 builds.

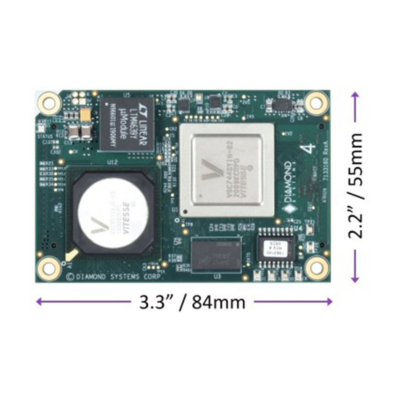

EPSM-10GX4 Diamond Systems 10G Switch Modules
28-port modules with four 10G SFI ports, in Layer 2+, Layer 3 and IEEE-1588 builds, for carriers that need several 10G uplinks.

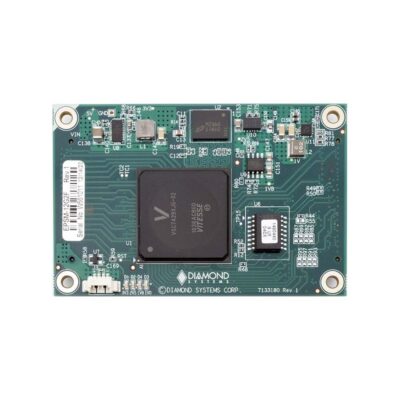

EPSM-12G2F Diamond Systems Miniature Switch Module
26-port 55 x 84 mm module with 24 gigabit ports and two 1G/2.5G SFP links for lower-cost carrier designs.

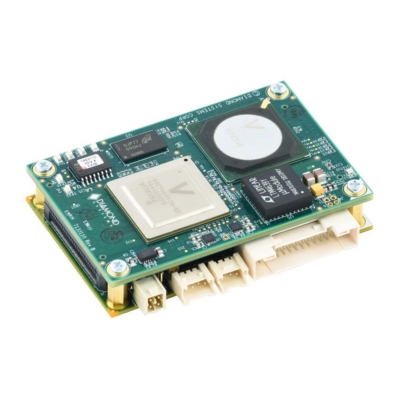

EPS-12000-CM Diamond Systems Compact Switch Boards
84 x 55 mm two-board switches with 12 gigabit ports on latching connectors, Layer 2 or Layer 3, heat sink or heat spreader.

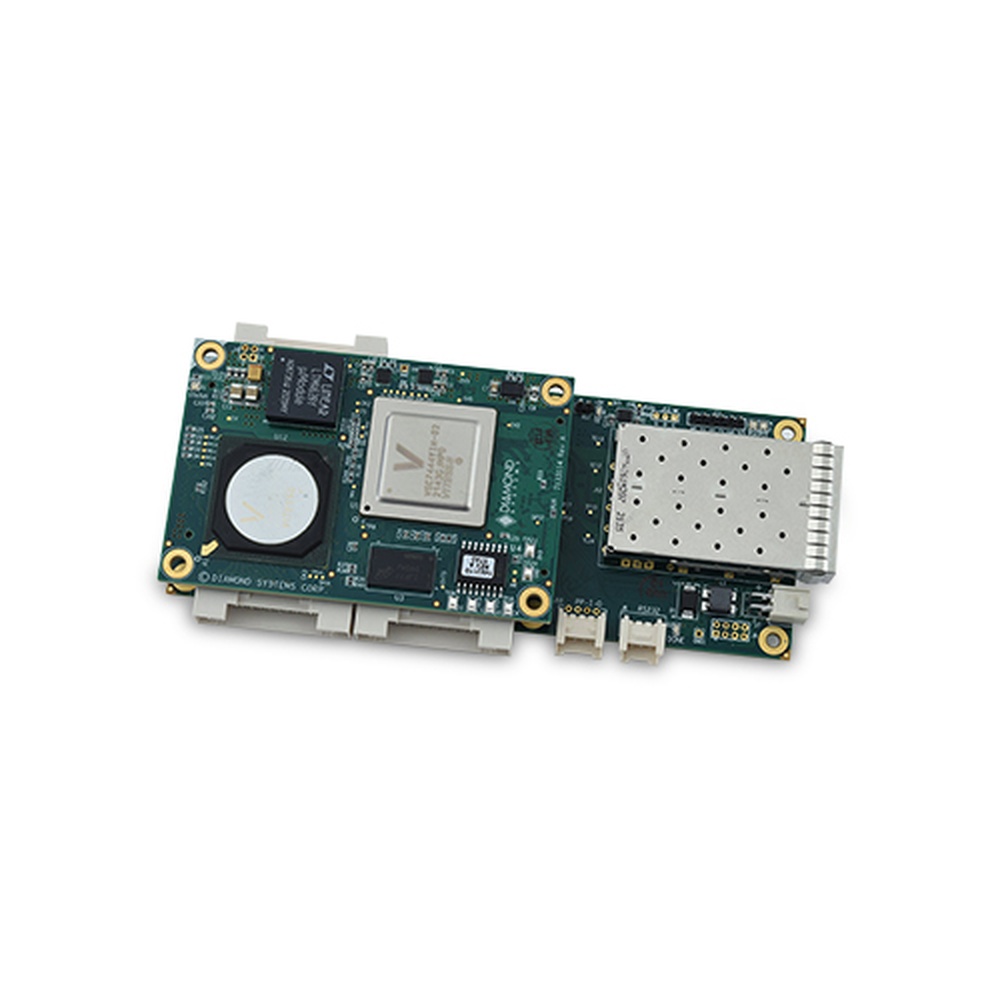

EPS-12002L Diamond Systems 10G Switch Boards
Compact switch boards with 12 gigabit ports and two SFP+ sockets from 1G to 10G, in Layer 2+ and Layer 3 builds with heat sink or spreader.

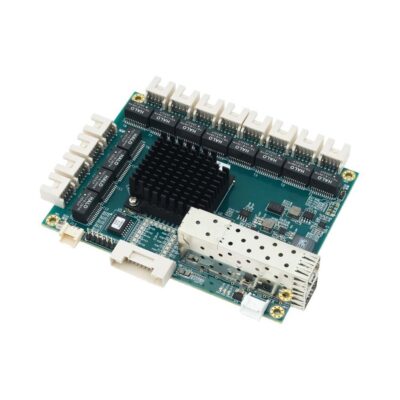

EPS-12G2 Diamond Systems Managed Switch Boards
95 x 125 mm Layer 2+ boards with 12 gigabit ports and up to two SFP sockets, running standalone from a wide DC input.

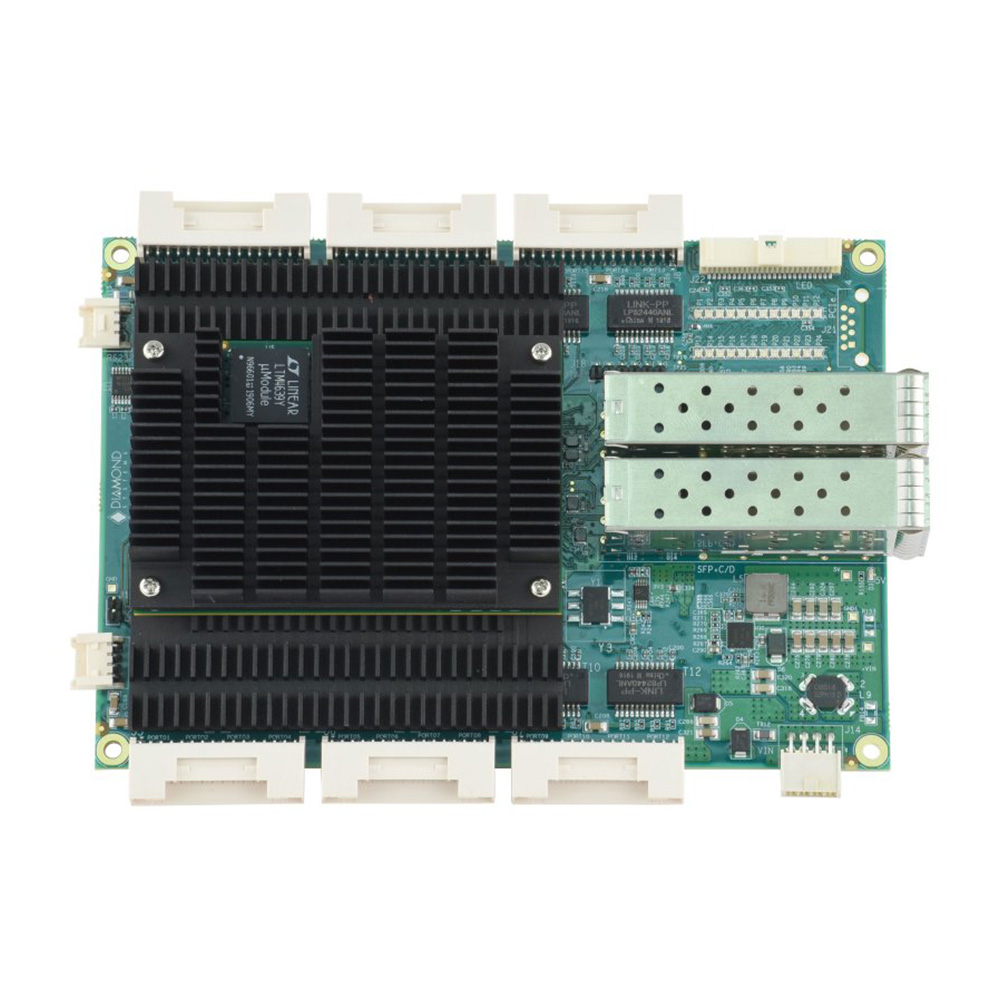

EPS-24G4X Diamond Systems 28-Port Switch Boards
24 gigabit ports and four 10G SFP+ sockets, in Layer 2+, Layer 3 and IEEE-1588 builds for larger vehicle networks.

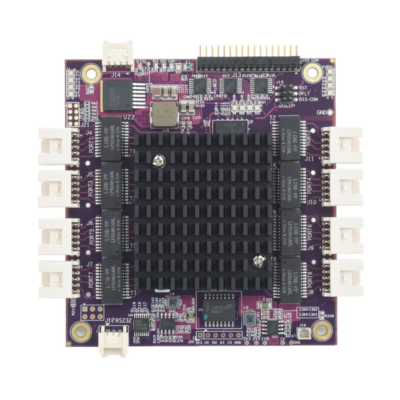

EPS-8130 Diamond Systems PC/104 Switches
Eight-port gigabit Layer 2+ switches in the PC/104 form factor, with heat sink or full heat spreader.

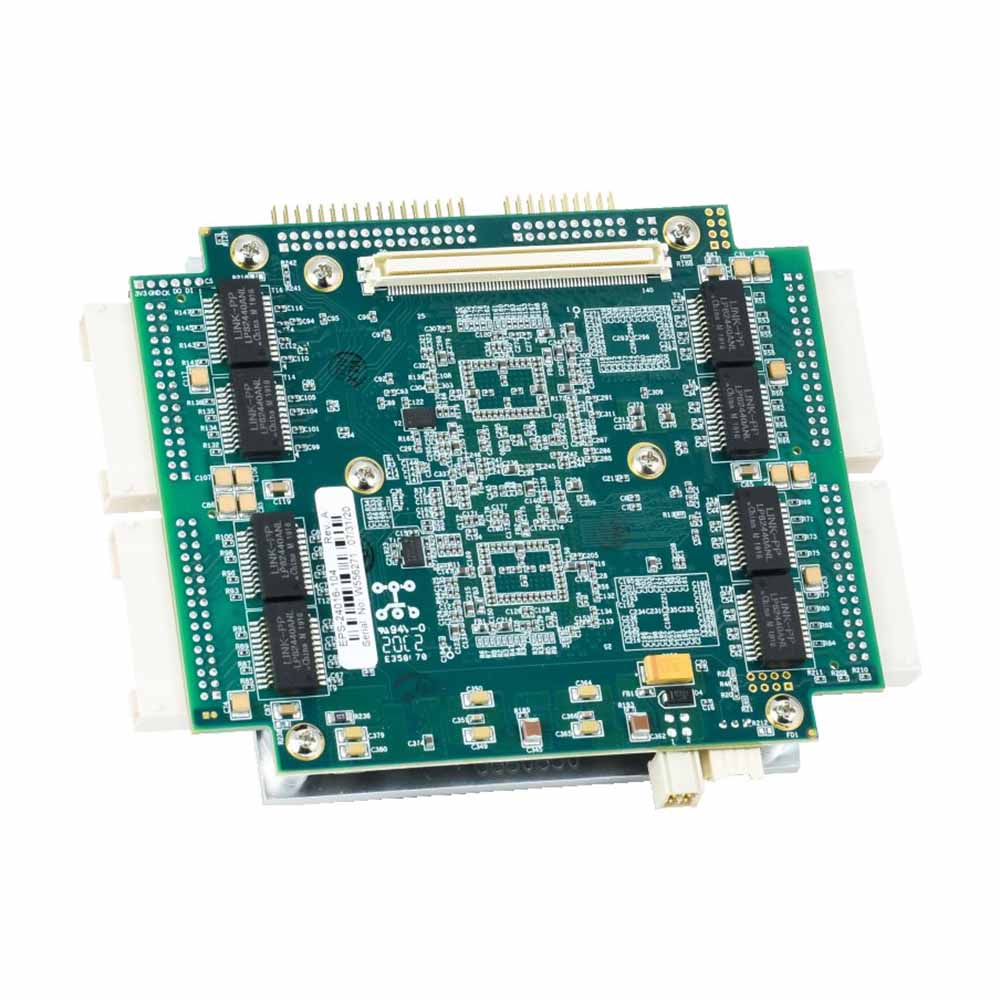

Epsilon-24000 Diamond Systems PC/104 Switches
16-port and 26-port PC/104 switches, the larger with two SFP sockets, for stacked systems with many devices.

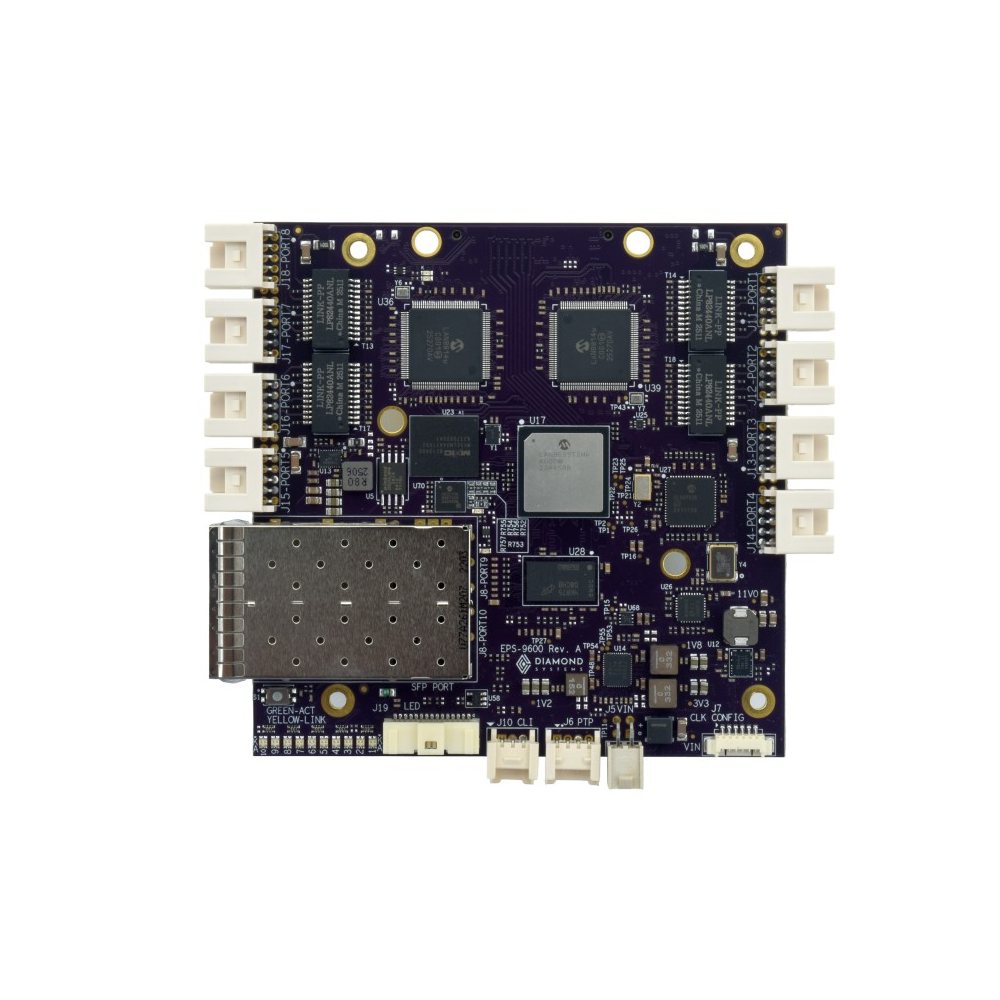

EPS-9600 Diamond Systems Layer 3 and TSN Switch Boards
Eight gigabit ports and two 10G SFP+ sockets on a 102 x 102 mm board, with Layer 3 routing and TSN builds with IEEE-1588 PTP.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Board-Level Switch
Our embedded networking specialists work through these choices with you before recommending a board or module.
Board or Module
A board runs as a complete switch; a module needs your carrier but saves space and design time.
Ports and 10G Uplinks
From eight gigabit ports to 24 plus four 10G links for camera and sensor traffic.
Layer 2+ or Layer 3
Layer 2+ covers VLANs, QoS and redundancy; Layer 3 adds routing between subnets.
PTP and TSN Timing
IEEE-1588 and TSN builds keep sensors and computers on one clock for time-critical data.
Shock, Vibration and Cooling
Latching connectors, thicker boards and heat sinks or spreaders for vehicles and sealed enclosures.
Temperature and Power
-40 to 85 °C operation and wide DC inputs on the boards; 5 V supplied by your carrier on the modules.
Explore Our Network Switches by Type
Compare every networking category, from board-level switch modules to sealed rugged switches and DIN-rail PoE switches, and go straight to the switches that fit your system.
Embedded Ethernet Switch Innovation & Vehicle Networking Insights
Speak to an Embedded Networking Specialist.
Tell us the devices the switch must connect, the vehicle, enclosure or cabinet it goes into and the power and temperature it has to handle. We will recommend the right switch, supply it with the manufacturer's documentation and support you as you bring it into your system.
