Diamond Systems EPSM-12G2F 26 Port Miniature Rugged Managed Ethernet Switch Module
Extended TempWide TempEPSM-12G2F Overview

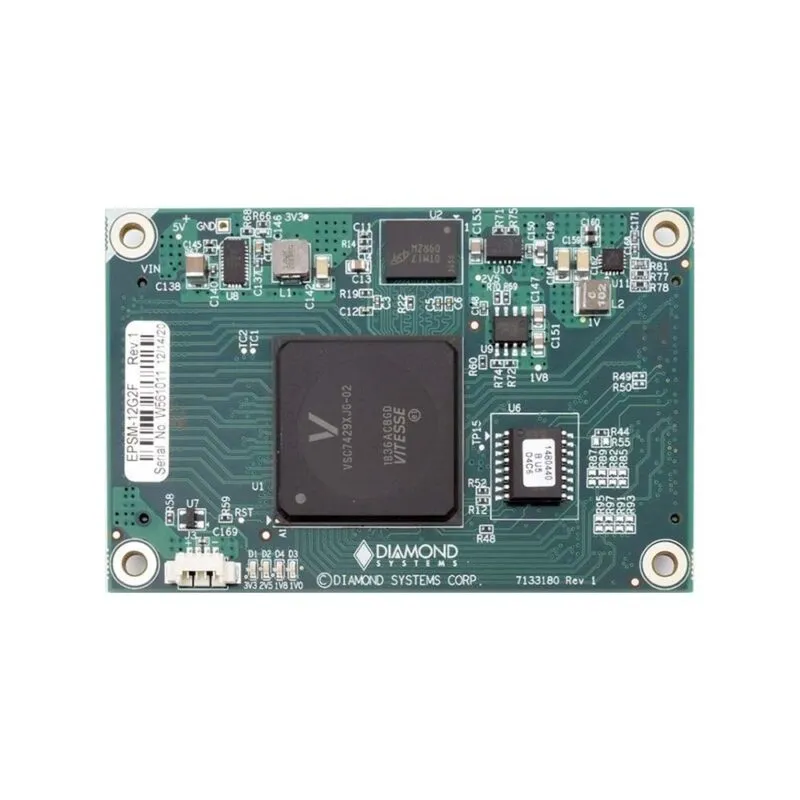

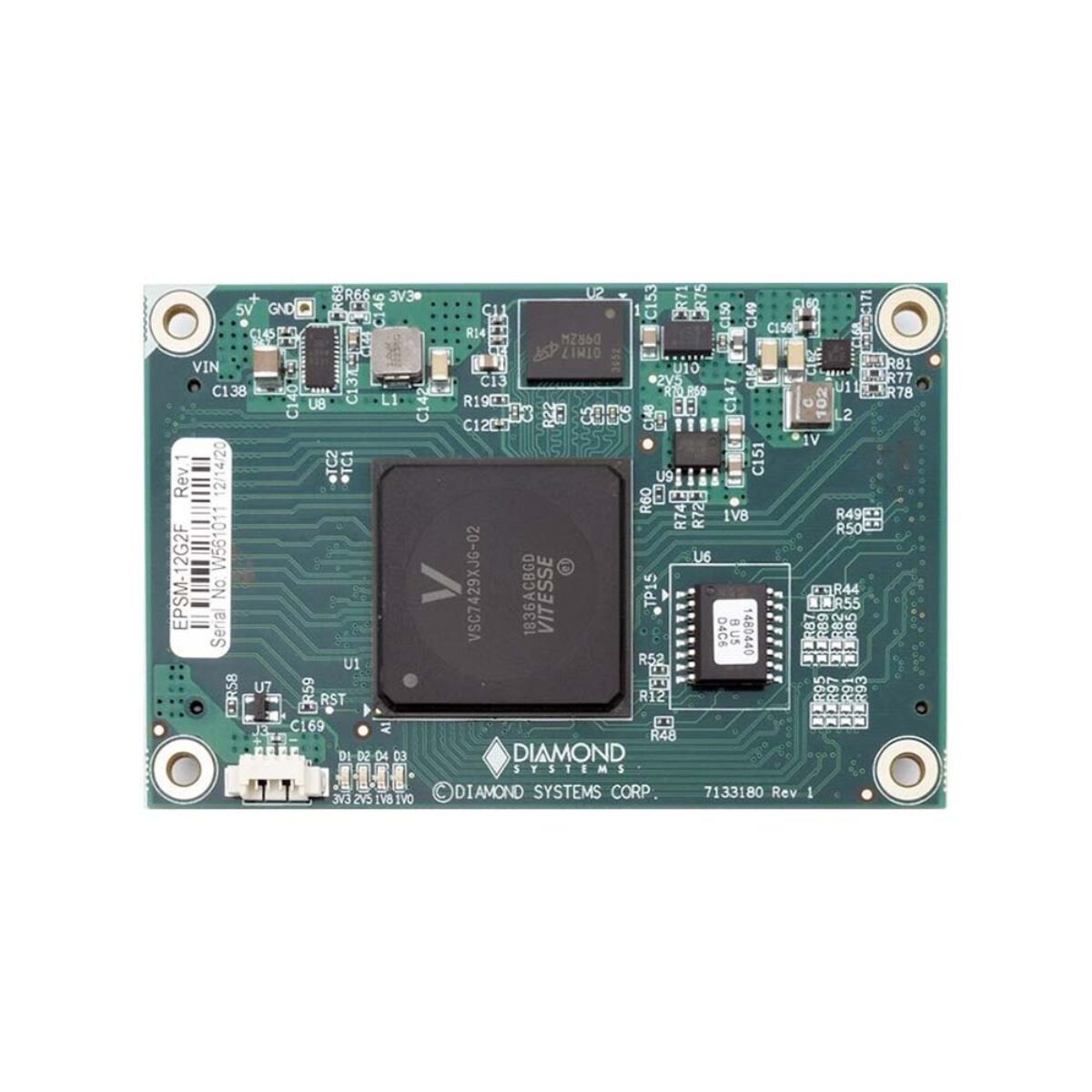

Small robots and drones often need a managed switch for a dozen or more devices, and may have no use for 10G uplinks. The EPSM-12G2F is Diamond Systems’ 26-port module for that brief: a small Ethernet switch module with the switching core, packet memory and management software on board, so for many designs the carrier only needs magnetics, I/O connectors and an input voltage regulator.
The module provides 24 10/100/1000 copper ports, 12 from the on-board PHY and 12 from a PHY on the carrier, plus two 1G/2.5G SFP ports for fiber or copper transceivers. WebStaX Layer 2+ software is built in and handles 8K MAC addresses, 4K VLANs, 8K IPv4 and IPv6 multicast groups and jumbo frames at all speeds, with 4 MB of packet memory. Management runs through a web GUI, a command-line interface over RS-232 and SNMP v1/v2c/v3.
Network features include RSTP and MSTP, IEEE 802.3ad link aggregation on Layer 2 to Layer 4 information, multicast and broadcast storm control, IEEE 802.1X and 8 priorities with 8 QoS queues per port; our explainer on what a managed switch is covers what these controls add. Two Samtec ERF5 connectors of 120 pins each carry all power and data to the carrier, with the SFP, QSGMII and further copper lanes on the second connector. The EPSM-10GX4 and EPSM-10GX offer 10G SFI uplinks and Layer 3 builds on the same footprint.
The module takes 5 V DC ±5% from the carrier, and Diamond quotes 8.0 W at 24 V DC input with 12 ports active. ActiPHY and PerfectReach reduce power on short cables and shut down idle ports. It operates from -40 to +85 °C with Diamond’s heat sink or heat spreader fitted. Diamond provides a carrier design guide, a development kit with carrier design files, CPLD code for LED logic, a cable kit and free branding of the web interface, plus a custom carrier board service.
EPSM-12G2F Specifications
| Overview | |
|---|---|
| Brand & Model | Diamond Systems EPSM-12G2F |
| Features | Compact Embedded Fanless Industrial Managed Ethernet Switch Rugged |
| Networking | |
| Switching Layer | Layer 2+ |
| Switch Type | Managed |
| Ethernet Ports | 24x 10/100/1000 BASE-TX [Board] |
| Number of Ethernet Ports | 24x Ethernet Ports |
| Number of Fiber Ports | 2x 1G/2.5G [Board] |
| Networking Standards | IEEE 802.1D Spanning Tree Protocol IEEE 802.1Q VLAN IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1X Port-Based Network Access Control IEEE 802.3 10BaseTx Ethernet IEEE 802.3ab 1000BaseTx Gigabit Ethernet IEEE 802.3ad Link Aggregation IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3z Gigabit Fiber |
| Power | |
| Power Input | 5V DC [Board] |
| Environmental Conditions | |
| Operating Temperature | -40°C to 85°C [-40°F to 185°F] |
| Certification | RoHS |
| Mechanical Properties | |
| Weight | 85 g (3.0 oz) |
| Dimensions | 84mm x 55mm (3.31" x 2.17") |
- EPSM-12G2F Datasheet Download
| Number of Ports | 2 1G/2.5G SFP ports for fiber or copper connection |
| Implementation | Magnetics and SFP sockets required on carrier board |
| On-board Memory | 4MB packet memory |
| Network Management | SNMP v1/v2c/v3; Web GUI and command line interface (CLI) |
| Power Management | ActiPHY and PerfectReach power management reduce power for shorter cable lengths and shut down power to disconnected ports |
| Serial Port | 1 serial port for host interface; RS-232 transceiver required on carrier board |
| Indicator lights | Serial data stream provided for 2 LEDs per port; decoder logic required on carrier board |
| Form Factor | 55x84mm / 2.17×3.31” (Same as COM Express Type 10) |

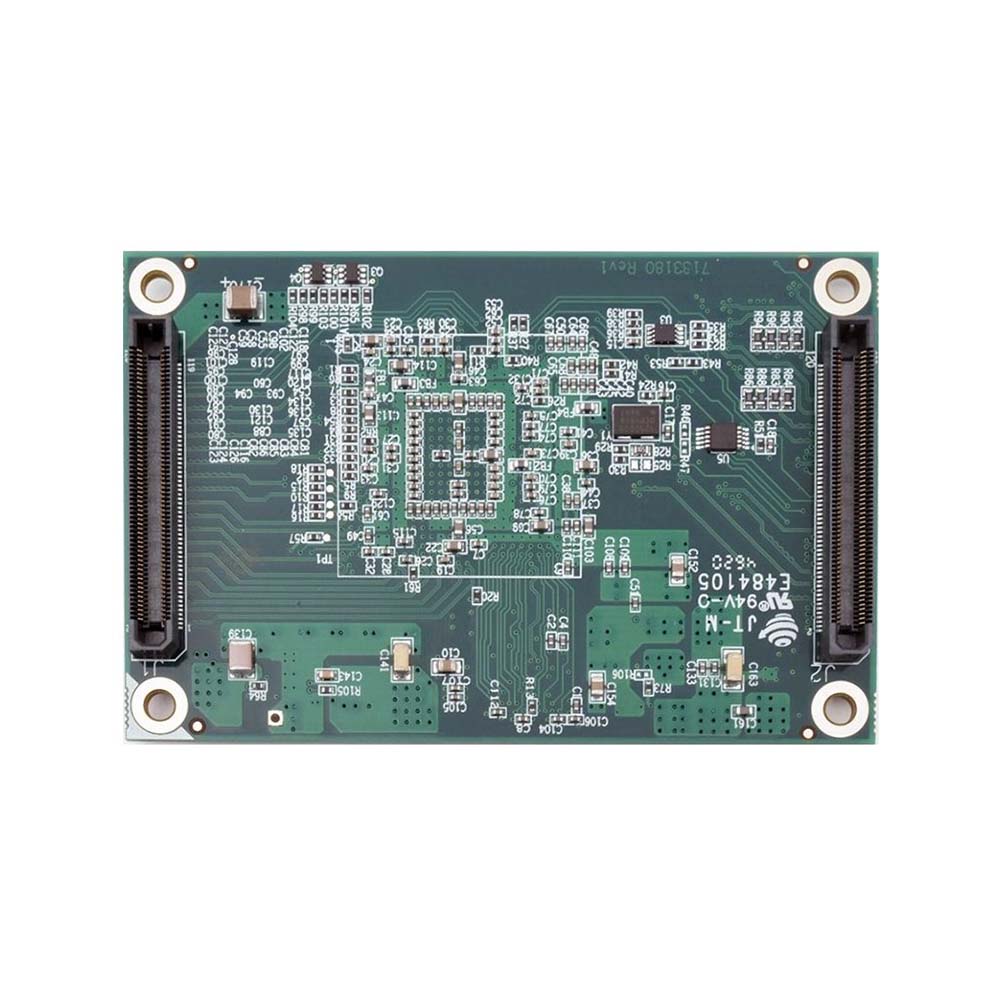

| Interconnect | Dual Samtec ERF5 series connectors, 120 pins each, 10mm board to board spacing |
| Input voltage | 5VDC +/-5% |
| Power consumption | 8.0W (24VDC input, 12 ports active) |
| Operating temperature | -40 to +85°C with DSC-provided heat sink or heat spreader |

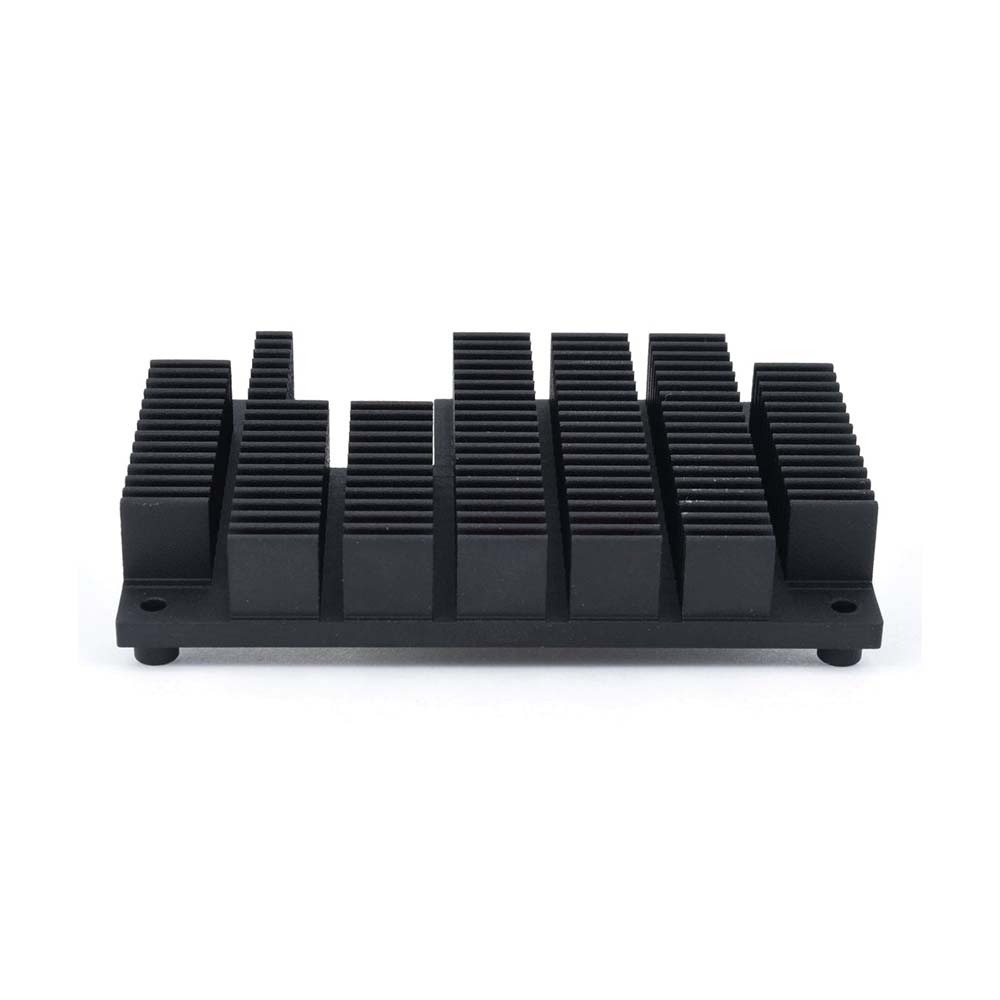

| Cooling | Heat sink, 55x84mm, 16.6mm height |

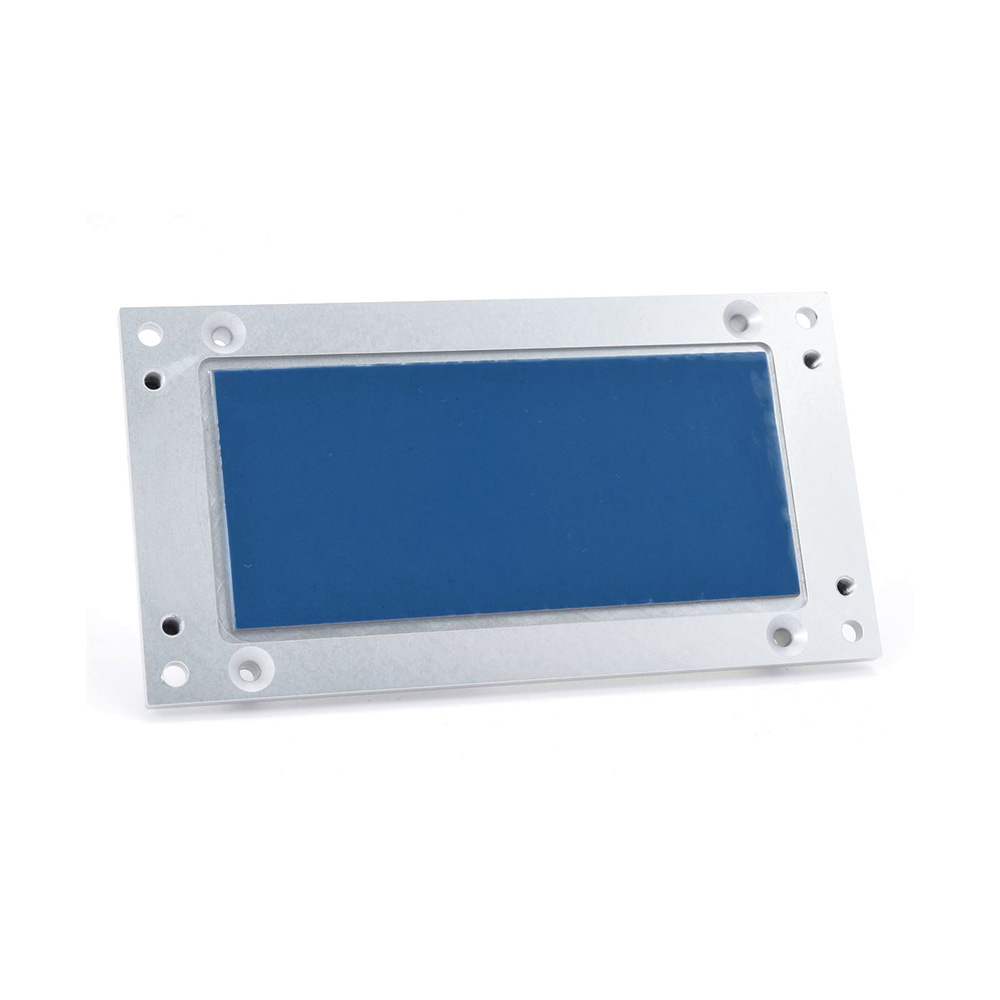

| Heat spreader, 55x104mm, 7.6mm height | |
| Weight | 85G / 3.0 oz |
| Rohs | Compliant |
Official Diamond Systems USA Distributor
Things Embedded is an official Diamond Systems USA distributor, supplying the EPSM-12G2F for USA robotics, drone and vehicle programs. Within the Diamond range the EPSM-10GX swaps the SFP ports for two 10G SFI ports with a Layer 3 option, and the EPSM-10GX4 offers four 10G ports on the same footprint.
As a module you integrate yourself, the EPSM-12G2F sits among our board-level switch modules, our embedded network switches and our wider range of Ethernet switches. Where a custom carrier needs 24 gigabit ports, two SFP uplinks and Layer 2+ management at lower power, this is the model to specify.
