US IP67 Panel PCs
IP67 Touch Screen PCs for Immersion, Decks and Outdoor Sites
IP67 panel PCs are sealed on all six sides against dust and temporary immersion, for vehicle decks, marine and outdoor installations and washdown positions where water pools on the enclosure. Available from 10.4 to 19 inches with resistive or PCAP touch, they leave no open port for water to enter.
Options include M12 connectors throughout, chassis-mount brackets and stainless steel enclosures, suited to decks, sprayers and harvesters, open cabs and food and pharmaceutical lines where the unit is submerged or hosed during cleaning.
Speak to a panel PC specialist to match the size, connectors and mounting to your deck or vehicle.
Browse Our IP67 Touch Screen Computers
- IP Rating: IP67
- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -25°C to 55°C [-13°F to 131°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount
- IP Rating: IP67
- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount

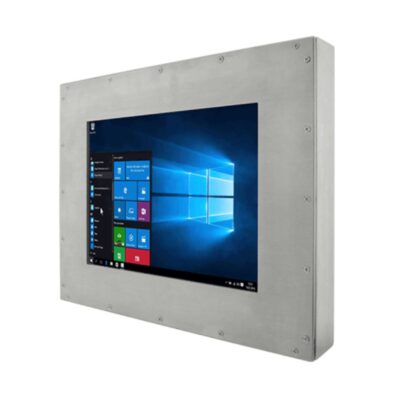

- IP Rating: IP67
- Display: 10.4"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 2x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC

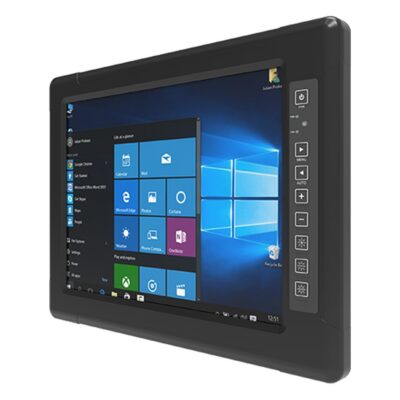

- IP Rating: IP67
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: 5-Wire Resistive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount

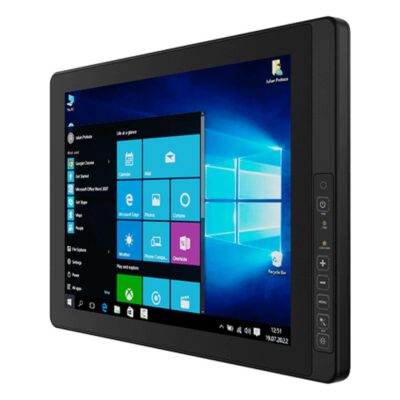

- IP Rating: IP67
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
- Certification: CE, FCC

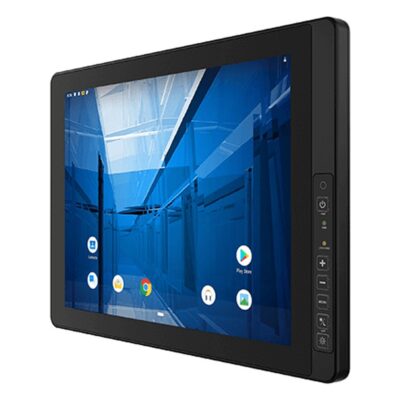

- IP Rating: IP67
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x Micro SD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount

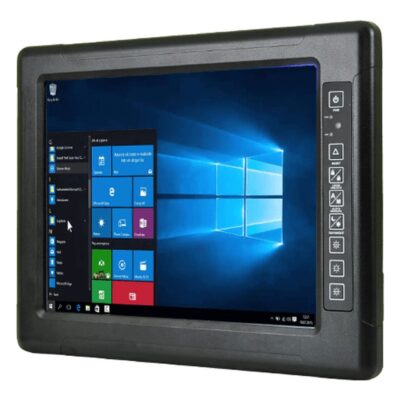

- IP Rating: IP67
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: 5-Wire Resistive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount

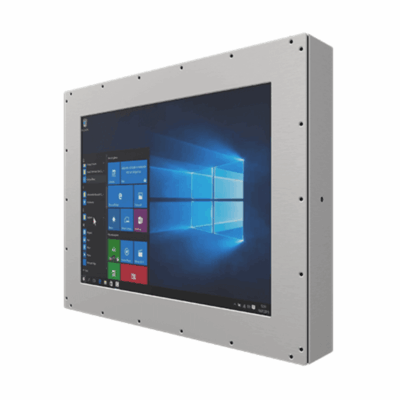

- IP Rating: IP67
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 1x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC

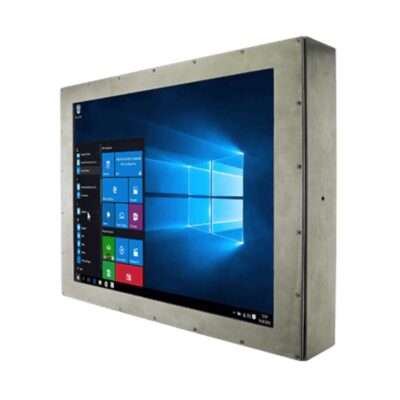

- IP Rating: IP67
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Touch: Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 2x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC

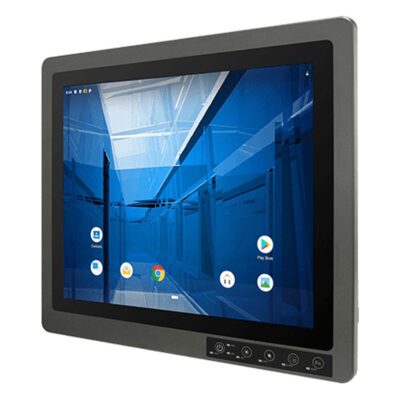

- IP Rating: IP67
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x Micro SD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount

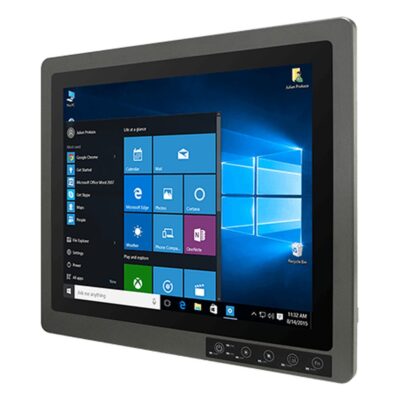

- IP Rating: IP67
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
- Certification: CE, FCC
- IP Rating: IP67
- Display: 19[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F]
- Certification: CE, FCC

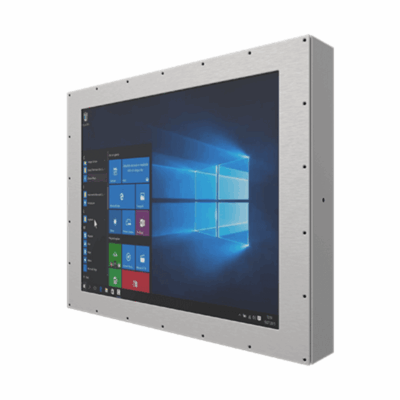

- IP Rating: IP67
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Resistive Touch
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 1x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC

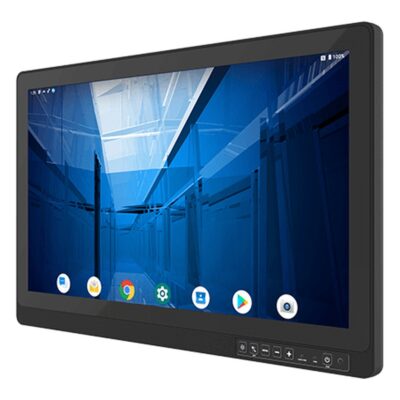

- IP Rating: IP67
- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x Micro SD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount

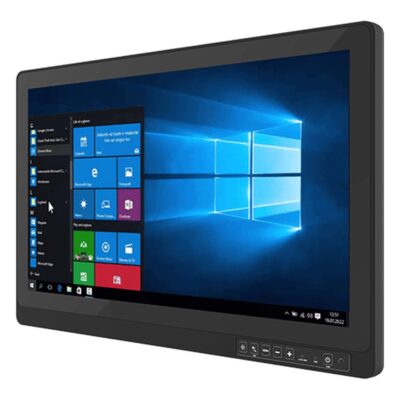

- IP Rating: IP67
- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
- Certification: CE, FCC
IP67 Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of immersion-rated HMIs, so the ranges below are the ones we specify for decks, vehicles and washdown positions. Compare them by material, brightness and processor, then browse the models above or ask a panel PC specialist which range suits your deck or line.
IE3S Winmate IP65 and IP67 Stainless Chassis Computers
Sealed stainless chassis PCs on Intel Celeron N6210 from 10.4 to 23.8 inches, rated IP65 or IP67 with M12 connectors, for wipe-down and immersion-risk positions.
Winmate G-WIN Full IP67 Rugged HMIs
Fully sealed IP67 rugged computers in 15 and 19 inch on Intel Celeron or Core i5, with high-bright screens and M12 connectors, for decks, vehicles and outdoor sites.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an IP67 HMI
Our panel PC specialists specify every IP67 panel PC against the water, the connectors and the light on the screen. These are the choices that decide whether an immersion-rated unit suits your deck or line, and the ones we work through with you before recommending a range.
Temporary Immersion
Protected against immersion to one meter for 30 minutes, where water pools or the unit is briefly submerged.
M12 Throughout
No open ports: every connector is sealed M12.
High-Bright Options
Sunlight-readable screens for decks, vehicles and outdoor sites.
Stainless Options
Stainless chassis builds for food and pharmaceutical washdown.
IP67 Panel PC Innovation & Immersion Insights
Speak to a Panel PC Specialist.
Tell us where the panel PC will be mounted, what it needs to run and connect to and the sealing the area needs, and we will recommend the right size and touch technology, then configure, image and test it before it ships.
