Winmate R19MG3S-67FTP(HB) 19″ Full IP67 Panel PC with 6-Core MediaTek Genio 510 and MIL-STD-810G
PCAP
High Bright
Linux
Wi-Fi
Fanless
CE
FCCR19MG3S-67FTP(HB) Overview

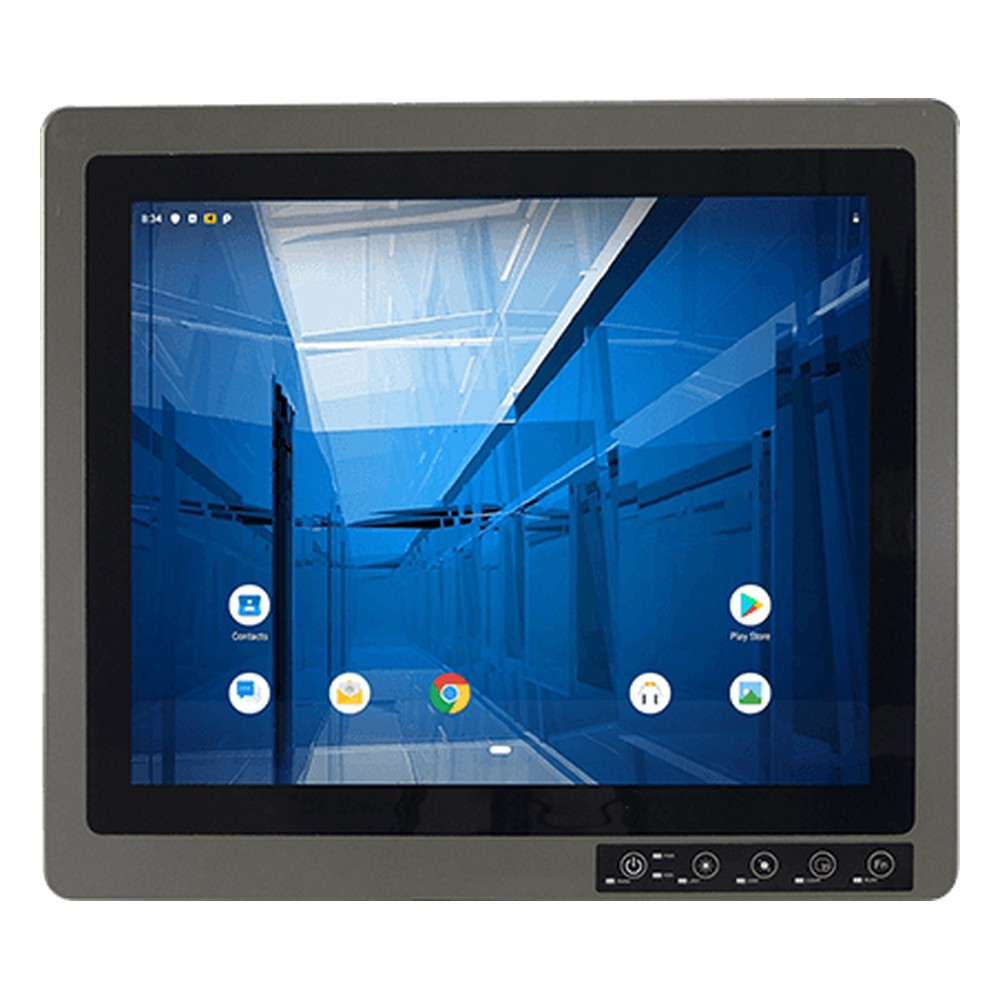

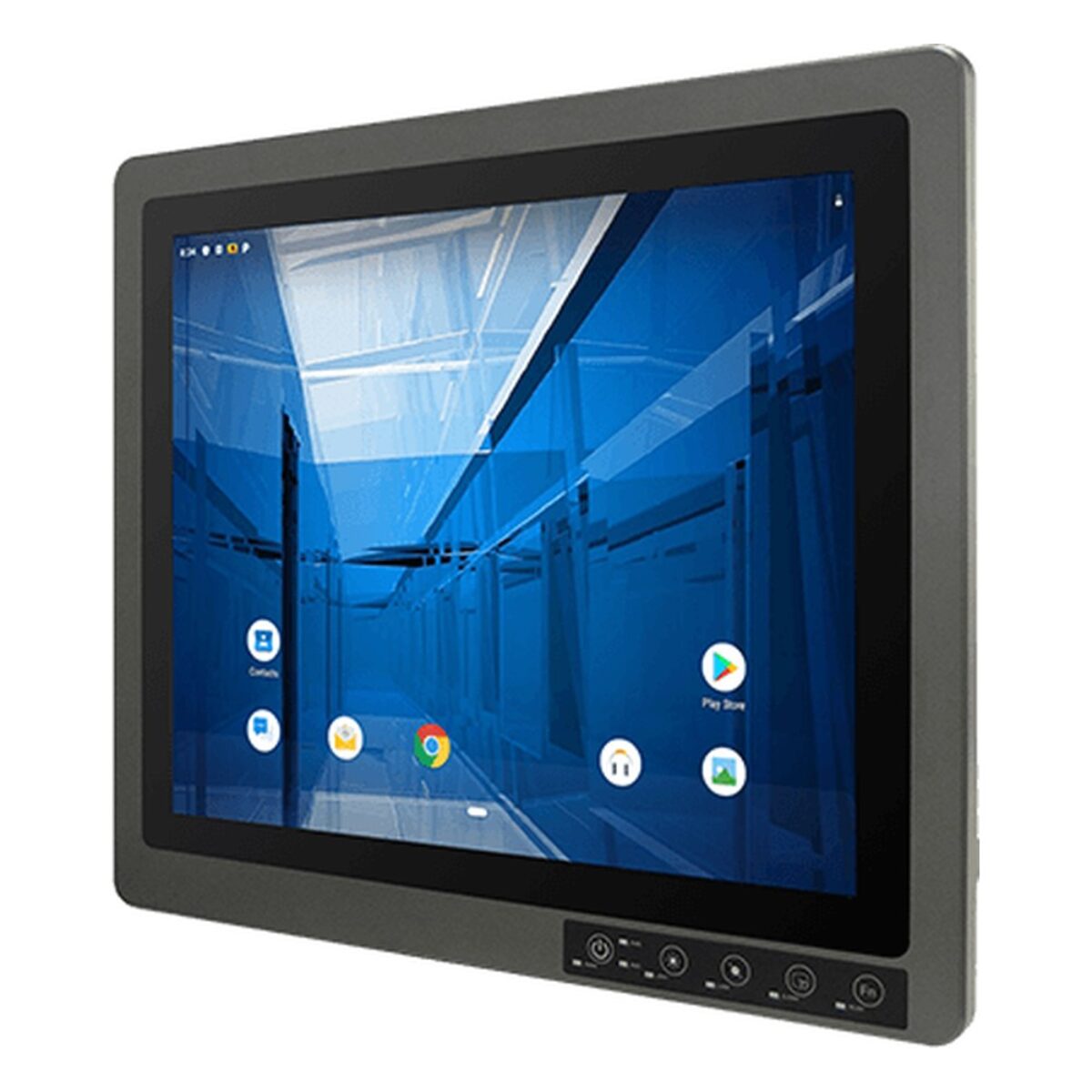

Process plants, water treatment sites and outdoor machinery need a large HMI that can be rained on and sprayed yet still read clearly. The R19MG3S-67FTP(HB) is Winmate’s 19 inch G-WIN panel PC for those sites: a fanless aluminum die-cast housing with anti-corrosion treatment, sealed to full IP67, around a 19″ 1280 x 1024 display at 1000 nits with 1000:1 contrast and 170 by 160 degree viewing angles.
The sunlight-viewable panel has projected capacitive multi-touch optically bonded to it for clarity, and the rugged front has an anti-impact design. Processing comes from a MediaTek Genio 510, a six-core Arm processor with two Cortex-A78 and four Cortex-A55 cores at 2.0 GHz, with 4 GB of LPDDR4, 32 GB of onboard storage and a Micro SD slot. Android 13 is the default operating system, with Yocto Linux (kernel 5.15.47 with Qt 5.15) or Ubuntu 22.04 as options. The low power draw lets the housing stay fanless and fully sealed.
Every connection is waterproof: 9 to 36 V DC power with isolation, two USB 2.0 ports and one RS-232 port on M12 connectors, and a waterproof Gigabit LAN RJ45 connector, plus a waterproof USB Type-A connector with cover. Wi-Fi and Bluetooth are optional. A button switches touch off for cleaning, the membrane keys can be locked by software and LEDs show status. Waterproof cables, caps and mounting clips are supplied. The R19IT3S-67FTP(HB) is the same 19 inch full IP67 design with an Intel Core i5-1135G7 and a 400 nit panel, and the R19IAD3S-67FTP(HB) takes the same housing with a 12th Gen Intel Core i5.
The unit operates from -10 °C to 55 °C, or -40 °C to 55 °C with the intelligent heater, stores from -30 °C to 70 °C and is tested to MIL-STD-810G Method 516.6 for shock and Method 514.6 for vibration. Ignition on/off delay is optional. It mounts in a panel with the clips supplied, or on VESA as an option and carries CE and FCC marks. We supply the R19MG3S-67FTP(HB) configured, with the OS installed, and tested before dispatch.
R19MG3S-67FTP(HB) Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19MG3S-67FTP(HB) |
| Features | Fanless Industrial M12 Connectors Rugged Waterproof |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Optical Bonding |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Performance | |
| Processor Series | Genio 510 |
| Processor Models | Genio 510 |
| Performance Cores | 6 Cores |
| Memory | 4GB Soldered On-board |
| Operating System | Android 13.0 Linux Ubuntu 22.04 |
| I/O | |
| Ethernet | 1x Ethernet Ports |
| 1x GbE LAN [RJ45] | |
| USB | 3x USB Ports |
| 1x USB 2.0 [Type A] 2x USB 2.0 [M12] | |
| Serial | 1x Serial Ports |
| 1x RS232 [M12] | |
| Expansion | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x Micro SD |
| Power | |
| Power Input | 9-36V DC Input [M12] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -10°C to 55°C [14°F to 131°F] -40°C to 55°C [-40°F to 131°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | IP67 IP67 [Dustproof, Protection against immersion in water up to 1 meter for 30 minutes] |
| Shock | MIL-STD-810G, Method 516.6, Procedure I |
| Vibration | MIL-STD-810G, Method 514.6 |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 9.8 Kg (21.6 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 474mm x 410mm x 111mm (18.66" x 16.14" x 4.37") |
| Mounting Options | VESA Mount |
- R19MG3S-67FTP(HB) Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19MG3S-67FTP(HB) configured, with the OS installed, and tested for USA outdoor and washdown projects. Within the Winmate range the R19IT3S-67FTP(HB) is the same 19 inch full IP67 design with an Intel Core i5-1135G7 and a 400 nit panel, and the R19IAD3S-67FTP(HB) takes the same housing with a 12th Gen Intel Core i5.
The R19MG3S-67FTP(HB) sits among our 19 inch panel PCs, our IP67 panel PCs and our marine computers. Where a large HMI is exposed on every side, needs a bright bonded screen and runs Android or Linux, this is a sensible model to shortlist.
