US Rack Mount Servers
Rugged and Industrial Servers for 19 Inch Racks
A rack mount server brings data-centre compute into a standard 19 inch rack at the edge: in a control room, a vehicle shelter, a ship or a factory, close to the cameras and machines it serves. Available as 2U and 4U rackmount servers and convertible towers, on Intel Core, Intel Xeon or AMD EPYC processors.
Options include fanless wide temperature servers, defense servers designed to MIL-STD-810G and MIL-STD-461 requirements with MIL-DTL-38999 connectors, and GPU servers with room for several double-width NVIDIA GPUs, suited to edge AI, video analytics, defense systems and industrial data processing.
Speak to a server specialist to match the processors, GPUs and environment to your rack.
Browse Our Rugged and Industrial Servers
- Mounting Options: 19" Rack Mount
- CPU: AMD EPYC 9004 Series Genoa, AMD EPYC 9005 Series Turin
- GPU / AI Accelerator: Discrete GPU (PCIe)
- GPU: NVIDIA RTX PRO 2000 Blackwell, NVIDIA RTX PRO 4000 Blackwell, NVIDIA RTX PRO 4000 Blackwell SFF, NVIDIA RTX PRO 4500 Blackwell, NVIDIA RTX PRO 5000 Blackwell, NVIDIA RTX PRO 6000 Blackwell Max-Q, NVIDIA RTX 2000 Ada, NVIDIA RTX 2000E Ada, NVIDIA RTX 4000 Ada, NVIDIA RTX 6000 Ada, NVIDIA RTX A4500, NVIDIA RTX A6000, NVIDIA L4, NVIDIA L20, NVIDIA L40S
- AI Performance: 142–3,511 TOPS
- Memory: 24x DDR5 6400MHz LONG-DIMM Slots, 3TB
- OS: Windows Server, Linux
- Display Outputs: 2x VGA
- Ethernet: 2x 10 GbE LAN [RJ45], 2x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 3x USB 3.0 [Type A]
- Serial: 1x RS232 [RJ45]
- M.2: 2x M.2 M-Key [PCIe] [2280]
- PCIe: 10x PCIe [x16 Slot] [x16 Signal] [Gen4], 2x PCIe [x8 Slot] [Gen5]
- Storage: 2x M.2 SSD, 8x 2.5" U.2 NVMe SSD
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- Power: 100-240V AC, AC Power Supply Included
- Temp: 0°C to 35°C [32°F to 95°F]
- Certification: CB, CE, FCC, RoHS, UL
- Mounting Options: 19" Rack Mount
- CPU: AMD EPYC 4004 Series, AMD EPYC 4005 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
- GPU / AI Accelerator: Discrete GPU (PCIe)
- Memory: 4x DDR5 5600MHz LONG-DIMM Slots, 192GB
- OS: Linux, Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 2x 10 GbE LAN [SFP+], 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 6x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 2x M.2 M-Key [PCIe x4] [2280]
- PCIe: 1x PCIe [x4 Slot], 1x PCIe [x4 Slot] [x1 Signal], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5]
- Storage: 1x 2.5" HDD/SSD, 1x 3.5" HDD/SSD, 2x M.2 SSD
- RAID: RAID 0, RAID 1
- Power: 115-230V AC [IEC C14], AC Power Supply Included
- Temp: 0°C to 35°C [32°F to 95°F]
- Mounting Options: 19" Rack Mount
- CPU: Intel Xeon 6 Series
- GPU / AI Accelerator: Discrete GPU (PCIe)
- GPU: NVIDIA RTX PRO 6000 Blackwell Server, NVIDIA H200 NVL
- AI Performance: 3,341–4,000 TOPS
- Memory: 32x DDR5 6400MHz LONG-DIMM Slots, 4TB
- Display Outputs: 1x VGA
- Ethernet: 2x 10 GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 1x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9]
- M.2: 2x M.2 M-Key [PCIe] [2280]
- PCIe: 7x PCIe [x16 Slot] [x16 Signal] [Gen5]
- Storage: 2x M.2 SSD, 8x E1.S NVMe SSD [PCIe Gen5]
- Front Accessible Storage: Front Accessible Storage
- Power: 100-240V AC, AC Power Supply Included
- Temp: 0°C to 35°C [32°F to 95°F]
- Mounting Options: 19" Rack Mount
- CPU: AMD EPYC 4004 Series, AMD EPYC 4005 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
- GPU / AI Accelerator: Discrete GPU (PCIe)
- Memory: 4x DDR5 5600MHz LONG-DIMM Slots, 192GB
- OS: Linux, Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 2x 10 GbE LAN [SFP+], 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 6x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 2x M.2 M-Key [PCIe x4] [2280]
- PCIe: 1x PCIe [x4 Slot], 1x PCIe [x4 Slot] [x1 Signal], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5]
- Storage: 2x 2.5" HDD/SSD, 2x M.2 SSD
- RAID: RAID 0, RAID 1
- Power: 115-230V AC [IEC C14], AC Power Supply Included
- Temp: 0°C to 35°C [32°F to 95°F]
- Mounting Options: 19" Rack Mount
- CPU: Intel Core 14th Gen Raptor Lake Refresh
- Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port, 1x Optional HDMI
- Ethernet: 2x 10 GbE LAN [SFP+], 4x 2.5 GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
- PCIe: 1x PCIe [x16 Slot]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD [SATA]
- Front Accessible Storage: Front Accessible Storage
- RAID: RAID 0, RAID 1
- Temp: -10°C to 60°C [14°F to 140°F]
- Certification: CE, FCC, IEC 61850-3
- Mounting Options: 19" Rack Mount
- CPU: Intel 3rd Gen Xeon Scalable Ice Lake-SP
- OS: Linux
- Display Outputs: 1x DVI, 1x HDMI, 1x VGA
- Ethernet: 2x GbE LAN [MIL-STD]
- USB: 2x USB 2.0 [MIL-STD]
- Serial: 1x RS232 [MIL-STD]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Mounting Options: 19" Rack Mount
- CPU: Intel 4th Gen Xeon Scalable Sapphire Rapids, Intel 5th Gen Xeon Scalable Emerald Rapids
- GPU / AI Accelerator: Discrete GPU (PCIe)
- GPU: NVIDIA RTX PRO 4000 Blackwell, NVIDIA RTX PRO 4500 Blackwell, NVIDIA RTX PRO 5000 Blackwell, NVIDIA RTX PRO 6000 Blackwell Server, NVIDIA RTX 4000 Ada, NVIDIA RTX 6000 Ada, NVIDIA L4, NVIDIA L20, NVIDIA L40S
- AI Performance: 428–4,000 TOPS
- Memory: 16x DDR5 4800MHz LONG-DIMM Slots, 2TB
- Display Outputs: 1x VGA
- Ethernet: 2x 10 GbE LAN [RJ45], 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9]
- M.2: 2x M.2 M-Key [PCIe/SATA] [2280/22110]
- PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5], 2x PCIe [x8 Slot] [Gen5], 4x PCIe [x16 Slot] [x16 Signal] [Gen5]
- Storage: 2x M.2 SSD, 8x 2.5" HDD/SSD [SAS/SATA/NVMe]
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- Power: 100-240V AC, AC Power Supply Included
- Temp: 0°C to 35°C [32°F to 95°F]
- Mounting Options: 19" Rack Mount
- CPU: AMD EPYC Embedded 8004 Series Siena
- GPU / AI Accelerator: Discrete GPU (PCIe)
- GPU: NVIDIA RTX PRO 2000 Blackwell, NVIDIA RTX PRO 4000 Blackwell, NVIDIA RTX PRO 4000 Blackwell SFF, NVIDIA RTX PRO 4500 Blackwell, NVIDIA RTX PRO 5000 Blackwell, NVIDIA RTX PRO 6000 Blackwell Max-Q, NVIDIA RTX 2000 Ada, NVIDIA RTX 2000E Ada, NVIDIA RTX 4000 Ada, NVIDIA RTX 6000 Ada, NVIDIA RTX A4500, NVIDIA RTX A6000, NVIDIA L4, NVIDIA L20, NVIDIA L40S
- AI Performance: 142–3,511 TOPS
- Memory: 6x DDR5 4800MHz LONG-DIMM Slots, 576GB
- Display Outputs: 1x VGA
- Ethernet: 2x 10 GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9]
- M.2: 2x M.2 M-Key [PCIe/SATA] [2280]
- PCIe: 2x PCIe [x16 Slot] [x16 Signal], 4x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal]
- Storage: 2x 2.5" HDD/SSD [SATA], 2x M.2 SSD
- Power: 100-240V AC, AC Power Supply Included
- Temp: 0°C to 40°C [32°F to 104°F]
- Mounting Options: Desktop, Wall Mount
-
LLM-1U-RPL-2E8-600W-DC
LLM-1U-RPL with two PCIe x8 Gen4 slots and redundant 600W DC power -
LLM-1U-RPL-1E16-600W-AC
LLM-1U-RPL with one PCIe x16 Gen4 GPU slot and redundant 600W AC power -
LLM-1U-RPL-1E16-600W-DC
LLM-1U-RPL with one PCIe x16 Gen4 GPU slot and redundant 600W DC power -
LLM-1U-RPL-2E8-600W-AC
LLM-1U-RPL with two PCIe x8 Gen4 slots and redundant 600W AC power
- Mounting Options: 19" Rack Mount
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- GPU / AI Accelerator: Discrete GPU (PCIe)
- GPU: RTX 4000 SFF Ada, RTX 4500 Ada, RTX 5000 Ada, RTX A1000, NVIDIA RTX PRO 2000 Blackwell, NVIDIA RTX PRO 4000 Blackwell, NVIDIA RTX PRO 4000 Blackwell SFF, NVIDIA RTX PRO 4500 Blackwell, NVIDIA RTX 2000 Ada, NVIDIA RTX 4000 Ada
- AI Performance: 54–1,617 TOPS
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x HDMI, 2x Display Port
- Ethernet: 3x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A], 6x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [Board], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- Storage: 2x 2.5" HDD/SSD, 2x M.2 SSD
- Hot Swappable Storage: Hot Swappable SSD Support
- RAID: RAID 0, RAID 1
- Ignition Sensing: Supports Ignition Control
- Temp: 0°C to 35°C [32°F to 95°F]
- Certification: IEC 62368-1, CB, CE, FCC, IC (ICES-003), UKCA, UL 62368-1
- PCIe: 2x PCIe [x8 Slot] [Gen4]
- Power: 36-72V DC Input
Rack Mount Server Ranges Configured by Things Embedded
We work with the leading manufacturers of edge and rugged servers, so the ranges below are the ones we specify for AI, defense and industrial racks. Compare them by processor, GPU capacity and environment, then browse the models above or ask a server specialist which range suits your rack.
Advantech SKY GPU Servers
2U, 4U and tower systems on Intel Xeon or AMD EPYC, with room for up to four double-width GPUs for AI and video workloads.

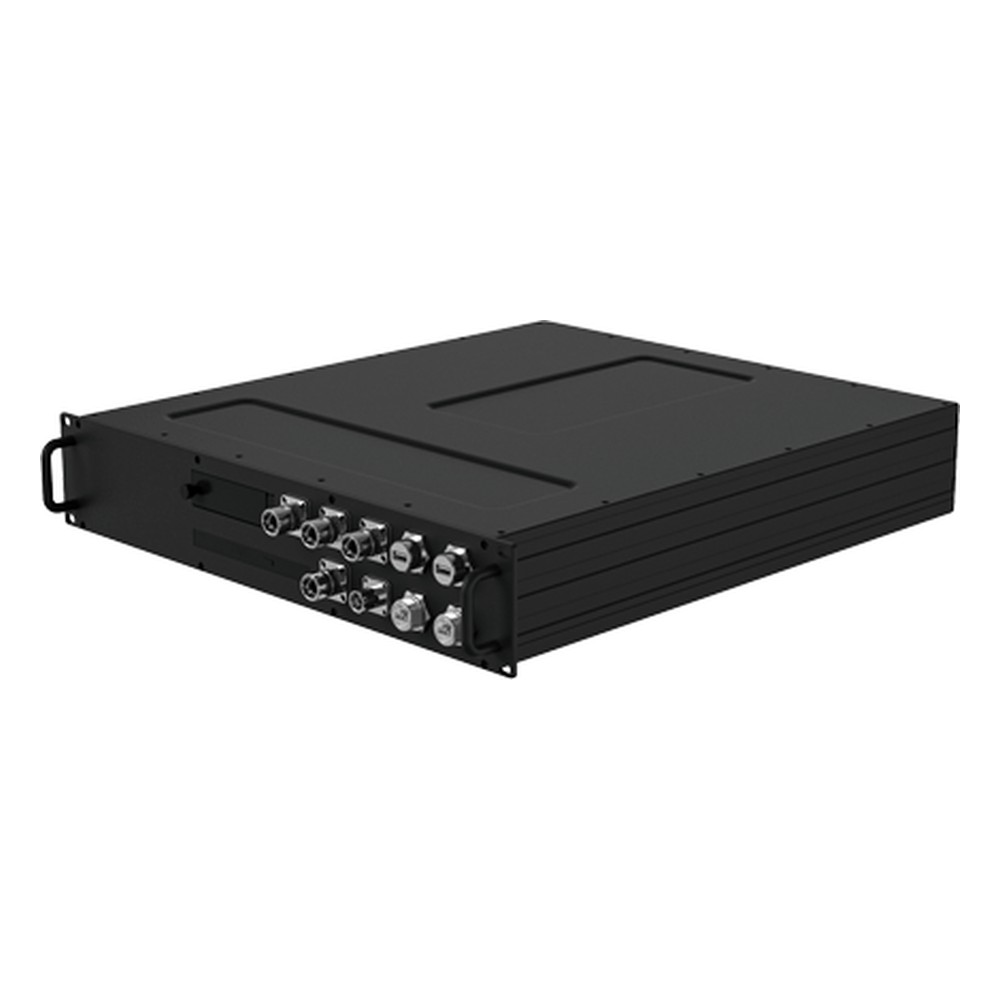

Winmate Rugged Rack Servers
2U defense and fanless machines on Intel Xeon Scalable or Intel Core, in MIL-STD-810G and wide temperature builds.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Rackmount Server
Our server specialists specify every rack server against the workload, the rack and the environment it runs in. These are the choices that decide whether the server suits the installation, and the ones we work through with you before recommending a range.
Processor
Intel Core for fanless builds, Intel Xeon or AMD EPYC for larger memory and core counts.
GPU Count and Power
Room for one to four double-width GPUs, sized to the AI workload and power budget.
Rack Units
2U and 4U chassis or convertible towers, matched to the rack space and cooling.
Server Airflow
Fanless or fan-cooled builds, rated for the room, shelter or vehicle temperature.
Military Standards
Defense builds designed to MIL-STD-810G and MIL-STD-461 requirements.
Storage and RAID
Removable drive bays and RAID options, listed per model.
Rack Mount Server Innovation & Edge Data Centre Insights
Speak to a Server Specialist.
Tell us where the system will be installed, the approvals it must meet and the interfaces you need to connect. We will recommend the right form factor, then configure, image and test it before it ships.
