US Railway Panel PCs
EN 50155 Touch Screen PCs for Driver Desks and Crew Terminals
Railway panel PCs put a sunlight-readable touch screen and a fanless computer in one sealed unit for driver desks, crew terminals and passenger information points, certified to EN 50155 for rolling stock. Available in 10.4, 12.1 and 15 inch formats with resistive touch and a front IP65 bezel, they fit the cab cut-out and run from the train supply.
Options include 800 to 1,000 nit panels with auto-dimming, lockable M12 connectors, 24 to 110 V DC input and operation down to -40°C, suited to driver machine interfaces, CCTV and passenger information and maintenance terminals where shock, vibration and power transients are part of every journey.
Speak to a rail computing specialist to match the size, brightness and approvals to your driver desk or saloon.
Browse Our Rolling Stock Touch Screen Computers
- Touch: 5-Wire Resistive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Atom E Series Bay Trail
- Memory: 4GB Soldered On-board
- OS: Windows 10
- Ethernet: 2x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- CANbus: 1x Isolated CANbus, DB9
- mPCIe: 2x mPCIe [SATA/USB/PCIe]
- Storage: 16GB eMMC, 1x mSATA
- Power: 24V-110V DC [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -30°C to 55°C [-22°F to 131°F]
- IP Rating: Front IP65
- Certification: CE, EN50121-3-2, EN50155, FCC
- Touch: 5-Wire Resistive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Atom E Series Bay Trail
- Memory: 4GB Soldered On-board
- OS: Windows 10
- Ethernet: 2x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- CANbus: 1x Isolated CANbus, DB9
- mPCIe: 2x mPCIe [SATA/USB/PCIe]
- Storage: 16GB eMMC, 1x mSATA
- Power: 24V-110V DC [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- IP Rating: Front IP65
- Certification: CE, EN50121-3-2, EN50155, FCC
- Touch: 5-Wire Resistive Touch
- Brightness: 800
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Atom E Series Bay Trail
- Memory: 4GB Soldered On-board
- OS: Windows 10
- Ethernet: 2x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- CANbus: 1x Isolated CANbus, DB9
- mPCIe: 2x mPCIe [SATA/USB/PCIe]
- Storage: 16GB eMMC, 1x mSATA
- Power: 24V-110V DC [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- IP Rating: Front IP65
- Certification: CE, EN50121-3-2, EN50155, FCC
- Touch: 5-Wire Resistive Touch
- Brightness: 800
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Atom E Series Bay Trail
- Memory: 4GB Soldered On-board
- OS: Windows 10
- Ethernet: 2x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- CANbus: 1x Isolated CANbus, DB9
- mPCIe: 2x mPCIe [SATA/USB/PCIe]
- Storage: 16GB eMMC, 1x mSATA
- Power: 24V-110V DC [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- IP Rating: Front IP65
- Certification: CE, EN50121-3-2, EN50155, FCC
- Touch: Optional 5-Wire Resistive Touch
- Brightness: 800
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Atom E Series Bay Trail
- Memory: 4GB Soldered On-board
- OS: Windows 10
- Ethernet: 2x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- CANbus: 1x Isolated CANbus, DB9
- mPCIe: 2x mPCIe [SATA/USB/PCIe]
- Storage: 16GB eMMC, 1x mSATA
- Power: 24V-110V DC [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 70°C [-13°F to 158°F]
- IP Rating: Front IP65
- Certification: CE, EN50155, FCC
Railway Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of EN 50155 HMIs, so the ranges below are the ones we specify for driver desks, crew terminals and passenger information. Compare them by size, brightness and approvals, then browse the models above or ask a panel PC specialist which range suits your driver desk.

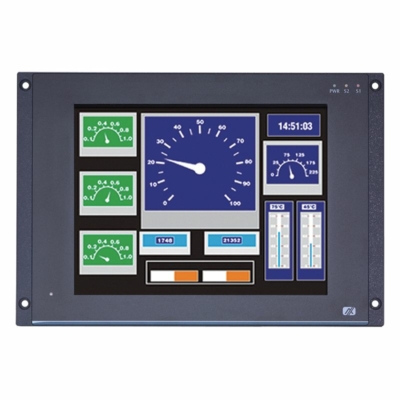

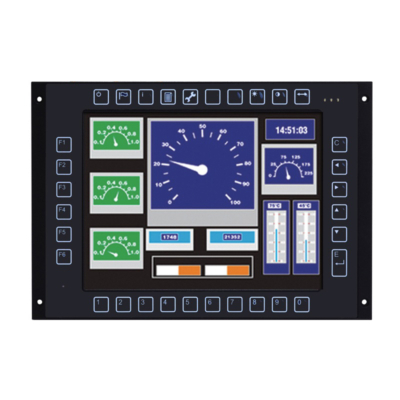

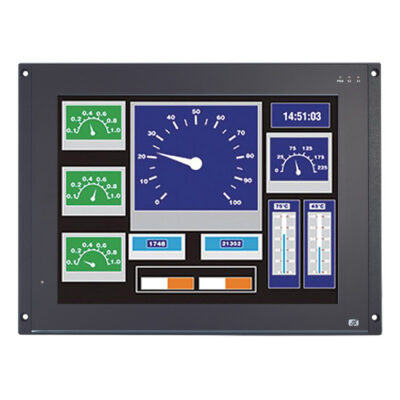

GOT700 Axiomtek EN 50155 Railway and Vehicle Computers
Fanless 10.4 to 15 inch cab computers on Intel Atom with resistive touch, a front IP65 bezel and M12 connectors, certified to EN 50155 for driver desks and crew terminals, plus a vehicle-mount variant.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Rolling Stock HMI
Our panel PC specialists specify every railway panel PC against the standards, the train supply and the light in the cab. These are the choices that decide whether an HMI suits rolling stock, and the ones we work through with you before recommending a range.
EN 50155
Certified for rolling stock: shock, vibration, temperature and power interruption.
24 to 110 V DC
Train supply input with protection against transients and brown-outs.
Auto-Dimming Screens
800 to 1,000 nit panels that adjust between tunnels and daylight.
Lockable M12
Screw-locking M12 connectors that stay seated under vibration.
Railway Panel PC Innovation & Rolling Stock Insights
Speak to a Rail Computing Specialist.
Tell us where the unit will be fitted, the standards it must meet and the interfaces you need to connect. We will recommend the right size and brightness, then configure, image and test it before it ships.
