US Industrial Motherboards
Embedded Motherboards and Industrial Boards by Form Factor
An industrial motherboard is built for a machine rather than a desk, with embedded processors, industrial I/O, power inputs that suit a cabinet or vehicle and typically a longer availability than a desktop board. Available in every common embedded form factor, from 1.8 inch Femto-ITX and 2.5 inch Pico-ITX boards through 3.5 inch SBCs and 4x4 NUC boards to Mini-ITX, Micro-ATX and ATX motherboards.
Options include socketed Intel Core processors with PCIe and PCI slots on the larger boards, low-power Atom, Celeron and AMD Ryzen Embedded processors on the compact ones, and extended-temperature, wide-range DC and fanless designs, suited to automation, medical, transport, security and self-service equipment.
Speak to an embedded motherboard specialist to match the form factor, processor and expansion to your enclosure.
Browse Our Embedded Motherboards
- CPU: AMD EPYC 4005 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
- Memory: 4x DDR5 5600MHz LONG-DIMM Slots, 256GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x USB Type C, 2x HDMI
- Ethernet: 1x GbE LAN [RJ45], 3x 2.5 GbE LAN [RJ45]
- USB: 7x USB 3.2 Gen 2 [Type A], 1x USB 3.2 Gen 2 [Board], 2x USB 2.0 [Type A], 6x USB 2.0 [Board]
- Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 4x RS232 [Board]
- M.2: 1x M.2 M-Key [PCIe x4 Gen4/USB 2.0] [2280/3042/25110]
- PCIe: 1x PCIe [x4 Slot] [Gen4], 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5], 4x PCIe [x1 Slot] [Gen4]
- Storage: 1x M.2 SSD, 4x SATA Ports
- RAID: RAID 0, RAID 1, RAID 10
- Power: ATX Power Supply [8+24 Pin]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC
- CPU: AMD EPYC 4005 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
- Memory: 4x DDR5 5600MHz LONG-DIMM Slots, 256GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 1x VGA, 2x HDMI
- Ethernet: 1x GbE LAN [RJ45], 4x 2.5 GbE LAN [RJ45]
- USB: 5x USB 2.0 [Board], 1x USB 2.0 [Type A], 1x USB 3.2 Gen 1 [Board], 6x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA/USB 2.0] [2230/2280/3042]
- PCIe: 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5], 2x PCIe [x4 Slot] [Gen4]
- Storage: 1x M.2 SSD, 2x SATA Ports
- RAID: RAID 0, RAID 1
- Power: ATX Power Supply [8+24 Pin]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC
- CPU: AMD EPYC 4005 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 4x Display Ports
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/USB 2.0] [2242/2280]
- PCIe: 1x PCIe [x16 Slot] [Gen5]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 12-28V DC [4-Pin Wafer/Barrel Connector]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC
- CPU: AMD EPYC 4005 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
- Memory: 2x DDR5 5200MHz LONG-DIMM Slots, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 3x Display Ports
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 2x USB 2.0 [Board], 6x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA/USB 2.0] [2242/2280]
- PCIe: 1x PCIe [x16 Slot] [Gen5]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: ATX Power Supply [4+24 Pin]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC
-
IMB-A8000V
IMB-A8000 with Ryzen 5 8640U, ECC DDR5, quad DisplayPort and 12-28V DC -
IMB-A8000M
IMB-A8000 with Ryzen 7 8840U, ECC DDR5, quad DisplayPort and 12-28V DC -
IMB-A8000P
IMB-A8000 with Ryzen 7 8845HS, ECC DDR5, quad DisplayPort and 12-28V DC -
IMB-A8000S
IMB-A8000 with Ryzen 5 8645HS, ECC DDR5, quad DisplayPort and 12-28V DC
- AI Performance: 16 TOPS
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 4x Display Ports
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 1x USB 3.2 Gen 2 [Type A], 3x USB 2.0 [Board], 3x USB 3.2 Gen 1 [Type A]
- Serial: 1x ccTalk [Board], 2x RS232/422/485 [DB9], 3x RS232 [Board]
- M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen3/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280]
- PCIe: 1x PCIe [x8 Slot][Gen4]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 12-28V DC [4-Pin Wafer/Barrel Connector]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: AMD Ryzen Embedded 8000 Series, AMD Ryzen PRO 8000 Series
- CPU: Intel Processor N Series Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9], 2x RS232 [Board], 3x RS232 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1/SATA] [2242/2280]
- PCIe: 1x PCIe [x1 Slot] [Gen3]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Processor N Series Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 2x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [Board], 2x RS232/422/485 [Board]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x1 Gen3/USB 2.0] [2242/2260/2280], 1x M.2 M-Key [PCIe x1/SATA] [2242/2280]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [Barrel Connector]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Processor N Series Twin Lake
- Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9], 2x RS232 [Board], 3x RS232 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1/SATA] [2242/2280]
- PCIe: 1x PCIe [x1 Slot] [Gen3]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Processor N Series Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 1x VGA, 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 3x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9], 2x RS232 [DB9], 3x RS232 [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen3/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1 Gen3/SATA] [2280/3052]
- PCIe: 1x PCIe [x1 Slot] [Gen3]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 9-28V DC [4-Pin], ATX Power Supply [4+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Processor N Series Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 3x USB 3.2 Gen 2 [Type A], 4x USB 2.0 [Board]
- Serial: 1x RS232/422/485 [Board], 3x RS232 [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen3/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1 Gen3/SATA] [2280/3052]
- PCIe: 1x PCIe [x1 Slot] [Gen3]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 9-28V DC [Barrel Connector]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Processor N Series Twin Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 1x VGA, 2x HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 3.2 Gen 1 [Board], 2x USB 3.2 Gen 1 [Type A], 3x USB 2.0 [Type A]
- Serial: 3x RS232 [Board], 3x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1 Gen3/SATA] [2242/2260/2280]
- PCIe: 1x PCIe [x1 Slot] [Gen3]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12-28V DC [4-Pin], ATX Power Supply [4+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- CPU: Intel Core Series 3 Wildcat Lake
- Memory: 1x DDR5 6400MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 1x USB Type C, 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [Board], 3x RS232 [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1 Gen4] [2280/3052]
- PCIe: 1x PCIe [x1 Slot] [Gen4]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 9-28V DC [Barrel Connector]
- Temp: -20°C to 70°C [-4°F to 158°F]
- CPU: Intel Core Series 3 Wildcat Lake
- Memory: 1x DDR5 6400MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 1x USB Type C, 2x HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A], 4x USB 2.0 [Board]
- Serial: 1x RS232/422/485 [DB9], 2x RS232 [DB9], 3x RS232 [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1 Gen4] [2242/2280/3052]
- PCIe: 1x PCIe [x1 Slot] [Gen4]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 9-28V DC [4-Pin], ATX Power Supply [4+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core Ultra Series 3 Panther Lake
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 2x HDMI, 2x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2x2 [Type C], 1x USB 3.2 Gen 2 [Type A], 2x USB 2.0 [Board], 3x USB 3.2 Gen 1 [Type A]
- Serial: 3x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [USB/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280/22110], 1x M.2 M-Key [PCIe x4 Gen5/USB 2.0] [2242/2280]
- Storage: 2x M.2 SSD, 2x SATA Ports
- RAID: RAID 0, RAID 1
- Power: 12-28V DC [4-Pin], 12-28V DC [Barrel Connector]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- AI Performance: 47 TOPS
- Memory: 2x DDR5 6400MHz SO-DIMM Slot, 128GB
- CPU: AMD Ryzen AI 300 Series Krackan Point
- GPU / AI Accelerator: AMD Ryzen AI NPU
- AI Performance: 50 TOPS
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI, 2x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type A], 2x USB 2.0 [Board], 2x USB 3.2 Gen 1 [Type A], 2x USB 4 [Type C]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280], 1x M.2 M-Key [PCIe x4 Gen4] [2242]
- Storage: 2x M.2 SSD
- Power: 12-24V DC [Barrel Connector]
- Temp: 0°C to 70°C [32°F to 158°F]
- Certification: CE, FCC
Industrial Motherboard Ranges Configured by Things Embedded
We work with the leading manufacturers of industrial motherboards and embedded boards, so the ranges below are the ones we specify for industrial PCs, machines and OEM enclosures. Compare them by form factor, processor and expansion, then browse the models above or ask an embedded board specialist which range suits your system.
PCSF51 DFI 1.8" Femto-ITX SBCs
AMD Ryzen Embedded R2000 boards on the Femto-ITX footprint, for handheld and compact controller designs.
AL051, AL053 and AL05P DFI Pico-ITX Boards
Intel Atom E3900, Pentium N4200 and Celeron N3350 single board computers, including the PoE-powered AL05P.
WL051 and WL053 DFI 2.5" Core SBCs
8th Gen Intel Core Whiskey Lake processors on a Pico-ITX board, with Celeron options, for compact designs that need Core-level compute.
EHL556 DFI 3.5" Elkhart Lake SBCs
Intel Atom x6000E and Celeron Elkhart Lake boards in the 3.5 inch format.
GH551 DFI AMD Ryzen Embedded 3.5" SBCs
Ryzen Embedded V1000 and R-series processors with Radeon graphics on a 3.5 inch board.
KU551 DFI 7th Gen Core 3.5" SBCs
7th Gen Intel Core U-series and Celeron processors on a 3.5 inch board.
WL551 DFI 8th Gen Core 3.5" SBCs
8th Gen Intel Core Whiskey Lake U-series processors on a 3.5 inch board.
EHL171 and EHL173 DFI Elkhart Lake Mini-ITX Boards
Intel Atom x6000E and Celeron Mini-ITX motherboards, the EHL173 with a wide-range DC input for vehicle and cabinet power.
ATHENA, HELIOS, SATURN and GEMINI Diamond Systems PC/104 SBCs
PC/104, PC/104-Plus and PCIe/104 stackable boards with integrated data acquisition for rugged systems.
WCL051 DFI Wildcat Lake Pico-ITX Boards
Intel Core Series 3 Wildcat Lake processors on the Pico-ITX board with dual 2.5GbE, HDMI and LVDS.
TWLF51 DFI Femto-ITX SBCs
Intel Twin Lake, Alder Lake-N and Amston Lake processors on the Femto-ITX footprint with 8 GB memory down and 64 GB eMMC.
ADN253 DFI Alder Lake-N 4" SBCs
Intel N97, Core i3-N305 and Atom x7000E processors on a 4 inch board with six COM ports and 9 to 36 V DC input.
ADP253 DFI 12th Gen Core 4" SBCs
12th Gen Intel Core and Celeron processors on a 4 inch board with quad display, six COM ports and wide-range DC input.
ADN553 DFI Alder Lake-N 3.5" SBCs
Intel N-series and Atom x7000E processors on a 3.5 inch board with triple 2.5GbE and 9 to 36 V DC input.
RPP051 DFI 13th Gen Core Pico-ITX SBCs
13th Gen Intel Core and Intel Processor U300E on a Pico-ITX board, with wide and extended temperature builds.
ADS101 and ADS103 DFI LGA1700 Thin Mini-ITX Boards
12th to 14th Gen Intel Core and Bartlett Lake processors on Thin Mini-ITX boards with R680E, Q670E or H610E chipsets.
ADS106 DFI LGA1700 Mini-ITX Boards
12th to 14th Gen Intel Core and Bartlett Lake processors on a Mini-ITX board with a PCIe x16 slot and 12 V or wide-range DC input.
RPS310 and RPS330 DFI LGA1700 Micro-ATX Boards
12th to 14th Gen Intel Core processors on Micro-ATX boards with up to four 2.5GbE ports and six COM ports.
RPS630 and RPS631 DFI LGA1700 ATX Boards
12th to 14th Gen Intel Core processors on ATX boards with PCIe and legacy PCI slots for existing cards.
RNO171 DFI Ryzen Embedded V2000 Mini-ITX Boards
AMD Ryzen Embedded V2000 processors on a Mini-ITX board with quad display and dual GbE.
AL171 and AL173 DFI Apollo Lake Mini-ITX Boards
Intel Atom E3900 and Pentium N4200 processors on Mini-ITX boards with 12 V or 15 to 36 V input and -40 to 85 °C builds.
ASL051 DFI Amston Lake Pico-ITX SBCs
Intel Atom x7000RE, N-series and Core i3 processors on a Pico-ITX board with dual 2.5GbE, HDMI and LVDS.
ASL171 and ASL173 DFI Amston Lake Mini-ITX Boards
Intel Atom x7000RE and N150 processors on Mini-ITX boards with dual 2.5GbE, 12 V or 9 to 36 V input and -40 to 85 °C builds.
ASL253 DFI Amston Lake 4" SBCs
Intel Atom x7000RE processors on a 4 inch board with six COM ports and -40 to 80 °C operation.
ASL553 DFI Amston Lake 3.5" SBCs
Intel Atom x7000RE processors on a 3.5 inch board with triple 2.5GbE, 9 to 36 V DC input and -40 to 85 °C operation.
ADN171 and ADN173 DFI Alder Lake-N Mini-ITX Boards
Intel N100, N97, Core i3-N305 and Atom x7000E processors on Mini-ITX boards with dual 2.5GbE and 12 V or 9 to 36 V input.
IRN556 DFI Amston Lake and Twin Lake 3.5" SBCs
Intel Atom x7000RE, N150 and Core 3 N355 processors on a 3.5 inch board with dual GbE and 9 to 36 V DC input.
MTH253 DFI Core Ultra 4" SBCs
Intel Core Ultra Meteor Lake processors on a 4 inch board with memory down, six COM ports and 9 to 36 V DC input.
MTH556 DFI Core Ultra 3.5" SBCs
Intel Core Ultra Meteor Lake and Arrow Lake processors on a 3.5 inch board with dual 2.5GbE and 9 to 36 V DC input.
PTH171 and PTH173 DFI Panther Lake Mini-ITX Boards
Intel Core Ultra Panther Lake processors on Mini-ITX boards with triple 2.5GbE and a PCIe Gen5 x4 slot on the wide-temperature builds.
RPP171 and RPP173 DFI 13th Gen Core Mini-ITX Boards
13th Gen Intel Core and Processor U300E on Mini-ITX boards with triple 2.5GbE and 12 V or 9 to 36 V input.
ADS310 and ADS630 DFI LGA1700 Micro-ATX and ATX Boards
12th to 14th Gen Intel Core and Bartlett Lake processors with PCIe Gen5 x16 and optional dual 10GbE.
RPS100, RPS101 and RPS103 DFI LGA1700 Mini-ITX Boards
12th to 14th Gen Intel Core processors on Mini-ITX and Thin Mini-ITX boards with dual 2.5GbE.
RPS183 DFI LGA1700 Mini-ITX Board with MXM
12th to 14th Gen Intel Core and Bartlett Lake processors on a Mini-ITX board with an MXM graphics slot and 19 to 24 V input.
BTS610 DFI Bartlett Lake ATX Boards
Intel Bartlett Lake and 12th to 14th Gen Core processors on an ATX board with W680, R680E or Q670E and four LAN ports.
ARS101 and ARS103 DFI LGA1851 Thin Mini-ITX Boards
Intel Core Ultra 200S Arrow Lake-S processors on Thin Mini-ITX boards with W880, Q870 or H810 chipsets.
ARS310 and ARS630 DFI LGA1851 Micro-ATX and ATX Boards
Intel Core Ultra 200S processors with PCIe Gen5, optional dual 10GbE on the W880 Micro-ATX build and up to four 2.5GbE.
ARH171 and ARH173 DFI Core Ultra Mini-ITX Boards
Intel Core Ultra Arrow Lake and Meteor Lake H and U processors on Mini-ITX boards with triple 2.5GbE.
GH171 DFI Ryzen Embedded Mini-ITX Boards
AMD Ryzen Embedded V1000, R1000 and R2000 processors on a Mini-ITX board with dual GbE and up to four displays.
GHF51 DFI Ryzen Embedded 1.8" Femto-ITX SBCs
AMD Ryzen Embedded R1000 processors on the Femto-ITX footprint with memory down and 64 GB eMMC.
HPT171 and HPT193 DFI Ryzen 8000 Mini-ITX Boards
AMD Ryzen 8000 Hawk Point processors on Mini-ITX boards with dual 2.5GbE and up to four displays.
HPT253 DFI Ryzen 8000 4" SBCs
AMD Ryzen 8000 processors on a 4 inch board with three LAN ports and 9 to 36 V DC input.
RAP310 DFI AMD AM5 Micro-ATX Board
AMD Ryzen 9000 and 7000 processors on an AM5 Micro-ATX board with the B650 chipset and dual 2.5GbE.
EHL051 DFI Elkhart Lake Pico-ITX SBCs
Intel Atom x6000 and Celeron processors on a Pico-ITX board with dual GbE and -40 to 85 °C builds.
EHL253 DFI Elkhart Lake 4" SBCs
Intel Atom x6425RE and Celeron J6412 on a 4 inch board with up to four LAN ports and 9 to 36 V DC input.
TGU171 and TGU173 DFI Tiger Lake Mini-ITX Boards
11th Gen Intel Core Tiger Lake processors on Mini-ITX boards with triple LAN and 12 V or 9 to 36 V input.
CMS100, CMS101 and CMS103 DFI 10th Gen Core Mini-ITX Boards
10th Gen Intel Core and Xeon W processors on Mini-ITX and Thin Mini-ITX boards with W480E, Q470E or H420E chipsets.
CMS171 and CMS173 DFI 10th Gen Core Mini-ITX Boards
10th Gen Intel Core processors on Q470E Mini-ITX boards with 12 V or 15 to 36 V input.
CMS310 and CMS330 DFI 10th Gen Core Micro-ATX Boards
10th Gen Intel Core and Xeon W processors on Micro-ATX boards with W480E, Q470E or H420E chipsets.
CMS630, CMS631 and CMS632 DFI 10th Gen Core ATX Boards
10th Gen Intel Core and Xeon W processors on ATX boards with seven expansion slots.
AL170 DFI Apollo Lake Mini-ITX Boards
Intel Atom E3900, Pentium N4200 and Celeron N3350 on a Mini-ITX board with dual GbE and -40 to 85 °C builds.
AL253 DFI Apollo Lake 4" SBCs
Intel Atom E3900 and Pentium N4200 on a 4 inch board with four GbE ports and 9 to 36 V DC input.
AL551 and AL553 DFI Apollo Lake 3.5" SBCs
Intel Atom E3900, Pentium N4200 and Celeron N3350 on 3.5 inch boards with dual GbE and extended temperature builds.
ALF51 DFI Apollo Lake 1.8" Femto-ITX SBCs
Intel Atom E3900 and Celeron N3350 on the Femto-ITX footprint with memory down, 64 GB eMMC and extended temperature builds.
WL171 and WL173 DFI Whiskey Lake Mini-ITX Boards
8th Gen Intel Core Whiskey Lake processors on Mini-ITX boards with dual GbE and 12 V or 9 to 36 V input.
CS551 DFI Coffee Lake 3.5" SBCs
8th and 9th Gen Intel Core T-series processors on a socketed 3.5 inch board with C246, Q370 or H310 chipsets.
CS100, CS101 and CS103 DFI Coffee Lake Mini-ITX Boards
8th and 9th Gen Intel Core processors on Mini-ITX and Thin Mini-ITX boards with H310, Q370 or C246 chipsets.
CS170 and CS181 DFI Coffee Lake Mini-ITX Boards
8th and 9th Gen Intel Core processors on Mini-ITX boards, with an MXM slot and four LAN ports on the CS181.
CS330, CS331, CS332 and CS350 DFI Coffee Lake Micro-ATX Boards
8th and 9th Gen Intel Core and Xeon E processors on Micro-ATX boards with H310, Q370 or C246 chipsets.
CS630, CS631, CS632 and CS650 DFI Coffee Lake ATX Boards
8th and 9th Gen Intel Core and Xeon E processors on ATX boards with PCIe and PCI expansion.
QCS051 DFI Qualcomm Pico-ITX SBCs
Qualcomm Dragonwing QCS6490 and QCS5430 on a 2.5 inch board with 128 GB UFS, CAN FD and up to 12 TOPS of AI performance.
QRB551 DFI Qualcomm QRB5165 3.5" SBC
The eight-core Qualcomm QRB5165 robotics processor on a 3.5 inch board with 8 GB LPDDR5 and 128 GB UFS.
M8MP553 DFI NXP i.MX 8M Plus 3.5" SBCs
NXP i.MX 8M Plus dual and quad-core processors on a 3.5 inch board with 9 to 36 V DC input and wide temperature builds.

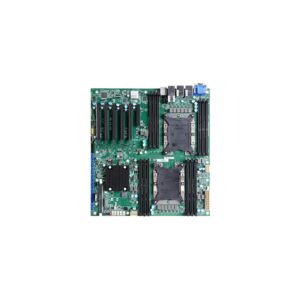

PR610 to PR811 and ICX610 DFI Xeon Scalable Server Boards
Single-socket ATX and dual-socket EATX boards for 1st to 3rd Gen Xeon Scalable on C621, C621A or C622, with registered ECC memory and optional IPMI.
SBC-250 to SBC-266 ASRock Industrial 3.5" SBCs
3.5 inch boards on Elkhart Lake Celeron and Pentium, Intel N97 and N150, or a wide temperature Atom x7433RE, with triple display and wide-range DC input on many.
SBC-370, SBC-371 and SBC-372 ASRock Industrial 3.5" Core SBCs
12th Gen Alder Lake and 13th Gen Raptor Lake Intel Core processors on a 3.5 inch board, with DDR5 on the SBC-372.
NUC and 4X4 ASRock Industrial 4x4 Motherboards
4x4 inch boards on 13th Gen Raptor Lake-P, Elkhart Lake and Core Ultra 200H or 300, or AMD Ryzen 7000U and Ryzen AI 300 with an NPU.
IMB ASRock Industrial Mini-ITX and AM5 Motherboards
Mini-ITX boards from Intel N97 to 14th Gen, Core Ultra and Ryzen 8000, plus AM5 ATX and Micro-ATX boards for Ryzen 9000 and EPYC 4005.
IMB ASRock Industrial ATX and Micro-ATX Motherboards
Socketed 12th and 13th Gen Intel Core boards on Q670, H610 and W680 chipsets, with PCI, PCIe Gen 5 and 2.5GbE PoE options.
EZX-EHLP Avalue 1.8" Elkhart Lake Boards
Intel Atom and Celeron Elkhart Lake processors on a 1.8 inch board with dual display and M.2 Key-B expansion.
EPX-EHLP Avalue Pico-ITX Boards
Elkhart Lake Atom and Celeron boards with dual 2.5GbE and triple display.
ECM-EHL and ECM-EHL3 Avalue 3.5" Elkhart Lake Boards
Atom and Celeron Elkhart Lake boards with triple display and dual 2.5GbE, or triple LAN and triple M.2 expansion.
ECM-TGU Avalue 3.5" 11th Gen Core Boards
11th Gen Intel Core Tiger Lake and Celeron processors with up to quad display and triple M.2 expansion.
EMX-PTLP and EMX-MTLP Avalue Core Ultra Thin Mini-ITX Boards
Intel Core Ultra Panther Lake and Meteor Lake processors on Thin Mini-ITX boards with four independent displays and four M.2 slots.
EMX-RLUC Avalue 13th Gen Core Thin Mini-ITX Board
The 13th Gen Intel Core i5-1335U on a Thin Mini-ITX board with dual GbE, triple display and six COM ports.
EMX-TWLP and EMX-ASLP Avalue Twin Lake and Amston Lake Thin Mini-ITX Boards
Intel N150, N250, Core 3 N355, N97 and Atom x7433RE on Thin Mini-ITX boards with dual 2.5GbE and 12 to 24 V DC input.
EMX-EHLP and EMX-APLP Avalue Elkhart Lake and Apollo Lake Thin Mini-ITX Boards
Intel Atom x6000 and Celeron Elkhart Lake boards with up to four 2.5GbE ports, and a Celeron J3455 Apollo Lake board.
MX610HD Avalue LGA1700 Thin Mini-ITX Board
12th to 14th Gen Intel Core processors in an LGA 1700 socket on a Thin Mini-ITX board with the H610E chipset and a PCIe x16 slot.
EPX-TWLP and EPX-ASLP Avalue Twin Lake and Amston Lake Pico-ITX Boards
Intel N150, N250, N97 and Atom x7433RE on Pico-ITX boards with dual 2.5GbE, triple display and extended temperature on the x7433RE.
EPX-APLP Avalue Apollo Lake Pico-ITX Boards
Intel Celeron N3350 and J3455 Apollo Lake processors on a Pico-ITX board with dual 2.5GbE and triple display.
EPI-ARLS Avalue LGA1851 4" EPIC SBCs
Intel Core Ultra 200S T-series processors in an LGA 1851 socket on a 4 inch board with Q870 or H810 chipsets.
ACP-3566-PI and ACP-IMX8-PI Avalue Raspberry Pi Format SBCs
Rockchip RK3566 and NXP i.MX 8M Mini boards in the Raspberry Pi footprint, with eMMC on board for industrial use.
ACP-3588 and ACP-Q6490 Avalue Rockchip and Qualcomm SBCs
The eight-core Rockchip RK3588 with dual HDMI, LVDS and eDP, and the Qualcomm QCS6490 on a 2.5 inch board with a 12 TOPS NPU.
ACP-IMX6POS Avalue NXP i.MX 6 SBCs
NXP i.MX 6Quad and 6DualLite boards with 12 to 24 V DC input for point-of-sale terminals and long-life HMIs.
RSC-3568J and RSC-3576J Avalue Rockchip 3.5" SBCs
Industrial Rockchip RK3568J and RK3576J processors on 3.5 inch boards with dual GbE and -40 to 85 °C operation on the RK3576J.
RSC-IMX61 and RSC-IMX8M Avalue NXP i.MX 3.5" SBCs
NXP i.MX 6 and i.MX 8M Quad processors on 3.5 inch boards with wide DC input and wide temperature builds.
EBC 357 and EBC 358 Nexcom 3.5" Embedded Boards
Apollo Lake and Elkhart Lake Atom boards with triple display, including X versions for -40 °C operation.
X100 to X314 Nexcom 3.5" SBCs
Celeron J3455, Alder Lake-N N97 and N50, 11th Gen Core and 6th Gen Core processors on a 3.5 inch board.
X300 to X304 and V1000 Nexcom Mini-ITX Boards
8th to 13th Gen Intel Core, 11th Gen Tiger Lake and AMD Ryzen Embedded V1605B motherboards with triple or quad display.
JASPER, VENUS and PC/104 Diamond Systems Rugged SBCs
Rugged COM Express Type 6 and conduction-cooled boards, plus PC/104 SBCs on Vortex86DX and Atom E3845, with digital I/O or data acquisition built in.
CAPA13 Axiomtek AMD Ryzen Embedded 3.5" Boards
Ryzen Embedded V1807B and V1605B processors on a 3.5 inch board, including fanless CAPA13R versions.
CAPA520 and CAPA55R Axiomtek 3.5" Core Boards
Socketed 8th and 9th Gen Intel Core LGA1151 or 11th Gen Tiger Lake processors on a 3.5 inch board.
CT-NR101 Premio 1.8" Femto-ITX SBC
An AMD Ryzen Embedded R1606G processor on a Femto-ITX board.
CT-DR101, CT-DWL01 and CT-DBT Premio 3.5" SBCs
AMD Ryzen Embedded V1000 and R1000, 8th Gen Intel Core Whiskey Lake or Celeron J1900 processors on a 3.5 inch board.
EPBC Vecow Pico-ITX Boards
Intel Atom Elkhart Lake and Amston Lake processors on Pico-ITX board.
EMBC-5000 and EMBC-7000 Vecow 3.5" Boards
11th Gen Intel Core Tiger Lake and Core Ultra Series 1 processors on a 3.5 inch industrial board.
IB2-281 Giada Alder Lake-N Pico-ITX SBCs
Intel N100 and Atom x7211E on Pico-ITX board with 2.5GbE, HDMI and LVDS.
IB3-281 and EN-J6412DL Giada 3.5" SBCs
Intel N97, Atom x7211E and Celeron J6412 on 3.5 inch boards with DisplayPort, HDMI and LVDS and 12 to 24 V DC input.
CB5-108 Giada Ryzen 8000 Mini-ITX Board
The eight-core AMD Ryzen 7 8845HS on a Mini-ITX board with four DisplayPort outputs and ccTalk headers for gaming and payment devices.
SMB-2615 Sintrones 3.5" SBCs
A 3.5 inch board on Intel N150, N355 or Atom x7433RE, with dual 2.5GbE, 4x COM and extended temperature operation.
FLYC-300 Neousys Drone Companion Computers
A board-level NVIDIA Jetson Orin NX 8GB computer with 2x GMSL2 camera inputs, sized for UAV payload bays and onboard inference.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an Embedded Board
Our embedded board specialists specify every embedded board against the enclosure, the software and the years the design has to stay in production. These are the choices we work through with you before recommending a range.
Form Factor
Start from the enclosure: 1.8 inch and Pico-ITX for handheld and slim designs, 3.5 inch and 4x4 for compact boxes, Mini-ITX and ATX for add-in cards.
Processor and Socket
Soldered low-power processors for fanless builds, or socketed Intel Core on Mini-ITX and ATX boards where the CPU may change.
Expansion Slots
PCIe and legacy PCI slots on the larger boards, M.2 and Mini PCIe on the compact ones, for storage, wireless and I/O cards.
Displays
Triple and quad 4K outputs on newer Intel Core and AMD Ryzen Embedded boards drive multi-screen HMIs and signage.
Power Input
Wide-range DC inputs, 12 V-only designs or ATX supplies: match the board to the power available in the cabinet or vehicle.
Operating Temperature
Extended-temperature boards rated from -40 °C for outdoor, vehicle and sealed installations.
Industrial Motherboard Innovation & Embedded System Insights
Speak to an Industrial Motherboard Specialist.
Tell us what the board will go into, the interfaces you need to connect and how long the design must stay in production. We will recommend the right form factor and processor, then configure and test it before it ships.
