Giada CB5-108 AMD Ryzen 7 8845HS Industrial Mini-ITX Motherboard with Dual GbE, Quad DisplayPort and ccTalk

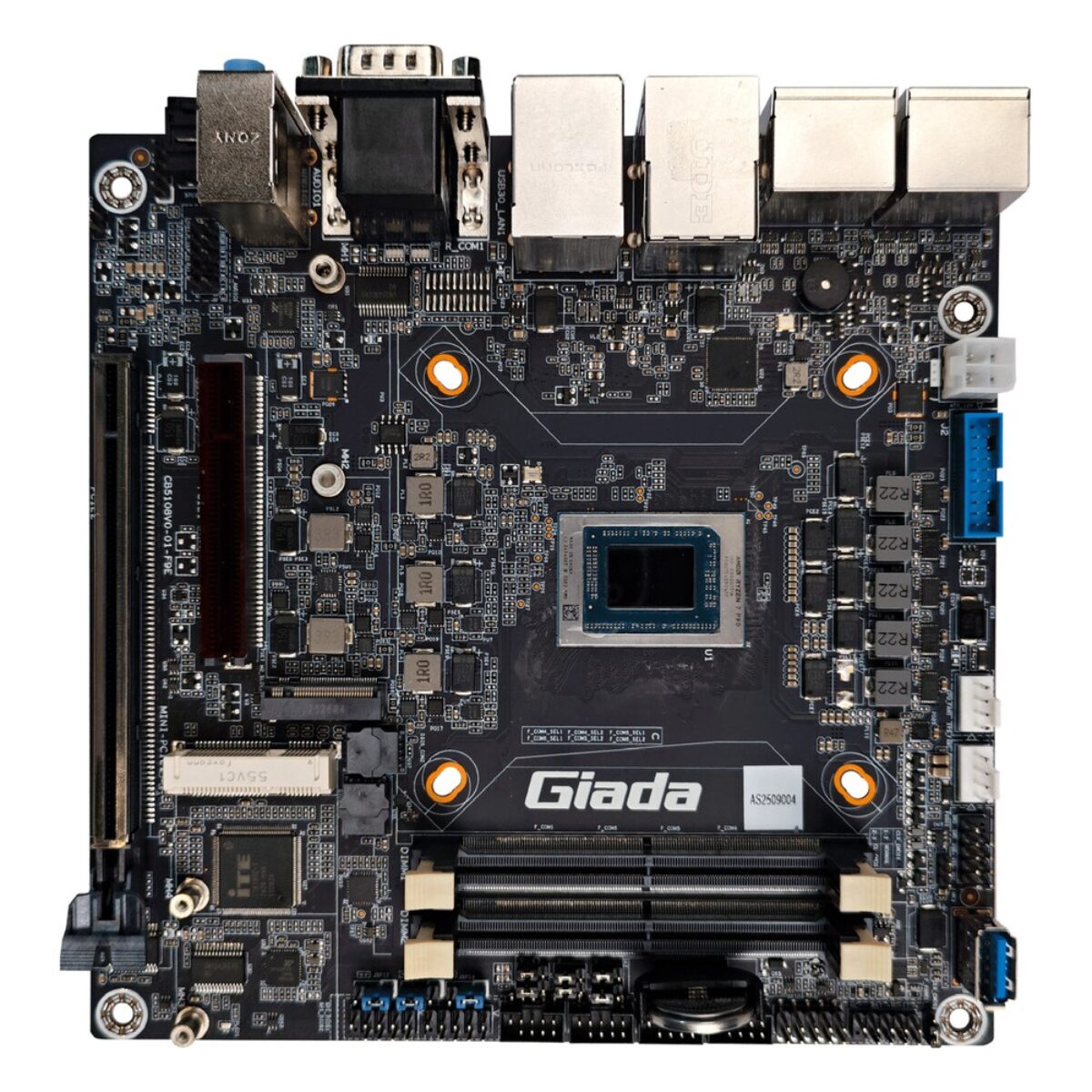

Gaming cabinets, vending machines and multi-screen signage need graphics, AI and specialist I/O on one board, without moving to a full-size motherboard. The CB5-108 is Giada’s industrial Mini-ITX motherboard for that work, built on the AMD Ryzen 7 8845HS and measuring 170 x 170 mm.

The Ryzen 7 8845HS has eight cores and 16 threads at up to 45 W, AMD Radeon RDNA3 graphics with up to 12 compute units, and an XDNA NPU rated at up to 16 TOPS for vision models running beside the main application. Two DDR5 SO-DIMM sockets at 5600 MHz support ECC memory, and an M.2 M-key 2242/2280 socket takes an NVMe SSD on PCIe 4.0 x4. The video engine encodes and decodes AV1 and decodes H.265, H.264 and VP9, which suits multi-stream playback. Windows 11 and Ubuntu Linux are supported.

Four DisplayPort 1.4a outputs at up to 7680 x 4320 at 60 Hz drive four screens at once. Six serial ports cover RS-232 and RS-232/422/485 on DB9 connectors, plus RS-232, TTL and two ccTalk ports on headers for coin and note handlers. Two GbE ports on Realtek RTL8111H controllers handle networking. USB covers two USB 3.2 Gen 2 Type-C ports, one USB 3.2 Gen 2 and three USB 2.0 Type-A ports, and two USB 3.2 Gen 2 and two USB 2.0 ports on headers. Expansion is a PCIe x16 slot with x8 signal and a PCIe x8 slot with x4 signal, both Gen 4, plus an M.2 E-key 2230 socket, four-in, four-out GPIO and line-in, line-out and mic-in audio.

The CB5-108 takes 12 V on a 4-pin ATX connector, with auto power-on after a supply interruption. It operates from 0 to 60 °C with 0.7 m/s of airflow, and dual BIOS chips, a watchdog timer and an optional TPM 2.0 support unattended operation in cabinets and kiosks.
