Rockchip Single Board Computers for Industrial Devices
A Rockchip single board computer pairs Arm CPU cores with a capable GPU, a video engine and, on newer chips, a neural processing unit, giving HMIs and media players a low-power platform that runs Linux or Android.
Options include Raspberry Pi format and 3.5 inch boards, with industrial J-grade processors for extended temperature and wide DC input, suited to signage, kiosks and control panels where a fanless board runs all day.
Speak to a Rockchip SBC specialist to match the processor, interfaces and operating system to your device.
Browse Our Rockchip SBCs
- CPU: RK3576
- AI Performance: 6
- Memory: 4GB Soldered On-board
- OS: Linux Debian 12, Android 14.0
- Display Outputs: 1x HDMI, 1x LVDS
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 1x USB 3.0 [Type A], 1x USB OTG [Type C], 4x USB 2.0 [Board]
- Serial: 2x RS485 [Board], 2x RS232 [Board]
- CANbus: 1x CANbus [Terminal Block]
- Storage: 1x M.2 SSD, 32GB eMMC
- Power: 12-24V DC [Barrel Connector]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC
- CPU: RK3568
- AI Performance: 1
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Debian 11
- Display Outputs: 1x eDP, 1x HDMI, 1x LVDS
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 3.0 [Type A]
- Serial: 1x RS232/422/485 [Board], 1x RS232/422/485 [DB9], 3x RS232 [Board]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 B-Key [USB/SATA] [3042], 1x M.2 E-Key [USB] [2230]
- Storage: 1x M.2 SSD [SATA], 1x Micro SD, 64GB eMMC
- Power: 12-24V DC Input [4-Pin], 12-24V DC [Barrel Connector]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC
- Display Inputs: 1x HDMI Input
- CPU: RK3588
- AI Performance: 6
- Memory: 4GB Soldered On-board
- OS: Android 12.0
- Display Outputs: 1x eDP, 1x LVDS, 2x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 1x USB 3.0 [Type A], 1x USB OTG [Type C], 2x USB 2.0 [Board]
- Serial: 4x RS232 [Board]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 1x M.2 SSD, 2x SATA Ports, 32GB eMMC
- Power: 12V DC [Barrel Connector]
- Temp: -5°C to 65°C [23°F to 149°F]
- Certification: CE, FCC
- CPU: RK3566
- AI Performance: 0.8
- Memory: 4GB Soldered On-board
- OS: Linux Debian 10
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 1x USB 3.0 [Type A], 1x USB OTG [Type A], 2x USB 2.0 [Type A]
- Storage: 1x Micro SD, 32GB eMMC
- Power: 5V [USB-C]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC
Rockchip SBC Ranges Configured by Things Embedded
We work with the manufacturers of industrial Rockchip boards, so the ranges below are the ones we specify for HMIs, signage and edge AI devices. Compare them by processor, size and interfaces, then browse the models above or ask an embedded board specialist which range suits your device.
ACP-3566-PI Avalue Rockchip RK3566 Raspberry Pi Format SBC
The Rockchip RK3566 in the Raspberry Pi footprint, with 4 GB memory and eMMC on board for industrial use.

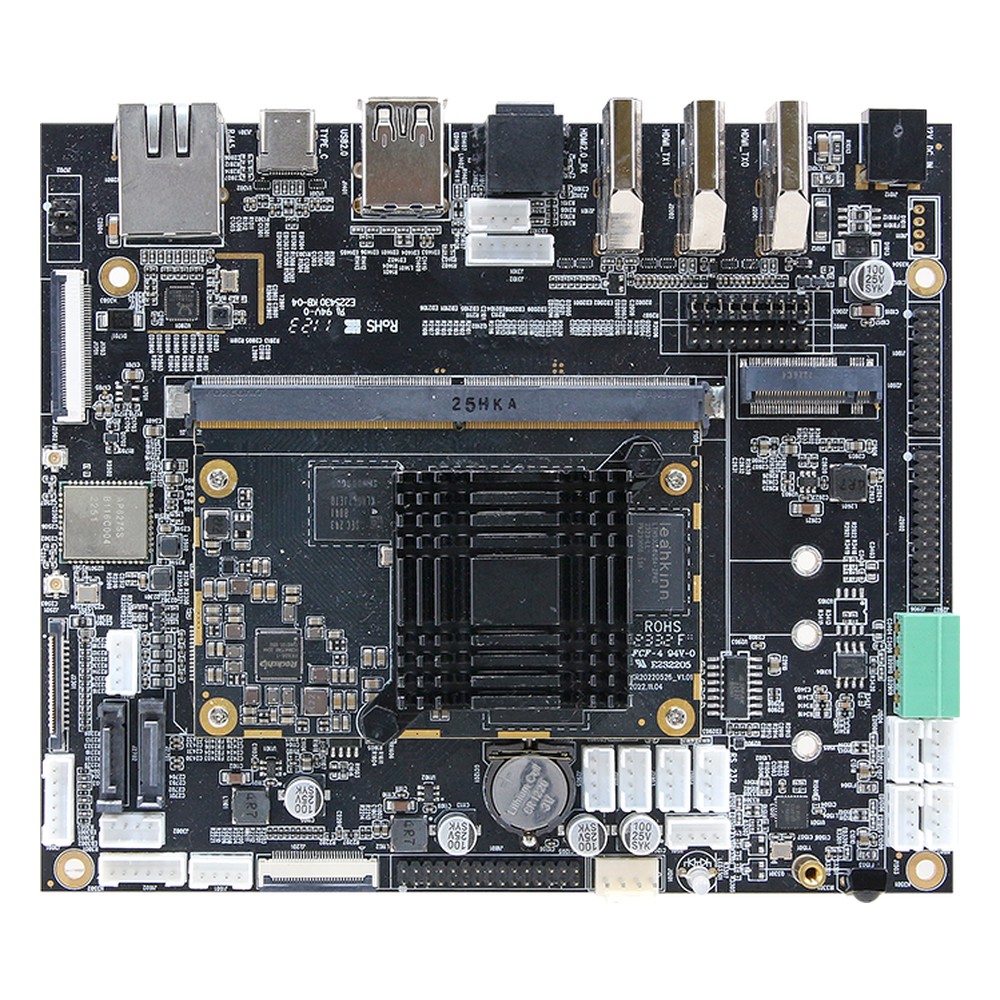

ACP-3588 Avalue Rockchip RK3588 SBC
The eight-core Rockchip RK3588 with dual HDMI, LVDS and eDP outputs for multi-display HMIs and signage.
RSC-3568J and RSC-3576J Avalue Rockchip 3.5" SBCs
Industrial Rockchip RK3568J and RK3576J processors on 3.5 inch boards with dual GbE and -40 to 85 °C operation on the RK3576J.
Not sure which range fits? Tell us the application and we will recommend the right model.
Rockchip SBC Insights for Industrial Devices
Speak to a Rockchip SBC Specialist.
Tell us what the board will go into, the interfaces you need and the operating system your software runs on. We will recommend the processor and format, then configure and test the board before it ships.
