US Intel Wildcat Lake
Core Series 3 Computers and Boards for Low-Power Edge AI
Wildcat Lake is the Intel Core Series 3 generation for compact, low-power systems. An Intel Wildcat Lake processor pairs performance and efficient cores with Xe3 graphics and a built-in NPU at around 15 W, which suits fanless edge computers, small boards and signage players that need light AI work without a separate accelerator.
Options include Pico-ITX and Mini-ITX boards with In-Band ECC, rugged edge computers with CAN FD and M12 connectors, and compact signage PCs with dual 4K output, suited to factory automation, transport, retail screens and kiosks where the computer must stay cool, quiet and small.
Speak to an Intel Wildcat Lake specialist to match the processor, the I/O and the form factor to your application.
Browse Our Core Series 3 Computers and Boards
Or choose a range below.
- CPU: Intel Core Series 3 Wildcat Lake
- GPU / AI Accelerator: Intel NPU
- AI Performance: 15
- Memory: 1x DDR5 6400MHz SO-DIMM Slot, 48GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type A], 3x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280]
- Storage: 1x M.2 SSD
- Power: 19V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC, UKCA
- Mounting Options: VESA Mount

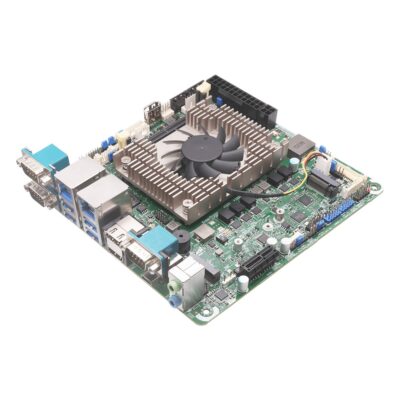

- CPU: Intel Core Series 3 Wildcat Lake
- Memory: 1x DDR5 6400MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 1x USB Type C, 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [Board], 3x RS232 [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1 Gen4] [2280/3052]
- PCIe: 1x PCIe [x1 Slot] [Gen4]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 9-28V DC [Barrel Connector]
- Temp: -20°C to 70°C [-4°F to 158°F]

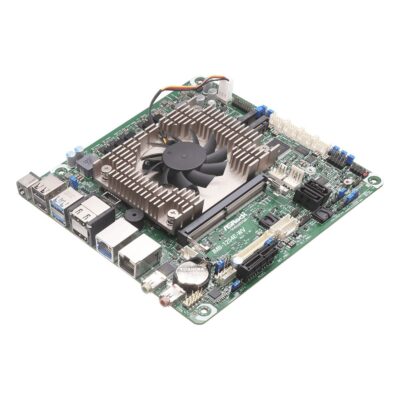

- CPU: Intel Core Series 3 Wildcat Lake
- Memory: 1x DDR5 6400MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x eDP, 1x LVDS, 1x USB Type C, 2x HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A], 4x USB 2.0 [Board]
- Serial: 1x RS232/422/485 [DB9], 2x RS232 [DB9], 3x RS232 [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1 Gen4] [2242/2280/3052]
- PCIe: 1x PCIe [x1 Slot] [Gen4]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 9-28V DC [4-Pin], ATX Power Supply [4+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC

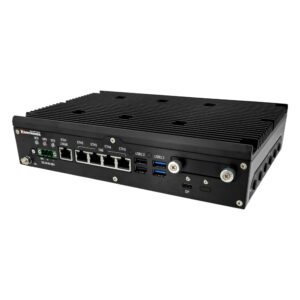

- CPU: Intel Core Series 3 Wildcat Lake
- GPU / AI Accelerator: Intel NPU
- Memory: 1x DDR5 6400MHz SO-DIMM Slot, 64GB
- OS: Linux Ubuntu 24.04, Linux, Windows 11
- Display Outputs: 1x DVI, 1x HDMI, 1x USB Type C
- USB: 1x USB 3.2 [Type C], 2x USB 2.0 [Type A], 2x USB 3.2 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- CANbus: 2x CAN FD [DB9]
- M.2: 2x M.2 B-Key [SIM] [3042/3052], 1x M.2 E-Key [2230], 2x M.2 M-Key [PCIe] [2280]
- mPCIe: 1x mPCIe [USB]
- Storage: 2x M.2 SSD
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- IP Rating: IP40
- Certification: CE, E-Mark, EN45545-2, FCC, UKCA
- Mounting Options: Wall Mount
- Ethernet: 1x 2.5 GbE LAN [M12], 2x GbE LAN [M12]
- Power: 9-60V DC Input [M12]
- CPU: Intel Core Series 3 Wildcat Lake
- Memory: 1x DDR5 6400MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x HDMI, 1x LVDS
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe x1 Gen4/USB 3.2 Gen 2/SIM] [3042], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x2 Gen4] [2242]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, RoHS, UKCA
All IntelBack to the full rangeIntel Wildcat Lake Ranges Configured by Things Embedded
We work with the leading manufacturers of Wildcat Lake boards and systems, so the ranges below are every family we carry on this generation. Compare them by form factor, I/O and power, then browse the products above or ask a specialist which range suits your application.
IMB Mini-ITX, Micro-ATX and ATX Industrial Motherboards
Industrial motherboards in three sizes. On Intel: Mini-ITX boards on Core Ultra Series 3 (IMB-1251-WV) and Core Series 3 Wildcat Lake (IMB-1253-WV, IMB-1254-WV) with In-Band ECC; socketed boards for Core Ultra 200S (Arrow Lake-S) on W880, Q870 and H810, and for Core Series 2 (Bartlett Lake-S) with 14th, 13th and 12th Gen Core on W680, Q670 and H610: ATX (IMB-X1715, 1715, X1712, 1712, 1713, 1714, X1714), Micro-ATX (IMB-X1317, 1317, X1316, 1316, 1315, 1318, X1314, 1314) and Mini-ITX (IMB-1247, 1246, 1249-WV, 1248-WV, X1244-WV, 1244-WV, X1238, 1238, 1242, X1231 and earlier); Processor N150 and N97 Mini-ITX boards (IMB-1015J, 1009J, 1012J-WV, 1011J-WV, 1008J, 1007J); and the IMB-1234 on Alder Lake-P. On AMD: AM5 boards for EPYC 4005 and Ryzen 9000 (IMB-A1700 ATX, A1302 Micro-ATX, A1003 and A1002 Mini-ITX) and the IMB-A8000 on Ryzen 8000.
Compact Digital Signage PCs and Players

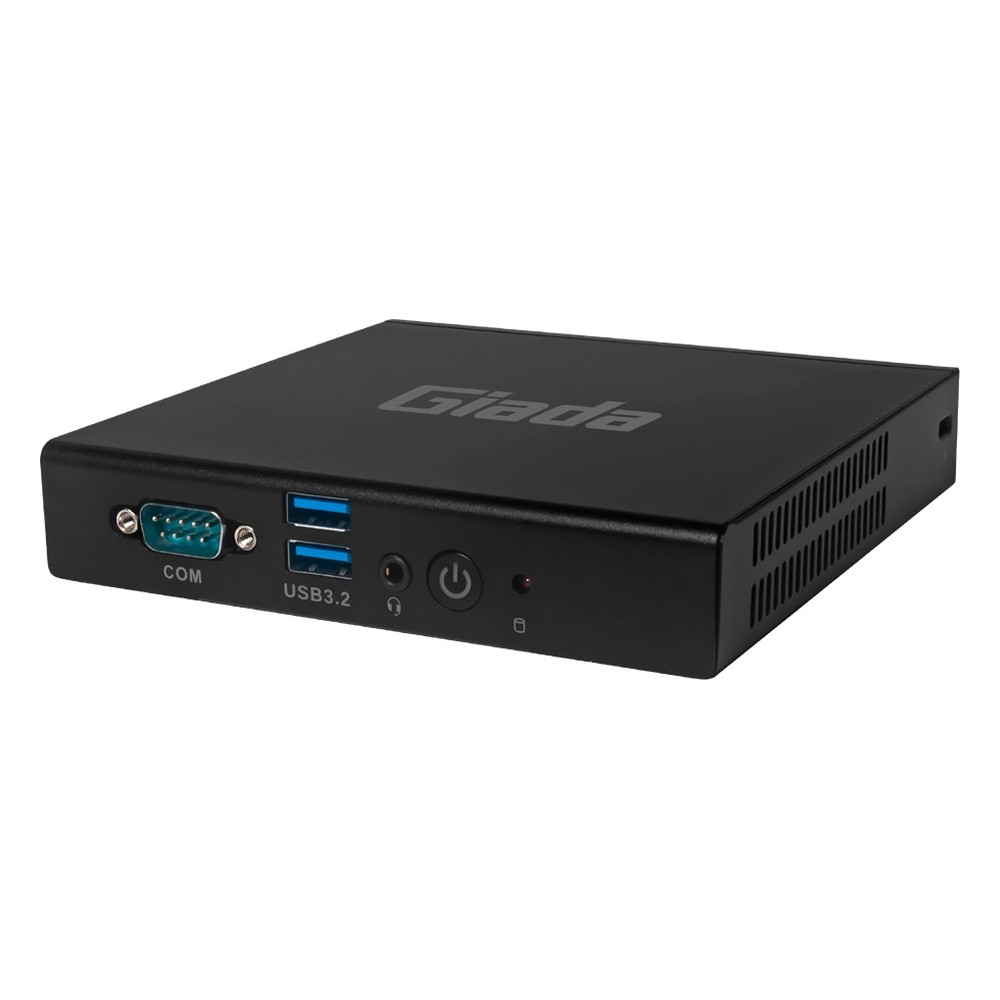

Small players for single and triple-screen signage, kiosks and menu boards, from the Wildcat Lake DK320 with an NPU to fanless booksize Intel N-series units.
VBOX Vehicle and DIN-Rail Edge Computers
Fanless vehicle and DIN-rail computers from Intel Atom x7000RE and AMD Ryzen R2312 up to Intel 11th Gen Core, Core Series 3 and Core Ultra Series 3, with PoE, ignition sensing and rail and vehicle compliance designed in. Most series come in standard and M12X connector builds, and the VBOX-3630R-M12X adds an isolated 24 to 110 V DC input for rolling stock.
2.5-Inch Pico-ITX Single Board Computers
100 x 72 mm boards for the smallest fanless enclosures, from Intel Core Series 3 Wildcat Lake and 13th Gen Core down to Atom and Celeron, with dual 2.5GbE, HDMI and LVDS on the newest boards and wide or extended temperature builds across the range.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Core Series 3 System
Our edge computing specialists specify every Wildcat Lake system against the workload, the I/O and the space it has to fit. These are the choices we work through with you before recommending a range.
Processor and NPU
Core 3, Core 5 and Core 7 parts share one low power budget; check the NPU rating if the application runs AI models.
Displays
Xe3 graphics drive up to four screens on selected boards, with 4K output for signage and HMI.
Memory and ECC
In-Band ECC on embedded SKUs protects memory without dedicated ECC modules, for control and logging work.
Form Factor
Pico-ITX and Mini-ITX boards for your own enclosure, or a finished box PC or signage player.
Expansion
M.2 slots for NVMe storage, Wi-Fi and cellular modules, sized to the board or chassis you choose.
Operating System
Windows 11 or Linux, installed and tested before the system ships.
Wildcat Lake Innovation & Edge AI Insights
Speak to an Intel Wildcat Lake Specialist.
Tell us where the system will be installed, the approvals it must meet and the interfaces you need to connect. We will recommend the right form factor, then configure, image and test it before it ships.
