US NVIS Displays
NVIS Monitors for Night-Vision Cockpits and Crew Stations
An NVIS display switches between a normal day mode and an NVIS mode that filters the light night-vision goggles amplify, so crews can read the screen at night without it blooming their goggles. Available from 8.4 to 21.5 inches in vehicle-mount and fully sealed builds.
Options include vehicle-mount housings and fully sealed IP67 housings designed to MIL-STD-3009 and MIL-STD-810G requirements, suited to armoured vehicles, helicopter cabins, naval bridges and ground stations operated under night-vision conditions.
Speak to a display specialist to match the NVIS class, size and mounting to your platform.
Browse Our NVIS Monitors
- Certification: MIL-STD-3009

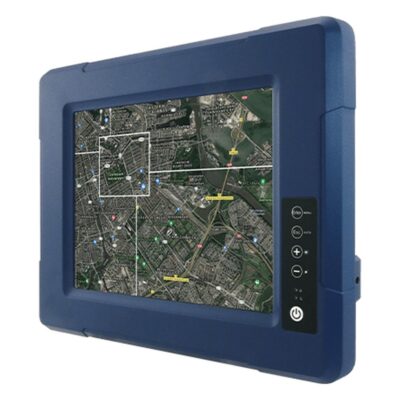

- Display: 8.4"[4:3, 800 x 600, SVGA]
- Touch: Optional Resistive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Certification: MIL-STD-3009
- Display: 10.4"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Certification: MIL-STD-3009

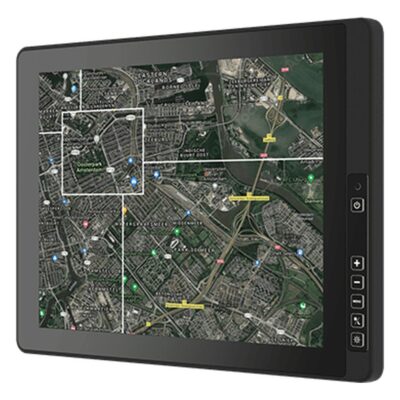

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP, Optional Resistive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 9-36V DC Input [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP67
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Certification: MIL-STD-3009

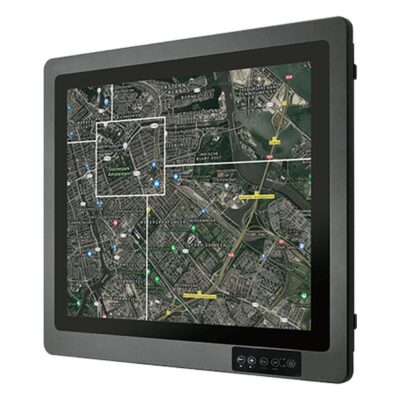

- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 9-36V DC Input [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP67
- Certification: CE, FCC
- Certification: MIL-STD-3009

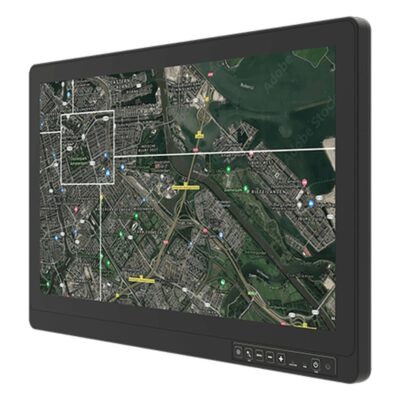

- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 9-36V DC Input [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP67
- Certification: CE, FCC
- Mounting Options: VESA Mount
Beyond NVIS: Military Monitors
NVIS Display Ranges Configured by Things Embedded
We work with the leading manufacturers of night vision compatible displays, so the ranges below are the ones we specify for vehicles, aircraft and ships. Compare them by size, sealing and mounting, then browse the models above or ask a display specialist which range suits your platform.
Winmate VM NVIS Vehicle Displays
Compact 8.4 and 10.4 inch vehicle-mount screens with day and NVIS modes for crew stations.
Winmate G-WIN IP67 NVIS Displays
Fully sealed 15, 19 and 21.5 inch monitors for open cabs, decks and outdoor stations.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Night Vision Compatible Display
A night vision compatible display has to stay readable to crews wearing goggles without flooding them with light. NVIS class, military standards and sealing decide which model suits the vehicle or console.
Night Operation
Day and NVIS modes switched by the crew, with the NVIS class confirmed per model against the goggles in use.
Military Standards
Designed to MIL-STD-3009 and MIL-STD-810G requirements; confirm the tests your vehicle or vessel needs.
IP67 Sealing
Vehicle-mount builds or fully sealed IP67 housings for exposed positions on vehicles and decks.
Crew and Mission Screens
Smaller crew screens for cabs and larger mission displays for consoles, chosen to suit the station and the content.
Vehicle Power
Wide-range DC input on vehicle models; confirm the supply standard, such as MIL-STD-1275, per model.
Wide Dimming Range
A wide dimming range takes the screen from daylight readable down to the low levels needed for night operation.
Speak to a Display Specialist.
Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
