Winmate R19L100-67N1-NI 19″ NVIS Defense Monitor with NVIS Mode and MIL-STD-810G

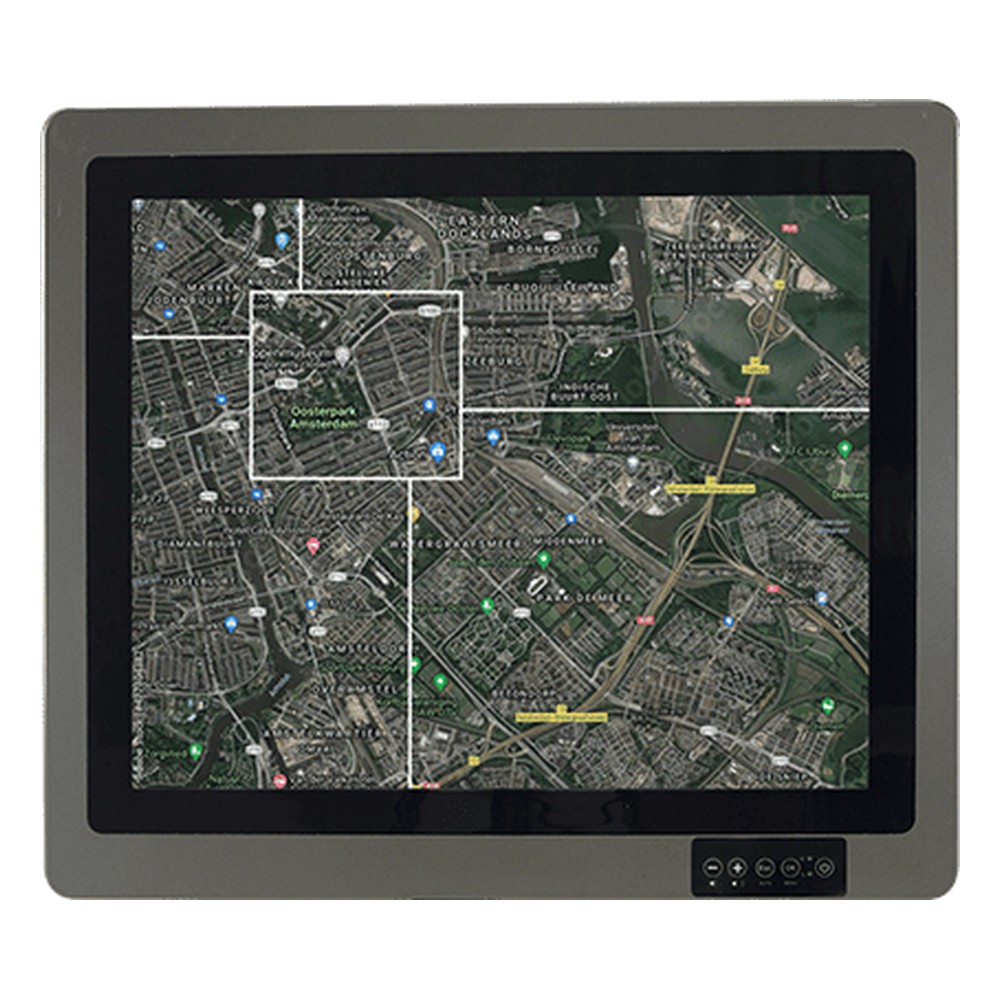

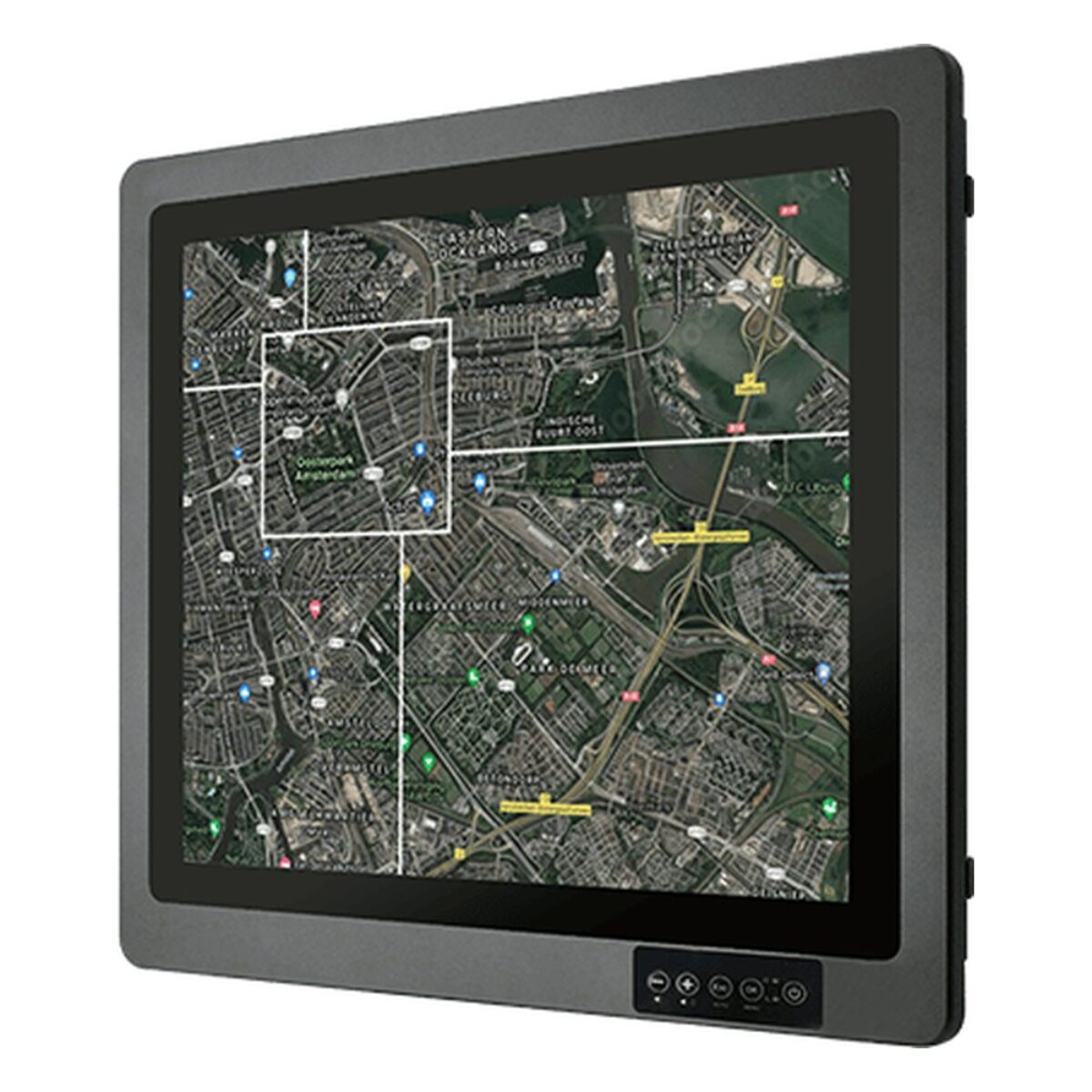

Large console screens in exposed vehicles and positions have to survive water and still work with night vision goggles. The R19L100-67N1-NI is Winmate’s 19 inch full IP67 NVIS defense display, with a 1280 x 1024 SXGA panel that switches between day mode and NVIS mode, bonded PCAP touch and M12 connectors on a sealed aluminum housing. It is designed for night-vision compatibility, and Winmate states compliance with MIL-STD-3009.

In day mode the 19″ LCD runs at 1000 nits, so it is sunlight readable, with a 1000:1 contrast ratio and 170° horizontal and 160° vertical viewing angles. Projected capacitive multi-touch is optically bonded to the panel, and the front uses a rugged anti-impact design with membrane control keys that can be locked by software. An ignition on/off control function is optional.

Video arrives over VGA on an M12 connector and an optional HDMI input on a waterproof connector, and touch data runs over USB on another M12 connector, with RS-232 touch as an option. Waterproof external cables and caps are supplied, so the R19L100-67N1-NI keeps its IP67 rating when cabled to the host. The R15L100-67N1-NI is the 15 inch XGA version of this IP67 NVIS display, and the W22L100-67N1-NI is the 21.5 inch full HD version.

Power is 9 to 36 V DC on an M12 waterproof connector with an isolated input. Winmate tests the housing to MIL-STD-810G Method 514.6 Procedure I for vibration and Method 516.6 Procedure I for shock. It is fanless, operates from -20 °C to 60 °C and stores from -30 °C to 70 °C at 10 to 90% humidity, non-condensing. It panel mounts with the supplied clips as standard, with VESA mounting as an option. It carries CE and FCC marks, and we supply it configured and tested for the vehicle or console it will join.
