Giada DK320 Intel Core Series 3 (Wildcat Lake) Digital Signage PC with Up to 15 TOPS NPU and 2.5GbE

Signage is moving from playing content to reacting to it, with screens that count viewers, adjust content or run a local assistant. The Giada DK320 is a digital signage PC for that shift, built on Intel Core Series 3 (Wildcat Lake) processors with an NPU of up to 15 TOPS. Giada offers it with the Intel Core 3 304 or the Core 5 315.

The Core 3 304 has five cores and one Intel Xe3 graphics core, and the Core 5 315 has six cores, two Xe3 graphics cores and a 15 TOPS NPU, both at a 15 W TDP. Graphics support AV1 and Intel Quick Sync Video. A single SO-DIMM socket takes up to 48 GB of DDR5-6400, and an M.2 2242 or 2280 slot with PCIe 4.0 x4 takes an NVMe SSD. If you want Elkhart Lake in a similar form, the DK310-J6412 and DK310-J6426 cover simpler players.

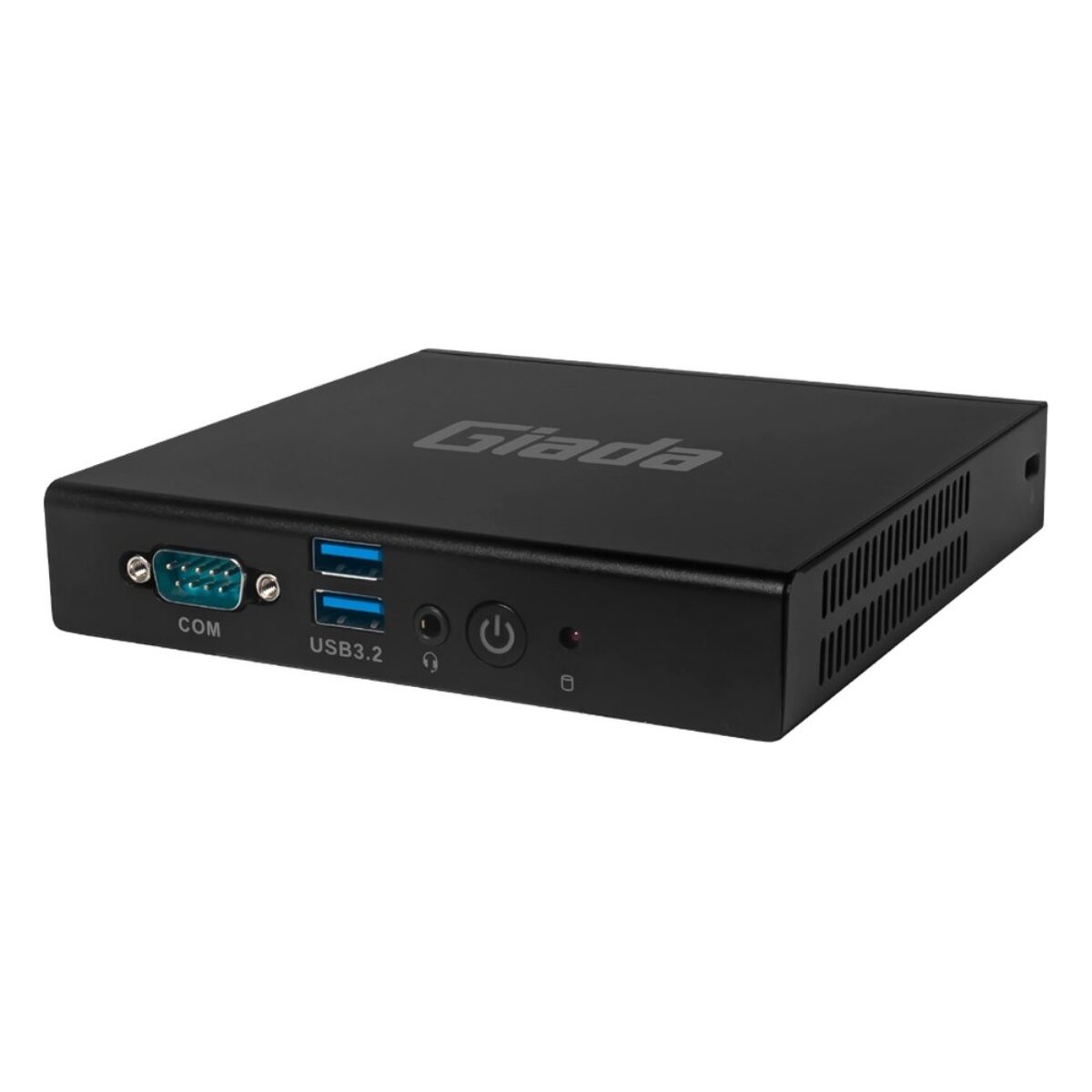

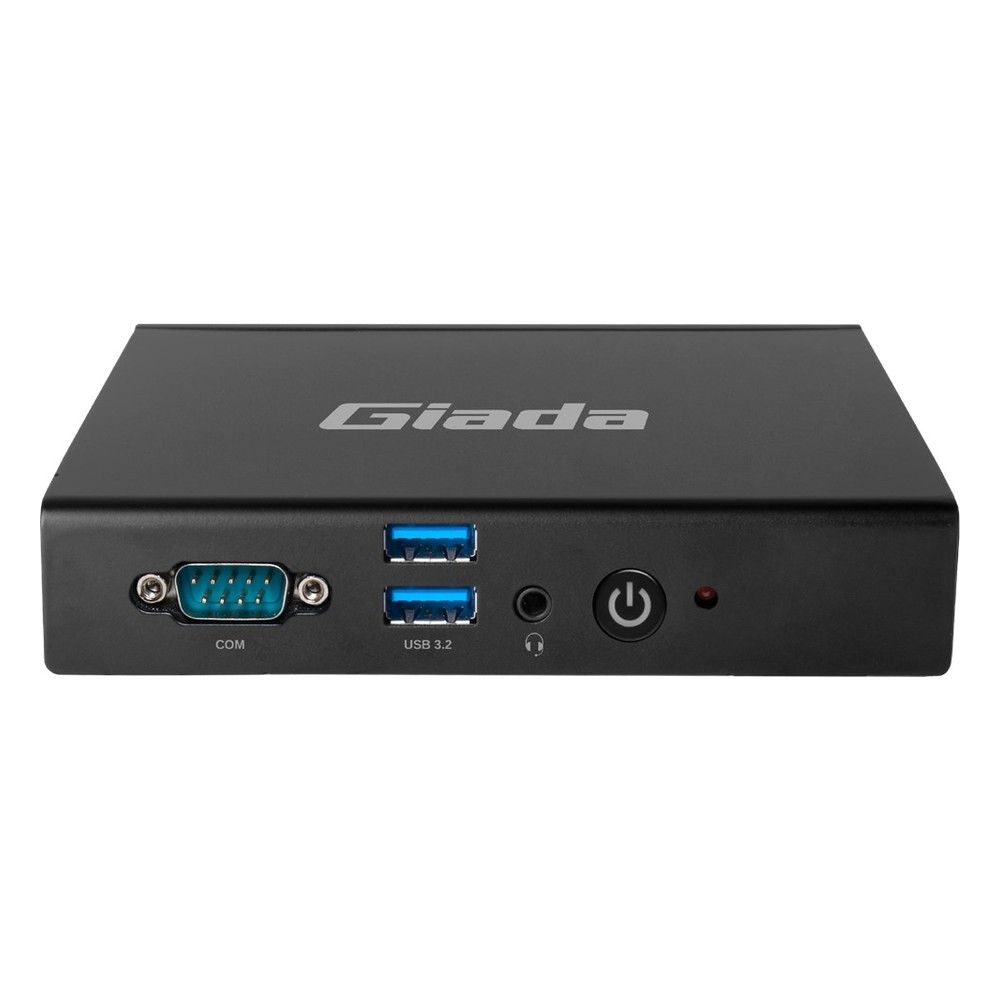

Two HDMI outputs, each up to 4096 x 2304 at 60 Hz, drive two 4K screens. USB covers one USB 3.2 Gen2 port at 10 Gbps and three USB 3.2 Gen1 ports, with a DB9 RS232 port and a headset jack. Networking is a 2.5GbE port on an Intel i226 controller, and an M.2 E-Key slot takes optional Wi-Fi 6, Wi-Fi 6E or Wi-Fi 7 cards, with two Wi-Fi antennas in the box. TPM is optional, and watchdog, auto power on and a real-time clock support unattended operation. The N602-225H adds Thunderbolt 4 and a 13 TOPS NPU on Arrow Lake.

The DK320 is cooled by a smart fan, runs from the supplied 19 V DC adapter, and is rated from 0 °C to 45 °C at up to 95% humidity, non-condensing, with CE, FCC Class B and UKCA marks. A VESA kit is optional. Things Embedded supplies the DK320 with memory, storage and a Windows 11 or Linux image installed and tested before it ships.
