DFI BTS610 Intel Bartlett Lake Industrial ATX Motherboards with W680, R680E or Q670E Chipset and Quad LAN
The DFI BTS610 series is a family of industrial ATX motherboards for the LGA1700 socket, taking Intel Core Series 2 (Bartlett Lake-S) processors at up to 125 W alongside 14th, 13th and 12th Gen Core, Pentium and Celeron. The boards carry up to 192 GB DDR5, two PCIe Gen5 x16 slots, quad LAN, eight USB 3.2 Gen 2 ports and six COM ports. The BTS610 series suits vision servers, test systems, medical imaging and automation controllers.
- LGA1700 Socket up to 125 W: Takes Intel Core Series 2 (Bartlett Lake-S) up to 125 W, plus 14th, 13th and 12th Gen Core, Pentium and Celeron processors.
- Up to 192 GB DDR5: Four DDR5 DIMM slots hold up to 192 GB at up to 4400 MHz for large image buffers, databases and virtual machines.
- Dual PCIe Gen5 x16: Two PCIe x16 slots on Gen5 lanes run as x16 or x8/x8, with four more PCIe x4 slots for capture, network and I/O cards.
- Quad LAN and Six COM: Three 2.5GbE ports and one GbE port, six COM ports, 4-in/8-out DIO and eight rear USB 3.2 Gen 2 ports.
- ATX Power and TPM 2.0: 24-pin and 8-pin ATX power, TPM 2.0, Intel AMT and CE, FCC and RoHS compliance, operating from -5 to 65 °C.
Intel- Linux
- Windows
Quad Display Support
2.5GbE
USB3- 2x M.2
- NVMe SSD
- CE
- FCC
BTS610 Description

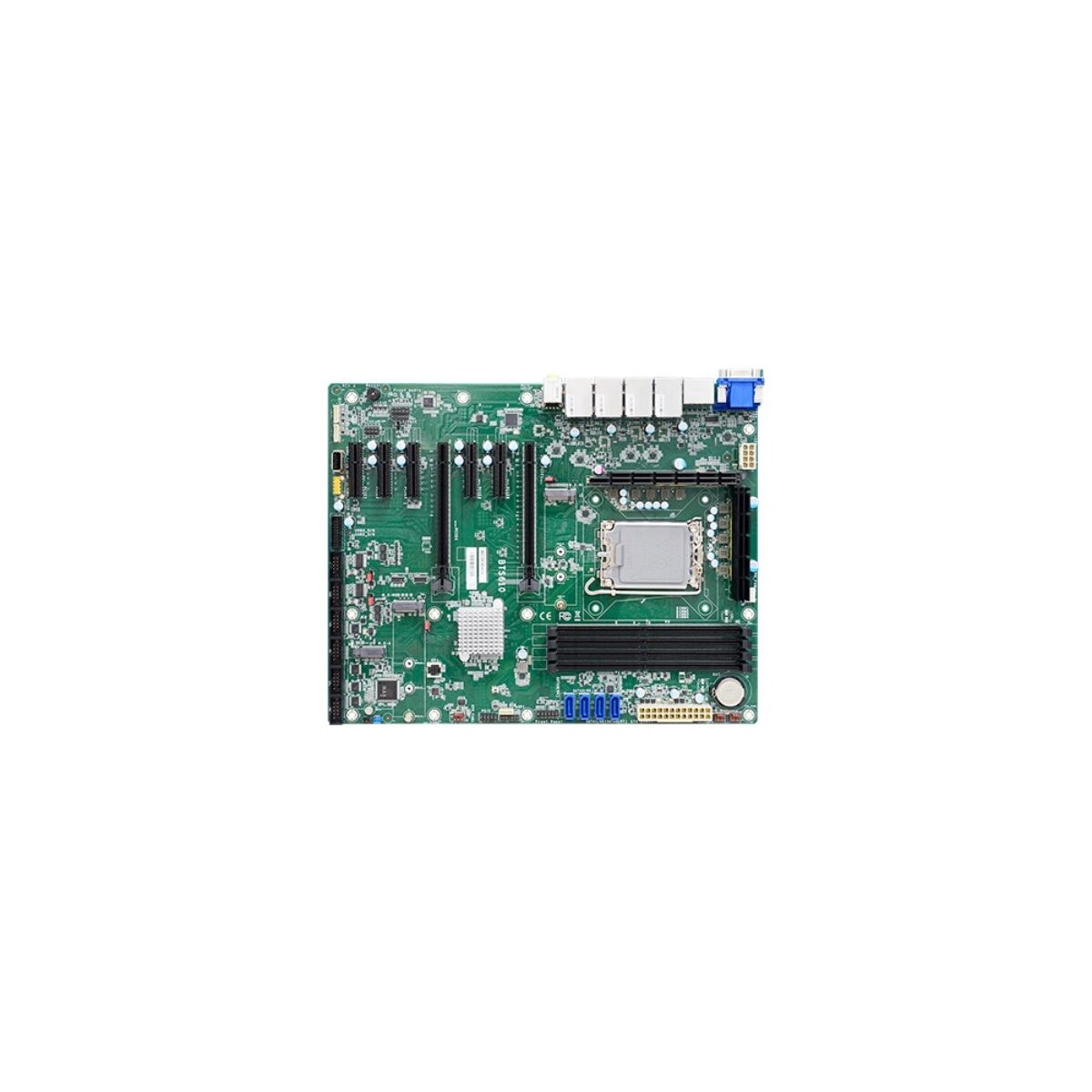

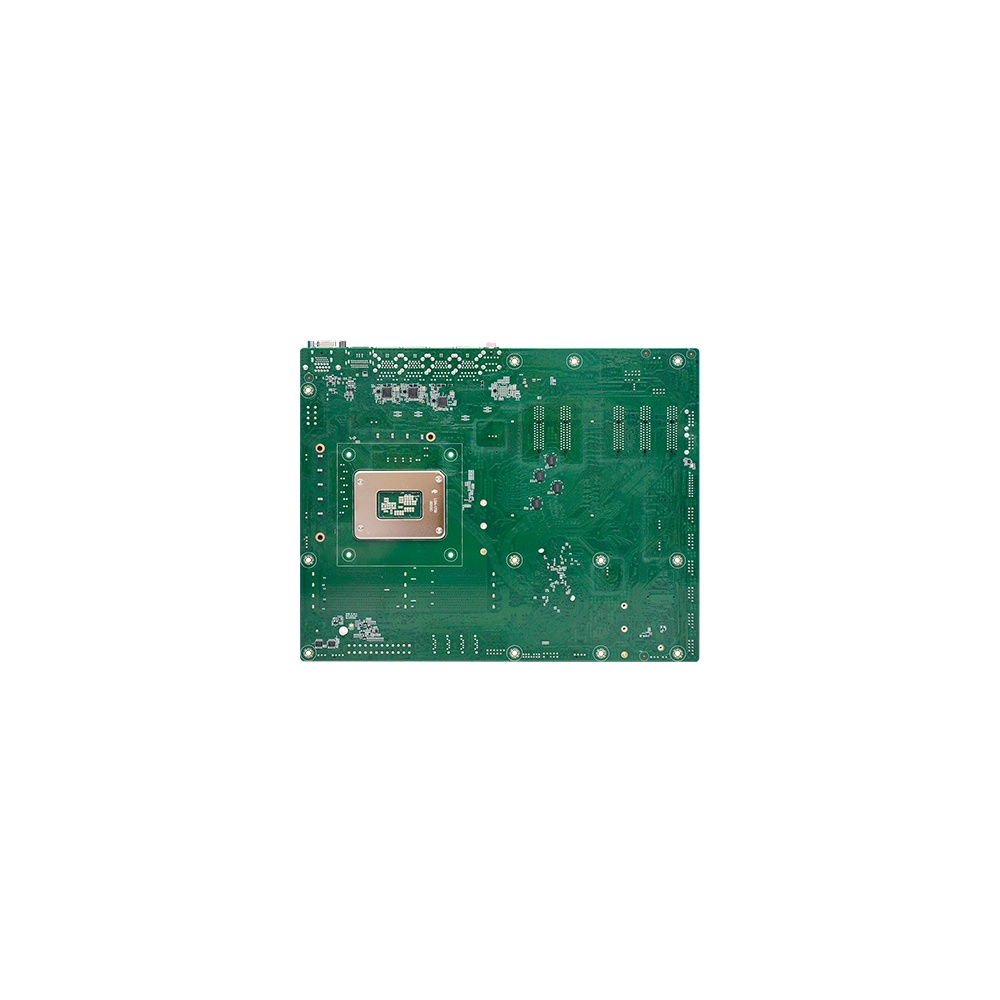

Some industrial systems need a full ATX board: a vision server with two GPUs, a test rack with several instrument cards, or a line controller that talks to six serial devices at once. The DFI BTS610 series is a 305 x 244 mm ATX motherboard for those builds, with a socketed LGA1700 processor, four DIMM slots and a full set of PCIe slots.
Each BTS610 board accepts Intel Core Series 2 (Bartlett Lake-S) processors, including the 125 W Core 9 273PQE, alongside 14th, 13th and 12th Gen Intel Core, Intel Processor 300 and Pentium and Celeron parts. Supported processors run from two to 24 cores at up to 125 W TDP. Four DDR5 DIMM slots take up to 192 GB at up to 4400 MHz. Intel UHD Graphics drives VGA, two DP++ outputs at up to 4096 x 2304 and 60 Hz and HDMI 2.0a, up to four displays at once.
Three chipset builds share the same I/O. BTS610-W680 uses the Intel W680 and BTS610-R680E the R680E, and DFI lists ECC memory support on both, for systems that hold large data sets in memory through long runs. BTS610-Q670E uses the Q670E with non-ECC memory and suits vision, test and control systems where ECC is not a requirement.

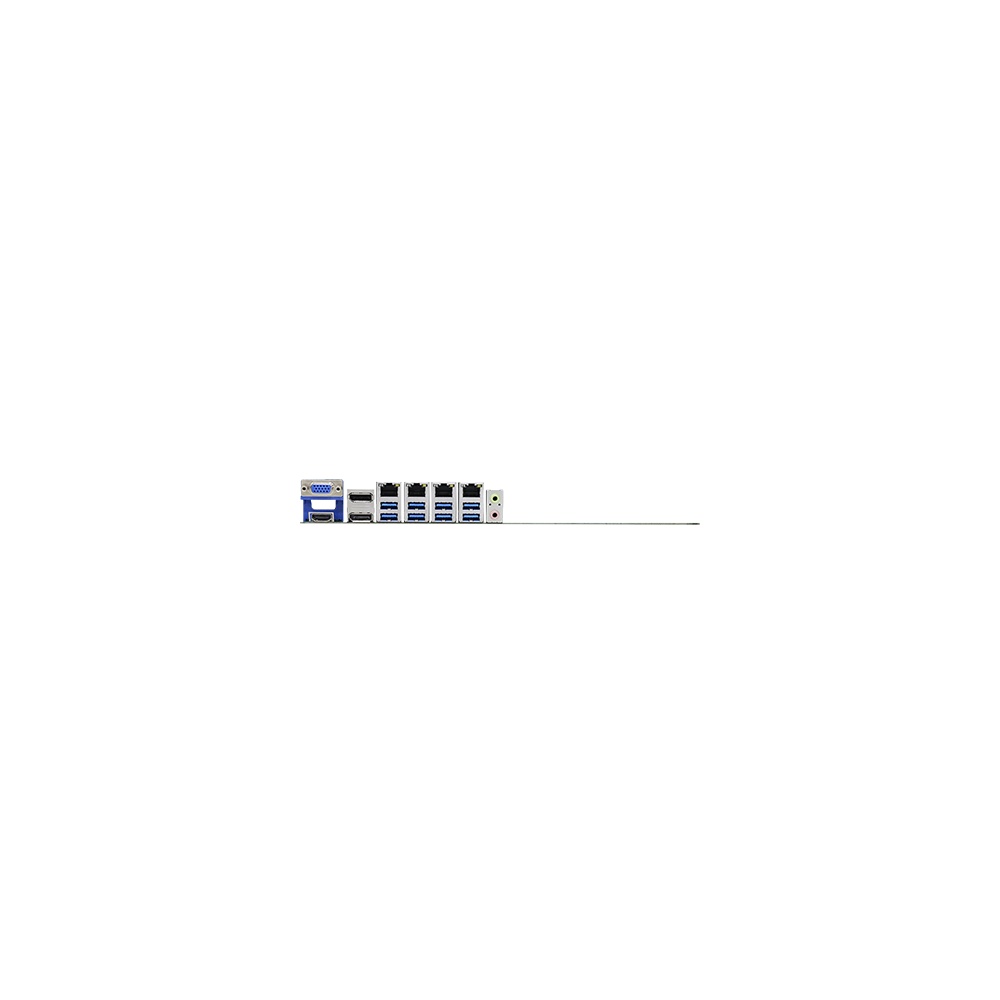

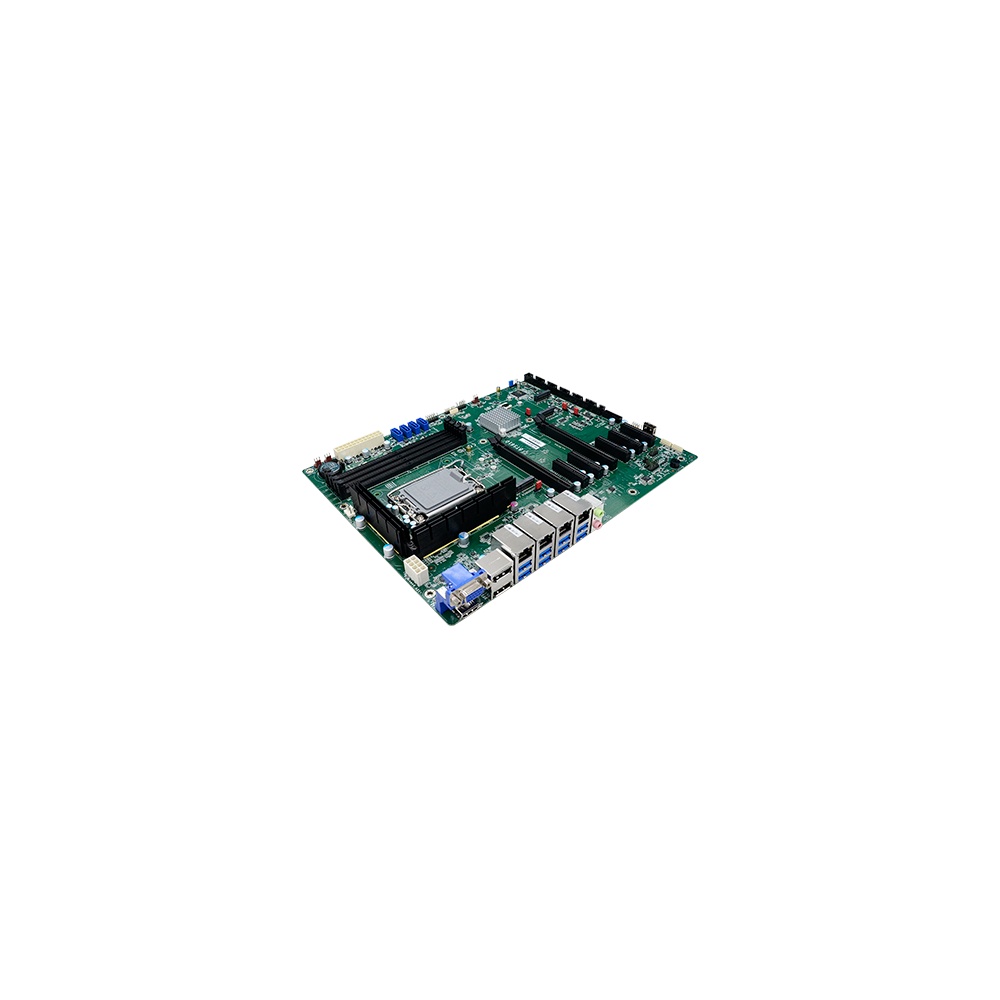

Every board has three 2.5GbE ports on Intel I226 controllers and one GbE port on an Intel I210, with Intel AMT. The rear panel carries eight USB 3.2 Gen 2 ports, with two USB 3.2 Gen 1 and three USB 2.0 on internal headers. Six COM ports (two RS-232/422/485 and four RS-232) and DIO with four inputs and eight outputs connect instruments and machine signals. Expansion is two PCIe x16 slots on Gen5 lanes, running x16 on one slot or x8/x8 across both, three PCIe x4 Gen4 slots and a PCIe x4 Gen3 slot. Two M.2 M-keys take NVMe at PCIe Gen4 x4, one of them also SATA, and four SATA 3.0 ports support RAID 0, 1, 5 and 10.
Power comes from an ATX supply on 24-pin and 8-pin connectors. The boards operate from -5 to 65 °C and carry CE, FCC and RoHS compliance, with TPM 2.0, a watchdog programmable from 1 to 255 seconds and Realtek ALC888S audio with S/PDIF. DFI lists Windows 10 IoT Enterprise, Windows 11 LTSC and Linux.
BTS610 Specifications
| Overview | |
|---|---|
| Brand & Model | DFI BTS610 |
| Features | Embedded Industrial |
| Performance | |
| Processor Series | Intel Pentium G Series Alder Lake Intel Processor Series Raptor Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake Intel Celeron G Series Alder Lake |
| Processor Models | Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Processor 300: 3.9GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Processor 300T: 3.4GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core 5 211E: 2.7~4.9GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core 5 211TE: 1.7~4.8GHz, 10 Cores, 16 Threads, 20MB Cache, 45W Intel Core 5 213PE: 2.7~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 213PTE: 2.1~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PQE: 4.0~5.5GHz, 8 Cores, 16 Threads, 24MB Cache, 125W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PQE: 3.5~5.7GHz, 10 Cores, 20 Threads, 33MB Cache, 125W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PQE: 3.4~5.9GHz, 12 Cores, 24 Threads, 36MB Cache, 125W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Pentium Gold G7400E: 3.6GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Pentium Gold G7400TE: 3.0GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400T: 1.5~4.5GHz, 10 Cores, 16 Threads, 20MB Cache, 35W Intel Core i5-14401E: 2.5~4.7GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14401TE: 2.0~4.5GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14501E: 3.3~5.2GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-14501TE: 2.2~5.1GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14701E: 2.6~5.4GHz, 8 Cores, 16 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i7-14701TE: 2.1~5.2GHz, 8 Cores, 16 Threads, 33MB Cache, 45W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14901E: 2.8~5.6GHz, 8 Cores, 16 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i9-14901TE: 2.3~5.5GHz, 8 Cores, 16 Threads, 36MB Cache, 45W Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100T: 2.5~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500T: 1.6~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700T: 1.4~4.9GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 2 Cores 4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 4x DDR5 4400MHz LONG-DIMM Slots, 192GB |
| Chipset | See Variant Specifications |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | DP++ HDMI 2.0 |
| Multi Display Support | Quad Display Support |
| Display Outputs | 1x HDMI 1x VGA 2x Display Ports |
| Audio | |
| Interface | Line-In Line-Out Mic-In |
| I/O | |
| Ethernet | 4x Ethernet Ports |
| 1x GbE LAN [RJ45] 3x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I210 Intel I226 |
| USB | 13x USB Ports |
| 2x USB 3.2 Gen 1 [Board] 3x USB 2.0 [Board] 8x USB 3.2 Gen 2 [Type A] | |
| Serial | 6x Serial Ports |
| 2x RS232/422/485 [Board] 4x RS232 [Board] | |
| Digital I/O | DIO [4-in, 8-out] |
| Remote Management | Intel AMT |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x4 Gen4/SATA] 1x M.2 M-Key [PCIe x4 Gen4] | |
| PCIe | 6x PCIe Slots |
| 1x PCIe [x4 Slot] [Gen3] 1x PCIe [x4 Slot] [Gen4] 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5] 2x PCIe [x4 Slot] [Gen4] | |
| Storage | |
| Storage | 1x M.2 SSD 4x SATA Ports |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | ATX Power Supply [8+24 Pin] |
| Environmental Conditions | |
| Operating Temperature | -5°C to 65°C [23°F to 149°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Certification | CE FCC RoHS |
| Mechanical Properties | |
| Dimensions | 305mm x 244mm (12.01" x 9.61") |
No specifications match your search.
See product variants.
BTS610 Variants
DFI BTS610-W680 Intel 14th Gen Core ATX Industrial Motherboard with W680 Chipset, Quad LAN and PCIe Gen5 x16
BTS610 with Intel W680, ECC DDR5 up to 192~GB and quad LAN
| Overview | |
|---|---|
| Brand & Model | DFI BTS610-W680 |
| Performance | |
| Chipset | Intel W680 |
DFI BTS610-Q670E Intel 12th to 14th Gen Core ATX Embedded Motherboard with Q670E Chipset, Quad LAN and PCIe Gen5 x16
BTS610 with Intel Q670E, quad LAN, six COM and dual PCIe Gen5 x16
| Overview | |
|---|---|
| Brand & Model | DFI BTS610-Q670E |
| Performance | |
| Chipset | Intel Q670E |
DFI BTS610-R680E Intel Bartlett Lake and 14th Gen Core Industrial ATX Motherboard with R680E Chipset, Quad LAN and PCIe Gen5 x16
BTS610 with Intel R680E, ECC DDR5 up to 192~GB and dual PCIe Gen5 x16
| Overview | |
|---|---|
| Brand & Model | DFI BTS610-R680E |
| Performance | |
| Chipset | Intel R680E |
- BTS610 Datasheet Download
