DFI ADS630 Intel Bartlett Lake and 14th Gen Core ATX Industrial Motherboards with Dual 10GbE Options and Five PCIe Slots
The DFI ADS630 series is a family of ATX industrial motherboards for LGA1700 processors, from 12th Gen Intel Core, Pentium and Celeron to 14th Gen Core and Intel Core Series 2 (Bartlett Lake-S) at up to 125 W. Each board has a PCIe Gen5 x16 slot, four PCIe x4 Gen4 slots, two PCI slots, six COM ports and up to 128 GB DDR4, and the R680E build offers optional dual 10GbE. It suits machine vision, test systems and legacy card retrofits.
- LGA1700 Processor Choice: 12th to 14th Gen Core, Core Series 2 Bartlett Lake-S, Pentium and Celeron, from two to 24 cores at up to 125 W.
- Five PCIe Slots and Two PCI: A Gen5 x16 slot, x16 or x8/x8 by riser, four PCIe x4 Gen4 slots and two PCI slots for legacy cards.
- Six Serial Ports: Two RS-232/422/485 and four RS-232 ports on internal headers, plus 8-bit digital I/O, for instruments, PLCs and legacy peripherals.
- 128 GB DDR4 and NVMe: Four DDR4 3200 MHz DIMM slots up to 128 GB, two M.2 NVMe sockets and four SATA 3.0 ports with RAID.
- Quad 4K Displays: VGA, two DP++ up to 4096 x 2304 and HDMI 2.0a drive four independent screens from Intel UHD Graphics.
Intel- Linux
- Windows
Quad Display Support
2.5GbE
USB3- 2x M.2
- 5x PCIe
- 2x PCI
- Wi-Fi
- NVMe SSD
- CE
- FCC
- 10GbE
ADS630 Description

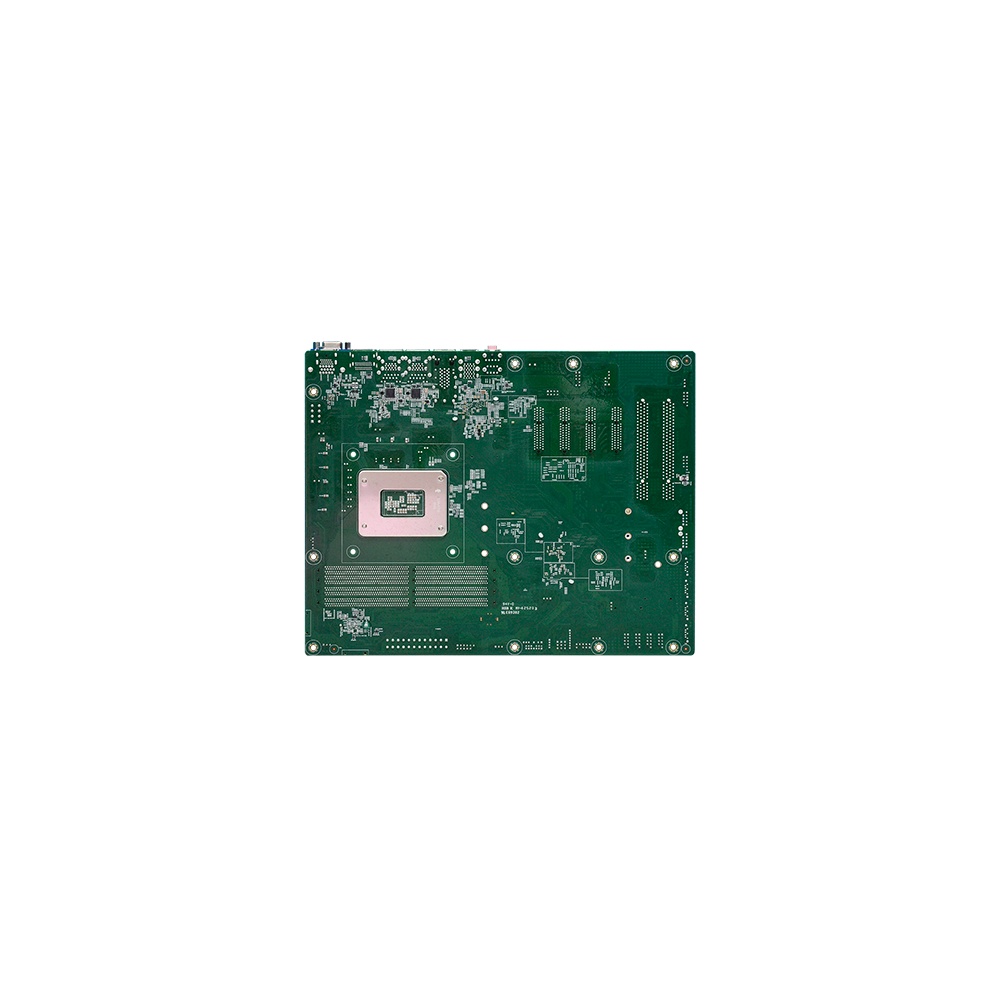

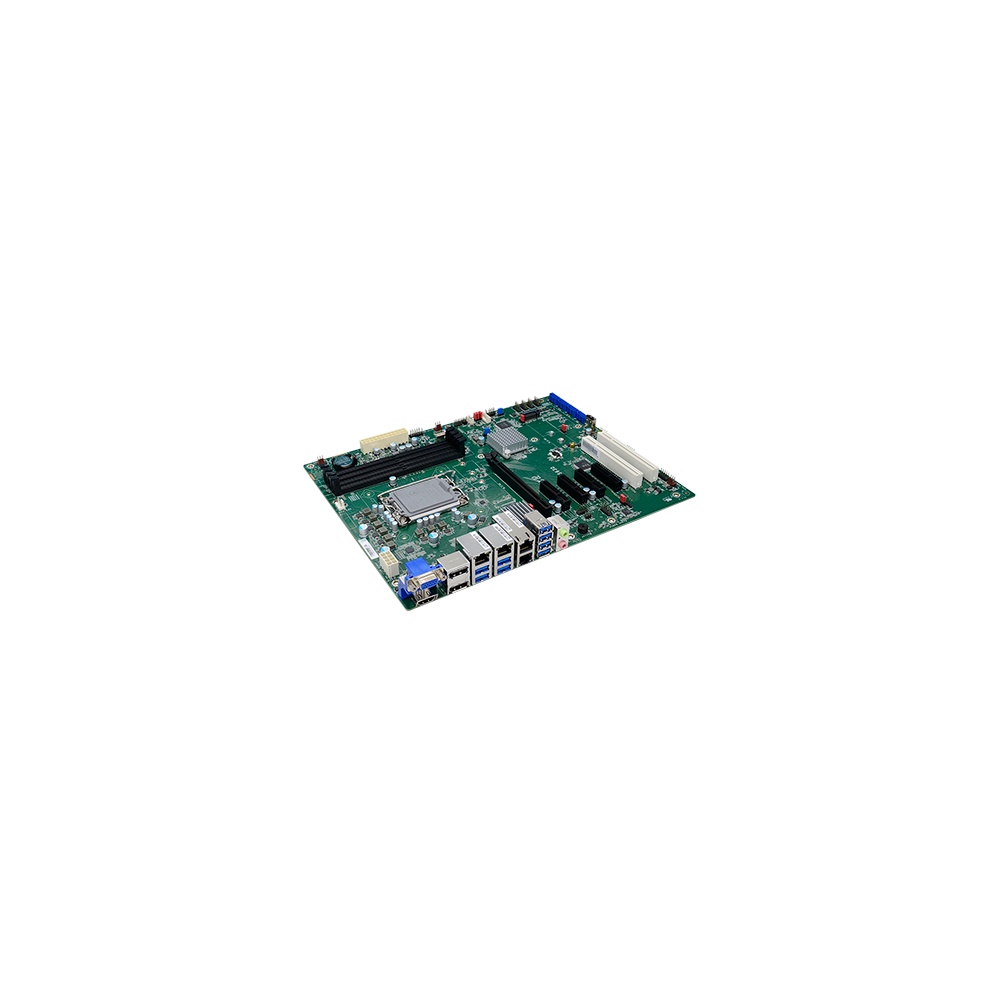

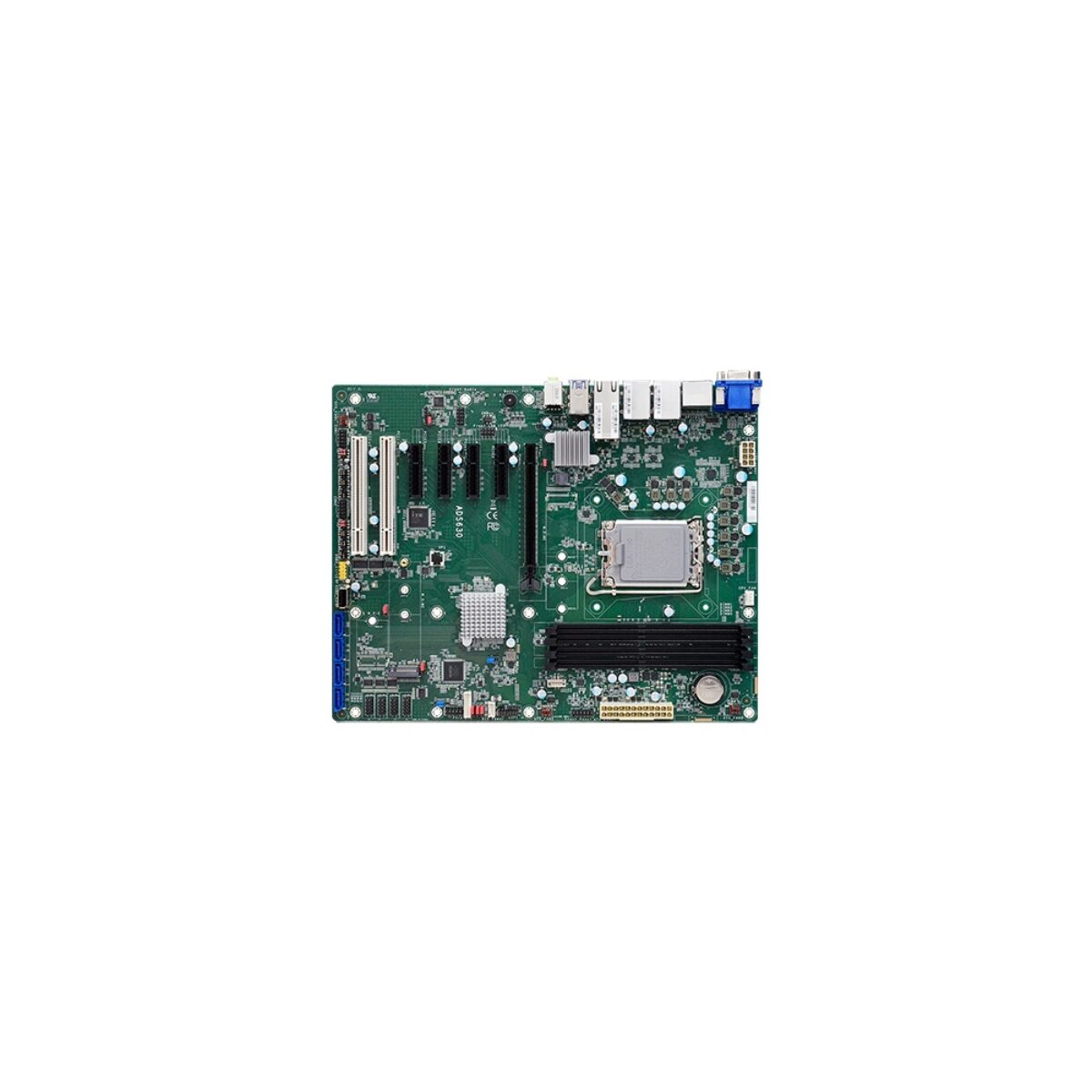

Plenty of industrial systems still depend on a PCI card, a legacy frame grabber or a motion controller, alongside modern GPUs and NVMe storage. Replacing the whole card set to move to a current processor is costly, so the slot mix matters as much as the CPU. The DFI ADS630 series is an ATX industrial motherboard that keeps two PCI slots next to a PCIe Gen5 x16 slot and four PCIe x4 Gen4 slots, on the 305 x 244 mm ATX footprint with an LGA1700 socket.
The socket takes 12th, 13th and 14th Gen Intel Core, Intel Core Series 2 (Bartlett Lake-S), Intel Processor 300, Pentium and Celeron processors, from two to 24 cores and up to 125 W TDP. Four DDR4 3200 MHz DIMM slots hold up to 128 GB in dual channel. Intel UHD Graphics drives four independent displays through VGA, two DP++ ports up to 4096 x 2304 at 60 Hz and HDMI 2.0a, and DFI lists Windows 10 IoT Enterprise, Windows 11 LTSC and Linux support.
The ADS630-R680E uses the Intel R680E chipset with ECC memory support, is available with two 10GbE ports on an Intel E610-XAT2 alongside the two 2.5GbE ports, and has two internal USB 3.2 Gen 2 ports. The ADS630-Q670E uses the Q670E chipset with non-ECC memory and two 2.5GbE ports, and its two internal USB 3.2 ports run at Gen 1. Both support Intel AMT on supported processors and share the same slot layout, COM ports and display outputs.

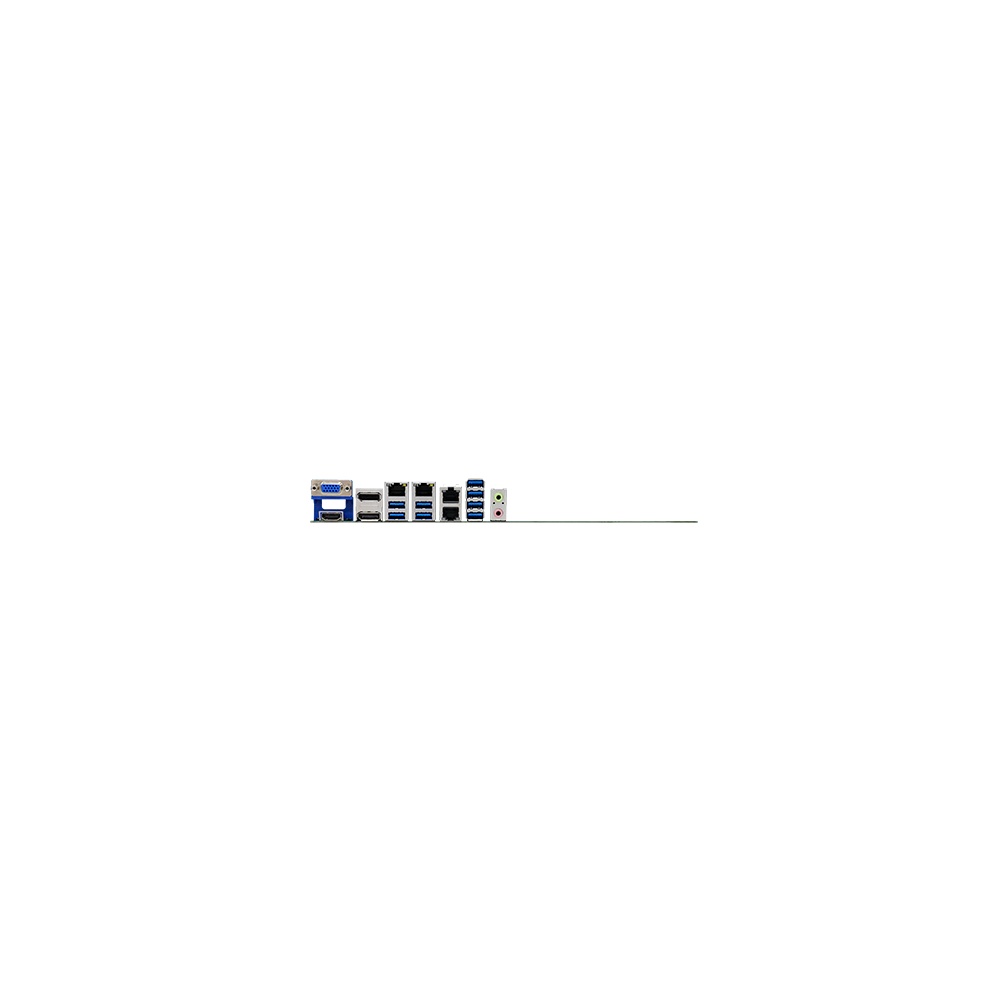

The PCIe Gen5 x16 slot runs as one x16 or two x8 links through a riser. Storage covers two M.2 M-key sockets for PCIe x4 NVMe SSDs, four SATA 3.0 ports with RAID 0, 1, 5 and 10, and an M.2 E-key socket for Wi-Fi. Rear I/O includes four USB 3.2 Gen 2 and four USB 3.2 Gen 1 Type-A ports, with three USB 2.0 ports inside. Six serial ports sit on internal headers, two RS-232/422/485 and four RS-232, with 8-bit digital I/O for sensors and indicators.
Power comes from a standard ATX supply through 24-pin and 8-pin connectors. The operating range is -5 to 65 °C, suited to indoor cabinets, test racks and equipment rooms, and DFI offers optional thermal solutions from 35 to 125 W. A TPM 2.0 and a watchdog timer programmable from 1 to 255 seconds support secure, unattended operation, and the series carries CE, FCC, UKCA, UL and RoHS compliance.
ADS630 Specifications
| Overview | |
|---|---|
| Brand & Model | DFI ADS630 |
| Features | Embedded Industrial |
| Performance | |
| Processor Series | Intel Pentium G Series Alder Lake Intel Processor Series Raptor Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake Intel Celeron G Series Alder Lake |
| Processor Models | Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Processor 300: 3.9GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Processor 300T: 3.4GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core 5 211E: 2.7~4.9GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core 5 211TE: 1.7~4.8GHz, 10 Cores, 16 Threads, 20MB Cache, 45W Intel Core 5 213PE: 2.7~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 213PTE: 2.1~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PQE: 4.0~5.5GHz, 8 Cores, 16 Threads, 24MB Cache, 125W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PQE: 3.5~5.7GHz, 10 Cores, 20 Threads, 33MB Cache, 125W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PQE: 3.4~5.9GHz, 12 Cores, 24 Threads, 36MB Cache, 125W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Pentium Gold G7400E: 3.6GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Pentium Gold G7400TE: 3.0GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400T: 1.5~4.5GHz, 10 Cores, 16 Threads, 20MB Cache, 35W Intel Core i5-14401E: 2.5~4.7GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14401TE: 2.0~4.5GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14501E: 3.3~5.2GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-14501TE: 2.2~5.1GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14701E: 2.6~5.4GHz, 8 Cores, 16 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i7-14701TE: 2.1~5.2GHz, 8 Cores, 16 Threads, 33MB Cache, 45W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14901E: 2.8~5.6GHz, 8 Cores, 16 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i9-14901TE: 2.3~5.5GHz, 8 Cores, 16 Threads, 36MB Cache, 45W Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100T: 2.5~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500T: 1.6~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700T: 1.4~4.9GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 2 Cores 4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 4x DDR4 3200MHz LONG-DIMM Slots, 128GB |
| Chipset | See Variant Specifications |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | DP++ HDMI 2.0 |
| Multi Display Support | Quad Display Support |
| Display Outputs | 1x HDMI 1x VGA 2x Display Ports |
| Audio | |
| Interface | Line-In Line-Out Mic-In |
| I/O | |
| Ethernet | See Variant Specifications |
| LAN Controllers | Intel I226 |
| USB | See Variant Specifications |
| Serial | 6x Serial Ports |
| 2x RS232/422/485 [Board] 4x RS232 [Board] | |
| Digital I/O | DIO [8-lines] |
| Remote Management | Intel AMT |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [USB/PCIe] [2230] 1x M.2 M-Key [PCIe x4] [2242/2260/2280] | |
| PCI Description | 2x PCI |
| PCIe | 5x PCIe Slots |
| 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5] 4x PCIe [x4 Slot] [Gen4] | |
| PCI | 2 |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 4x SATA Ports |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | ATX Power Supply [8+24 Pin] |
| Environmental Conditions | |
| Operating Temperature | -5°C to 65°C [23°F to 149°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Certification | CE FCC RoHS UKCA UL |
| Mechanical Properties | |
| Dimensions | 305mm x 244mm (12.01" x 9.61") |
No specifications match your search.
See product variants.
ADS630 Variants
DFI ADS630-Q670E Intel Bartlett Lake and 14th Gen Core ATX Embedded Motherboard with Q670E Chipset, Dual 2.5GbE and PCIe Gen5 x16
ADS630 with Intel Q670E, dual 2.5GbE, two PCI slots and PCIe Gen5 x16
| Overview | |
|---|---|
| Brand & Model | DFI ADS630-Q670E |
| Performance | |
| Chipset | Intel Q670E |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| USB | 13x USB Ports |
| 2x USB 3.2 Gen 1 [Board], 3x USB 2.0 [Board], 4x USB 3.2 Gen 1 [Type A], 4x USB 3.2 Gen 2 [Type A] | |
DFI ADS630-R680E Intel 14th Gen Core Industrial ATX Motherboard with R680E Chipset, Dual 10GbE and PCIe Gen5 x16
ADS630 with Intel R680E, ECC memory, PCIe Gen5 x16 and optional dual 10GbE
| Overview | |
|---|---|
| Brand & Model | DFI ADS630-R680E |
| Performance | |
| Chipset | Intel R680E |
| I/O | |
| Ethernet | 4x Ethernet Ports |
| 2x 10 GbE LAN [RJ45], 2x 2.5 GbE LAN [RJ45] | |
| USB | 13x USB Ports |
| 2x USB 3.2 Gen 2 [Board], 3x USB 2.0 [Board], 4x USB 3.2 Gen 1 [Type A], 4x USB 3.2 Gen 2 [Type A] | |
- ADS630 Datasheet Download
No related media available for this product series.
Official DFI USA Distributor
Things Embedded is an official DFI USA distributor, supplying the ADS630 series configured with your chosen processor, memory, NVMe storage, wireless and OS image, fitted with a cooler matched to the CPU and tested before it ships. For DDR5 memory and up to four LAN ports on an ATX board, see the RPS630; for Intel Core Ultra 200S (Arrow Lake-S) processors, the ARS630; and for an ATX board with the W680 chipset option and three 2.5GbE plus one GbE port, the BTS610. We can advise on processor and TDP choice, cooling for your enclosure and moving existing PCI cards across. We also plan lifecycle support and last-time-buy timing with you, so the board you qualify stays available for the life of the project.
Compare the range with our other industrial ATX motherboards, browse the wider range of embedded motherboards, or see our Core Series 2 Bartlett Lake products, 13th Gen Intel Core products and 12th Gen Intel Core products.
