ASRock Industrial IMB-A8000 AMD Ryzen 8000 Mini-ITX Embedded Boards with ECC, Quad Display and 12-28V DC

Multi-display and control projects often hit the same wall: the graphics and core count they need usually come with an ATX power supply and a socketed desktop processor, neither of which suits a DC-powered cabinet. The ASRock Industrial IMB-A8000 series takes a different route, with AMD Ryzen Embedded 8000 processors soldered to a Mini-ITX embedded board that runs from 12 to 28 V DC and drives four displays from the rear panel.

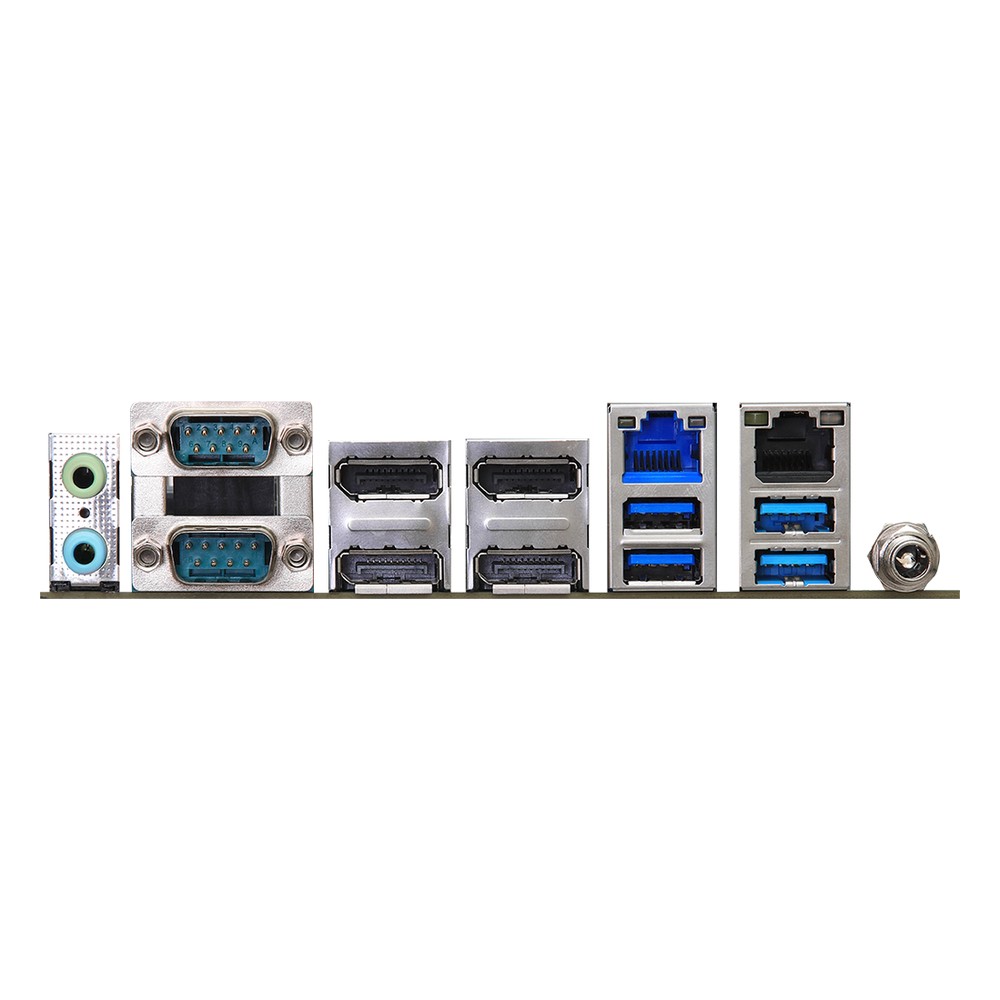

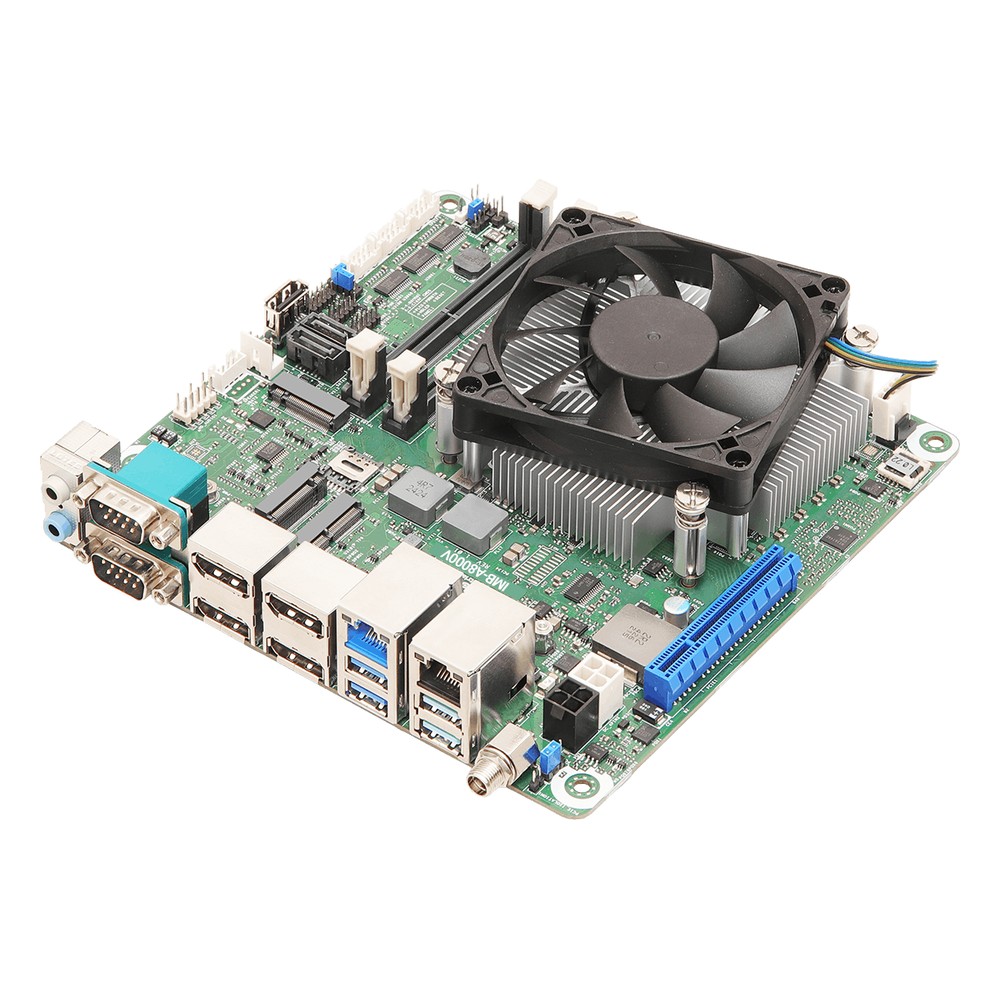

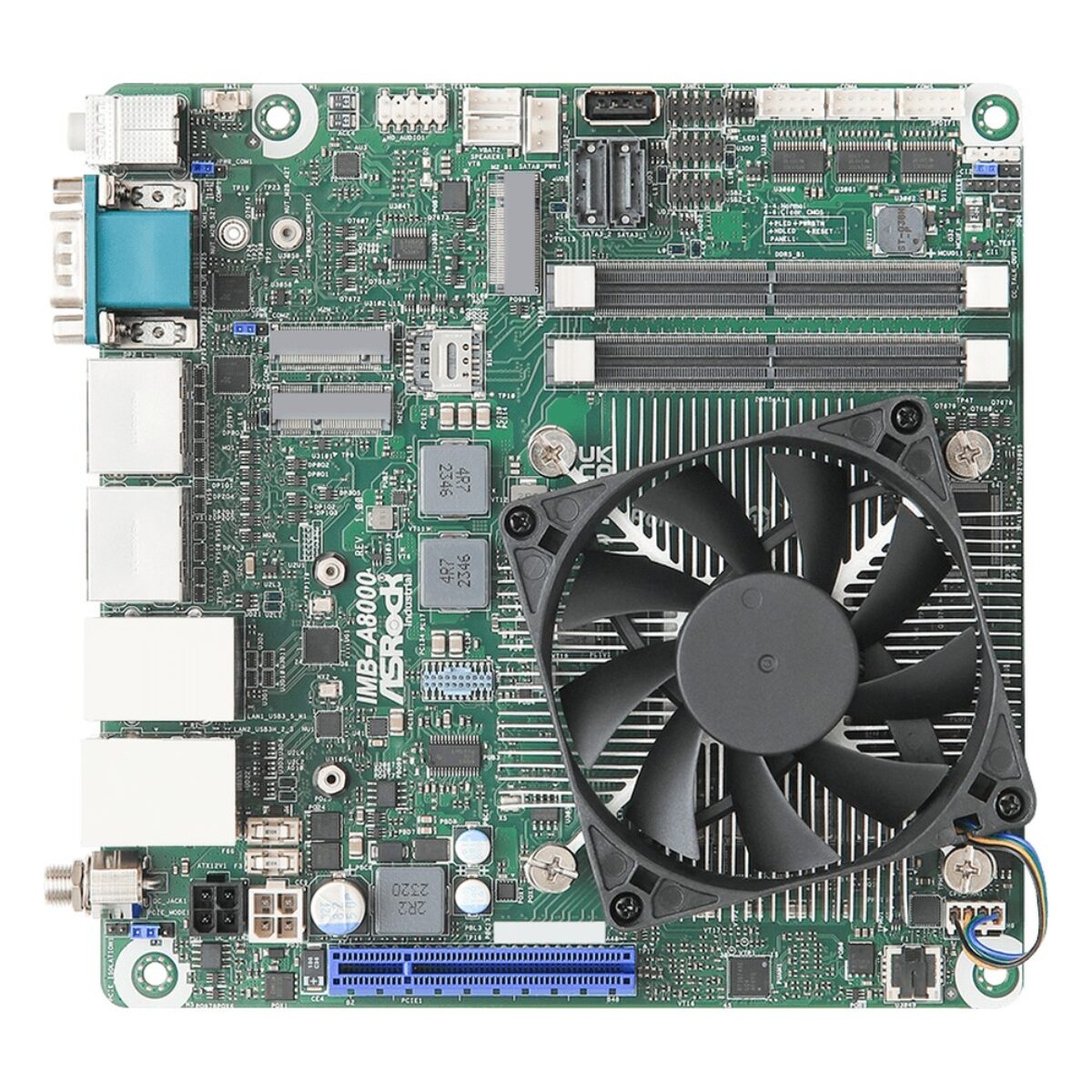

Every IMB-A8000 board shares the same layout. Two SO-DIMM sockets take dual channel DDR5 5600 in ECC or non-ECC form up to 96 GB, and RDNA 3 integrated graphics drive four DisplayPort 1.4a outputs with DP++. Networking is one 2.5GbE and one Gigabit port, and serial I/O runs to five COM ports, two of them RS-232/422/485 on DB9, plus a ccTalk header. Expansion is a PCIe x8 Gen4 slot with a GPU card power input, an M.2 M key on PCIe Gen4 x4 for NVMe storage, two SATA3 ports, an M.2 E key for optional Wi-Fi and an M.2 B key with SIM for optional 4G or 5G.

The range splits by processor class. The IMB-A8000P carries the eight-core Ryzen 7 8845HS with Radeon 780M graphics at 35 to 54 W, and the IMB-A8000S the six-core Ryzen 5 8645HS with Radeon 760M in the same power class. The IMB-A8000M keeps eight cores on the Ryzen 7 8840U at 15 to 30 W, and the IMB-A8000V runs the six-core Ryzen 5 8640U at the same lower power, which can ease thermal design in a smaller enclosure. Everything else is identical across the four, so a design can move between them without changing the enclosure or cabling.

In practice the IMB-A8000 series suits multi-screen digital signage, HMI stations, machine controllers and manufacturing equipment. Power arrives through a lockable screw-type DC jack or a four-pin wafer, with AT and ATX power-on modes for unattended starts. The boards are rated from -20 °C to 70 °C operating and -40 °C to 85 °C in storage, with AMD firmware TPM, a watchdog timer and CE and FCC marks, and ASRock Industrial supports Windows 11 and Linux. For projects that want Ryzen graphics on DC power in a standard Mini-ITX footprint, these embedded boards are a sensible place to start.
