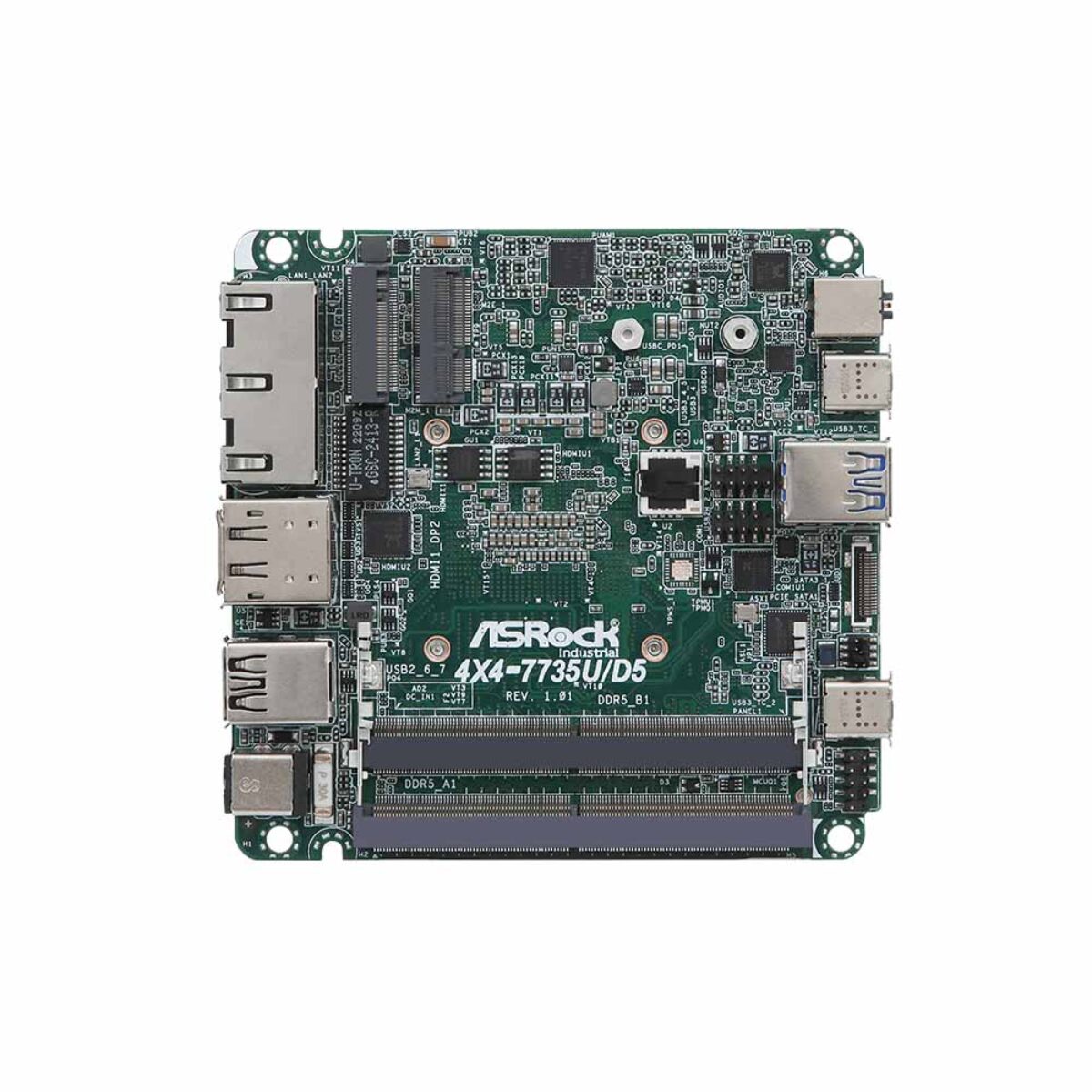

ASRock Industrial 4X4 7000/D5 Motherboard Series AMD Ryzen 7000U 4×4 Embedded Motherboards
The 4X4-7000/D5 Series is a compact 4×4-inch embedded motherboard powered by AMD Ryzen 7000U processors. It supports DDR5 memory, quad 4K display output, dual LAN including 2.5 GbE, and M.2 expansion for NVMe and wireless modules, providing a high-performance base for digital signage, automation, and industrial embedded PCs.
Linux- Windows
Quad Display Support
2.5GbE
Type C
USB3
USB4- 2x M.2
- Wi-Fi
- NVMe SSD
- CE
- FCC
4X4 7000/D5 Motherboard Series Description
The 4X4-7000/D5 Series delivers desktop-class performance in a compact 4×4-inch embedded form factor.
Powered by AMD Ryzen 7000U processors with integrated Radeon Graphics, it supports up to four 4K displays via HDMI, DisplayPort, and dual USB4 outputs, making it ideal for digital signage and industrial visual applications.
Dual DDR5 SO-DIMM slots provide up to 64 GB of high-speed memory bandwidth, while storage is handled through NVMe PCIe Gen4 and SATA interfaces.
Connectivity options include dual LAN (2.5 G + 1 G with DASH management), multiple USB ports, and RS-232/422/485 for legacy devices.
The board accepts 12–19 V DC input with selectable AT/ATX power modes and operates reliably from 0 °C to 70 °C in fan-cooled configurations.
Its TPM 2.0 security, wide I/O support, and ultra-compact layout make the 4X4-7000/D5 Series a powerful embedded platform for edge computing, AI gateways, and industrial control systems.
4X4 7000/D5 Motherboard Series Specifications
| Overview | |
|---|---|
| Brand & Model | ASRock Industrial 4X4 7000/D5 Motherboard Series |
| Features | Compact Embedded Industrial |
| Performance | |
| Processor Series | See Variant Specifications |
| Processor Models | See Variant Specifications |
| Performance Cores | See Variant Specifications |
| Memory | 2x DDR5 4800MHz SO-DIMM Slot, 64GB |
| BIOS | AMD SPI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | AMD Radeon Series |
| Display Standards | Display Port 1.4a DP++ HDMI 2.1 |
| Multi Display Support | Quad Display Support |
| Display Outputs | 1x Display Port 1x HDMI 2x USB Type C |
| Audio | |
| Codec | Realtek ALC233, HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| LAN Controllers | Realtek RTL8111EPV Realtek RTL8125BG |
| USB | 5x USB Ports |
| 1x USB 3.2 Gen 2 [Type A] 2x USB 2.0 [Type A] 2x USB 4 [Type C] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2242/2260/2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x SATA Port |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12-19V DC [Barrel Connector] Optional AC Power Supply |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Operating Temperature | 0°C to 60°C [32°F to 140°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 1 Kg (2.2 Lbs) |
| Dimensions | 104mm x 36mm x 102mm (4.09" x 1.42" x 4.02") |
No specifications match your search.
See product variants.
4X4 7000/D5 Motherboard Series Variants
ASRock Industrial 4X4-7735U/D5 AMD 7000U 4×4 Motherboard with 7735U CPU
4X4 7000/D5 with 7735U CPU
| Overview | |
|---|---|
| Brand & Model | ASRock Industrial 4X4-7735U/D5 |
| Performance | |
| Processor Series | Ryzen 7 |
| Processor Models | 7735U |
| Performance Cores | 8 |
ASRock Industrial 4X4-7535U/D5 AMD 7000U 4×4 Motherboard with 7535U CPU
4X4 7000/D5 with 7535U CPU
| Overview | |
|---|---|
| Brand & Model | ASRock Industrial 4X4-7535U/D5 |
| Performance | |
| Processor Series | Ryzen 5 |
| Processor Models | 7535U |
| Performance Cores | 6 |
