DFI RAP310 AMD Ryzen 9000 and 7000 AM5 Micro-ATX Industrial Motherboards with B650 Chipset and Dual 2.5GbE
The DFI RAP310 series is a family of Micro-ATX industrial motherboards for AMD Ryzen 9000, Ryzen 7000 PRO and AMD EPYC 4005 processors in the AM5 socket, on the B650 chipset with support up to 65 W TDP. The board takes up to 128 GB DDR5, two PCIe x16 Gen4 slots, Gen4 NVMe, four SATA ports, dual 2.5GbE and triple display, suiting machine vision, test systems, edge servers and medical imaging.
- AM5 Socket, Up to 65 W: Ryzen 9000, Ryzen 7000 PRO and EPYC 4005 processors from six to 16 cores, all at 65 W TDP on the B650 chipset.
- Up to 128 GB DDR5: Four DDR5 DIMM slots in dual channel at up to 5200 MHz for large image buffers, datasets and virtual machines.
- Two PCIe x16 Gen4 Slots: Two PCIe x16 Gen4 slots as x16 or x8/x8, plus two PCIe x4 Gen4 slots for GPUs, frame grabbers and I/O cards.
- Gen4 NVMe and Four SATA: An M.2 M-key socket for PCIe x4 Gen4 NVMe, an E-key socket for Wi-Fi and four SATA 3.0 ports with RAID 0/1/5/10.
- Micro-ATX I/O: Dual 2.5GbE, triple display from VGA, DP++ and HDMI 2.0, eight rear USB ports, four COM ports and 8-bit DIO.
Linux- Windows
Triple Display Support
2.5GbE
USB3- 2x M.2
- 4x PCIe
- Wi-Fi
- NVMe SSD
- CE
- FCC

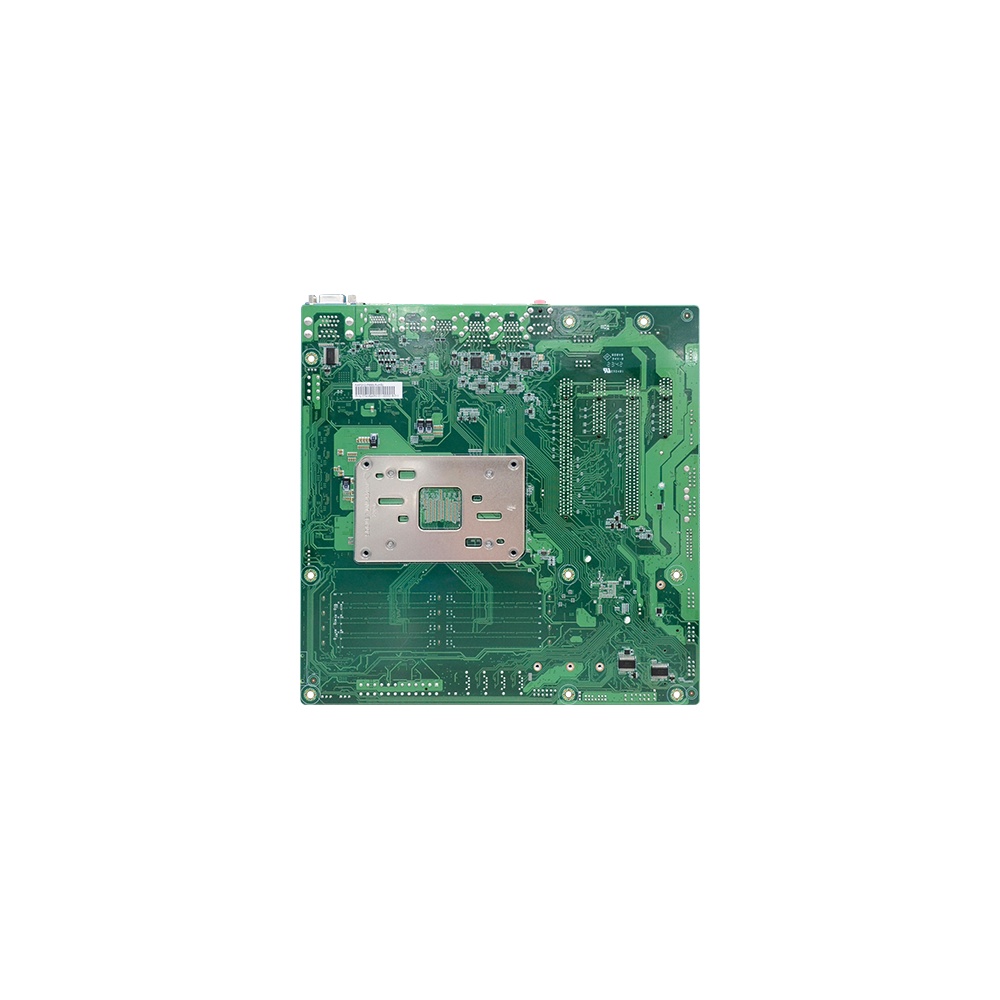

RAP310 Description

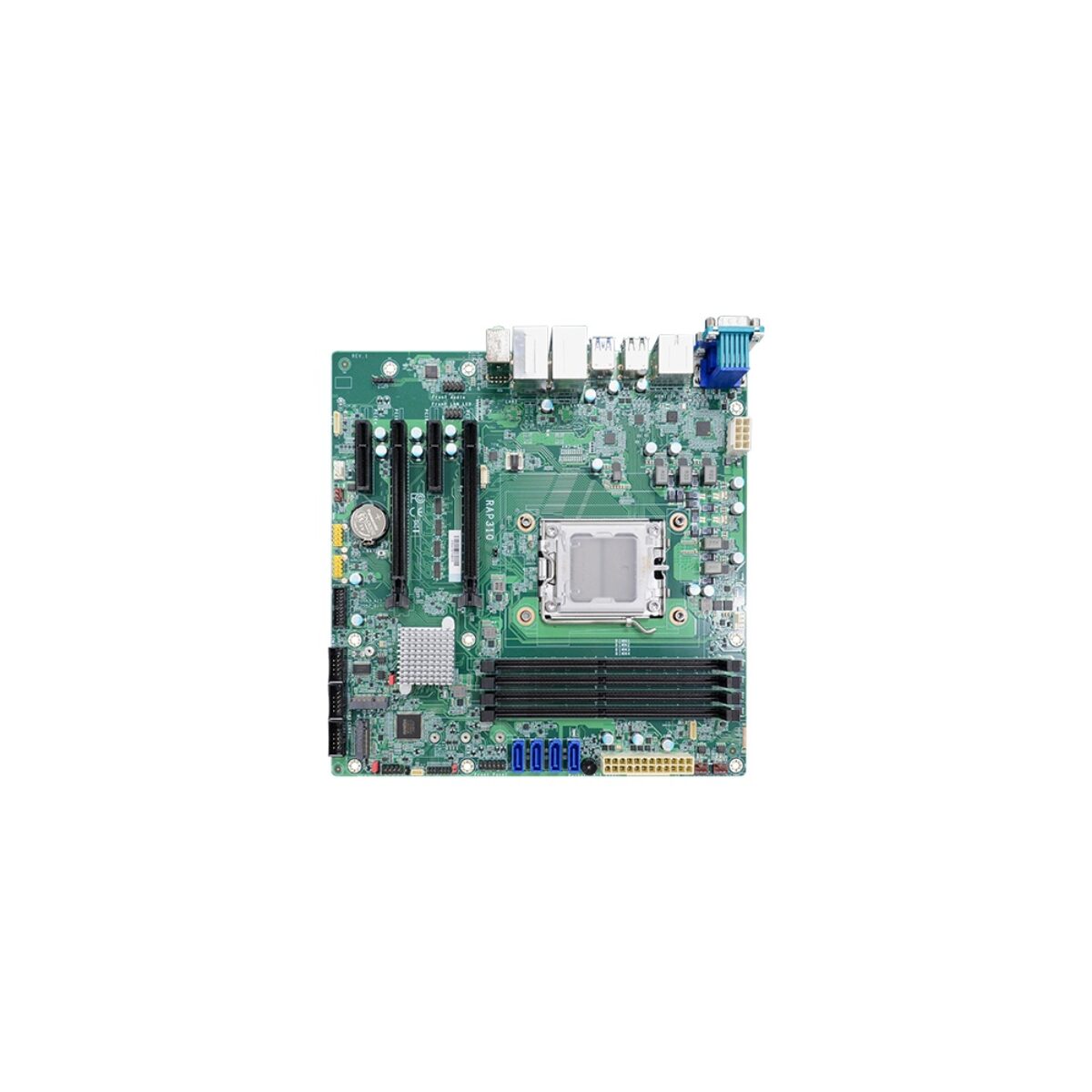

Test stands, vision cells and small edge servers often need a full-size GPU or frame grabber, several drives and a processor with up to 16 cores, and they still have to live in an industrial cabinet for years. The DFI RAP310 series brings the AMD AM5 socket to a 244 x 244 mm Micro-ATX industrial motherboard with the B650 chipset, powered from a standard ATX supply.
DFI lists nine processors, all at 65 W TDP. From the Ryzen 9000 series come the eight-core Ryzen 7 9700X and six-core Ryzen 5 9600X, which DFI lists with a lifecycle to Q1 2029. The Ryzen 7000 PRO parts are the 12-core Ryzen 9 PRO 7945, eight-core Ryzen 7 PRO 7745 and six-core Ryzen 5 PRO 7645, and the AMD EPYC 4005 series adds the 16-core EPYC 4545P, 12-core EPYC 4465P, eight-core EPYC 4345P and six-core EPYC 4245P. Four DDR5 DIMM slots run in dual channel at up to 5200 MHz and hold up to 128 GB.
Integrated AMD Radeon graphics drive VGA at up to 1920 x 1200, DP++ at up to 3840 x 2160 at 60 Hz and HDMI 2.0 at up to 4096 x 2160 at 60 Hz, for three independent displays. Two 2.5GbE ports on Intel I226V controllers connect cameras or the plant network. Two PCIe x16 Gen4 slots run as one x16 or two x8 for a GPU, frame grabber or network card, and two PCIe x4 Gen4 slots take further I/O cards. An M.2 M-key socket takes a PCIe x4 Gen4 NVMe SSD in 2242, 2260 or 2280 sizes, an M.2 E-key 2230 socket takes Wi-Fi, and four SATA 3.0 ports support RAID 0, 1, 5 and 10.

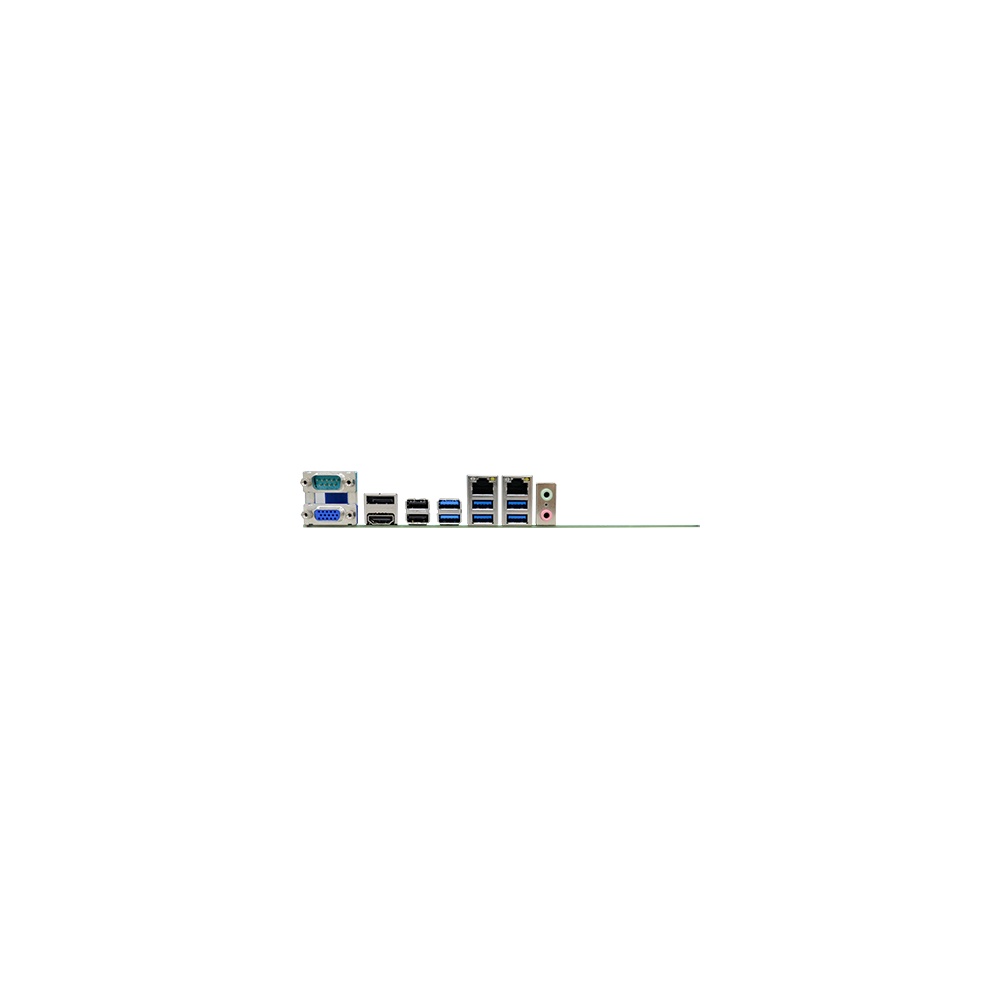

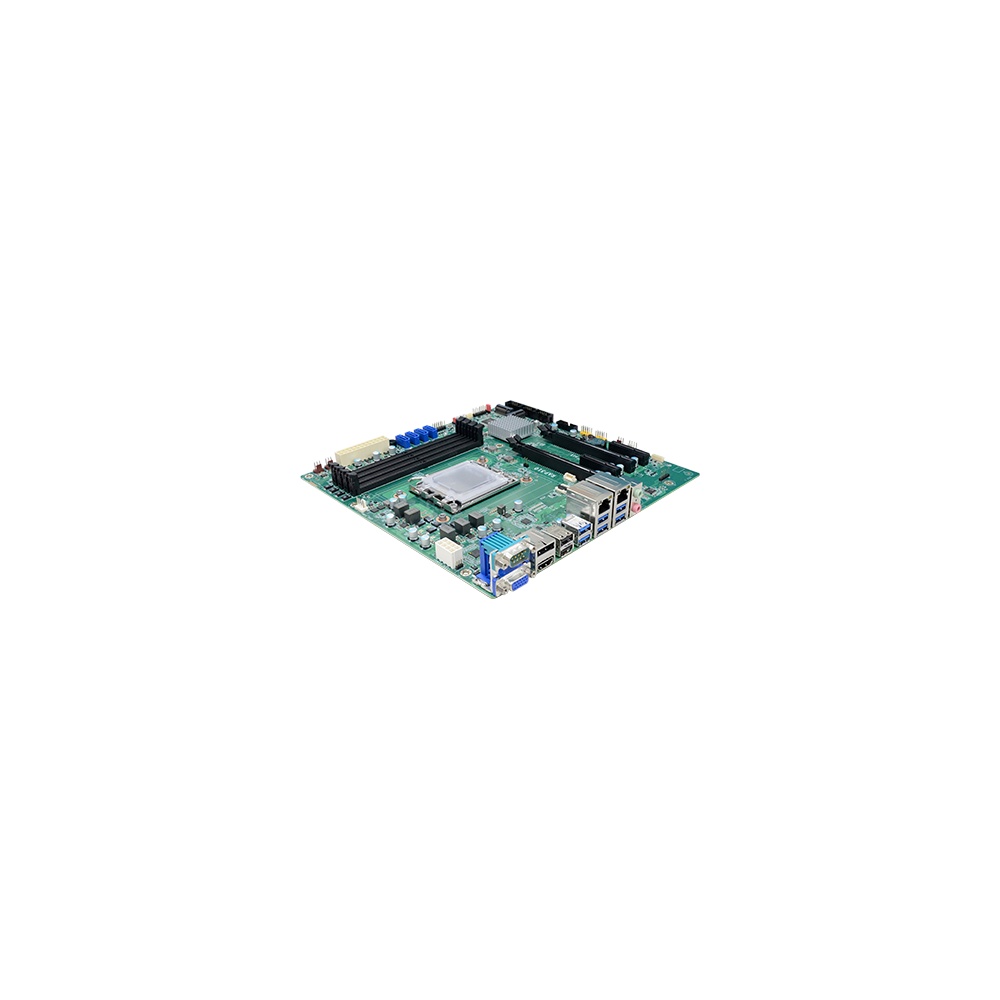

The rear panel carries six USB 3.2 Gen 2 and two USB 2.0 Type-A ports and an RS-232 port, and internal headers add two USB 3.2 Gen 1, four USB 2.0, three more COM ports (one RS-232/422/485 and two RS-232) and 8-bit DIO. The single build, RAP310-B650, carries all of this with a discrete TPM 2.0 and Realtek ALC888 audio.
Power comes from an ATX supply through 24-pin and 8-pin connectors, and the board operates from -5 to 65 °C with an active cooler on the processor. The RAP310 series carries CE, FCC, UKCA and RoHS compliance, and DFI lists Windows 11 Enterprise, Windows 10 and Ubuntu 22.04.
RAP310 Specifications
| Overview | |
|---|---|
| Brand & Model | DFI RAP310 |
| Features | Embedded Industrial |
| Performance | |
| Processor Series | AMD EPYC 4005 Series AMD Ryzen 7000 Series AMD Ryzen 9000 Series |
| Processor Models | AMD EPYC Embedded 4245P: 3.9~5.4GHz, 6 Cores, 12 Threads, 32MB Cache, 65W AMD EPYC Embedded 4345P: 3.8~5.5GHz, 8 Cores, 16 Threads, 32MB Cache, 65W AMD EPYC Embedded 4465P: 3.4~5.4GHz, 12 Cores, 24 Threads, 64MB Cache, 65W AMD EPYC Embedded 4545P: 3.0~5.4GHz, 16 Cores, 32 Threads, 64MB Cache, 65W AMD Ryzen Embedded 7945: 3.7~5.4GHz, 12 Cores, 24 Threads, 64MB Cache, 65W AMD Ryzen Embedded 7745: 3.8~5.3GHz, 8 Cores, 16 Threads, 32MB Cache, 65W AMD Ryzen Embedded 9700X: 3.8~5.5GHz, 8 Cores, 16 Threads, 32MB Cache, 65W AMD Ryzen Embedded 9600X: 3.9~5.4GHz, 6 Cores, 12 Threads, 32MB Cache, 65W AMD Ryzen Embedded 7645: 3.8~5.1GHz, 6 Cores, 12 Threads, 32MB Cache, 65W |
| Performance Cores | 6 Cores 8 Cores 12 Cores 16 Cores |
| Memory | 4x DDR5 5200MHz LONG-DIMM Slots, 128GB |
| Chipset | AMD B650 |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | AMD Radeon Series |
| Display Standards | DP++ HDMI 2.0 |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x Display Port 1x HDMI 1x VGA |
| Audio | |
| Interface | Line-In Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226V |
| USB | 14x USB Ports |
| 2x USB 2.0 [Type A] 2x USB 3.2 Gen 1 [Board] 4x USB 2.0 [Board] 6x USB 3.2 Gen 2 [Type A] | |
| Serial | 4x Serial Ports |
| 1x RS232 [DB9] 1x RS232/422/485 [Board] 2x RS232 [Board] | |
| Digital I/O | DIO [8-lines] |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [USB/PCIe] [2230] 1x M.2 M-Key [PCIe x4 Gen4] [2242/2260/2280] | |
| PCIe | 4x PCIe Slots |
| 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4] 2x PCIe [x4 Slot] [Gen4] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 4x SATA Ports |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | ATX Power Supply [8+24 Pin] |
| Environmental Conditions | |
| Operating Temperature | -5°C to 65°C [23°F to 149°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Certification | CE FCC RoHS UKCA |
| Mechanical Properties | |
| Dimensions | 244mm x 244mm (9.61" x 9.61") |
No specifications match your search.
See product variants.
RAP310 Variants
DFI RAP310-B650 AMD Ryzen 9000 and 7000 AM5 Micro-ATX Industrial Motherboard with B650 Chipset, Dual 2.5GbE and Triple Display
RAP310 with AMD B650, AM5 Ryzen 9000 and 7000, dual 2.5GbE and triple display
| Overview | |
|---|---|
| Brand & Model | DFI RAP310-B650 |
- RAP310 Datasheet Download
No related media available for this product series.
Official DFI USA Distributor
Things Embedded is an official DFI USA distributor, supplying the RAP310 series configured with the processor, memory, storage, add-in cards and an OS image, fitted with its cooling and tested before it ships. For Intel designs in the same Micro-ATX size, the ARS310 takes Intel Core Ultra 200S processors in the LGA 1851 socket with up to 256 GB DDR5 and PCIe Gen5, the RPS310 takes 12th to 14th Gen Intel Core and Core Series 2 processors in LGA 1700 with DDR5, and the ADS310 uses the same LGA 1700 socket with DDR4 memory. Our team can advise on processor choice against the workload, card compatibility and power budget, memory and RAID configuration, and the ATX supply that suits the build.
For other form factors, browse our AMD industrial motherboards, the ATX and Micro-ATX embedded motherboards we supply and the wider range of industrial motherboards. For smaller AMD designs, see our AMD Ryzen SBCs.
