DFI RPS310 Intel 14th Gen Core Micro-ATX Embedded Motherboards with Quad 2.5GbE and Four PCIe Slots

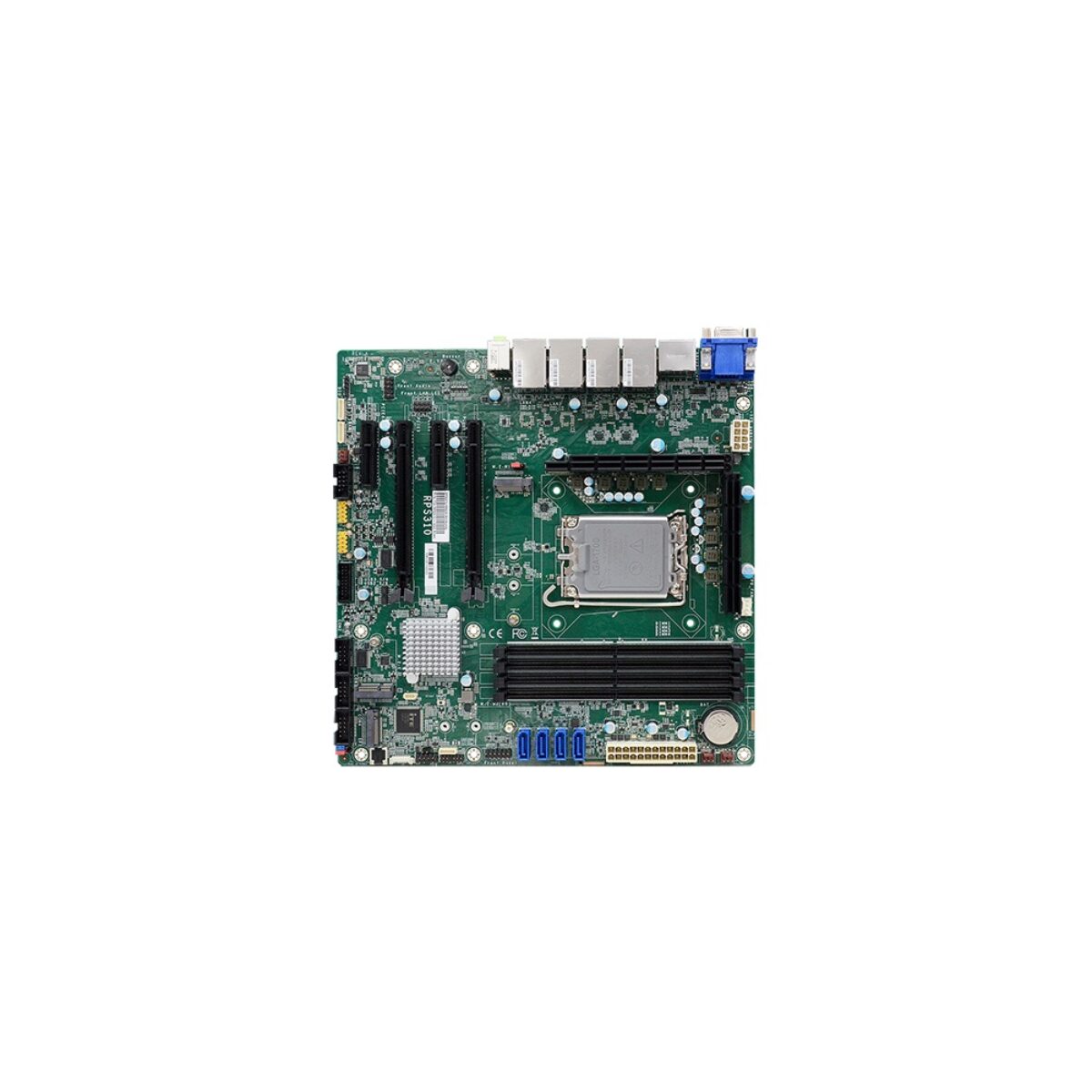

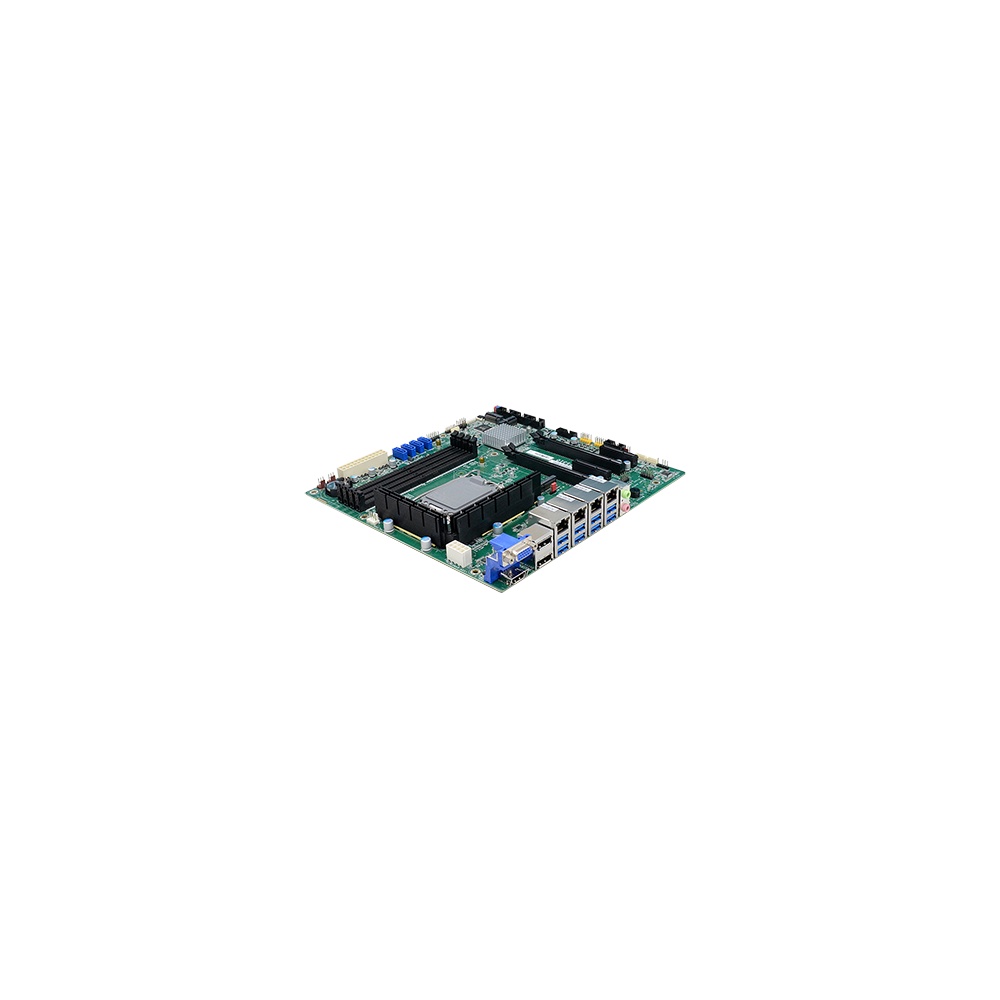

The DFI RPS310 series is a family of Micro-ATX embedded motherboards for LGA1700 processors, covering 12th to 14th Gen Intel Core, Intel Core Series 2 (Bartlett Lake-S), Pentium and Celeron at up to 125 W. Each board takes up to 192 GB of DDR5 across four DIMM slots, with two PCIe x16 Gen4 slots, two x4 Gen4 slots and up to four 2.5GbE ports. The RPS310 series suits vision, network appliances, test systems and edge servers.
- LGA1700 Processor Choice: 12th to 14th Gen Core, Core Series 2 Bartlett Lake-S, Pentium and Celeron, from two to 24 cores at up to 125 W.
- 192 GB DDR5: Four DDR5 4400 MHz DIMM slots take up to 192 GB in dual channel for virtual machines, containers and large image buffers.
- Two PCIe x16 Gen4 Slots: Two x16 slots share x16 or x8/x8 signal, with two PCIe x4 Gen4 slots for GPUs, capture and network cards.
- Up to Four 2.5GbE: Intel I226 2.5GbE ports, four on the R680E build and two on the Q670E, for camera, plant and uplink networks.
- Four COM and 4-in/8-out DIO: Two RS-232/422/485 and two RS-232 ports on internal headers, plus 4-in/8-out digital I/O for sensors and indicators.
Intel- Linux
- Windows
Quad Display Support
2.5GbE
USB3- 3x M.2
- 4x PCIe
- Wi-Fi
- NVMe SSD
- CE
- FCC
RPS310 Description
Edge servers and vision systems often run several virtual machines or containers on one board, and memory runs out before the processor does. The DFI RPS310 series addresses that with four DDR5 4400 MHz DIMM slots for up to 192 GB on the 244 x 244 mm Micro-ATX footprint. These Micro-ATX embedded motherboards use an LGA1700 socket, so the processor is chosen to suit the workload rather than fixed at the factory.
The socket supports 12th, 13th and 14th Gen Intel Core, Intel Core Series 2 (Bartlett Lake-S), Intel Processor 300, Pentium and Celeron parts, from two to 24 cores at up to 125 W TDP. Intel UHD Graphics drives four independent displays through VGA, two DP++ ports up to 4096 x 2304 at 60 Hz and HDMI 2.0a. DFI lists Windows 10 IoT Enterprise, Windows 11 LTSC and Linux support, and Intel AMT is available on supported processors for remote management.
The RPS310-R680E uses the Intel R680E chipset, supports ECC memory and carries four 2.5GbE ports on Intel I226 controllers, which suits network appliances and multi-camera systems. The RPS310-Q670E uses the Q670E chipset with non-ECC memory and two 2.5GbE ports, for systems where two networks are enough.

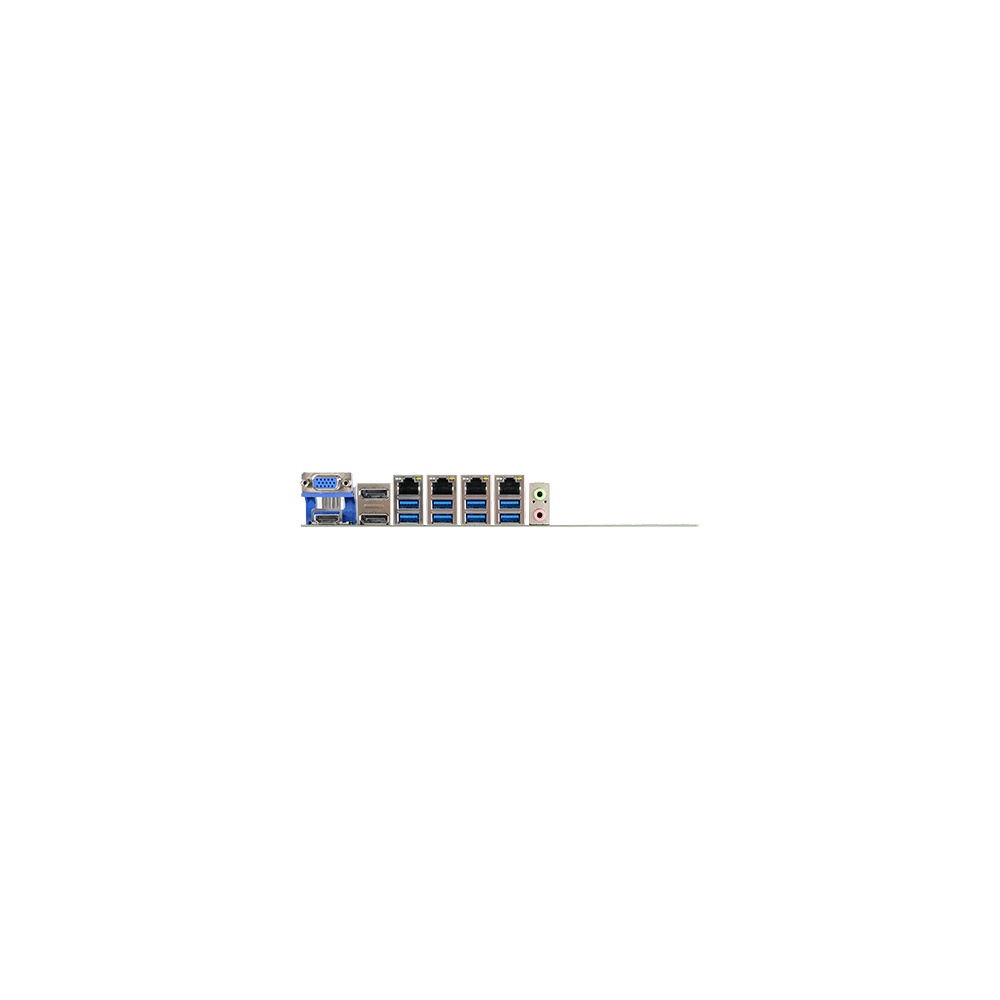

Expansion is generous for the board size: two PCIe x16 Gen4 slots, which share one x16 link or split as x8/x8, plus two PCIe x4 Gen4 slots. Two M.2 M-key sockets take PCIe x4 Gen4 NVMe SSDs (one also SATA), an M.2 E-key socket takes Wi-Fi, and four SATA 3.0 ports support RAID 0, 1, 5 and 10. Rear I/O has four USB 3.2 Gen 2 and four USB 3.2 Gen 1 Type-A ports, and internal headers add two USB 3.2 Gen 1, three USB 2.0, two RS-232/422/485 and two RS-232 ports, with 4-in/8-out digital I/O.
Power comes from a standard ATX supply over 24-pin and 8-pin connectors, and the boards run from -5 to 65 °C in indoor cabinets and equipment rooms, with optional DFI thermal solutions from 35 to 125 W. TPM 2.0 and a watchdog timer programmable from 1 to 255 seconds support secure, unattended operation, and the series carries CE, FCC, UKCA, KC and RoHS compliance.
RPS310 Specifications
| Overview | |
|---|---|
| Brand & Model | DFI RPS310 |
| Features | Embedded Industrial |
| Performance | |
| Processor Series | Intel Pentium G Series Alder Lake Intel Processor Series Raptor Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake Intel Celeron G Series Alder Lake |
| Processor Models | Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Processor 300: 3.9GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Processor 300T: 3.4GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core 5 211E: 2.7~4.9GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core 5 211TE: 1.7~4.8GHz, 10 Cores, 16 Threads, 20MB Cache, 45W Intel Core 5 213PE: 2.7~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 213PTE: 2.1~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PQE: 4.0~5.5GHz, 8 Cores, 16 Threads, 24MB Cache, 125W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PQE: 3.5~5.7GHz, 10 Cores, 20 Threads, 33MB Cache, 125W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PQE: 3.4~5.9GHz, 12 Cores, 24 Threads, 36MB Cache, 125W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Pentium Gold G7400E: 3.6GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Pentium Gold G7400TE: 3.0GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400T: 1.5~4.5GHz, 10 Cores, 16 Threads, 20MB Cache, 35W Intel Core i5-14401E: 2.5~4.7GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14401TE: 2.0~4.5GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14501E: 3.3~5.2GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-14501TE: 2.2~5.1GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14701E: 2.6~5.4GHz, 8 Cores, 16 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i7-14701TE: 2.1~5.2GHz, 8 Cores, 16 Threads, 33MB Cache, 45W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14901E: 2.8~5.6GHz, 8 Cores, 16 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i9-14901TE: 2.3~5.5GHz, 8 Cores, 16 Threads, 36MB Cache, 45W Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100T: 2.5~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500T: 1.6~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700T: 1.4~4.9GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 2 Cores 4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 4x DDR5 4400MHz LONG-DIMM Slots, 192GB |
| Chipset | See Variant Specifications |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | DP++ HDMI 2.0 |
| Multi Display Support | Quad Display Support |
| Display Outputs | 1x HDMI 1x VGA 2x Display Ports |
| Audio | |
| Interface | Line-In Line-Out Mic-In |
| I/O | |
| Ethernet | See Variant Specifications |
| LAN Controllers | Intel I226 |
| USB | 13x USB Ports |
| 2x USB 3.2 Gen 1 [Board] 3x USB 2.0 [Board] 4x USB 3.2 Gen 1 [Type A] 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 4x Serial Ports |
| 2x RS232 [Board] 2x RS232/422/485 [Board] | |
| Digital I/O | DIO [4-in, 8-out] |
| Remote Management | Intel AMT |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 E-Key [USB/PCIe] [2230] 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2242/2260/2280] 1x M.2 M-Key [PCIe x4 Gen4] [2242/2260/2280] | |
| PCIe | 4x PCIe Slots |
| 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4] 2x PCIe [x4 Slot] [Gen4] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 4x SATA Ports |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | ATX Power Supply [8+24 Pin] |
| Environmental Conditions | |
| Operating Temperature | -5°C to 65°C [23°F to 149°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Certification | CE FCC KC RoHS UKCA |
| Mechanical Properties | |
| Dimensions | 244mm x 244mm (9.61" x 9.61") |
No specifications match your search.
See product variants.
RPS310 Variants
DFI RPS310-Q670E Intel Bartlett Lake and 14th Gen Core Micro-ATX Industrial Motherboard with Q670E Chipset and Dual 2.5GbE
RPS310 with Intel Q670E, dual 2.5GbE, 192 GB DDR5 and two PCIe x16 slots
| Overview | |
|---|---|
| Brand & Model | DFI RPS310-Q670E |
| Performance | |
| Chipset | Intel Q670E |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
DFI RPS310-R680E Intel 14th Gen Core Micro-ATX Embedded Motherboard with R680E Chipset and Quad 2.5GbE
RPS310 with Intel R680E, ECC DDR5, quad 2.5GbE and two PCIe x16 slots
| Overview | |
|---|---|
| Brand & Model | DFI RPS310-R680E |
| Performance | |
| Chipset | Intel R680E |
| I/O | |
| Ethernet | 4x Ethernet Ports |
| 4x 2.5 GbE LAN [RJ45] | |
- RPS310 Datasheet Download
No related media available for this product series.
Official DFI USA Distributor
Things Embedded is an official DFI USA distributor, supplying the RPS310 series configured with your chosen processor, DDR5 memory, NVMe storage, wireless and OS image, fitted with a cooler matched to the CPU and tested before it ships. For six COM ports and two PCI slots on a Micro-ATX board, see the RPS330; for DDR4 with a PCIe Gen5 x16 slot and optional dual 10GbE, the ADS310; and for Intel Core Ultra 200S (Arrow Lake-S) processors, the ARS310. We can advise on processor and TDP choice, memory sizing for virtual machines and card layouts across the two x16 slots. We also plan lifecycle support and last-time-buy timing with you, so the board you qualify stays available for the life of the project.
