Axiomtek GOT710-837 10.4″ Sunlight Readable Railway Panel PC with Intel Atom E3845 and 1000 Nit SVGA LCD

A cab display on a train has to stay legible when low sun falls across it, and it has to ride out the vibration and supply swings of rolling stock. The GOT710-837 is Axiomtek’s 10.4 inch railway panel PC for that job, with an Intel Atom E3845, a 1000 nit sunlight readable touch screen and M12 connectors throughout, and it is compliant with EN 50155.

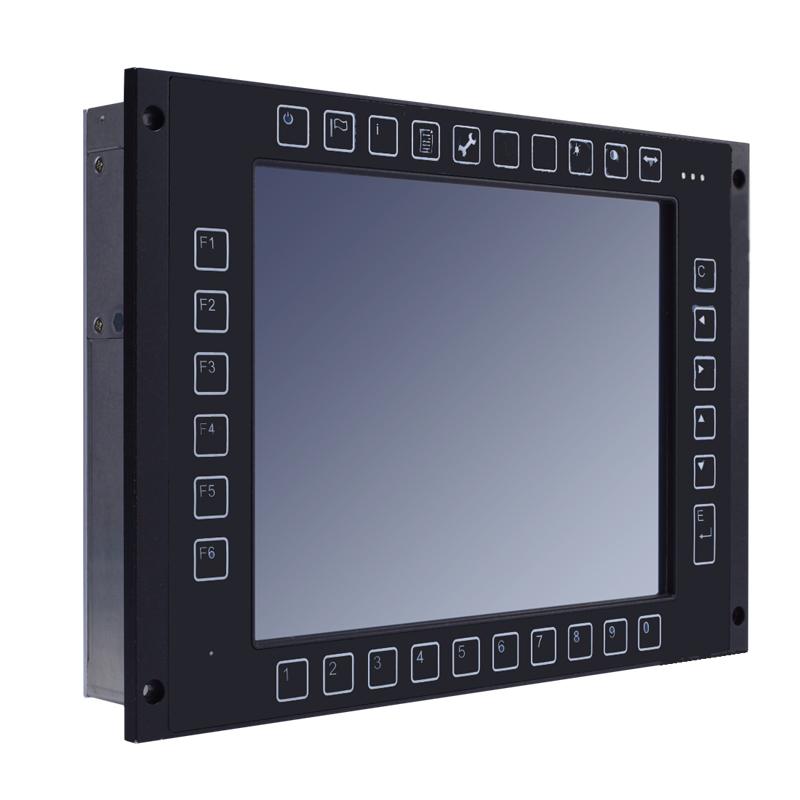

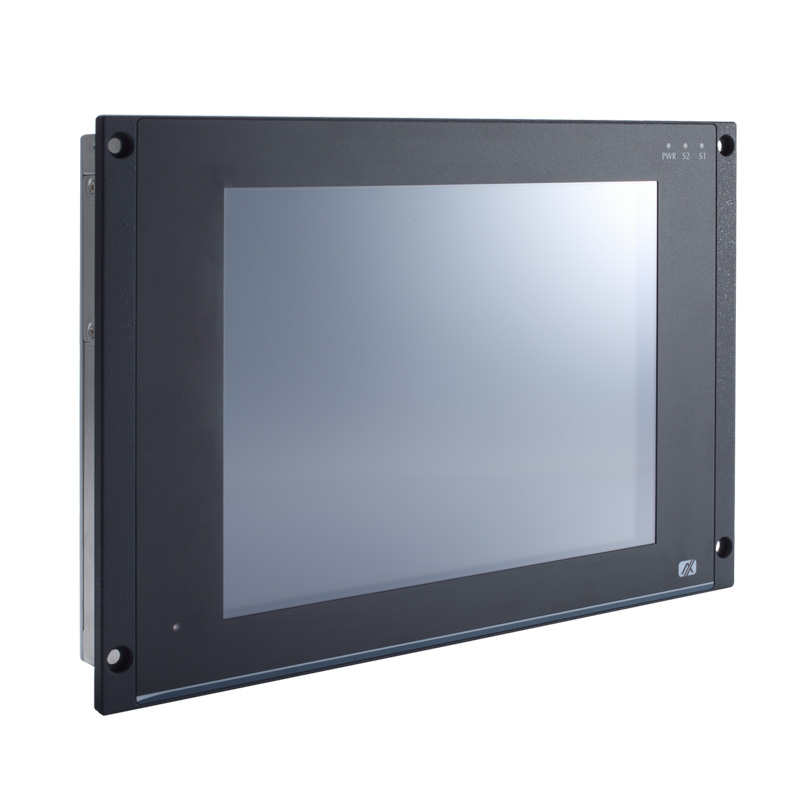

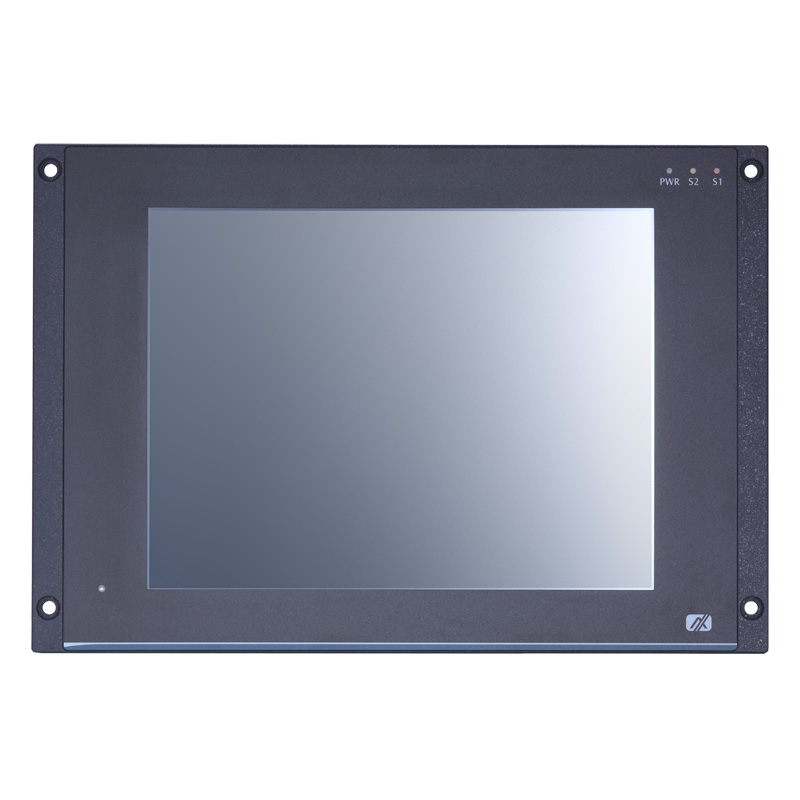

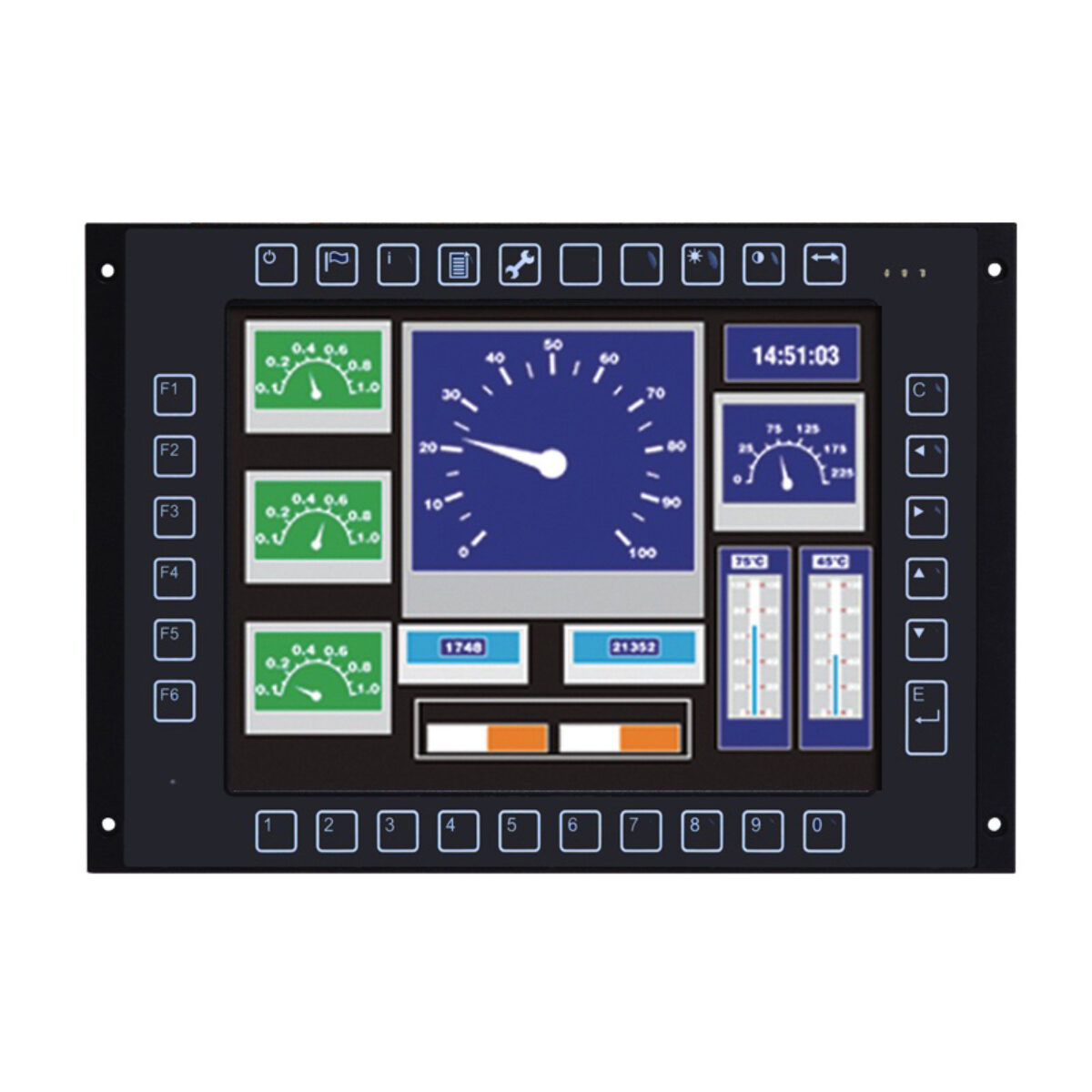

The Intel Atom E3845 runs at up to 1.91 GHz with 4 GB of onboard DDR3L memory, 16 GB of onboard flash and an mSATA socket, which suits train status screens and fleet management clients, with Windows 10, WES7 or Windows 10 IoT as optional installs. The display is an SVGA LCD at 800 x 600 with a 1000 nit LED backlight, 160° viewing angles and auto-dimming. The 5-wire resistive touch works with gloves, and the unit is offered with or without a front keypad complying with UIC-612.

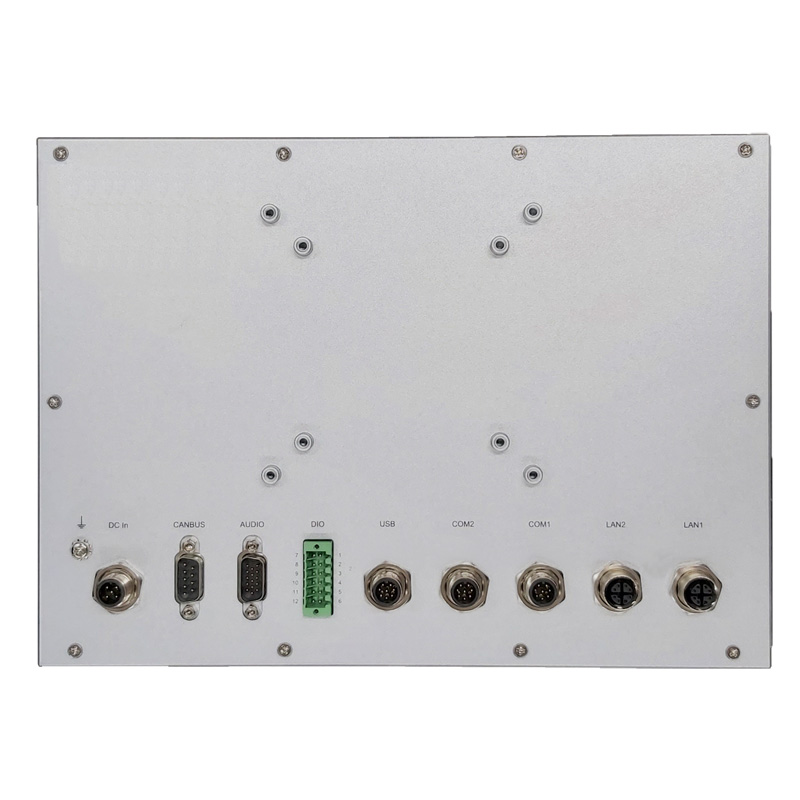

I/O is built for rail wiring: two isolated M12 X-coded Gigabit Ethernet ports, one M12 A-coded connector carrying two USB 2.0 ports and two isolated M12 A-coded RS-232/422/485 ports, plus an isolated DB9 CANbus port and a terminal-block DIO with six inputs and two outputs, all isolated to 1.5 kV. A DB15 connector carries line-in, mic-in and speaker-out or line-out, and two PCI Express Mini Card slots take optional 3G+GPS and Wi-Fi kits. The GOT710S-837 adds EN 50155 Class S3 20 ms power interruption protection, and the P710 is the 10.4 inch railway touch monitor for a separate computer.

Power is a typical 24 to 110 V DC on an M12 A-coded connector, with a working range of 16.8 to 137.5 V DC to ride out supply variation. The GOT710-837 is fanless, operates from -40 °C to 70 °C at 10 to 95% humidity, and pairs an IP65 / NEMA 4 aluminum front bezel with an IP40 enclosure. It is compliant with EN 50121-3-2, EN 61373 and EN 45545-2 and carries a CE mark. It measures 310 x 214 x 51.5 mm, weighs 2.5 kg and fits panel, wall, VESA arm or desktop stand mounting.
