What Is a Baseboard Management Controller (BMC)?

A baseboard management controller (BMC) is a small processor on a server or industrial motherboard that manages the hardware independently of the main CPU and operating system. It has its own firmware, memory and network connection, and it runs from standby power, so it stays reachable whenever the system is plugged in, whether the host is running, crashed or switched off.

The BMC is wired to the board’s sensors and control lines. It reads temperatures, voltages and fan speeds over I²C and SMBus, controls the power and reset circuits, and talks to the host through a dedicated link such as eSPI, LPC or PCIe. Most current BMCs are system-on-chip devices, with the ASPEED AST2500 and AST2600 the most widely used, running vendor firmware or the open-source OpenBMC stack.

The network side is either a dedicated management Ethernet port, often labeled IPMI or MGMT, or a sideband connection that shares one of the main LAN ports through NC-SI. A dedicated port is easier to keep on a separate management network.

The features vary by board and firmware license, but most BMCs cover the same core tasks.

A BMC is reached through one or more management interfaces. Older tools speak IPMI; newer fleet tools use Redfish, and most current BMCs support both. Server makers also brand their BMC firmware under their own names, such as iDRAC, iLO or XClarity, but the job is the same.

In-band access also exists: software inside the running operating system can query the BMC through the KCS interface. It is handy for inventory and sensor readings, but it fails when the operating system does, so recovery always goes out of band.

A BMC is a separate chip with its own processor and, usually, its own port, which is why it is standard on servers and server motherboards. Intel vPro takes a different route: its Active Management Technology runs inside the Intel chipset’s management engine and shares the main network controller. It brings similar remote power, console and reimaging features to business-class Core systems that have no BMC.

Compact fanless PCs rarely have room or power budget for a full BMC. They can still be managed out of band with an add-on module or a vendor agent; our guide to out-of-band management for industrial PCs with Allxon shows one approach.

BMCs started in data-centre servers, and they are moving outwards as more computing is installed at remote sites with no IT staff. At the edge, a BMC turns a site visit into a remote fix: a frozen system can be power-cycled, inspected at the BIOS screen and reimaged from a central office.

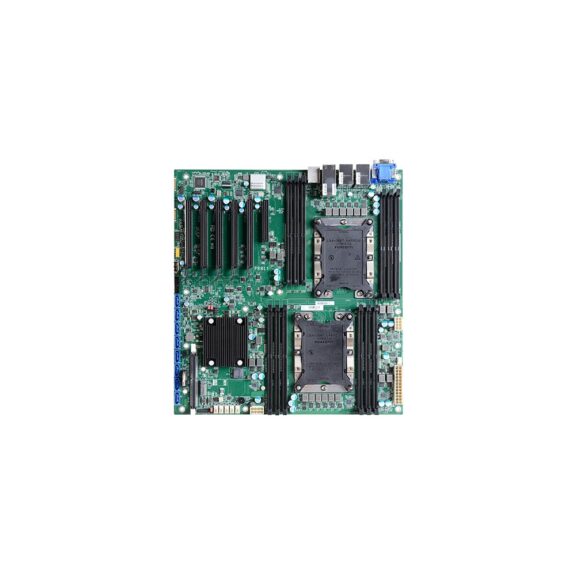

In our range, many server motherboards for Intel Xeon processors include IPMI remote management, and our AMD EPYC edge servers list BMC management alongside PCIe 5.0 x16 slots. The multi-GPU rack mount servers we supply for cabinets and comms rooms also include BMC remote management. Always check each datasheet for the BMC chip, the management port and whether remote console is included or licensed separately.

A BMC can switch power, reinstall the operating system and read the console, so anyone who controls it effectively controls the system. Treat it as part of the security boundary, not as a convenience feature.

We configure the BMC on our servers and server boards as part of the standard build, setting the management network, accounts and alerts to match your monitoring plan before the system ships.
