US How PCIe 5.0 works
PCIe 5.0 is the fifth generation of PCI Express, the serial interface that connects graphics cards, NVMe SSDs, network adapters, capture cards and accelerators to the processor. PCI-SIG, the industry body that owns the standard, released the specification in 2019, and the first desktop processors with PCIe 5.0 lanes arrived in late 2021.
PCIe sends data over lanes. Each lane is two differential pairs, one in each direction, so a link sends and receives at the same time. PCIe 5.0 doubles the signaling rate of PCIe 4.0 to 32 gigatransfers per second (GT/s) per lane, while keeping the same 128b/130b encoding and the same NRZ signaling. After encoding, that leaves about 3.94 GB/s of usable bandwidth per lane in each direction.
Slots and cards look the same as earlier generations. A slot or device is described by its lane count, from x1 to x16, and the link runs at the highest generation and width that both ends support.
PCIe 5.0 bandwidth by link width
Bandwidth scales with the number of lanes. The figures are theoretical maximums after encoding overhead; protocol overhead typically takes a few per cent more in practice.
| Link width | Lanes | Each direction | Both directions | Typical PCIe 5.0 device |
|---|---|---|---|---|
| x1 | 1 | About 3.9 GB/s | About 7.9 GB/s | Network, serial or I/O cards |
| x2 | 2 | About 7.9 GB/s | About 15.8 GB/s | Compact M.2 storage and add-in devices |
| x4 | 4 | About 15.8 GB/s | About 31.5 GB/s | NVMe SSDs in M.2, U.2 and E3.S formats |
| x8 | 8 | About 31.5 GB/s | About 63 GB/s | 200GbE network cards, storage controllers |
| x16 | 16 | About 63 GB/s | About 126 GB/s | GPUs, 400GbE network cards, accelerators |
The higher rate also means a device can reach the same throughput on fewer lanes. A card that needed x16 at PCIe 4.0 has the same bandwidth at PCIe 5.0 x8, which frees lanes for extra SSDs or network ports on processors with a limited lane count.
What changed to reach 32 GT/s
Doubling the rate again made the electrical side harder, and most of the changes in PCIe 5.0 deal with that.
-
//
Shorter reach on the board. At 32 GT/s the signal loses more strength in the copper, so the specification allows a channel loss of around 36 dB. Longer runs to slots, risers and backplanes often need a retimer chip to regenerate the signal.
-
//
Lower-loss circuit boards. Motherboards and riser cards built for PCIe 5.0 use better PCB materials and tighter layout rules, which is one reason a board may run only its first slot or M.2 socket at Gen 5.
-
//
Improved equalisation. Link training adds precoding and refined equalisation so the receiver can recover the faster signal reliably.
-
//
A base for CXL. Compute Express Link 1.1 and 2.0 run over the PCIe 5.0 physical layer, letting memory expanders and accelerators share memory coherently with the CPU.
-
//
New power connector for graphics cards. The PCIe 5.0 card electromechanical specification introduced the 16-pin 12VHPWR connector, rated up to 600 W, later revised as 12V-2x6.
Is PCIe 5.0 backwards compatible?
Yes. Every PCIe generation is backwards and forwards compatible. A PCIe 4.0 or 3.0 card works in a PCIe 5.0 slot, and a PCIe 5.0 card works in an older slot. The link trains to the fastest generation both ends support, so a PCIe 5.0 SSD in a PCIe 4.0 slot runs at PCIe 4.0 speed. Physical fit follows the usual rule: a shorter card fits a longer slot, and an open-ended slot accepts a longer card at reduced width.
Where PCIe 5.0 matters in edge and industrial systems
PCIe 5.0 support comes from the processor, so the generation of a system is set by its CPU and board. Intel added PCIe 5.0 lanes with 12th Gen Core desktop processors and 4th Gen Xeon Scalable; AMD added them with Ryzen 7000 and EPYC 9004, and they continue in Core Ultra 200S, Xeon 6 and EPYC 8004 and 9005.
The number of Gen 5 lanes is the real limit. Intel Core desktop processors typically provide 16 PCIe 5.0 lanes for the graphics slot (Core Ultra 200S adds four more for an M.2 SSD), while the chipset’s extra lanes run at PCIe 4.0 or 3.0. Server processors are far more generous: an AMD EPYC 9004 or 9005 processor provides up to 128 PCIe 5.0 lanes, enough for several GPUs, NVMe drives and network cards at full speed.

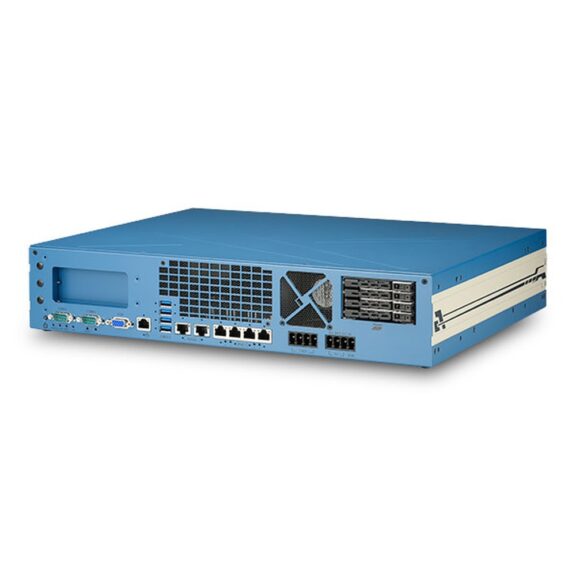

In practice, Gen 5 earns its place in three kinds of edge system. AI servers use it for current data centre GPUs, such as the NVIDIA H200 NVL and RTX PRO 6000 Blackwell Server Edition, which connect over PCIe 5.0 x16. Storage-heavy recorders and servers use Gen 5 NVMe drives, which reach around 12 to 14 GB/s sequential reads. Network appliances use it for 200GbE and 400GbE adapters. Our AMD EPYC edge servers include dual PCIe 5.0 x16 slots for GPUs, and some of our W680, R680E and Q670 industrial Mini-ITX motherboards bring a PCIe Gen 5 slot to compact builds.
Heat is the practical catch. PCIe 5.0 SSDs and controllers run hotter than Gen 4 parts and usually need a heatsink and airflow, which matters in sealed fanless enclosures. Our guide to M.2 slots, keys and industrial SSDs covers storage choices for those designs.
Quick answers on PCIe 5.0
PCIe 5.0: common questions
How fast is PCIe 5.0 per lane?
32 GT/s, about 3.9 GB/s in each direction. An x4 NVMe link has about 15.8 GB/s available and an x16 slot about 63 GB/s each way.
When did PCIe 5.0 come out?
The specification was released in 2019. Processors with PCIe 5.0 lanes followed from late 2021, and PCIe 5.0 SSDs and GPUs became common from 2023.
Is PCIe Gen 5 the same as PCIe 5.0?
Yes. PCIe Gen 5, PCIe 5.0, PCI Express 5.0 and PCIe 5 all name the same generation.
What does PCIe 5.0 x16 mean?
A PCIe 5.0 link with 16 lanes. It is the full-size graphics slot, with about 63 GB/s in each direction. A slot can be x16 in length but wired for fewer lanes, so check the board manual.
Do PCIe 5.0 SSDs need a heatsink?
Usually, yes. Most Gen 5 NVMe drives throttle without one under sustained load. In fanless systems the heatsink has to be part of the thermal design, not an afterthought.
