Winmate R19IAD3S-67FTP(HB) 19″ Full IP67 Panel PC with 12th Gen Intel Core i5 and MIL-STD-810G
PCAP
High Bright
Intel
Linux
Windows
Wi-Fi
Fanless
CE
FCCR19IAD3S-67FTP(HB) Overview

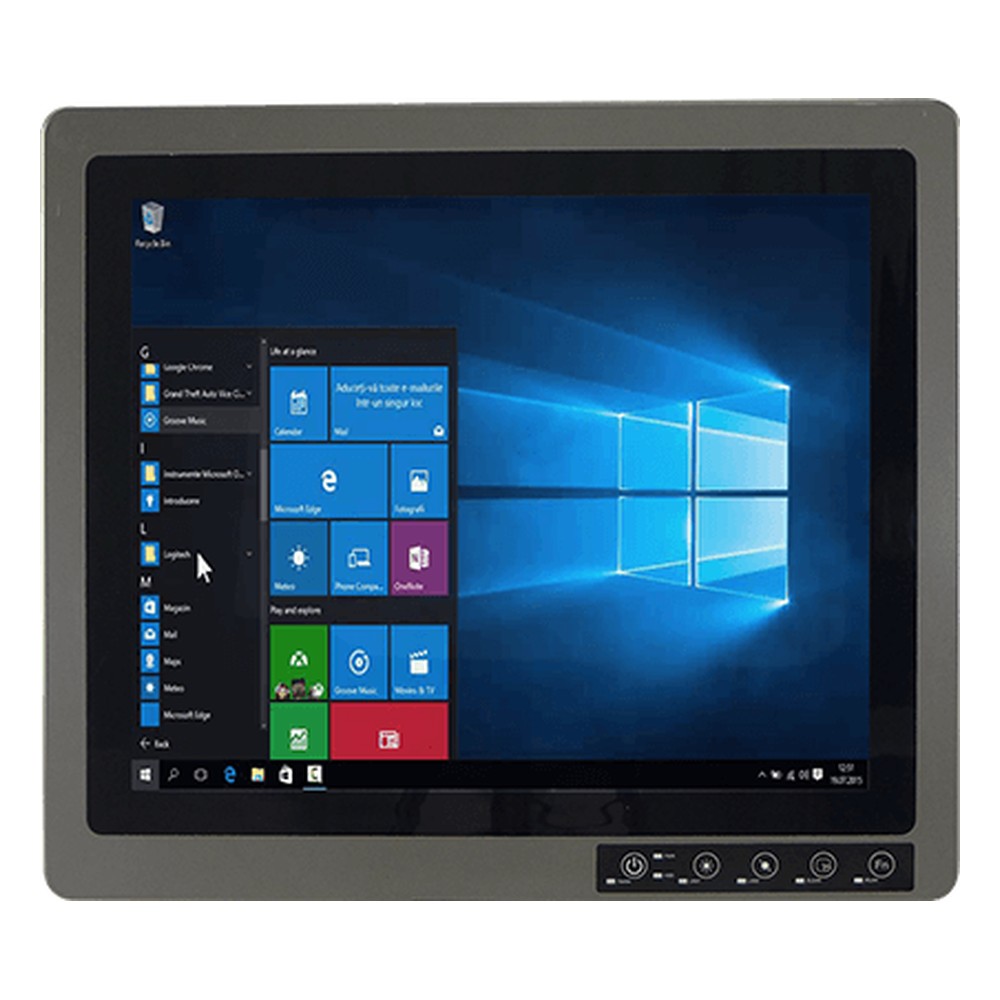

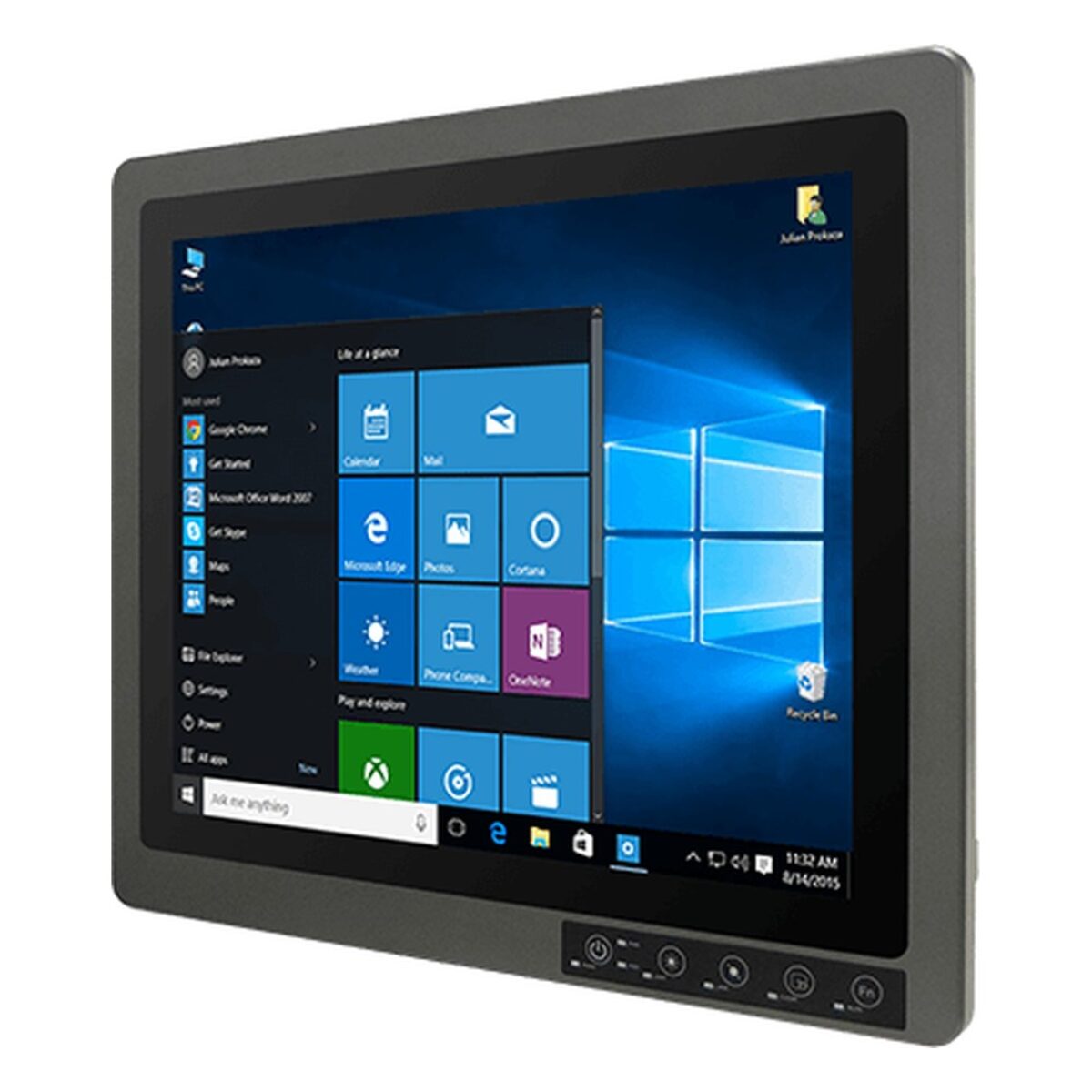

Large HMIs on outdoor machinery may be rained on and covered in dust, yet operators still need a readable screen. The R19IAD3S-67FTP(HB) is Winmate’s 19 inch G-WIN panel PC for those installs: a fanless die-cast aluminum housing with anti-corrosion treatment, sealed to full IP67, around a 12th Gen Intel Core i5-1235U.
The 19″ 1280 x 1024 screen is rated at 1000 nits with 1000:1 contrast, under projected capacitive multi-touch optically bonded to the panel for clarity. A button locks the touch screen for cleaning, a programmable function key is fitted, and LEDs show power, storage, heater, LAN and touch lock status. The Core i5-1235U is a 10-core, 12-thread Alder Lake processor at up to 4.4 GHz with a 15 W TDP and Intel Iris Xe graphics, typically enough for HMI and SCADA clients alongside line data software. One DDR5 SO-DIMM holds 8 GB as standard with options to 32 GB, and storage is a 128 GB SSD with options to 4 TB. TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed.
Connections are sealed: an isolated 9 to 36 V DC input, two USB 2.0 ports on one M12 connector and one RS-232 port on M12 connectors, plus a waterproof USB Type-A connector with cover and a waterproof Gigabit LAN RJ45 connector, with waterproof cables and caps supplied. Ignition on/off delay, Wi-Fi, Bluetooth and an AC adapter are optional. The R19IT3S-67FTP(HB) is the earlier build of this 19 inch full IP67 design with an 11th Gen Intel Core i5-1135G7, and the R19MG3S-67FTP(HB) is the six-core MediaTek Genio 510 Arm build.
The R19IAD3S-67FTP(HB) operates from -10 °C to 55 °C, or from -40 °C to 55 °C with the intelligent heater, and stores from -30 °C to 70 °C. It is tested to MIL-STD-810G Method 516.6 Procedure I for shock and Method 514.6 Procedure I for vibration, and carries CE and FCC marks. It panel mounts with the clips supplied, or on VESA as an option. We supply it configured, with the OS installed, and tested before dispatch.
R19IAD3S-67FTP(HB) Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19IAD3S-67FTP(HB) |
| Features | Fanless Industrial M12 Connectors Rugged Waterproof |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Optical Bonding |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Performance | |
| Processor Series | Intel Core 12th Gen Alder Lake |
| Processor Models | Intel Core i5-1235U: 1.3~4.4GHz, 10 Cores, 12 Threads, 12MB Cache, 15W |
| Performance Cores | 10 Cores |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel Iris Xe Series |
| I/O | |
| Ethernet | 1x Ethernet Ports |
| 1x GbE LAN [RJ45] | |
| USB | 2x USB Ports |
| 2x USB 2.0 [M12] | |
| Serial | 1x Serial Ports |
| 1x RS232 [M12] | |
| Expansion | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x M.2 SSD |
| Power | |
| Power Input | 9-36V DC Input [M12] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -10°C to 55°C [14°F to 131°F] -40°C to 55°C [-40°F to 131°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | IP67 IP67 [Dustproof, Protection against immersion in water up to 1 meter for 30 minutes] |
| Shock | MIL-STD-810G, Method 516.6, Procedure I |
| Vibration | MIL-STD-810G, Method 514.6 |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 9.8 Kg (21.6 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 474mm x 410mm x 111mm (18.66" x 16.14" x 4.37") |
- R19IAD3S-67FTP(HB) Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19IAD3S-67FTP(HB) configured and tested for USA outdoor, manufacturing and vehicle projects. Within the Winmate range the R19IT3S-67FTP(HB) is the earlier build of this 19 inch full IP67 design with an 11th Gen Intel Core i5-1135G7, and the R19MG3S-67FTP(HB) is the six-core MediaTek Genio 510 Arm build.
With full IP67 sealing the R19IAD3S-67FTP(HB) sits among our IP67 panel PCs, our IP67 computers and our sunlight readable panel PCs. Where a 19 inch HMI is exposed to water and dust on every side and must stay readable in daylight, this is a model to consider.
