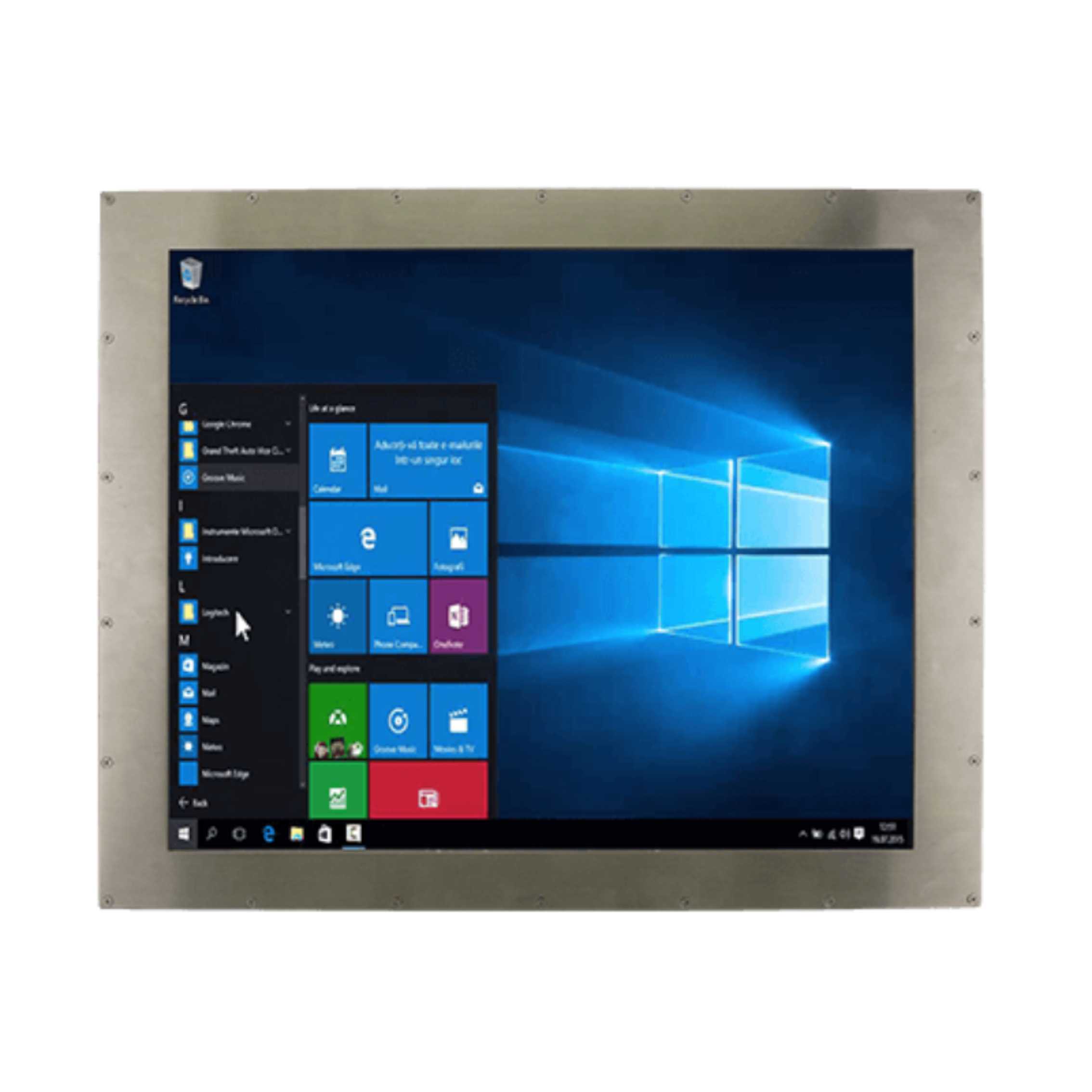

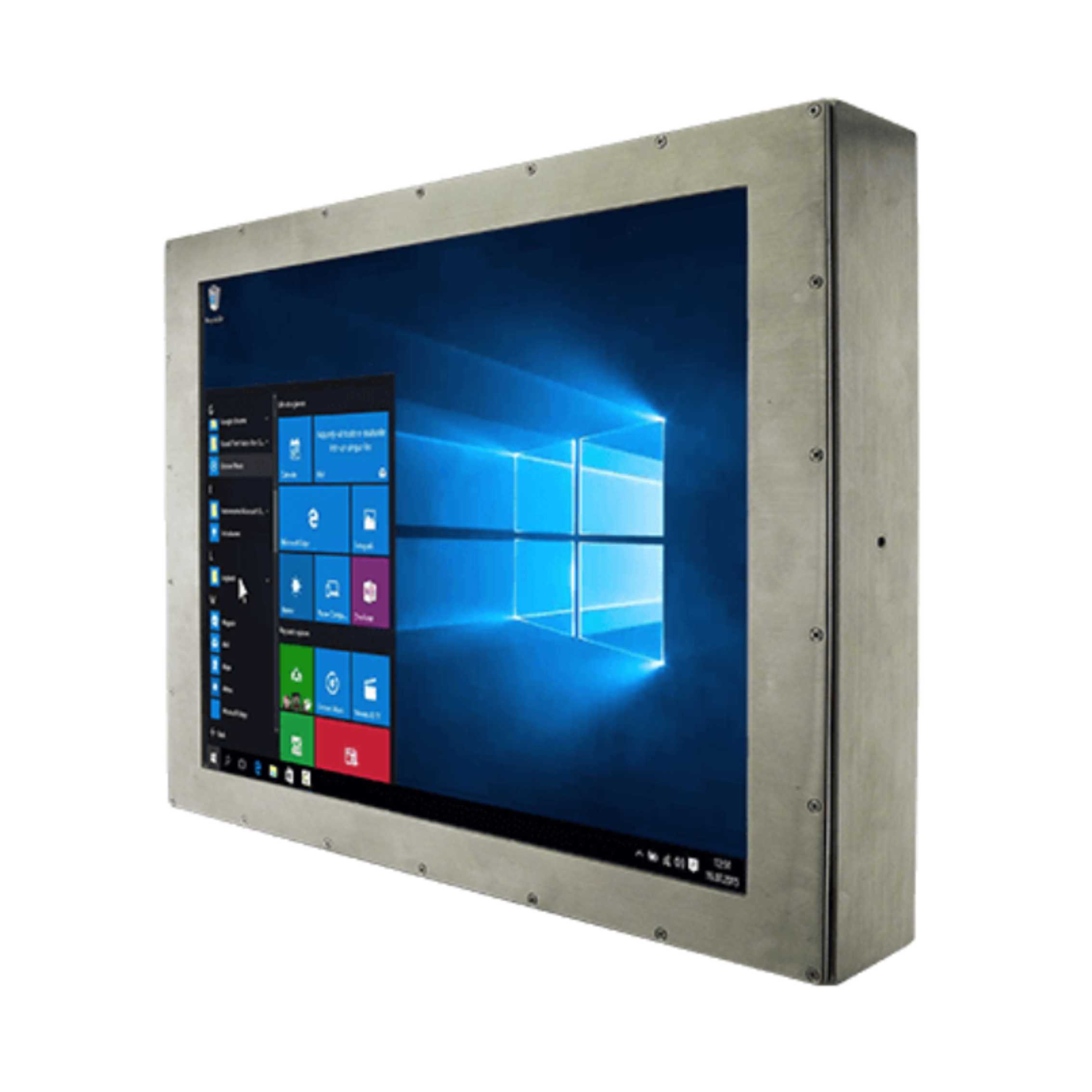

Winmate R17IE3S-67M1ST 17″ IP67 Stainless Steel Panel PC with Intel Celeron N6211 and Resistive Touch

Wet process areas and outdoor wash bays need an HMI sealed against water on every face, and a 17 inch screen gives room for detailed process views. The R17IE3S-67M1ST is Winmate’s 17 inch IP67 stainless steel panel PC: a fanless Intel Celeron N6211 computer and an optically bonded 1280 x 1024 resistive touch screen in a stainless housing sealed to IP67.

The Intel Celeron N6211 is an Elkhart Lake processor, with the Celeron N6210 as an option. One DDR4-3200 SO-DIMM socket takes 4 GB as standard and 8 GB or 16 GB as options, and storage is a 128 GB M.2 2242 SSD (up to 512 GB) with a 2.5 inch SATA bay available. TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 10 IoT Enterprise or Ubuntu 22.04 can be supplied. The 17 inch panel runs at 350 nits with 1000:1 contrast, and the 5-wire resistive touch screen is optically bonded to it with an anti-moisture treatment, which suits humid wet areas.

Every connection is sealed: one Gigabit Ethernet port on a waterproof RJ45 connector, two USB 2.0 ports on one M12 connector and an RS-232 port on M12, with matching waterproof cables and caps supplied. Optional Wi-Fi and Bluetooth use antennas under sealed covers. The R17IE3S-65M1 is the IP65 model in 316 stainless, and the R15IE3S-67C3ST is the 15 inch IP67 stainless model.

Power is 12 V DC on an M12 connector, with a 100 to 240 V AC adapter with waterproof connector supplied. The R17IE3S-67M1ST is fanless, operates from 0 °C to 45 °C at 10 to 90% humidity and carries CE and FCC marks. It measures 418 x 350 x 59 mm and mounts on 100 x 100 mm VESA or a yoke.
