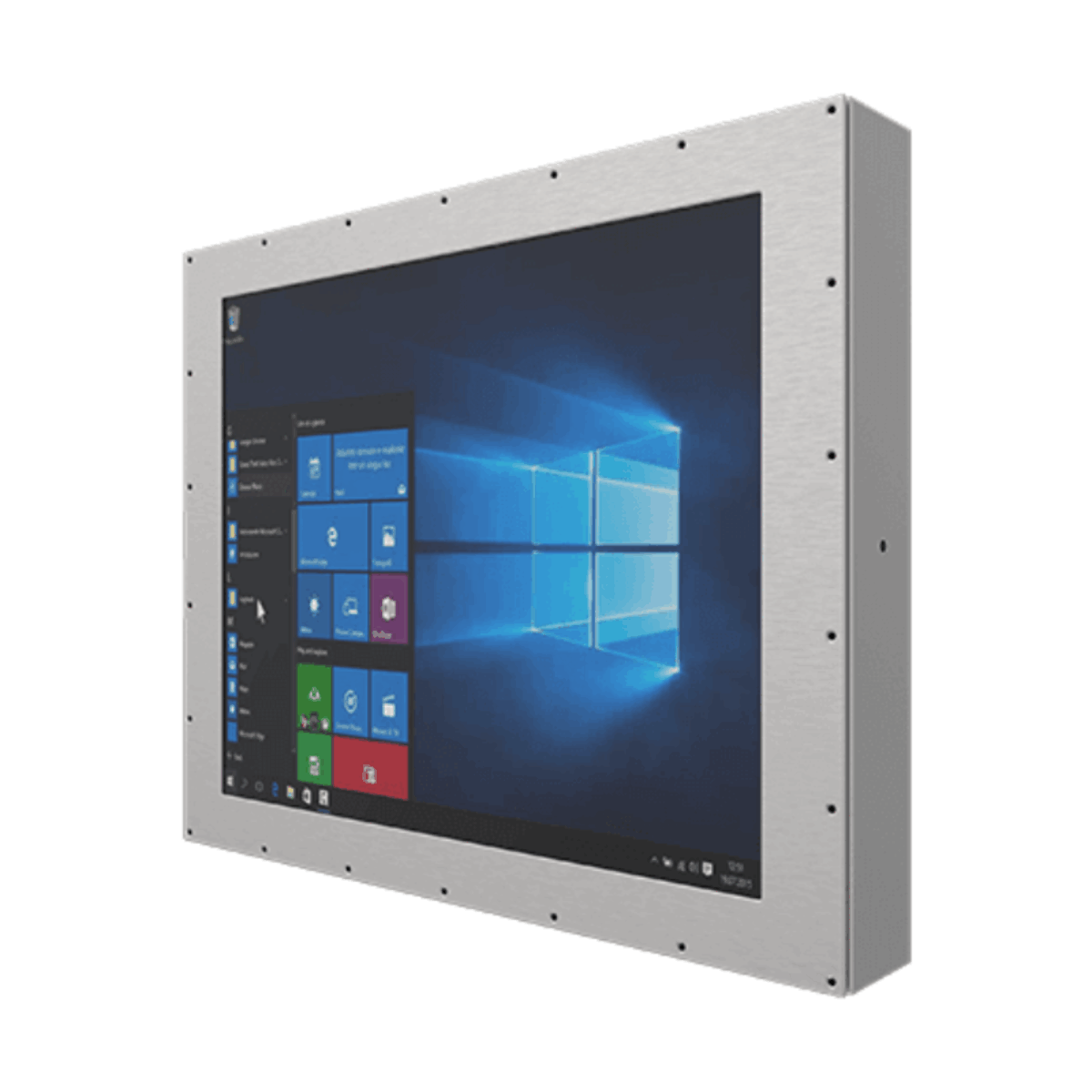

Winmate R19IE3S-67M1ST 19″ IP67 Stainless Steel Panel PC with Intel Celeron N6211 and Bonded Resistive Touch

Where a screen is splashed, sprayed and then chilled, water can fog the gap behind the glass as well as attack the housing. The R19IE3S-67M1ST is Winmate’s 19 inch stainless steel panel PC built against both: a SUS 316 / AISI 316 housing sealed to full IP67, resistive touch optically bonded to the panel with anti-moisture treatment, and a fanless Intel Celeron N6211, sold as a standalone model.

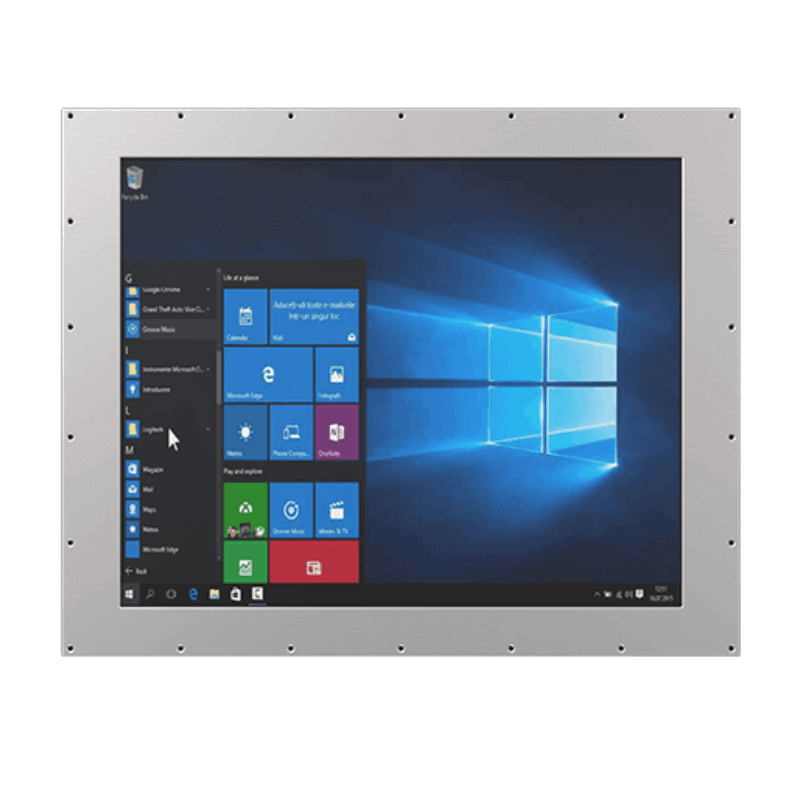

The 19 inch panel runs at 1280 x 1024 in a 5:4 shape, with 250 nits, a 1000:1 contrast ratio and 170° horizontal and 160° vertical viewing angles. Bonded resistive touch works with gloves or a stylus, and plain protection glass without touch is an option for display-only stations. The Intel Celeron N6211 is standard, with the N6210 as an option, alongside one DDR4-3200 SO-DIMM holding 4 GB as standard and 8 GB or 16 GB as options, a 128 GB M.2 2242 SSD that can go to 512 GB and an optional 2.5 inch SATA bay for up to 1 TB. That covers HMI software and data logging, with TPM 2.0 on board and Windows 11 IoT Enterprise SAC, Windows 11 Pro, Windows 10 IoT Enterprise or Ubuntu 22.04 as options.

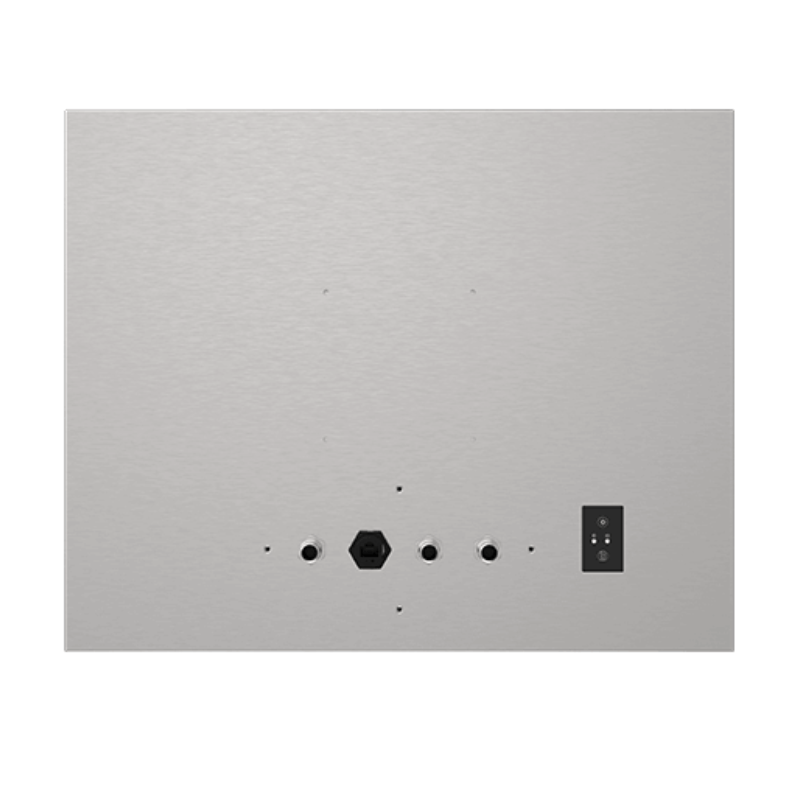

Every connection is sealed: one Gigabit LAN port on a waterproof RJ45 connector, two USB 2.0 ports on a single M12 connector and one RS-232 port on M12, with waterproof adapter cables and caps supplied. Wi-Fi and Bluetooth are optional, with antenna covers on the top edge. The R19IE3S-65M1 is the full IP65 build with optional touch, and the R19IE3S-SPM169 is the flat PCAP design sealed to IP69K.

Power is 12 V DC on an M12 connector, with an AC adapter supplied. The R19IE3S-67M1ST is fanless, operates from 0 to 45 °C at 10 to 90% humidity and carries CE and FCC marks. It measures 457.4 x 369.5 x 62.7 mm and mounts on 100 x 100 mm VESA or a yoke.
