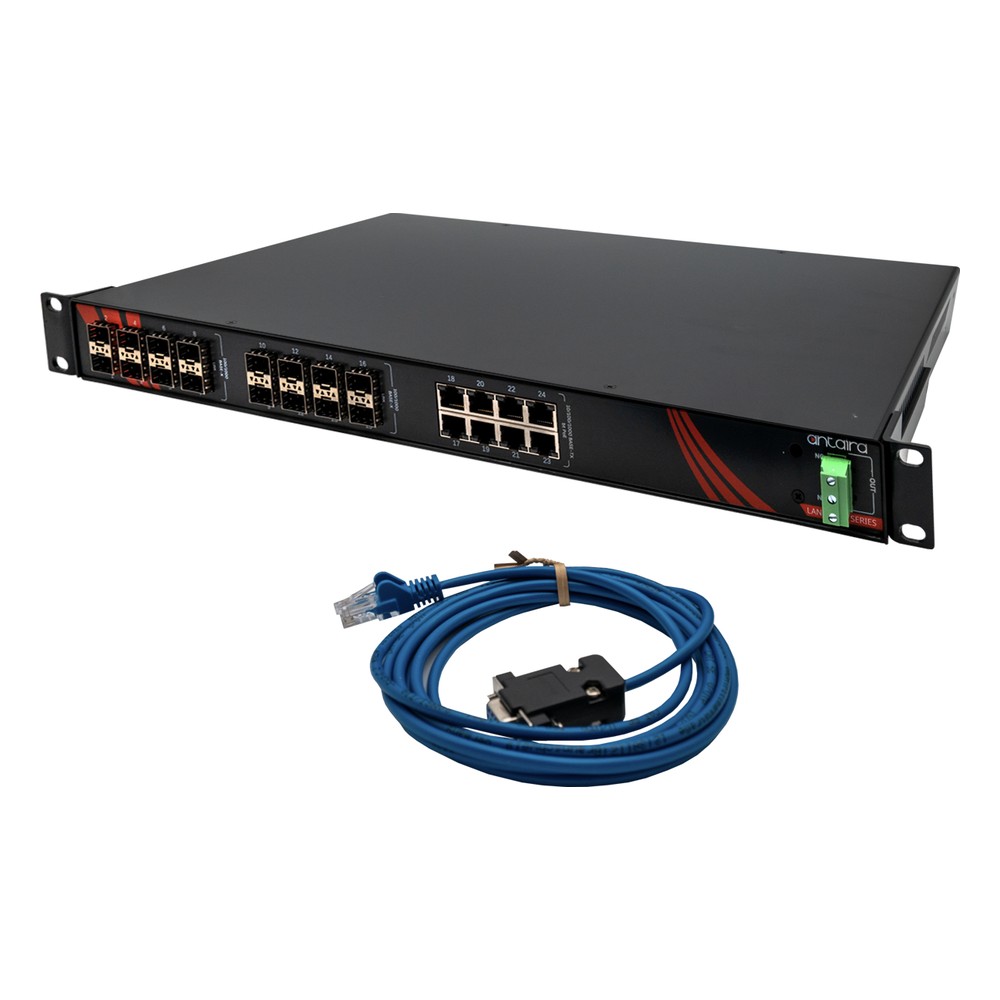

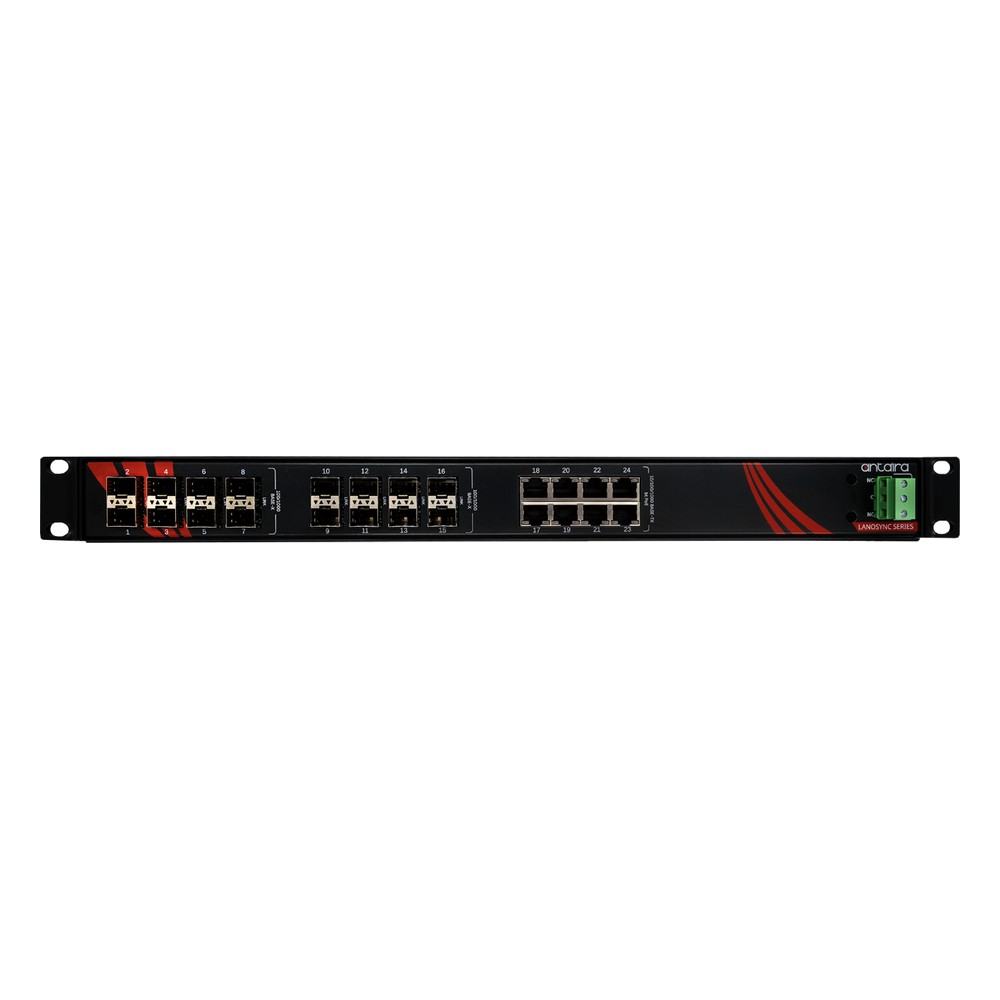

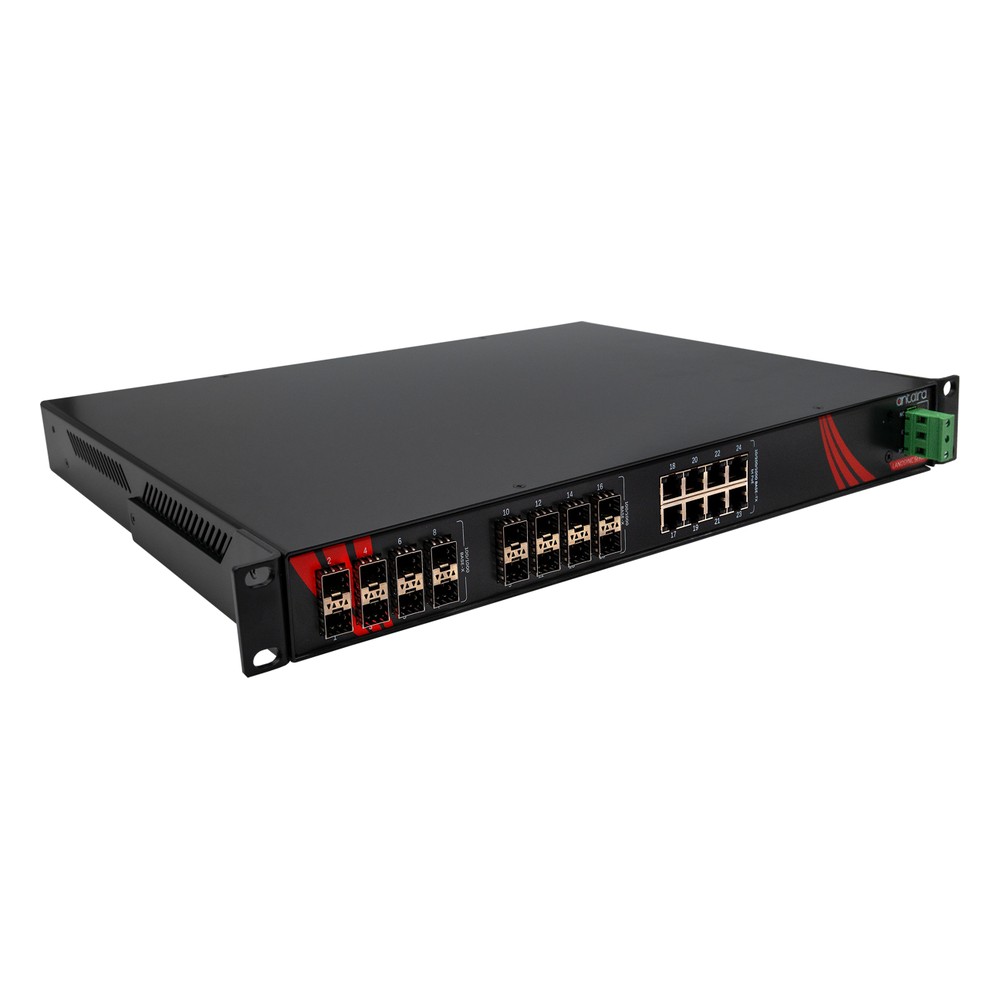

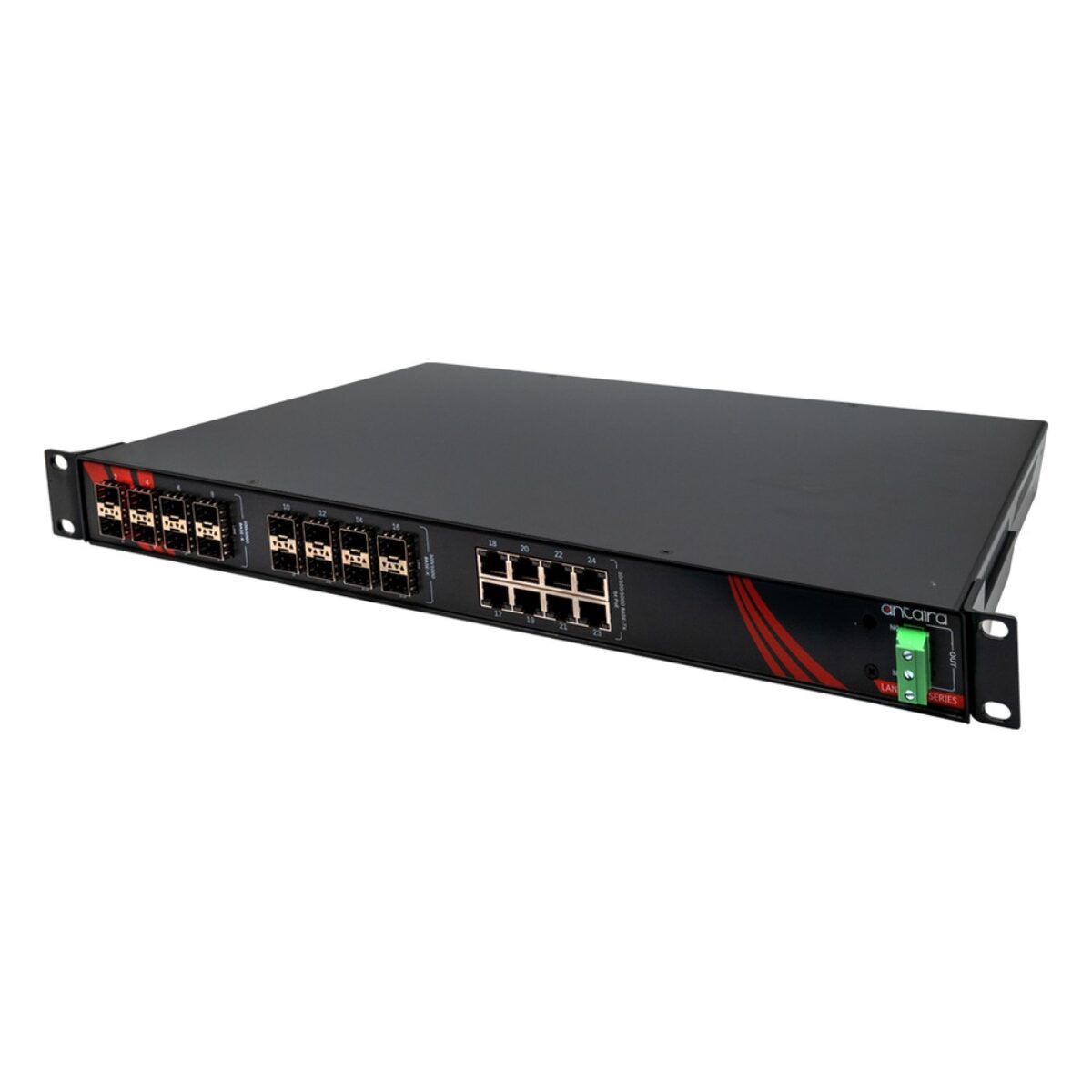

Antaira QMP-2820G-4X16S-bt-T 28-Port 10G Managed Rackmount Industrial Switch with 8x PoE++, 16x SFP, 4x 10G SFP+ and Extended Temperature

The QMP-2820G-4X16S-bt-T is a 28-port managed rackmount industrial switch with eight 802.3bt RJ45 ports at up to 90 W each, a 500 W PoE budget, 16 gigabit SFP slots and four 10G SFP+ uplinks, rated -40 °C to 85 °C in a 1U case for fiber aggregation in harsh equipment rooms.

  • 16 SFP Plus 4 SFP+ Ports: 16 100/1000 SFP slots and four 1G/2.5G/10G SFP+ slots gather many fiber runs and pass them on over 10G uplinks.
  • Eight 90 W PoE++ Ports: Eight 10/100/1000 RJ45 ports deliver IEEE 802.3bt PoE++ at up to 90 W each within a 500 W budget at 55 V DC.
  • 160 Gbps Switching Capacity: A 160 Gbps switching capacity and a 32K MAC address table keep all 28 ports moving at full speed together.
  • ERPS, PTPv2 and OAM: ITU-T G.8032 rings under 20 ms, IEEE 1588 v2 PTP profiles, Ethernet OAM, SyncE G.8261 and OpenDNP3 support.

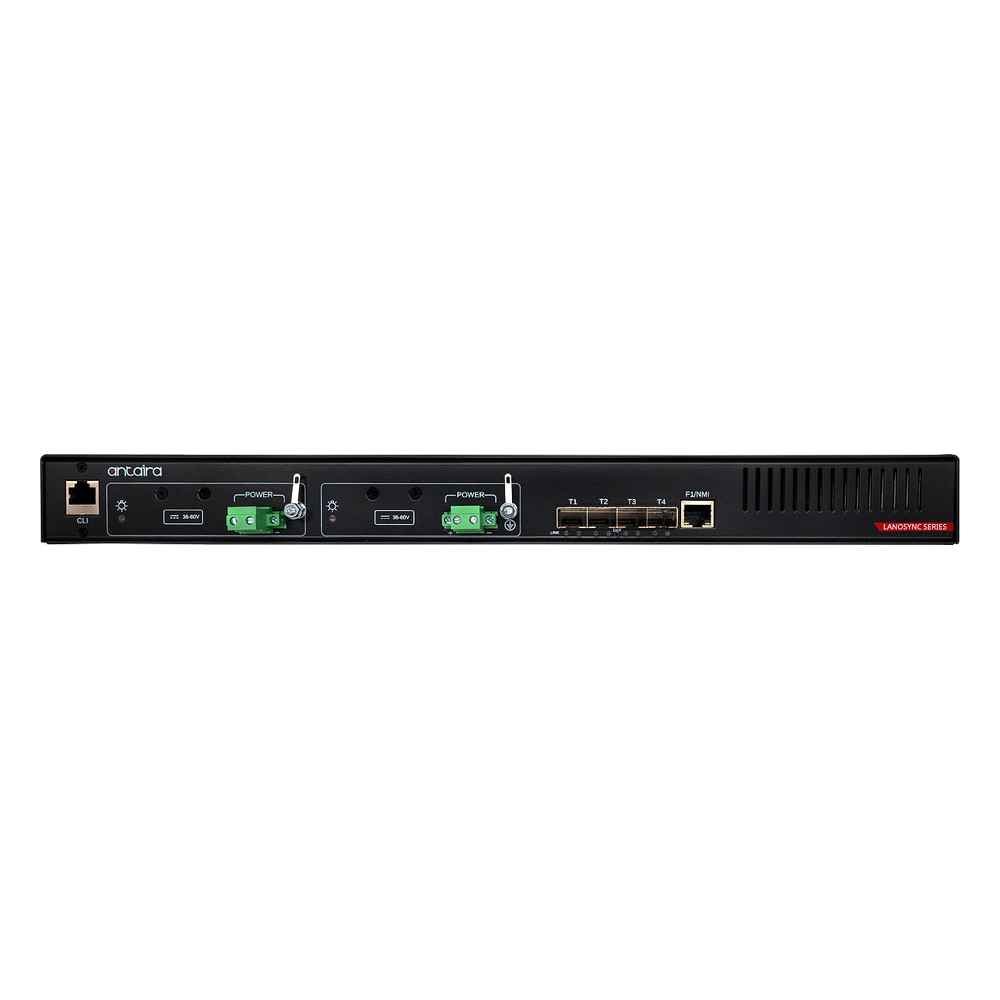

  • -40 °C to 85 °C 1U Rack Case: An IP30 metal 1U 19-inch case is rated -40 °C to 85 °C, with redundant 36 to 60 V DC inputs.
Operating Temperature: Extended TemperatureExtended Temp
Operating Temperature: Wide Temperature [-40 to 85°C]Wide Temp
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

QMP-2820G-4X16S-bt-T Overview

A head-end cabinet that collects fiber from many remote sites, powers several high-draw devices and stays on a redundant ring usually ends up with three boxes. The QMP-2820G-4X16S-bt-T from Antaira puts that into one 28-port Layer 2 managed switch in a 1U 19-inch rack case, rated -40 °C to 85 °C for unconditioned equipment rooms and cabinets.

It has eight 10/100/1000 RJ45 ports with IEEE 802.3bt PoE++ at up to 90 W each, also serving 802.3af and 802.3at devices, within a total budget of 500 W at 55 V DC. 16 100/1000 SFP slots gather fiber links, and four 1G/2.5G/10G SFP+ slots provide uplinks to the core. Switching capacity is 160 Gbps with a 32K MAC address table, and management covers 4,096 VLANs, QinQ, eight QoS queues, IGMP snooping, LACP, LLDP-MED, port mirroring and 802.1X with RADIUS and TACACS+, over SNMPv3, HTTPS or SSH.

ITU-T G.8032 ERPS recovers in under 20 ms across up to 64 rings, alongside STP, RSTP and MSTP. Link and Service OAM, NTP server and client, SyncE G.8261, OpenDNP3, PROFINET Conformance Class A, EtherNet/IP and IEEE 1588 v2 PTP are supported. Redundant 36 to 60 V DC inputs feed the switch, which draws 50 W without PoE, with 45 to 57 V DC needed for PoE++, and 4 kV ITU K.44 surge protection guards the RJ45 lines.

The IP30 metal case fits a standard 19-inch rack, with an MTBF of 451,000 hours. Antaira lists CE and FCC marks, EN 62368-1 safety and EU EMC and LVD compliance, and covers the QMP-2820G-4X16S-bt-T with its 5-year warranty. We can pre-configure IP addressing, VLANs and ring settings where you ask. The QMP-1204G-2Q2S-bt-T suits smaller DIN-rail cabinets, and the LMP-2812G-4X8S offers more PoE+ ports with fewer SFP slots.

QMP-2820G-4X16S-bt-T Specifications

Overview
Brand & ModelAntaira QMP-2820G-4X16S-bt-T
FeaturesIndustrial
Managed Ethernet Switch
Networking
Switching LayerLayer 2
Switch TypeManaged
Ethernet Ports8x 10/100/1000 BASE-TX [PoE++] [RJ45]
Number of Ethernet Ports8x Ethernet Ports
PoE StandardPoE++ 90W [802.3bt]
PoE Power Budget500W
Number of Fiber Ports16x 100/1000 [SFP]
4x 1G/2.5G/10G [SFP+]
Networking StandardsIEEE 1588 PTP
IEEE 802.1AB LLDP
IEEE 802.1ad QinQ
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1X Port-Based Network Access Control
IEEE 802.3 10BaseTx Ethernet
IEEE 802.3ab 1000BaseTx Gigabit Ethernet
IEEE 802.3ad Link Aggregation
IEEE 802.3ae 10 Gigabit Fiber
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3bt Power over Ethernet
IEEE 802.3u 100BaseTx Fast Ethernet
IEEE 802.3x Back Pressure Flow Control
IEEE 802.3z Gigabit Fiber
ITU-T G.8032 ERPS
Power
Power Input36-60V DC [Terminal Block]
Environmental Conditions
Operating Temperature-40°C to 85°C [-40°F to 185°F]
Humidity0% - 95% (Non-condensing)
Ingress ProtectionIP30
CertificationEN62368-1
CE
EMC
FCC
LVD
Mechanical Properties
Weight3.7 Kg (8.1 Lbs)
Dimensions440mm x 43mm x 325mm (17.32" x 1.69" x 12.80")
Mounting Options19" Rack Mount

Official Antaira USA Distributor

Things Embedded is an official Antaira USA distributor, and we supply the QMP-2820G-4X16S-bt-T with matching SFP transceivers and rack cabling, with IP addressing, VLANs and ring settings pre-configured on request. Within the Antaira range, the QMP-1204G-2Q2S-bt-T smaller model for DIN-rail cabinets with eight PoE++ ports and four SFP slots.

Across our range, the QMP-2820G-4X16S-bt-T sits with our rackmount switches for fiber aggregation, high-budget industrial PoE switches and managed switches with 10G uplinks.
