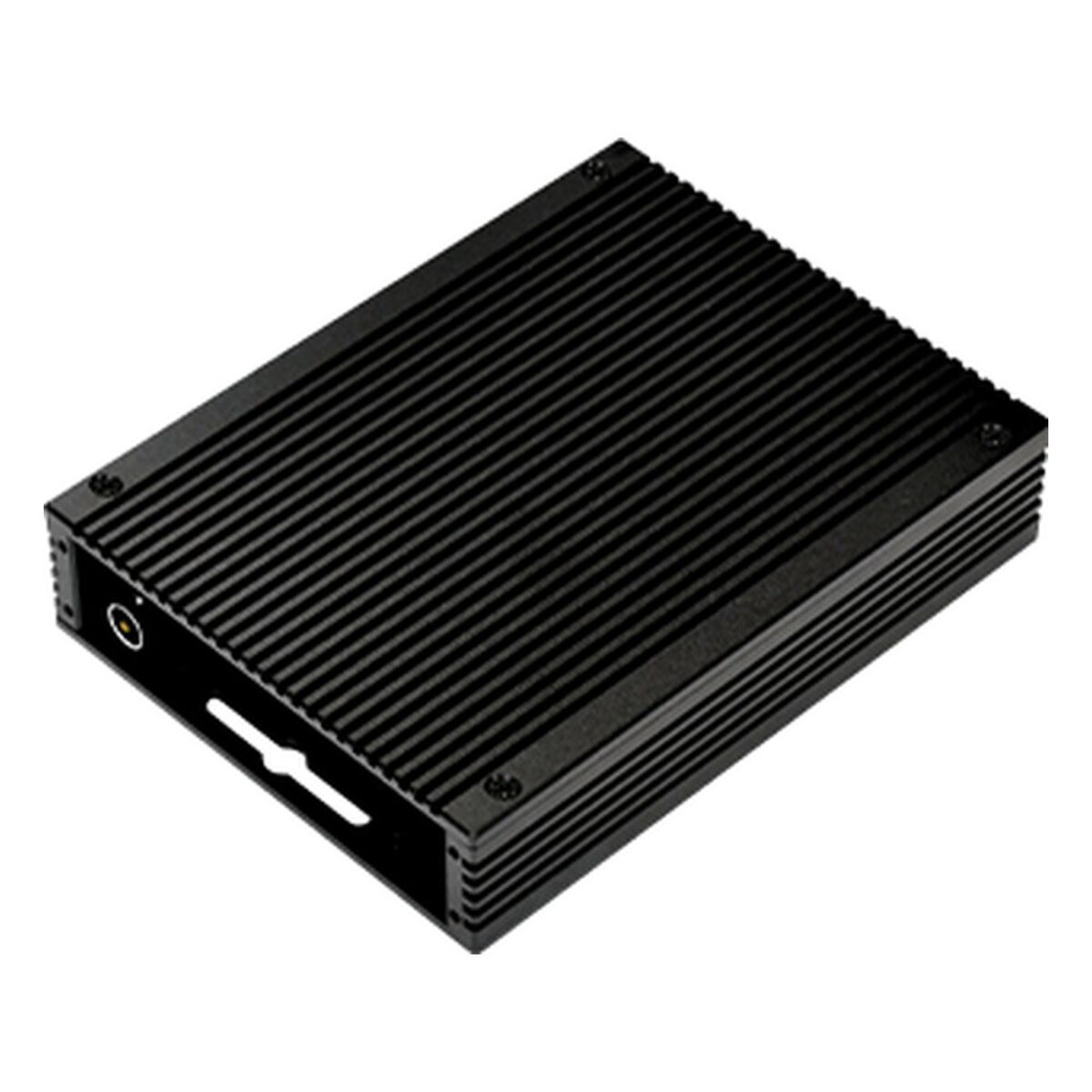

Yuan 12G-SDI to SDVoE-C 12G-SDI SDVoE Transmitter with RJ45 Copper Output, RS232 and IR at 4K60
12G-SDI to SDVoE-C Overview
Getting a 4K source to a screen in another room or building usually means a long cable run. The 12G-SDI to SDVoE-C is Yuan’s 12G-SDI SDVoE transmitter for the source end of a fixed copper link: it takes one 12G-SDI input from cameras and switchers and sends it onto a 10G Ethernet network as SDVoE. Yuan describes SDVoE as lossless and zero-latency, which typically suits pro AV and live production work.
The input accepts 12G-SDI at 4096 x 2160 and 3840 x 2160 up to 60 fps, 6G-SDI at the same resolutions up to 30 fps, 3G-SDI at 1080p60 and HD-SDI at 1080p30, 1080i and 720p60. The SDVoE output is one RJ45 port for 10G copper. Analog L/R audio travels in both directions through a stereo phone jack, and IR and RS232 share the link, so a remote or control system at either end can reach the equipment.
A second RJ45 port handles control, and one USB port connects to the source PC for USB HID extension. The unit runs from a 7.5 to 15 V DC input in a rugged case and is plug and play. The SDVoE to 12G-SDI-C is the matching receiver on the same copper link, and the 12G-SDI to SDVoE V2 switches between copper and fiber in one unit and adds PoE power.
Yuan does not list operating temperature, certification or mounting for the 12G-SDI to SDVoE-C, so we confirm those against the site with you. We supply the 12G-SDI to SDVoE-C configured and tested with the sources, displays and network it will connect to, so the link is proven before installation.
12G-SDI to SDVoE-C Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan 12G-SDI to SDVoE-C |
| Video Capture | |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x 12G-SDI |
| Video Resolution Input | 4K60 [4096×2160p @ 60/50fps] |
| Video Output | 1x RJ45 (10G) |
| Streaming Protocols | SDVoE |
| Audio Input | 1x 3.5mm Audio Input |
| Audio Output | 1x 3.5mm Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 152mm x 118mm x 33mm (5.98" x 4.65" x 1.30") |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the 12G-SDI to SDVoE-C configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the 12G-SDI to SDVoE-F is the same transmitter with an SFP+ fiber output, and the 12G-SDI to SDVoE V2 switches between copper and fiber and adds PoE.
Across our range, the 12G-SDI to SDVoE-C sits with our SDVoE transmitters, our AV over IP encoders, decoders and extenders and our SDVoE capture cards for PC-based capture.
