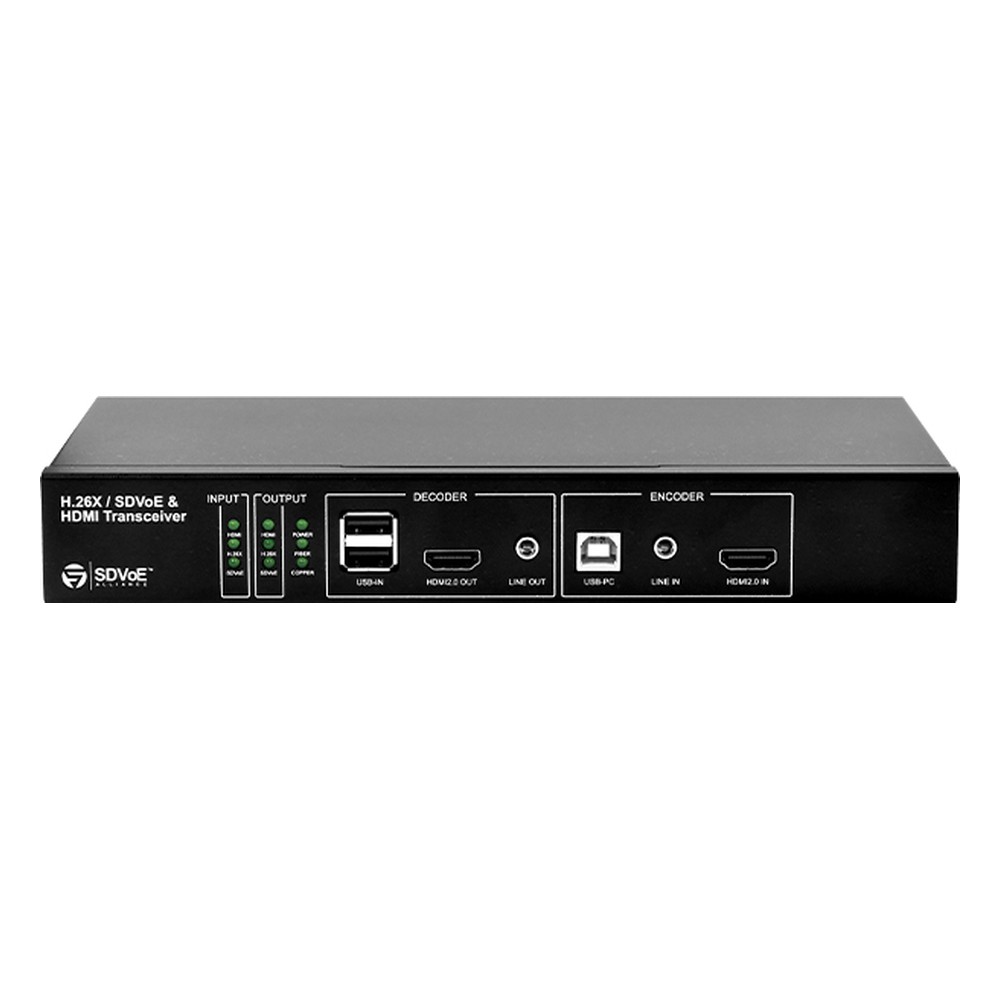

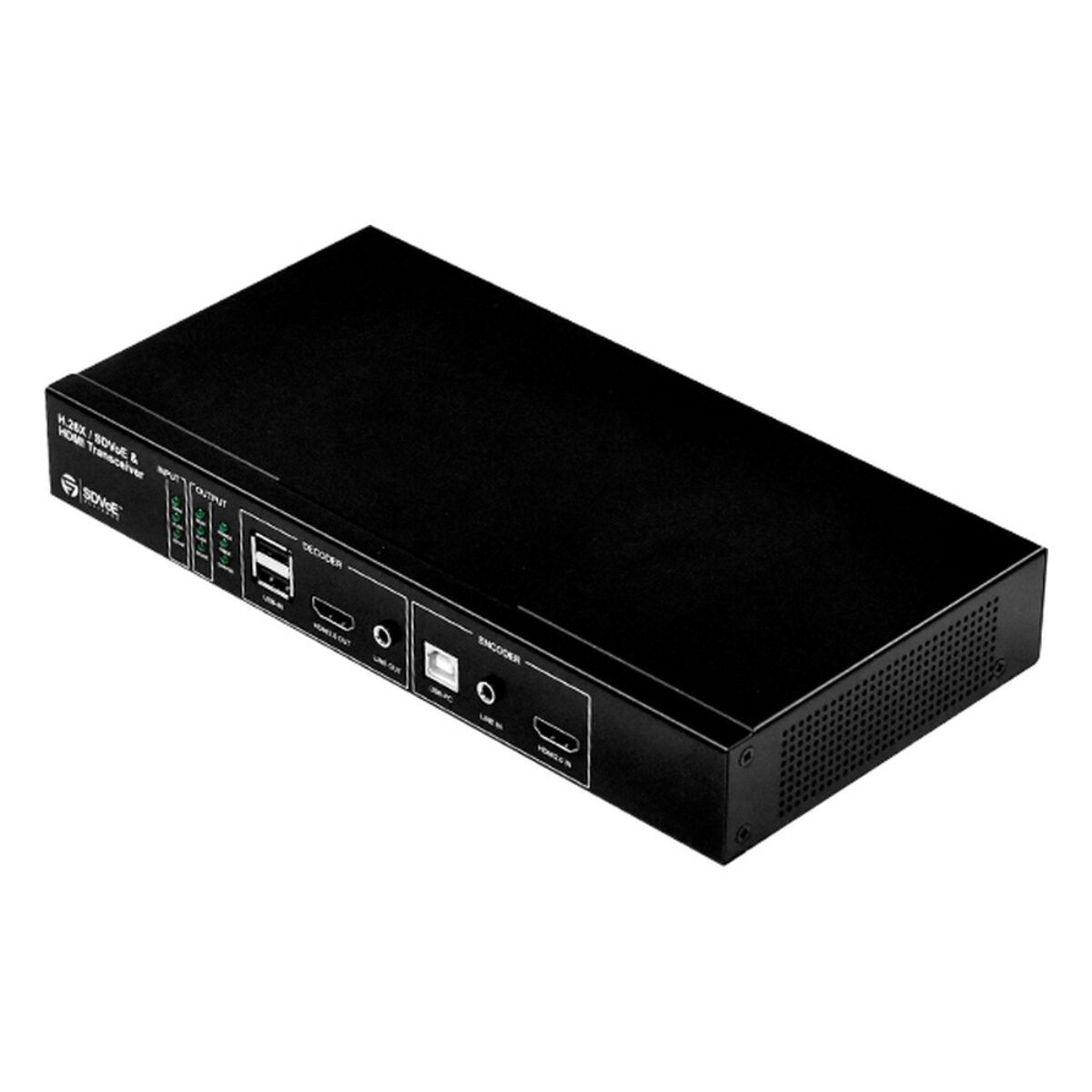

Yuan H.26X, SDVoE and HDMI2.0 Transceiver SDVoE and H.26X AV over IP Transceiver with HDMI 2.0 Loop-Out at 4K60
H.26X, SDVoE and HDMI2.0 Transceiver Overview
Many AV networks now run SDVoE for lossless local distribution and NDI or other compressed streams for wider sharing, and the two need a bridge. The H.26X, SDVoE and HDMI2.0 Transceiver is Yuan’s AV over IP transceiver for that point. It converts between SDVoE and H.26X or NDI in either direction at up to 4K60, and it can also take an HDMI 2.0 source directly.
Yuan describes three ways of working. An NDI stream in can leave as SDVoE, with an HDMI 2.0 loop of the NDI stream; an SDVoE stream in can leave as NDI, with an HDMI 2.0 loop of the SDVoE stream; and an HDMI 2.0 source can leave as both SDVoE and NDI. The HDMI 2.0 input accepts 4096 x 2160 and 3840 x 2160 at up to 60 fps, plus 1080p and 720p. Full NDI needs a separate NDI license. Analog L/R audio is on a stereo phone jack.
The SDVoE port is a 10G RJ45 or SFP+ connection, with copper or fiber and transmit or receive mode selectable, and a separate RJ45 carries NDI. Another RJ45 handles control, with one USB Type-B port for a PC, two USB Type-A ports for peripherals and RS232. It runs from a 7.5 to 15 V DC input. The H.26X and Multi to SDVoE V2 adds multi-format inputs and USB recording at the source end, and the HDMI2.0 and SDVoE Transceiver is the SDVoE-only transceiver without NDI.
Yuan does not list dimensions, operating temperature or certification for the H.26X, SDVoE and HDMI2.0 Transceiver, so we confirm what the installation needs with you. We supply the H.26X, SDVoE and HDMI2.0 Transceiver configured and tested with the sources, displays and SDVoE and NDI networks it will connect to.
H.26X, SDVoE and HDMI2.0 Transceiver Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan H.26X, SDVoE and HDMI2.0 Transceiver |
| Video Capture | |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x HDMI2.0 1x RJ45 (10G) 1x SFP+ (10G) |
| Video Resolution Input | 4K60 [4096×2160p @ 60/50fps] |
| Video Output | 1x HDMI2.0 1x RJ45 (10G) 1x SFP+ (10G) |
| Video Resolution Output | 4K60 [4096x2160p @ 60/50/30/25/24fps] |
| Streaming Protocols | NDI SDVoE |
| Audio Input | 1x 3.5mm Audio Input |
| Audio Output | 1x 3.5mm Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the H.26X, SDVoE and HDMI2.0 Transceiver configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the HDMI2.0 and SDVoE Transceiver handles HDMI 2.0 and SDVoE only, without H.26X or NDI, and the H.26X and Multi to SDVoE V2 adds HDMI, DisplayPort, DVI and SDI inputs with USB recording.
Across our range, the H.26X, SDVoE and HDMI2.0 Transceiver sits with our SDVoE transmitters and receivers, our NDI encoders and decoders and our video encoders and decoders for H.26X streams.
