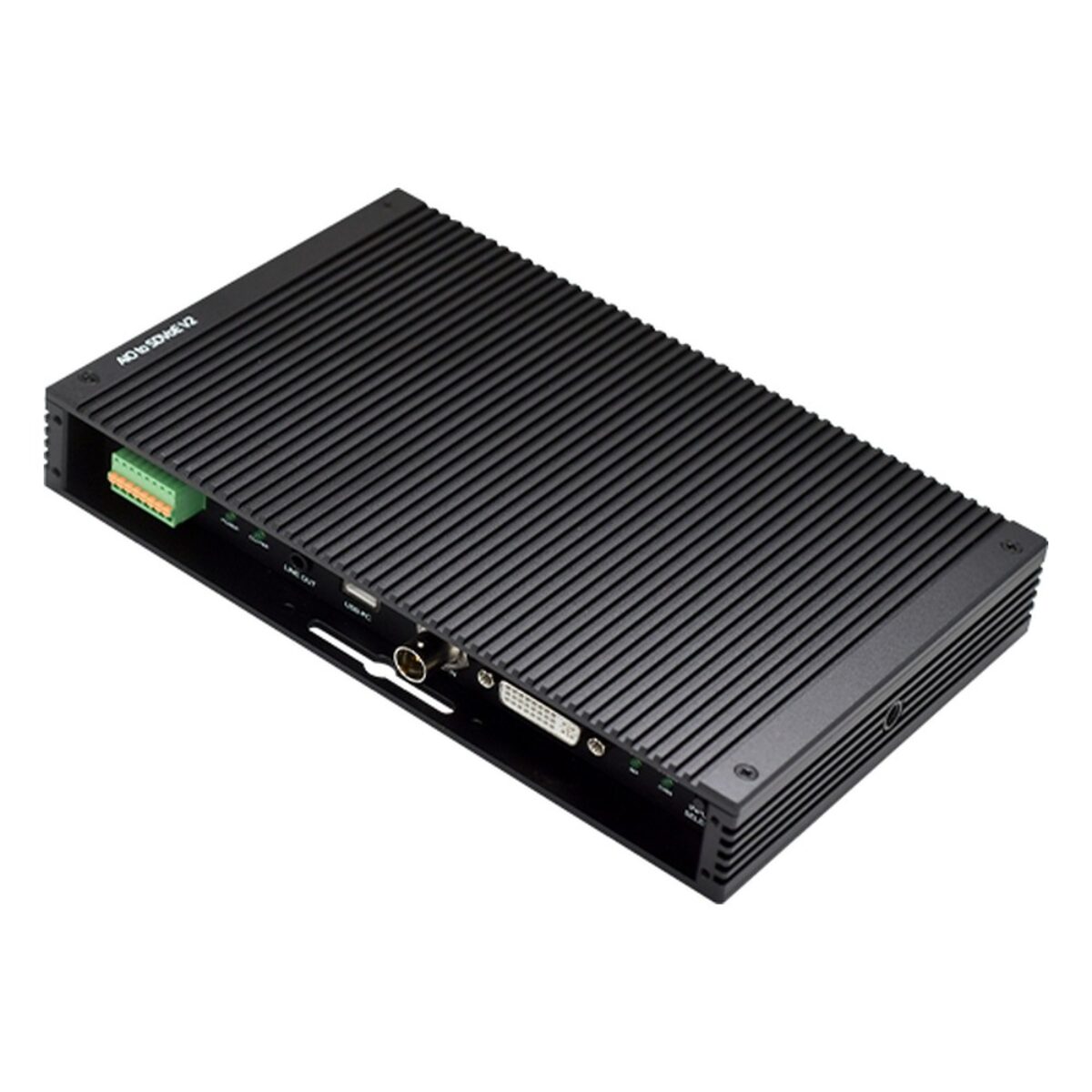

Yuan AIO to SDVoE V2 SDI, DVI and Analog SDVoE Encoder with Scaler and PoE at 1080p60
AIO to SDVoE V2 Overview
Many AV and broadcast sites still run analog cameras, older SDI kit and DVI PCs alongside new 4K equipment. The AIO to SDVoE V2 is Yuan’s SDVoE encoder for those sources: it brings analog, DVI-I and SDI signals onto the same 10G SDVoE network as the newer kit, so legacy equipment can keep working while the distribution moves to Ethernet.

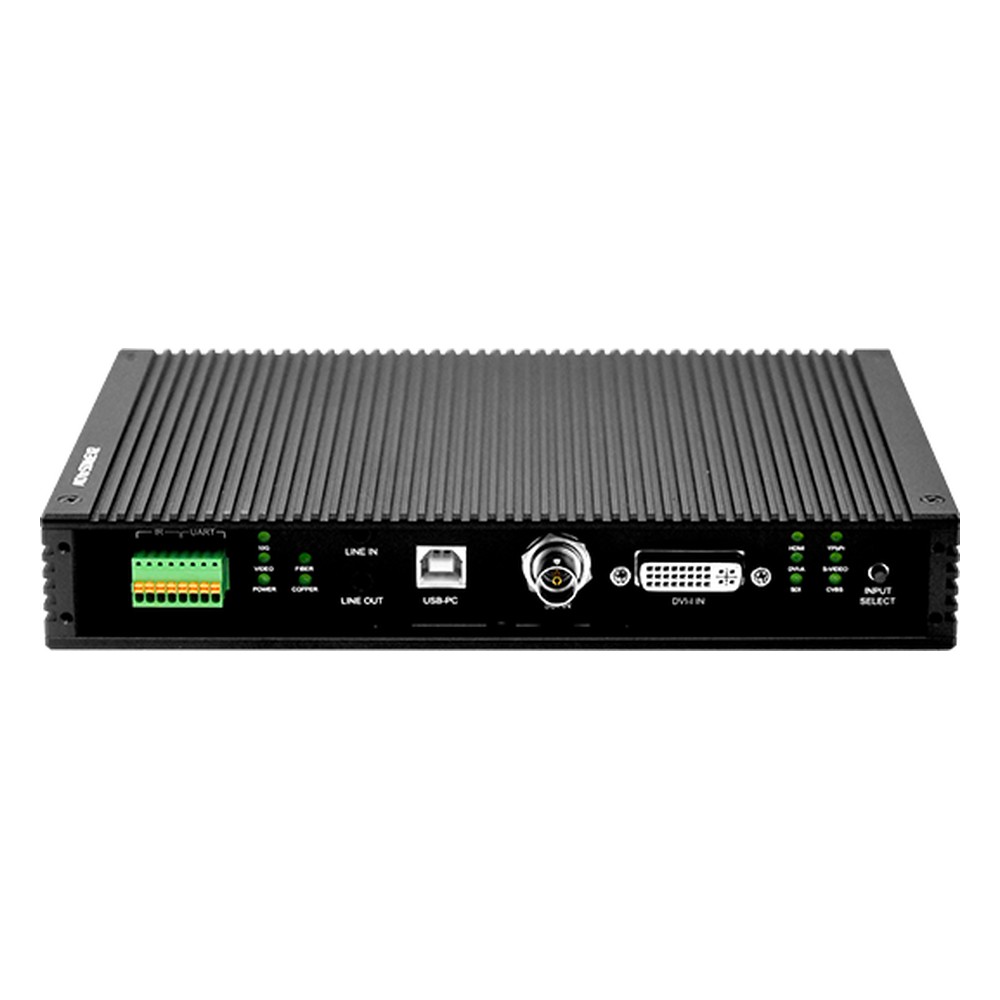

Inputs are one DVI-I port, one SDI port and three BNC connectors for component, S-Video or composite. Composite and S-Video accept NTSC and PAL; component runs from 480i to 1080p; DVI-I accepts up to 1920 x 1080p60 plus PC resolutions such as 1280 x 1024; SDI accepts 3G-SDI at 1080p60, HD-SDI and SD-SDI. A scaler mode and a pass-through mode are both supported. Analog L/R audio travels both ways through a stereo phone jack.

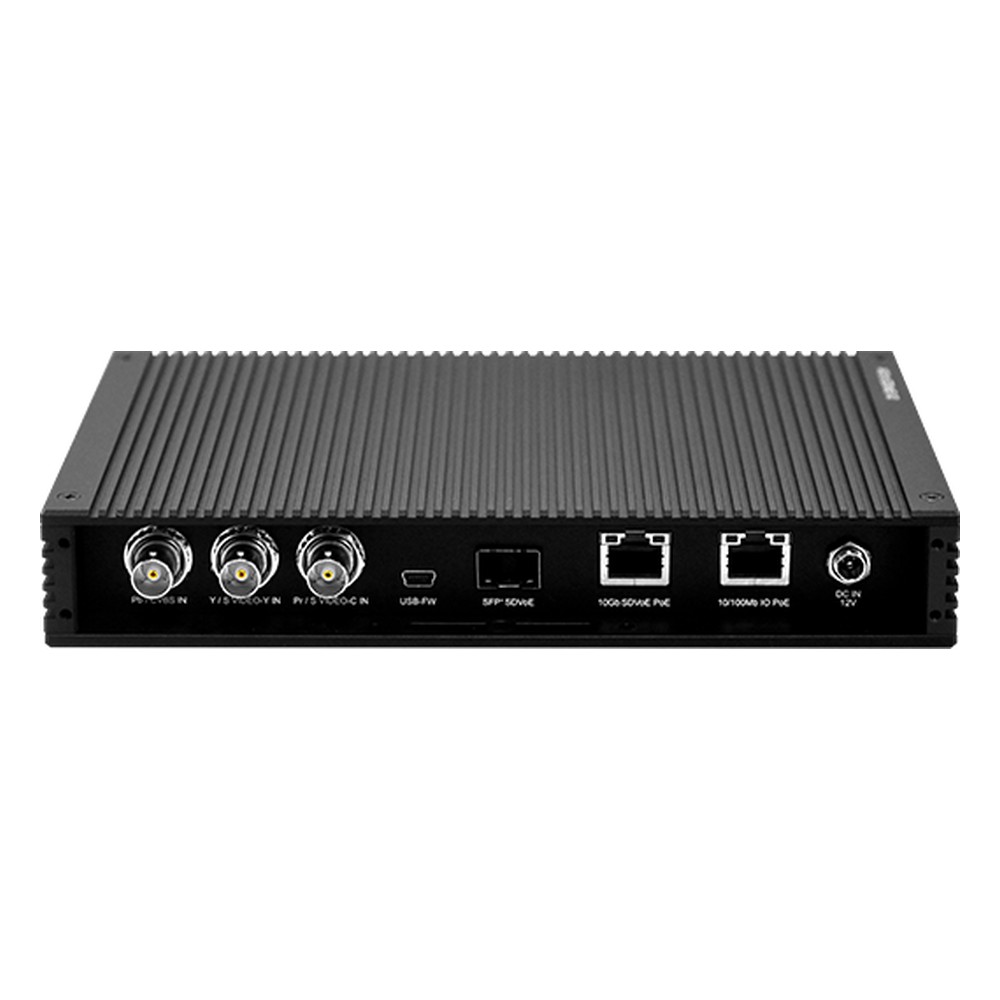

The SDVoE output works over RJ45 copper or SFP+ fiber with the mode selectable, and a separate RJ45 port handles control. USB extends HID devices by default, with USB 2.0 optional, and IR and RS232 share the link. Power comes from PoE (PD) on the 10G or 1G RJ45 port or a 7.5 to 15 V DC input, in a rugged case. At the display end, the SDVoE to HDMI2.0 V2 returns the stream to HDMI 2.0, and the SDVoE to 12G-SDI V2 returns it to 12G-SDI for broadcast monitors and recorders.
Yuan does not list operating temperature, certification or mounting for the AIO to SDVoE V2, so we confirm those against your site. We supply the AIO to SDVoE V2 configured and tested with the legacy sources, displays and 10G network it will connect to.
AIO to SDVoE V2 Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan AIO to SDVoE V2 |
| Features | PoE Powered |
| I/O | |
| Ethernet | 1x Ethernet Ports |
| 1x GbE LAN [RJ45] [PoE-PD] | |
| Video Capture | |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x Composite 1x DVI-I 1x S-Video 1x SDI 1x YPbPr |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 1x RJ45 (10G) 1x SFP+ (10G) |
| Streaming Protocols | SDVoE |
| Audio Input | 1x 3.5mm Audio Input |
| Audio Output | 1x 3.5mm Audio Output |
| Power | |
| Power Input | 7.5-15V DC PoE Powered Device (PD) [RJ45] |
| Mechanical Properties | |
| Dimensions | 152mm x 209mm x 33mm (5.98" x 8.23" x 1.30") |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the AIO to SDVoE V2 configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the Multi to SDVoE Pro 4K-C covers newer HDMI 2.0, DisplayPort, dual-link DVI and 12G-SDI sources at 4K60 instead of analog, and the 12G-SDI to SDVoE V2 is the single-input choice for 4K SDI.
Across our range, the AIO to SDVoE V2 sits with our SDVoE transmitters, our AV over IP encoders, decoders and extenders and our SDVoE capture cards for PC-based capture.
