Winmate W15L100-PTA3-ME 15.6″ Medical PCAP Touch Monitor with FHD LCD, Front IP65 and IEC 60601-1
PCAP
Front IP65W15L100-PTA3-ME Overview

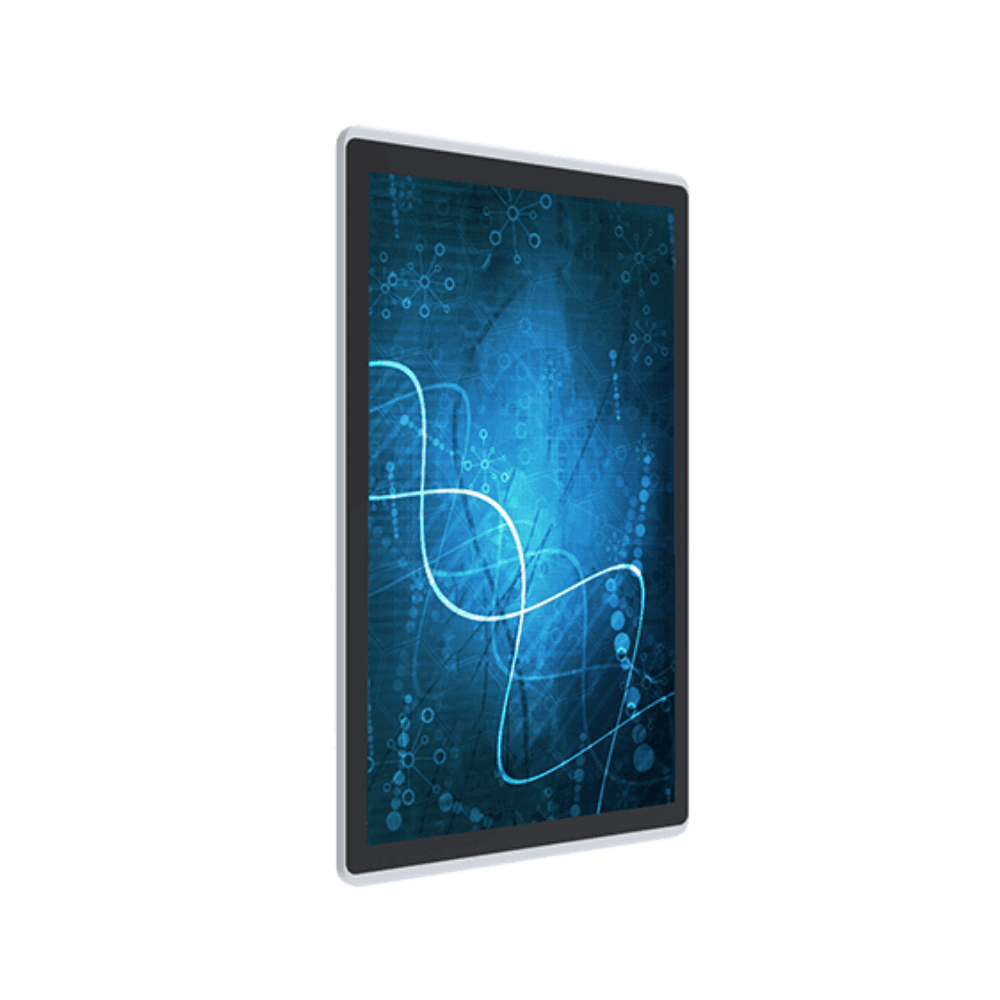

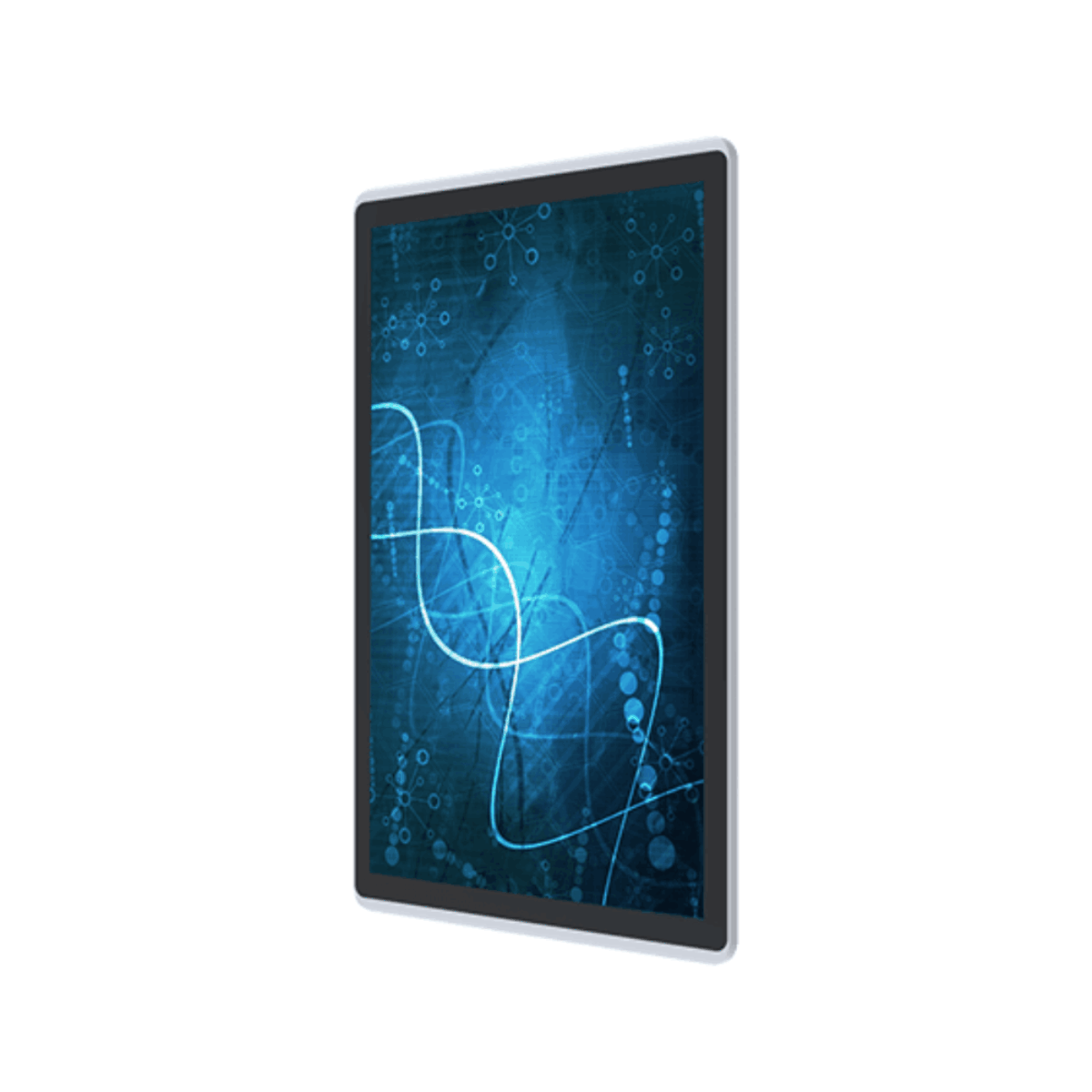

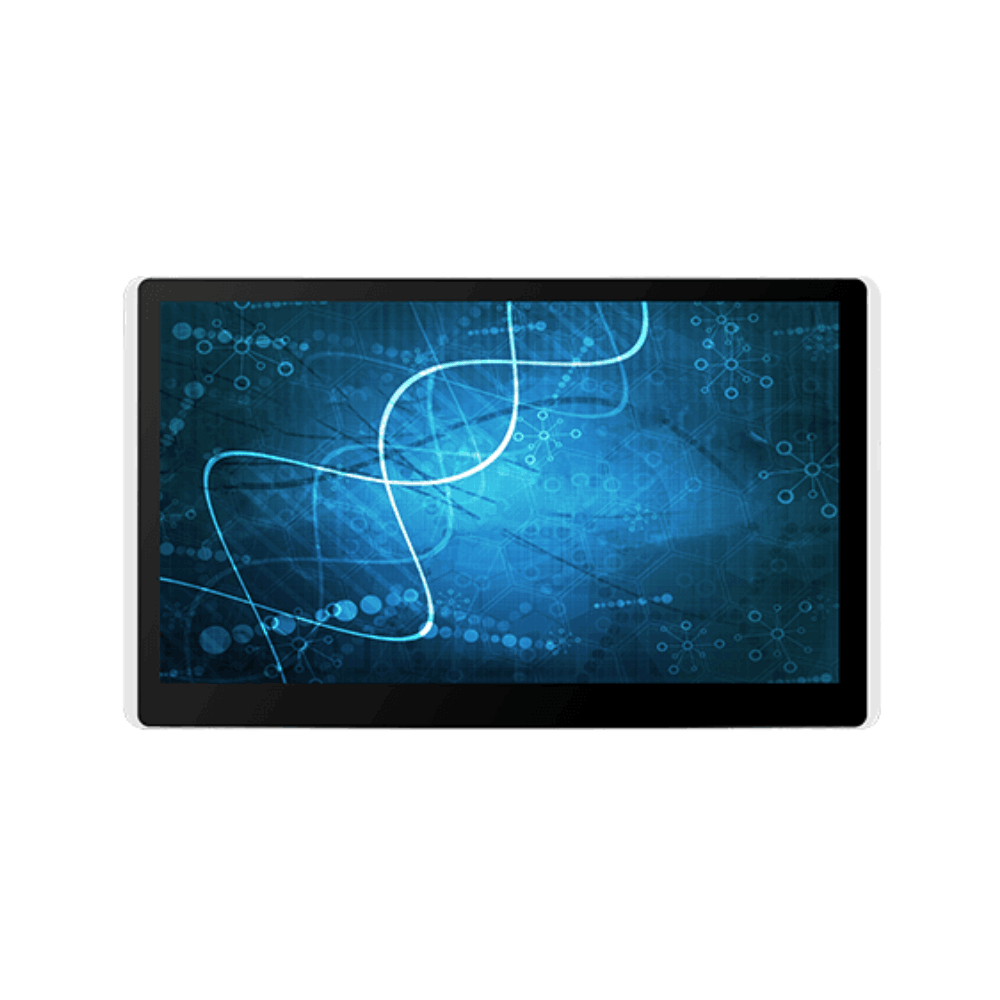

Screens in theatres and clinical areas must meet medical electrical standards, and their housings are wiped down many times a day. The W15L100-PTA3-ME is Winmate’s 15.6 inch surgical display for those settings: a 1920 x 1080 LCD with projected capacitive multi-touch in a plastic housing with antimicrobial properties and a front IP65 face, listed against the IEC 60601-1 family of medical standards.
The FHD panel runs at 400 nits with an 800:1 contrast ratio and viewing angles of 170° horizontally and vertically, with a color depth of 262K colors. The PCAP touch screen connects over USB and supports multi-touch, and a seven-key on-screen display menu with an LED indicator sits on the rear.
Video comes in on a VGA input, with HDMI as an option, alongside an audio line-in and two optional speakers. Winmate’s certification list covers IEC 60601-1, IEC 60601-1-2, IEC 60601-1-6 and IEC 62366, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, EN 55032 and EN 55024, FCC Part 15B and EN 62368-1, with RoHS-2, REACH and WEEE compliance. The W32L100-PTA3-ME is the 32 inch surgical display, and the W15L100-PTA3-POE is a 15.6 inch FHD touch display powered over Ethernet.
The W15L100-PTA3-ME runs on 12 V DC, with 24 V DC as an option, and operates from 0 °C to 40 °C at 10 to 90% humidity, non-condensing, with storage from -20 °C to 60 °C. The fanless monitor measures 388 x 233 x 40 mm, weighs 1.6 kg and mounts by 75 x 75, 100 x 100 or 200 x 100 mm VESA holes. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W15L100-PTA3-ME Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W15L100-PTA3-ME |
| Features | Fanless Industrial |
| Display | |
| Display | 15.6"[16:9, 1920 x 1080, FHD] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 2x Display Ports |
| Video Inputs | 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C [32°F to 104°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Mechanical Properties | |
| Dimensions | 388mm x 233mm x 40mm (15.28" x 9.17" x 1.57") |
- W15L100-PTA3-ME Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W15L100-PTA3-ME configured for USA healthcare and medical equipment projects. Within the Winmate range the W32L100-PTA3-ME is the 32 inch surgical display, and the W15L100-PTA3-POE takes power and data over one Ethernet cable at 15.6 inches.
For clinical settings the W15L100-PTA3-ME sits among our front IP65 displays, our PCAP touch monitors and our 15.6 inch industrial monitors. Where a theatre or clinical screen must meet IEC 60601-1, this is the model to specify.
