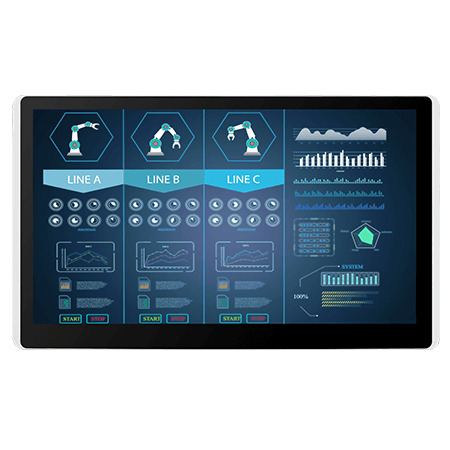

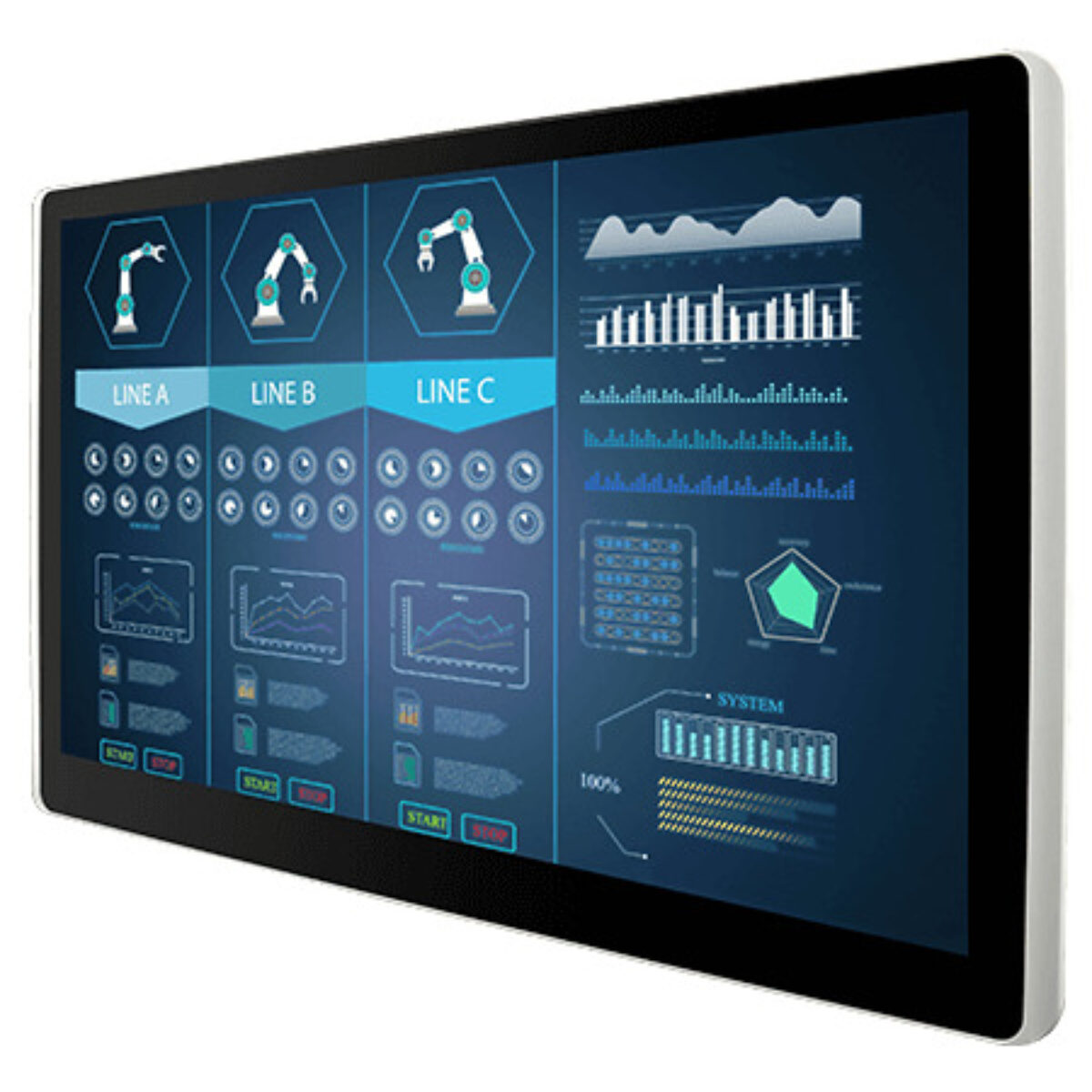

Winmate W15L100-PTA3-POE 15.6″ PoE Powered PCAP Widescreen Touch Monitor with FHD Display and Front IP65

Building management and access control screens tend to end up in corridors and plant rooms, where running data is easy but running mains power is not. The W15L100-PTA3-POE is Winmate’s 15.6 inch widescreen PoE chassis monitor, and it takes its power from the network cable that carries the site’s data.

The 15.6 inch LCD runs at 1920 x 1080 with 400 nits brightness, 800:1 contrast and 85° viewing in every direction, across an active area of 344.2 x 193.6 mm. That leaves space for detailed dashboards, floor plans and IIoT trend pages. Projected capacitive multi-touch connects over USB for light bare-finger operation, and protection glass is offered as an option.

Power arrives over the LAN port from any PoE switch or injector, as an IEEE 802.3at (25 W) or 802.3af (15 W) powered device, so one network cable replaces a local power supply and the screen can go wherever the data cabling reaches. Video comes in over VGA as standard, with HDMI and a pair of speakers available as options, and seven keys drive the on-screen menu. The W10L100-PCH2-POE is the compact 10.1 inch widescreen version, and the R15L100-PTC3-POE keeps a 15 inch 4:3 panel for software built around that shape.

The fanless plastic enclosure measures 387.8 x 232.9 x 40 mm, carries a front IP65 rating against dust and splashes, and mounts on a VESA arm or wall bracket. It operates from 0 to 50 °C at 10 to 90% humidity. The monitor carries CE and FCC marks, and Winmate names industrial visualization, control rooms, equipment monitoring, IIoT, building automation and access control as uses.
