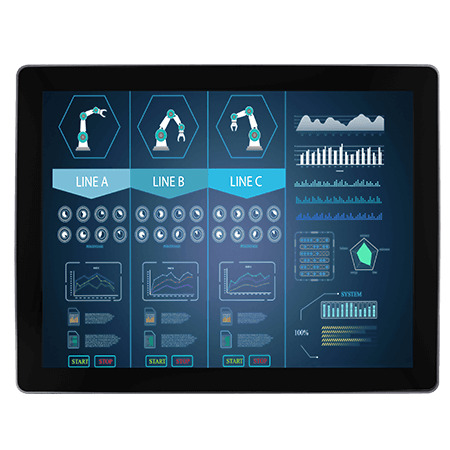

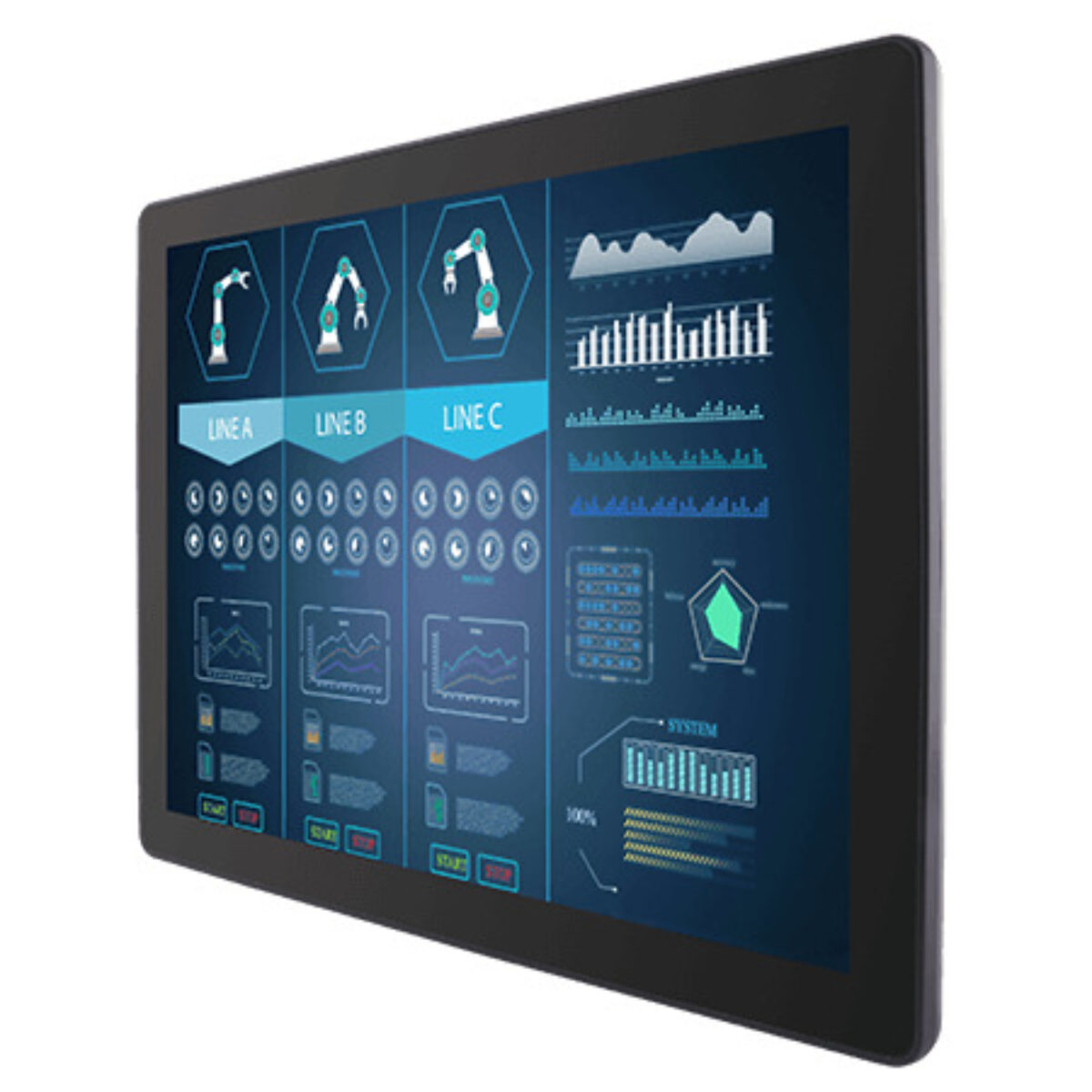

Winmate R15L100-PTC3-POE 15″ PoE Powered PCAP Touch Monitor with XGA Display and Front IP65
PCAP
Front IP65
CE
FCCR15L100-PTC3-POE Overview
Operators watching a process all shift need a screen big enough to show the whole line, and installers want to avoid pulling a new power circuit to put one there. The R15L100-PTC3-POE is Winmate’s 15 inch PoE chassis monitor, and it takes its power from the network cable that already reaches the workstation.
The 15 inch 4:3 LCD runs at 1024 x 768 with 350 nits brightness, 800:1 contrast and an active area of 304.1 x 228.1 mm, which gives 4:3 HMI and SCADA software more room than the 10.4 and 12.1 inch versions. Projected capacitive multi-touch reports over USB, the front uses strengthened glass, and protection glass and an anti-glare coating are both offered as options.
Power arrives over the LAN port from any PoE switch or injector, as an IEEE 802.3at (25 W) or 802.3af (15 W) powered device, so one network cable replaces a local power supply. Video comes in over VGA as standard, with HDMI and a pair of speakers listed as options, and seven front keys drive the on-screen menu. For a brighter 4:3 panel in a metal chassis, the R12L100-PCM2-POE offers 500 nits at 12.1 inches, and the W15L100-PTA3-POE is the 15.6 inch widescreen version.
The fanless plastic enclosure measures 352.5 x 276.7 x 45 mm and has a front IP65 rating against dust and splashes. It mounts on 75 x 75 or 100 x 100 mm VESA and operates from 0 to 50 °C at 10 to 90% humidity. The monitor carries CE and FCC marks, and Winmate names industrial visualization, control rooms and equipment monitoring as typical uses.
R15L100-PTC3-POE Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L100-PTC3-POE |
| Features | PoE Powered |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Touch Interface | Ethernet USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 160° Horizontal, 150° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 800:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Ethernet Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | PoE Powered Device (PD) [RJ45] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 353mm x 277mm x 45mm (13.9" x 10.91" x 1.77") |
- R15L100-PTC3-POE Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L100-PTC3-POE configured for USA industrial display projects. Within the Winmate range the W15L100-PTA3-POE offers the same PoE design as a 15.6 inch widescreen, and the R15L100-POC3 is a 15 inch 4:3 model for sites with local power.
With a 15 inch 4:3 panel the R15L100-PTC3-POE sits among our 15 inch touch screen monitors, our Power over Ethernet monitors and our front IP65 monitors. Where a larger 4:3 screen must run from the network, this is the model to specify.
