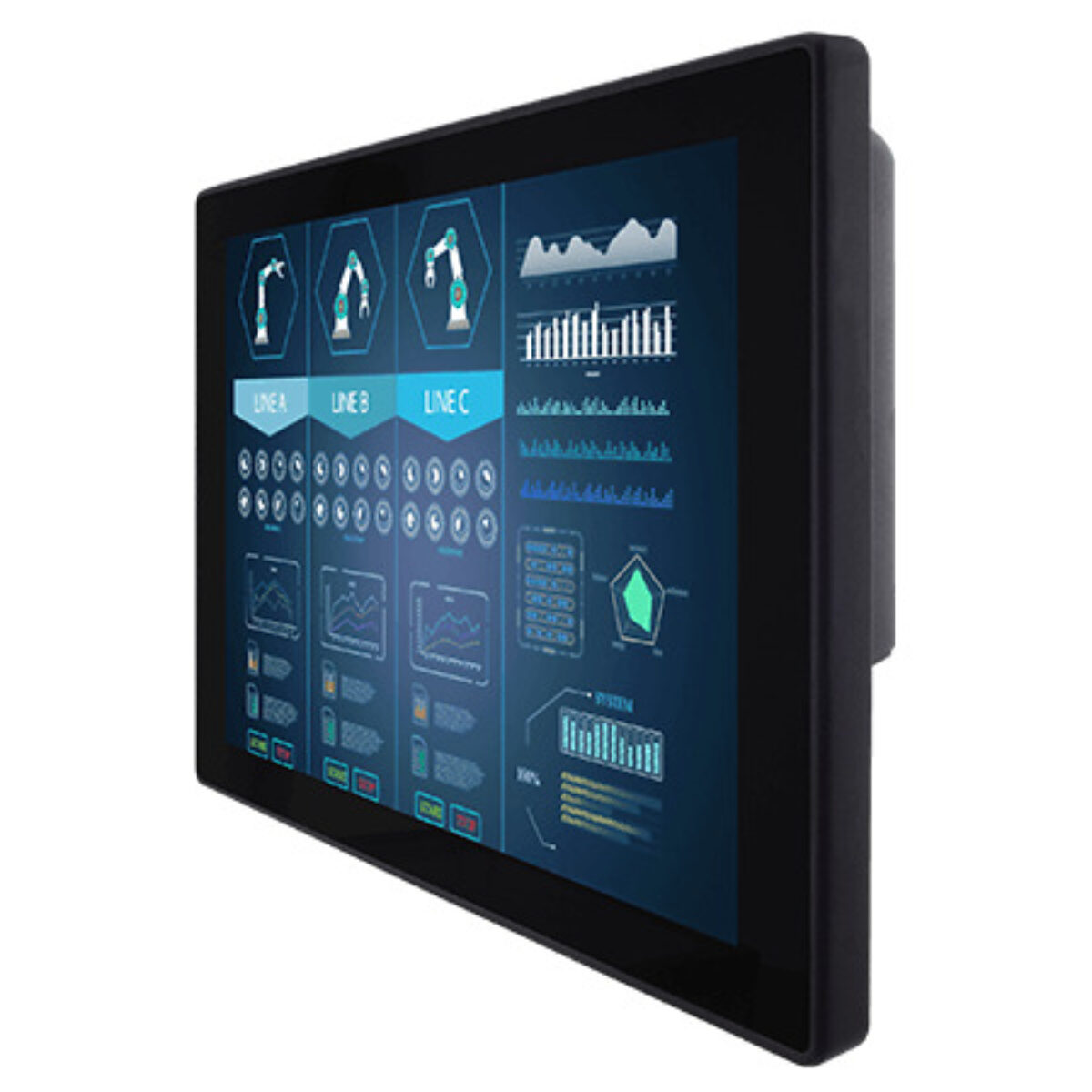

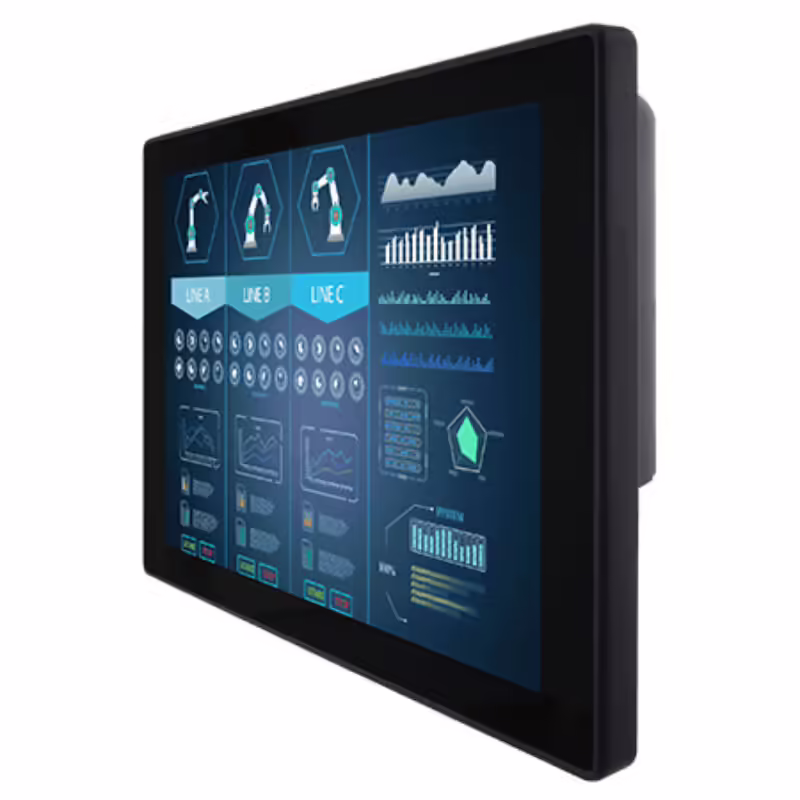

Winmate R12L100-PCM2-POE 12.1″ PoE Powered PCAP Touch Monitor with 500 Nit XGA Display and Front IP65
PCAP
Front IP65
CE
FCCR12L100-PCM2-POE Overview
A brighter screen helps in a sunlit loading bay or a well-lit production hall, but it is no help if the only power is at the far end of the room. The R12L100-PCM2-POE is Winmate’s 12.1 inch PoE chassis monitor, powered by the same network cable that links it to the rest of the site.

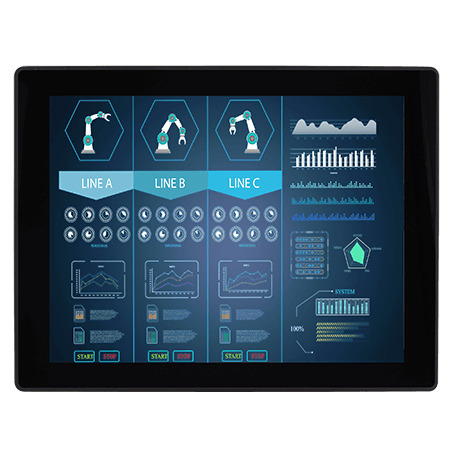

Its 12.1 inch 4:3 LCD runs at 1024 x 768 with 500 nits brightness, the highest of Winmate’s PoE chassis displays, together with 700:1 contrast and 89° viewing in every direction. That keeps HMI and monitoring screens legible under strong overhead lighting. Projected capacitive multi-touch connects over USB for quick bare-finger operation, and protection glass can be added as an option.
Power arrives over the LAN port from any PoE switch or injector, as an IEEE 802.3at (25 W) or 802.3af (15 W) powered device, so one network cable replaces a local power supply. Video comes in over VGA as standard, with HDMI and a pair of speakers available as options, and five front keys run the on-screen menu. The R10L100-PCT2-POE is the 10.4 inch version at 350 nits, while the R15L100-PTC3-POE steps up to a 15 inch 4:3 panel in a plastic housing.
The fanless metal chassis measures 296.2 x 226.7 x 45.5 mm, carries a front IP65 rating against dust and splashes, and fits a 75 x 75 mm VESA mount or a panel. It operates from 0 to 50 °C at 10 to 90% humidity. The monitor carries CE and FCC marks, and Winmate names industrial visualization, control rooms and equipment monitoring as typical uses.
R12L100-PCM2-POE Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R12L100-PCM2-POE |
| Features | PoE Powered |
| Display | |
| Display | 12.1"[4:3, 1024 x 768, XGA] |
| Touch Interface | Ethernet USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 500 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 700:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Ethernet Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | PoE Powered Device (PD) [RJ45] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 297mm x 227mm x 46mm (11.69" x 8.94" x 1.81") |
- R12L100-PCM2-POE Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R12L100-PCM2-POE configured for USA industrial display projects. Within the Winmate range the R10L100-PCT2-POE gives the same PoE design in a 10.4 inch size, and the R12L100-PCM2OD is a nearby 12.1 inch model for sites with local power.
With a 500 nit panel the R12L100-PCM2-POE sits among our 12 inch industrial monitors, our PoE powered monitors and our projected capacitive touch monitors. Where a bright 4:3 touch screen must run from the network, this is the model to specify.
