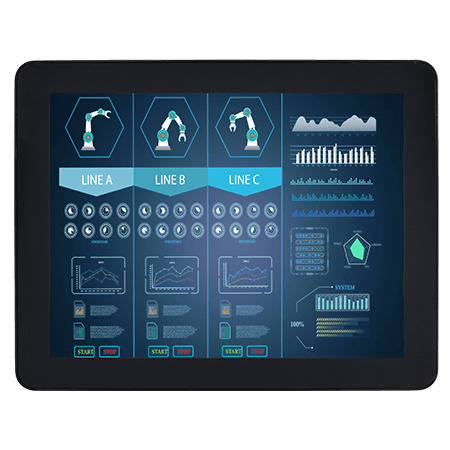

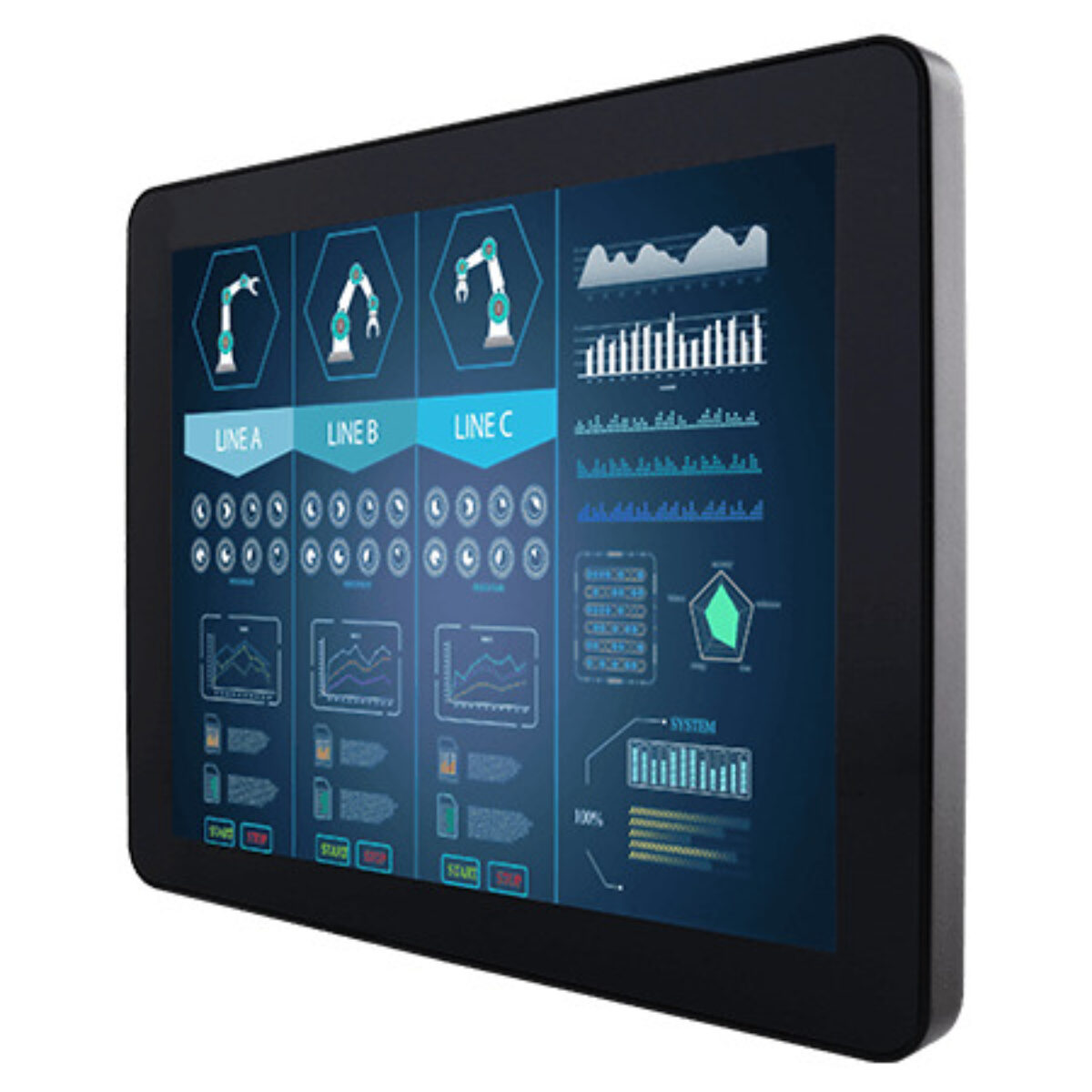

Winmate R10L100-PCT2-POE 10.4″ PoE Powered PCAP Touch Monitor with XGA Display and Front IP65
PCAP
Front IP65
CE
FCCR10L100-PCT2-POE Overview
Adding a touch screen to a machine or a wall often stalls on the power supply rather than the display, because the nearest socket is meters away. The R10L100-PCT2-POE is Winmate’s 10.4 inch PoE chassis monitor, built to take its power from the network cable you are already running to the site.
The panel is a 10.4 inch 4:3 LCD at 1024 x 768 with 350 nits brightness, 1000:1 contrast and 88° viewing in every direction, which keeps 4:3 HMI and SCADA screens readable from either side of a workstation. Projected capacitive multi-touch reports to the host over USB, so operators get light, phone-style touch, and protection glass is available as an option where the front needs extra cover.
Power arrives over the LAN port from any PoE switch or injector, as an IEEE 802.3at (25 W) or 802.3af (15 W) powered device, so one network cable replaces a local power supply. Video comes in over VGA as standard, with HDMI listed as an option, and optional speakers can be fitted. Five front keys drive the on-screen menu. For a larger 4:3 screen on the same PoE design, the R12L100-PCM2-POE moves to 12.1 inches at 500 nits, and the W10L100-PCH2-POE offers a 10.1 inch widescreen.
The fanless metal enclosure measures 252.41 x 197.8 x 43.8 mm and has a front IP65 rating, so the face of the monitor copes with splashes and dust. It mounts on a VESA arm or into a panel, and runs from 0 to 50 °C at 10 to 90% humidity. The monitor carries CE and FCC marks, and Winmate names industrial visualization, control rooms and equipment monitoring as typical uses.
R10L100-PCT2-POE Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L100-PCT2-POE |
| Features | PoE Powered |
| Display | |
| Display | 10.4"[4:3, 1024 x 768, XGA] |
| Touch Interface | Ethernet USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Ethernet Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | PoE Powered Device (PD) [RJ45] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 253mm x 198mm x 44mm (9.96" x 7.8" x 1.73") |
- R10L100-PCT2-POE Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R10L100-PCT2-POE configured for USA industrial display projects. Within the Winmate range the R12L100-PCM2-POE is the 12.1 inch version of the same PoE chassis, and the R10L100-PCT2OD is a nearby 10.4 inch model for sites with mains power.
Powered over Ethernet, the R10L100-PCT2-POE sits among our PoE touch monitors, our 10 inch industrial monitors and our front IP65 displays. Where a 4:3 touch screen has to run from a single network cable, this is the model to specify.
