Winmate W10L100-PCH2-POE 10.1″ PoE Powered PCAP Widescreen Touch Monitor with 1280 x 800 and Front IP65
PCAP
Front IP65
CE
FCCW10L100-PCH2-POE Overview

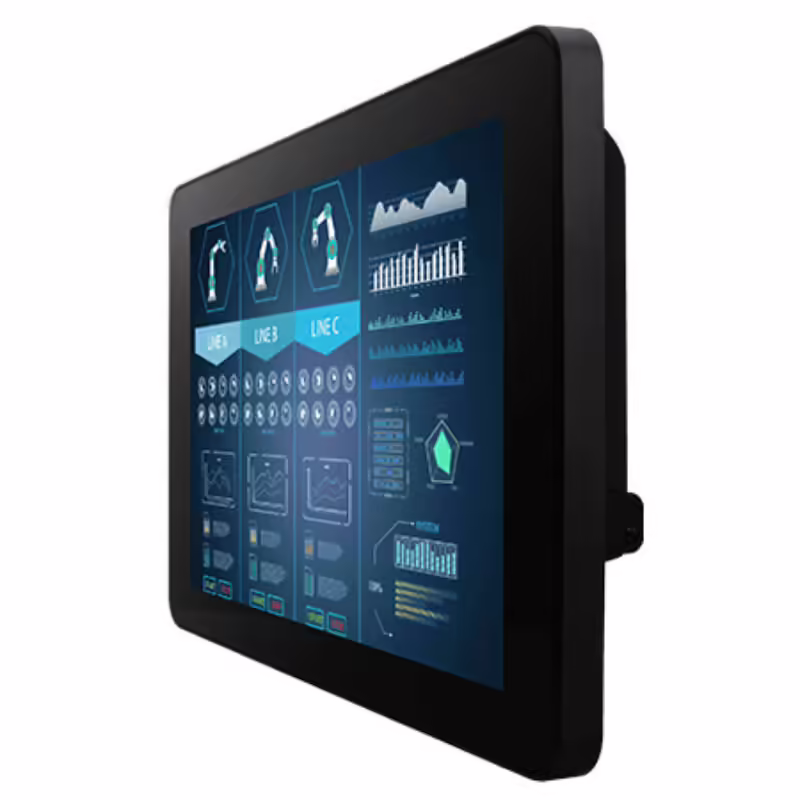

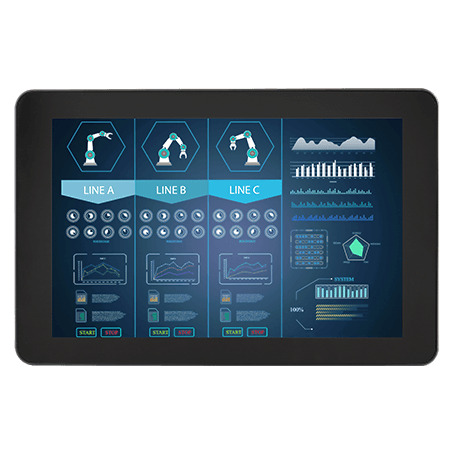

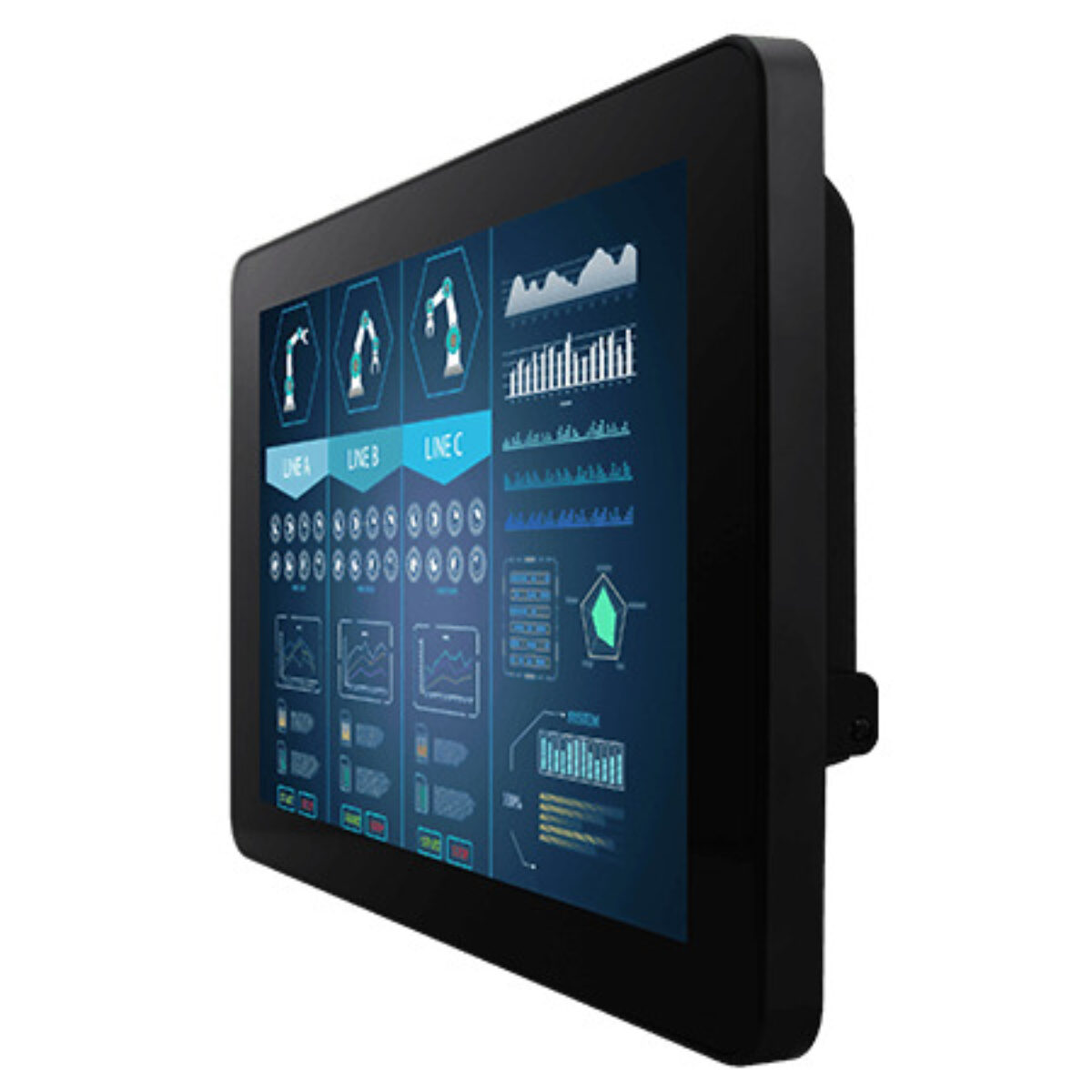

A small touch screen on a wall or a machine guard is easy to place until someone asks where its power comes from. The W10L100-PCH2-POE is Winmate’s 10.1 inch widescreen PoE chassis monitor, powered from the same network cable that connects the control point to the rest of the site.
Its 10.1 inch LCD runs at 1280 x 800 with 350 nits brightness, 800:1 contrast and 85° viewing in every direction, which suits widescreen dashboards, building control pages and compact HMI layouts. Projected capacitive multi-touch reports over USB for light bare-finger operation, and protection glass and an anti-glare coating are available as options for brighter rooms.
Power arrives over the LAN port from any PoE switch or injector, as an IEEE 802.3at (25 W) or 802.3af (15 W) powered device, so one network cable replaces a local power supply. Video comes in over VGA as standard, with HDMI and a speaker offered as options, and five keys on the rear drive the on-screen menu. Where a 4:3 screen fits the software better, the R10L100-PCT2-POE offers 10.4 inches at 1024 x 768, and the W15L100-PTA3-POE scales the widescreen PoE design up to 15.6 inches.
The fanless aluminum enclosure measures 264.57 x 173.29 x 35.7 mm, the slimmest of Winmate’s PoE chassis displays, with a front IP65 rating against dust and splashes. It mounts on a 75 x 75 mm VESA arm or into a panel and runs from 0 to 50 °C at 10 to 90% humidity. The monitor carries CE and FCC marks, and Winmate names industrial visualization, control rooms and equipment monitoring as typical uses.
W10L100-PCH2-POE Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W10L100-PCH2-POE |
| Features | PoE Powered |
| Display | |
| Display | 10.1"[5:3, 1280 x 800, WXGA] |
| Display Treatment | Anti-Glare Treatment |
| Touch Interface | Ethernet USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 5:3 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Ethernet Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | PoE Powered Device (PD) [RJ45] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 265mm x 174mm x 36mm (10.43" x 6.85" x 1.42") |
- W10L100-PCH2-POE Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W10L100-PCH2-POE configured for USA building and industrial display projects. Within the Winmate range the W15L100-PTA3-POE is the 15.6 inch widescreen PoE model, and the W10L100-POH2 is a 10.1 inch widescreen for sites with local power.
In a slim aluminum housing the W10L100-PCH2-POE sits among our 10 inch touch screen monitors, our PoE monitors and our chassis monitors. Where a compact widescreen must run from one network cable, this is the model to specify.
