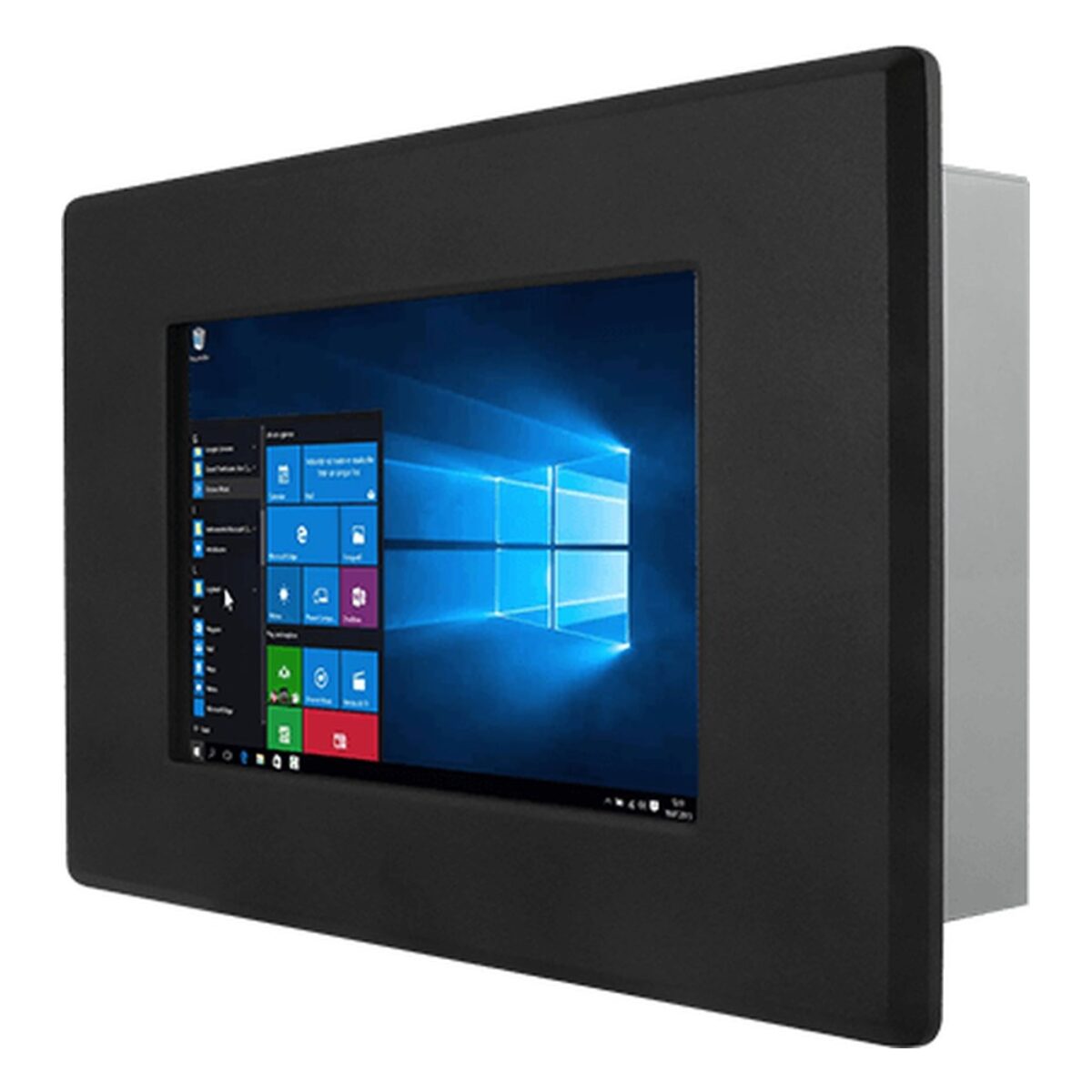

Winmate W07IE3S-IPT1 7″ Front IP65 Panel PC with Intel Elkhart Lake Celeron N6211 and Resistive Touch

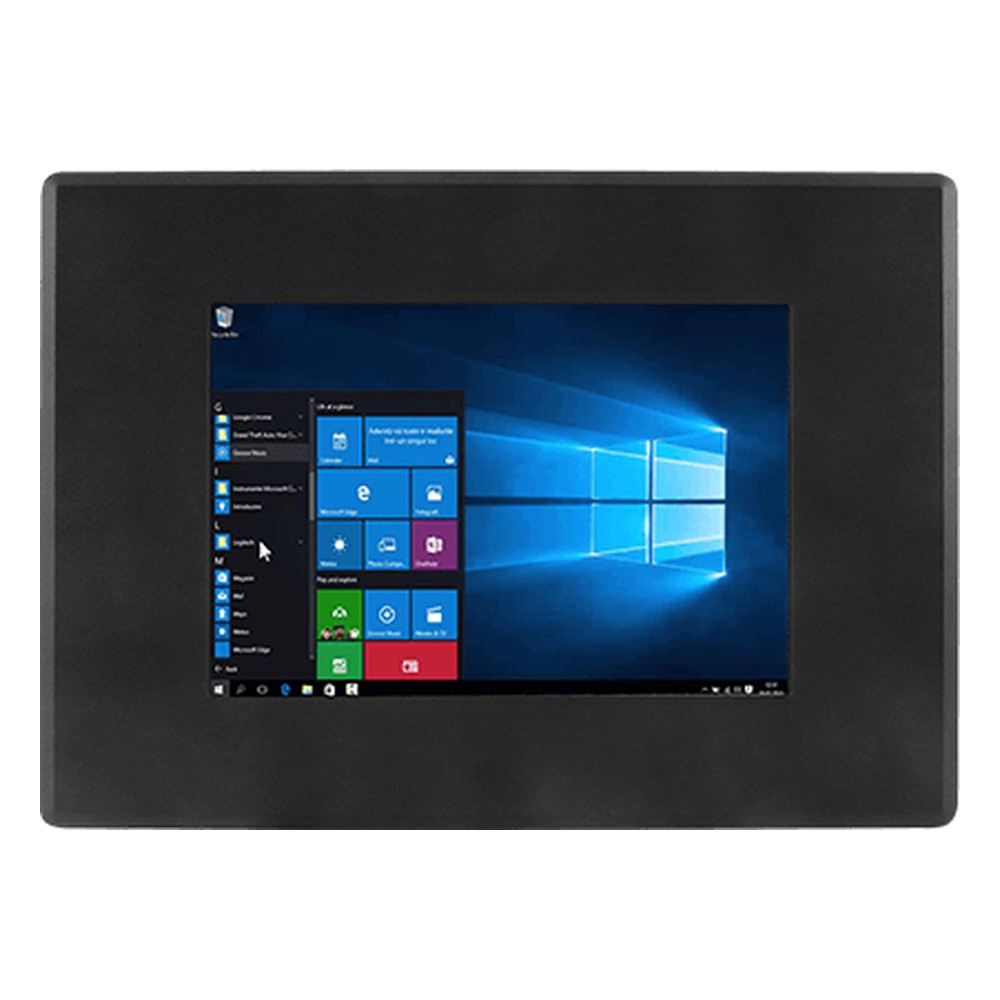

Operator stations beside a machine or packaging line need a screen that wipes down at the front while the electronics stay in the cabinet. The W07IE3S-IPT1 is Winmate’s 7 inch front IP65 panel PC: a 7″ WSVGA display and an Intel Celeron N6211 computer in a metal housing that fits a cabinet door or console cut-out.

The Intel Celeron N6211 (Elkhart Lake) runs at up to 3.0 GHz, which suits HMI software, data entry and machine status screens. One DDR4 SO-DIMM socket is fitted with 4 GB, with 8 or 16 GB as options, and a 128 GB SSD sits on an M.2 2242 B-key slot, with larger SSDs and an optional 2.5″ SATA III bay. The 7″ panel is 1024 x 600 at 320 nits with 1000:1 contrast, with resistive touch or plain protection glass as options. Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be supplied.

Two 2.5GbE RJ45 ports on Intel Ethernet controllers can keep the control network apart from the plant network, and two USB 3.2 Gen 2 Type-A ports take scanners and service drives. One RS-232/422/485 port and one RS-232 port link PLCs and serial instruments, an optional HDMI 2.0 output drives a second screen, and two speakers handle alarms. An M.2 2230 E-key slot takes optional Wi-Fi and Bluetooth. Within the Winmate range the W07IAN3S-IPT1 is the same 7 inch front IP65 design with a newer Intel N150, and the W07IE3S-CHT1 puts the same Celeron N6211 in a chassis housing for VESA mounting.

Power is 12 V DC on a DC barrel jack, and it comes with a 100 to 240 V AC adapter and power cord. The fanless metal housing operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, which suits indoor cabinets and consoles. The W07IE3S-IPT1 is rated IP65 at the front and fits a panel cut-out with the supplied clips, with VESA optional. It carries CE and FCC marks. We supply it configured, with the OS installed, and tested before dispatch.
