Winmate W07IAN3S-IPT1 7″ Front IP65 Panel PC with Intel Twin Lake N150 and Resistive Touch

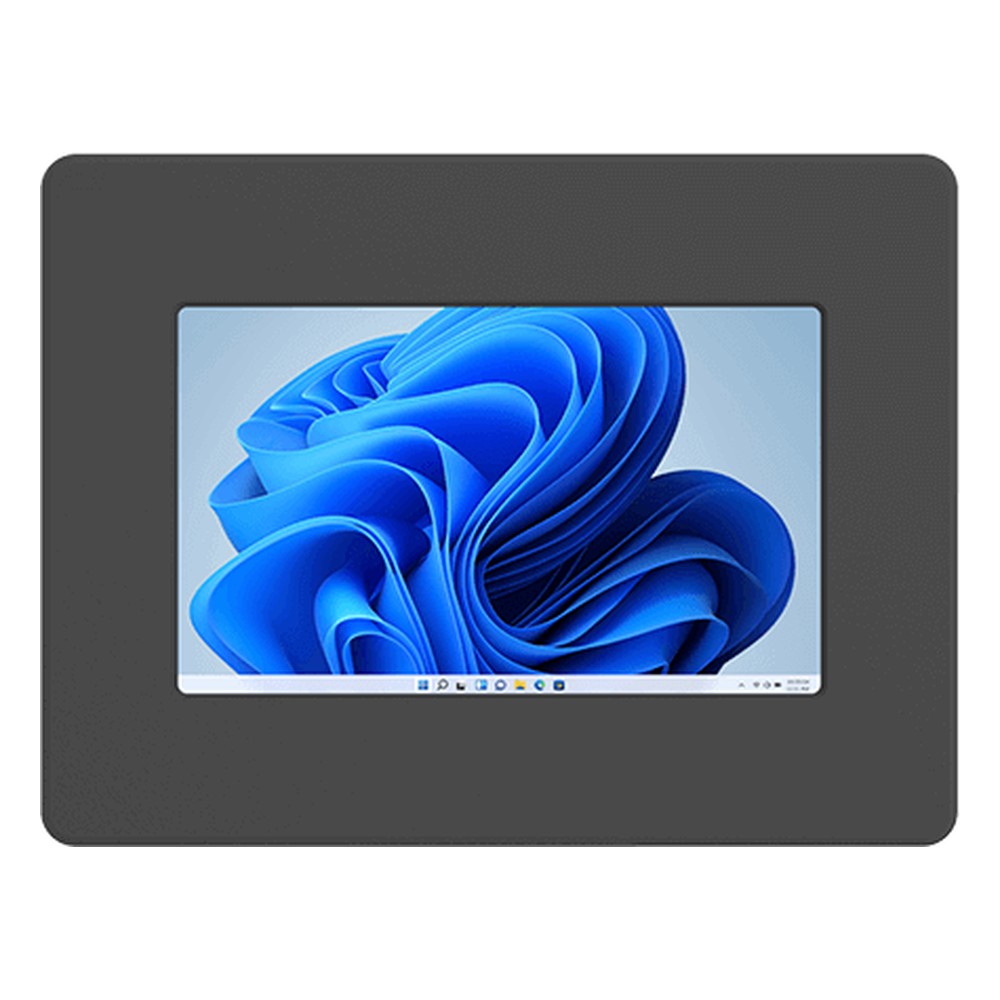

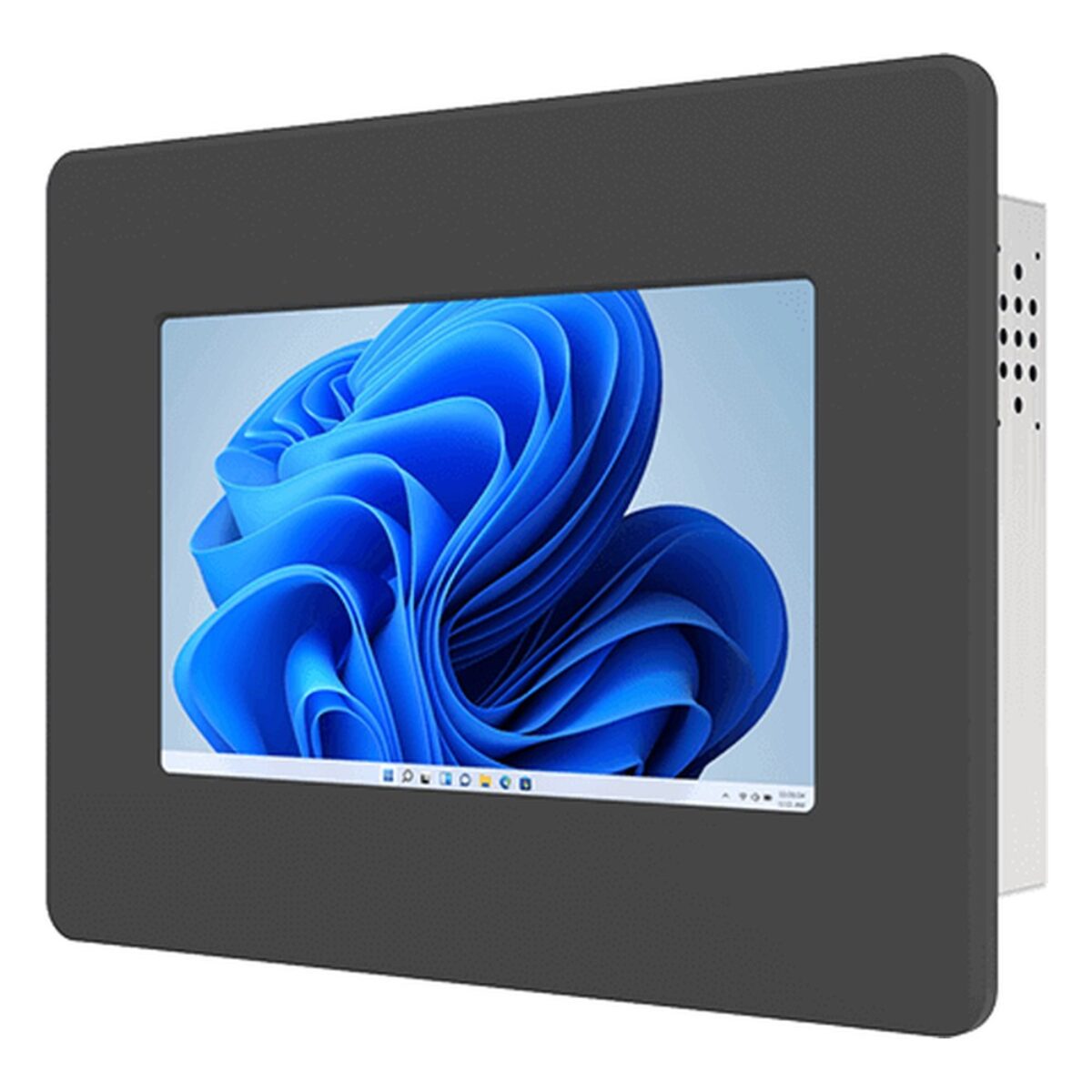

A small HMI on a machine guard or a cabinet door gets splashed and wiped as often as a large one, and there is little room behind the panel. The W07IAN3S-IPT1 is Winmate’s 7 inch front IP65 panel PC: a slim, fanless unit with a quad-core Intel N150 and a 7″ 1024 x 600 display rated at 320 nits with 1000:1 contrast, with resistive touch or plain protection glass as options. Winmate positions it for machine control, factory automation and operator HMI.

Inside is an Intel Processor N150, a quad-core Twin Lake chip at up to 3.6 GHz with Intel Graphics, typically enough for HMI runtimes and SCADA clients without a fan. One DDR5-4800 SO-DIMM holds 8 GB, or 16 GB as an option. A 128 GB SSD is standard with options to 2 TB, or an optional 2.5″ SATA III drive in place of the NVMe SSD. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04.

Two 2.5GbE ports can keep a plant network apart from a machine network, and the two DB9 serial ports (one RS-232/422/485, one RS-232) reach PLCs and older instruments. Two USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode complete the set, with HDMI 2.0b and Wi-Fi as options. The W07IAN3S-PMT1 is the same N150 computer as a panel mount version for dry indoor panels, and the W07IAN3S-CHT1 is the enclosed chassis model for VESA mounting.

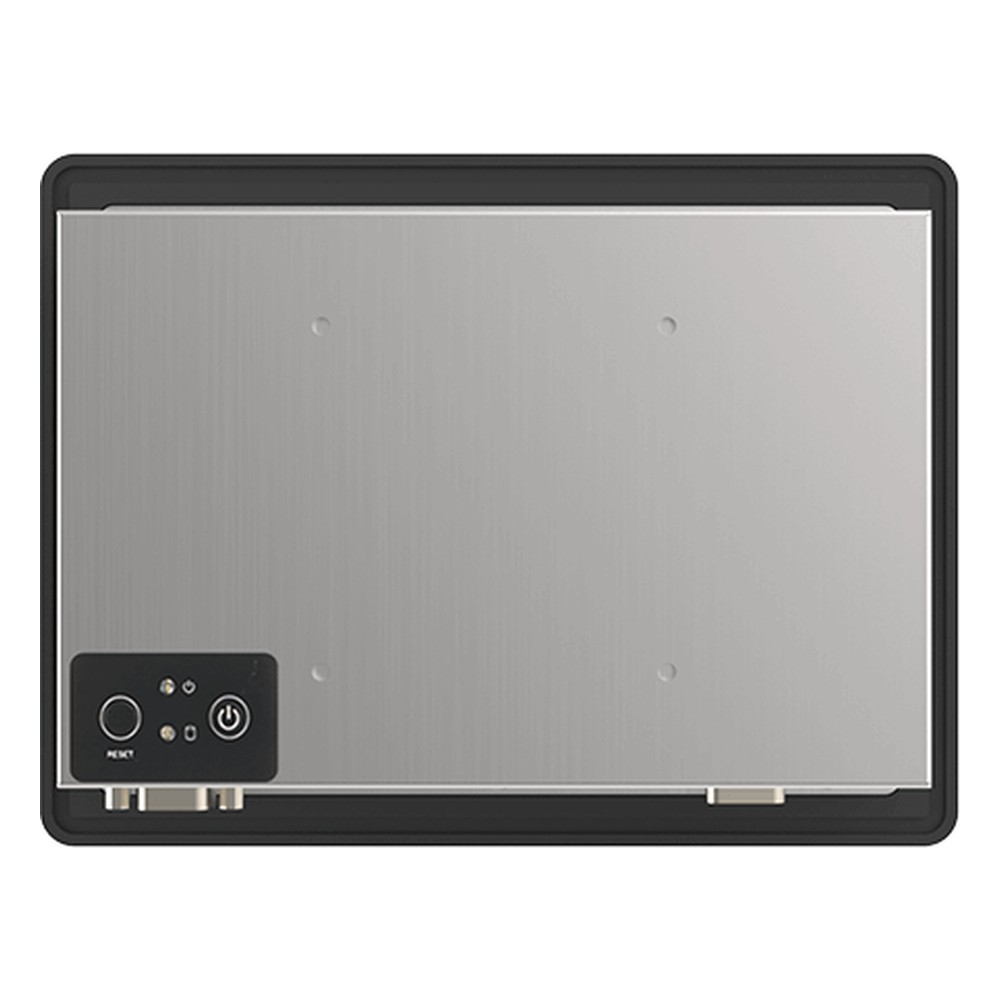

The front is rated IP65, so the operator face resists dust and water jets while the rear stays dry in the cabinet. It panel mounts with the supplied clips, or on VESA as an option. A 100 to 240 V AC adapter is supplied for the 12 V DC input. The fanless metal housing runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with CE and FCC marks. We supply the W07IAN3S-IPT1 configured, with the OS installed, and tested before dispatch.
