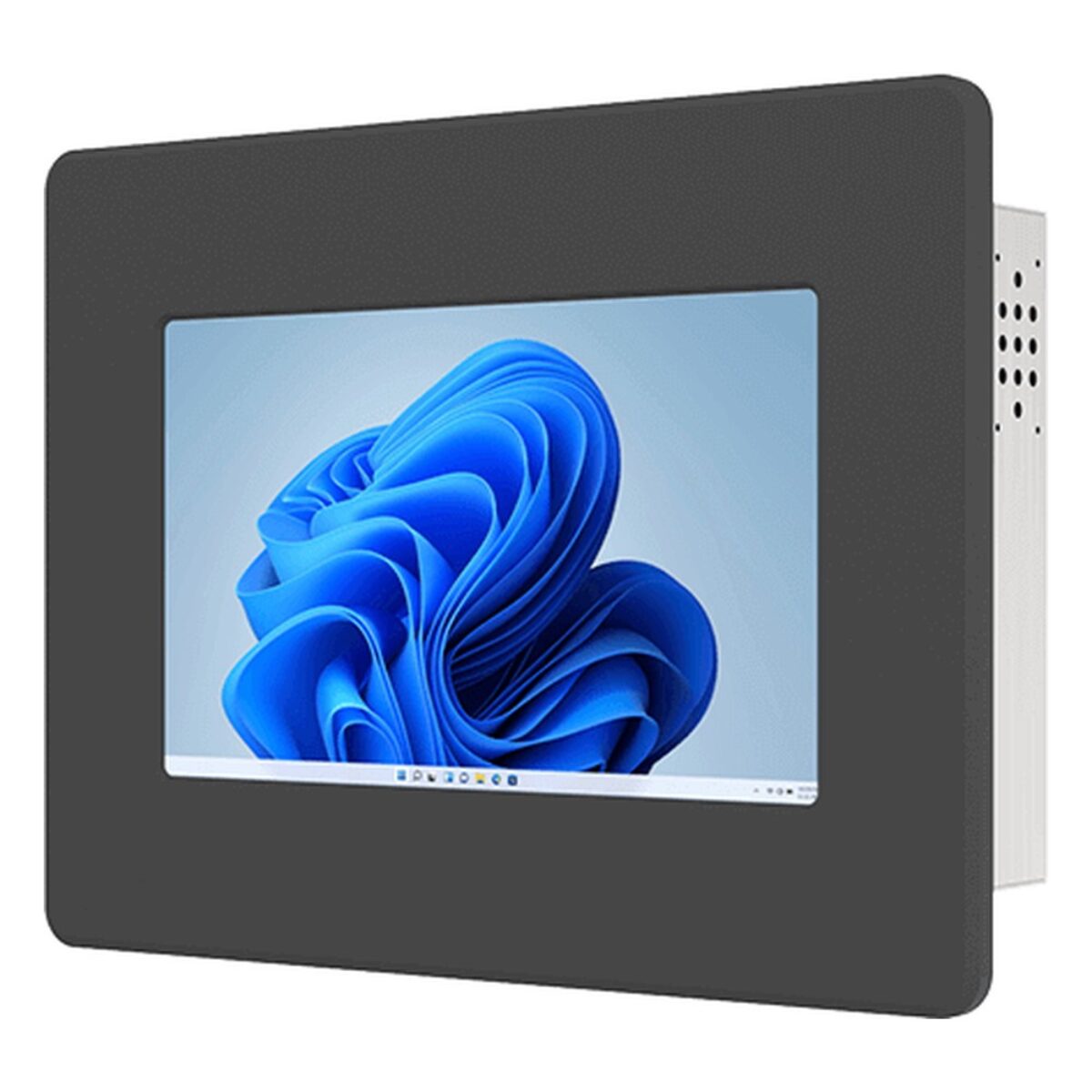

Winmate W07IAN3S-PMT1 7″ Panel Mount PC with Quad-Core Intel N150 and Resistive Touch

The W07IAN3S-PMT1 is Winmate's 7 inch panel mount PC, pairing a quad-core Intel Processor N150 with a 1024 x 600 display, two 2.5GbE ports, two serial ports and USB-C in a fanless metal housing. It suits small control panels and machine enclosures in dry indoor areas.

  • Panel Mount Design: Fits a panel cut-out with the supplied mounting clips, with VESA mounting as an option for arms or brackets.
  • 7″ WSVGA Display: A 1024 x 600 panel at 320 nits with 1000:1 contrast, with resistive touch or protection glass as options.
  • Quad-Core Intel N150: Intel Processor N150 at up to 3.6 GHz with 6 MB cache, fanless, with one DDR5-4800 SO-DIMM taking 8 GB or 16 GB.
  • 2.5GbE and USB-C: Two 2.5GbE ports, two USB 3.2 Gen 1 Type-A and a USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode.
  • Two DB9 Serial Ports: One RS-232/422/485 and one RS-232 port for PLCs, scanners and serial instruments, plus an optional HDMI 2.0b output.
Touch Technology: ResistiveResistive
Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
Ethernet Speed: 2.5GbE2.5GbE
USB Connector Type: Type CType C
USB Generation: USB3USB3
M.2: 11x M.2
Connectivity: WirelessWi-Fi
NVMe: NVMe SSD SupportNVMe SSD
Thermal Dissipation: FanlessFanless
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

W07IAN3S-PMT1 Overview

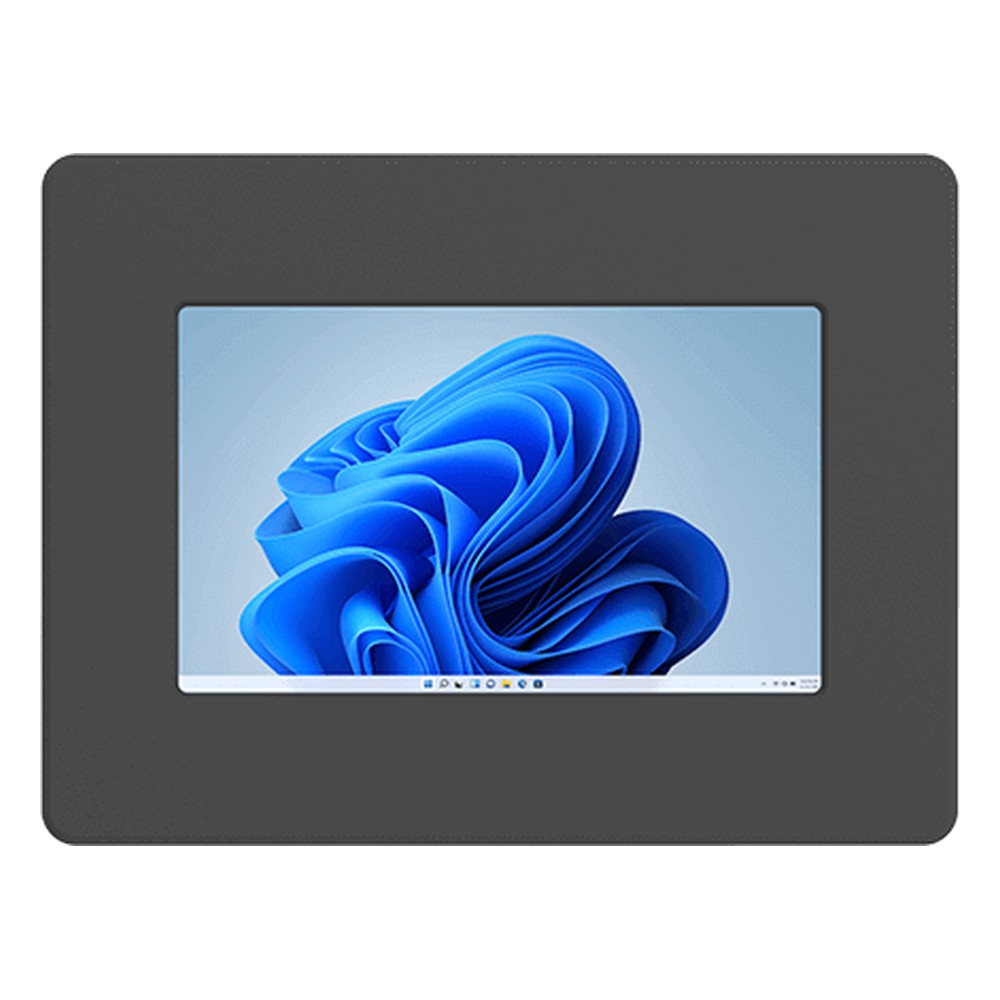

A small control panel in a clean, dry room needs a flush-fitting computer with real I/O, not just a display. The W07IAN3S-PMT1 is Winmate’s 7 inch panel mount PC for that job, with a quad-core Intel N150 and a 7″ 1024 x 600 display rated at 320 nits with 1000:1 contrast, plus resistive touch or plain protection glass as options. Winmate positions it for machine control, factory automation and operator HMI.

Compute comes from the Intel Processor N150, a quad-core Twin Lake part at up to 3.6 GHz with 6 MB cache, matched to one DDR5-4800 SO-DIMM (8 GB standard, 16 GB optional) and a 128 GB SSD with options to 2 TB. That is usually a good fit for HMI software and dashboards. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04 available.

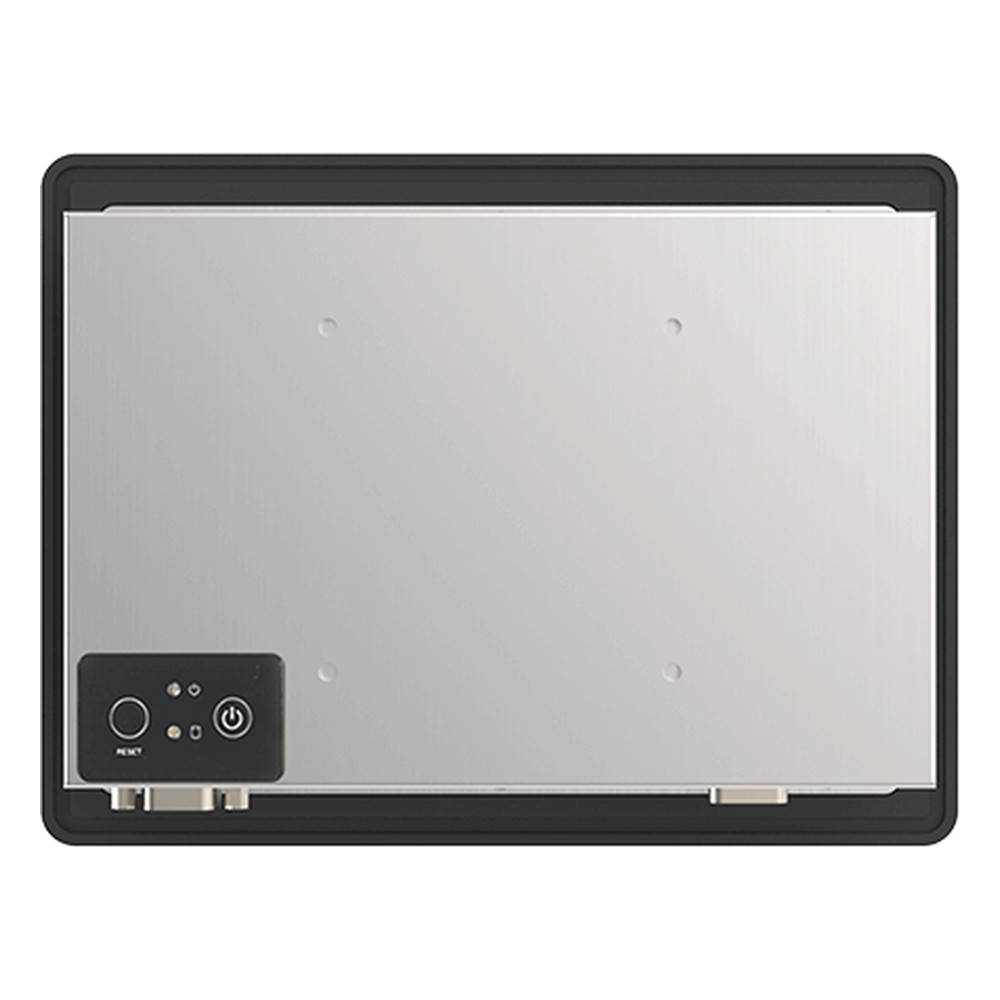

I/O sits on the rear: two 2.5GbE RJ45 ports, two USB 3.2 Gen 1 Type-A ports, a USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode, and one RS-232/422/485 plus one RS-232 port on DB9 for PLCs and scanners. HDMI 2.0b is optional, as is Wi-Fi through an M.2 2230 E-key slot. The W07IE3S-PMT1 is the earlier 7 inch panel mount model with an Intel Celeron N6211, and the W07IAN3S-IPT1 adds a front IP65 rating to this N150 computer.

As a plain panel mount design it suits dry control panels and indoor machine enclosures. It panel mounts with the supplied clips, or on VESA as an option. A 100 to 240 V AC adapter is supplied for the 12 V DC input. The fanless metal housing runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with CE and FCC marks. We supply the W07IAN3S-PMT1 configured, with the OS installed, and tested before dispatch.

W07IAN3S-PMT1 Specifications

Overview
Brand & ModelWinmate W07IAN3S-PMT1
FeaturesFanless
Industrial
USB C
Display
Display7"[17:10, 1024 x 600, WSVGA]
Display TreatmentProtective Glass
Touch ControllerOptional Resistive Touch
Brightness320 Nits
Viewing AngleWide Viewing Angle
150° Horizontal, 145° Vertical
Aspect Ratio17:10
FormatWidescreen
Contrast1000:1
Performance
Processor SeriesIntel Processor N Series Twin Lake
Processor ModelsIntel Processor N150: 0.8~3.6GHz, 4 Cores, 4 Threads, 6MB Cache, 6W
Performance Cores4 Cores
Memory1x DDR5 4800MHz SO-DIMM, 16GB
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux Ubuntu 24.04
Windows 11
Graphics
Integrated GPUIntel Graphics
Display Outputs1x USB Type C
I/O
Ethernet2x Ethernet Ports
2x 2.5 GbE LAN [RJ45]
USB3x USB Ports
1x USB 3.2 Gen 2 [Type C]
2x USB 3.2 Gen 1 [Type A]
Serial2x Serial Ports
1x RS232 [DB9]
1x RS232/422/485 [DB9]
Expansion
M.21x M.2 Expansion Slots
1x M.2 E-Key [2230]
Wireless ConnectivityOptional WiFi/Bluetooth
Storage
Storage1x 2.5" HDD/SSD
1x M.2 SSD
NVMeNVMe SSD Support
Power
Power Input12V DC [Barrel Connector]
AC Power Supply Included
Environmental Conditions
Thermal DissipationFanless Passively Cooled Chassis
Operating Temperature0°C to 50°C [32°F to 122°F]
Storage Temperature-10°C to 60°C [14°F to 140°F]
Humidity10-90% (Non-condensing)
CertificationCE
FCC
Mechanical Properties
Weight1.5 Kg (3.3 Lbs)
Dimensions218mm x 165mm x 55mm (8.58" x 6.48" x 2.18")

Official Winmate USA Distributor

Things Embedded is an official Winmate USA distributor, supplying the W07IAN3S-PMT1 configured, with the OS installed, and tested for USA machine building and control panel projects. Within the Winmate range the W07IAN3S-OFT1 is the open frame version for OEM equipment, and the W07IAN3S-CHT1 is the enclosed chassis model for VESA mounting.

For dry indoor cabinets the W07IAN3S-PMT1 sits among our panel mount PCs, our 7 inch panel PCs and our Intel Processor N computers. If you are unsure whether you need a sealed front, our team can help you decide.
