Winmate W07IE3S-PMT1 7″ Panel Mount Panel PC with Intel Celeron N6211 and Optional Resistive Touch

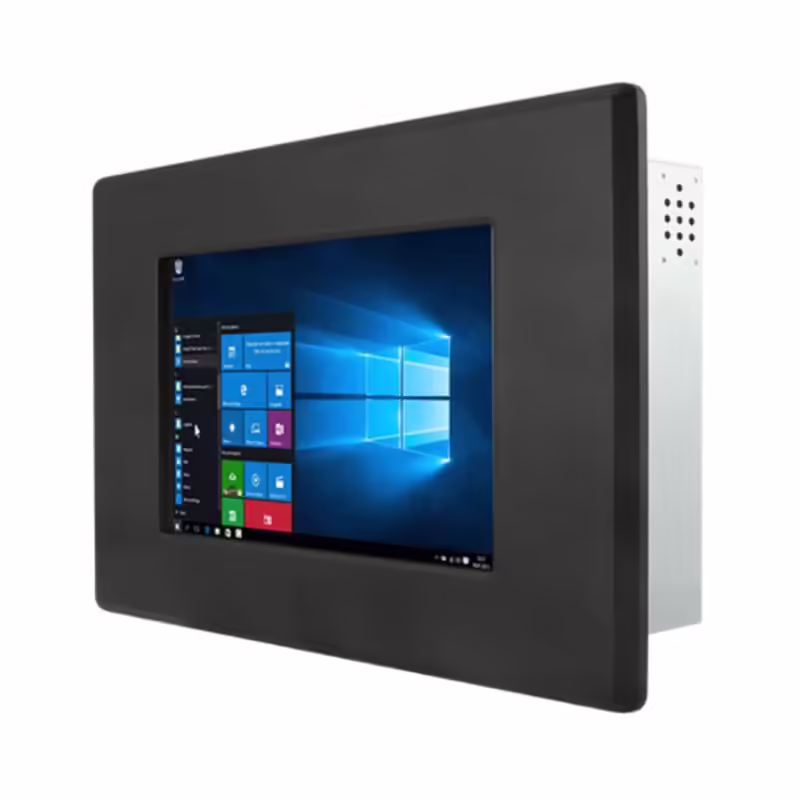

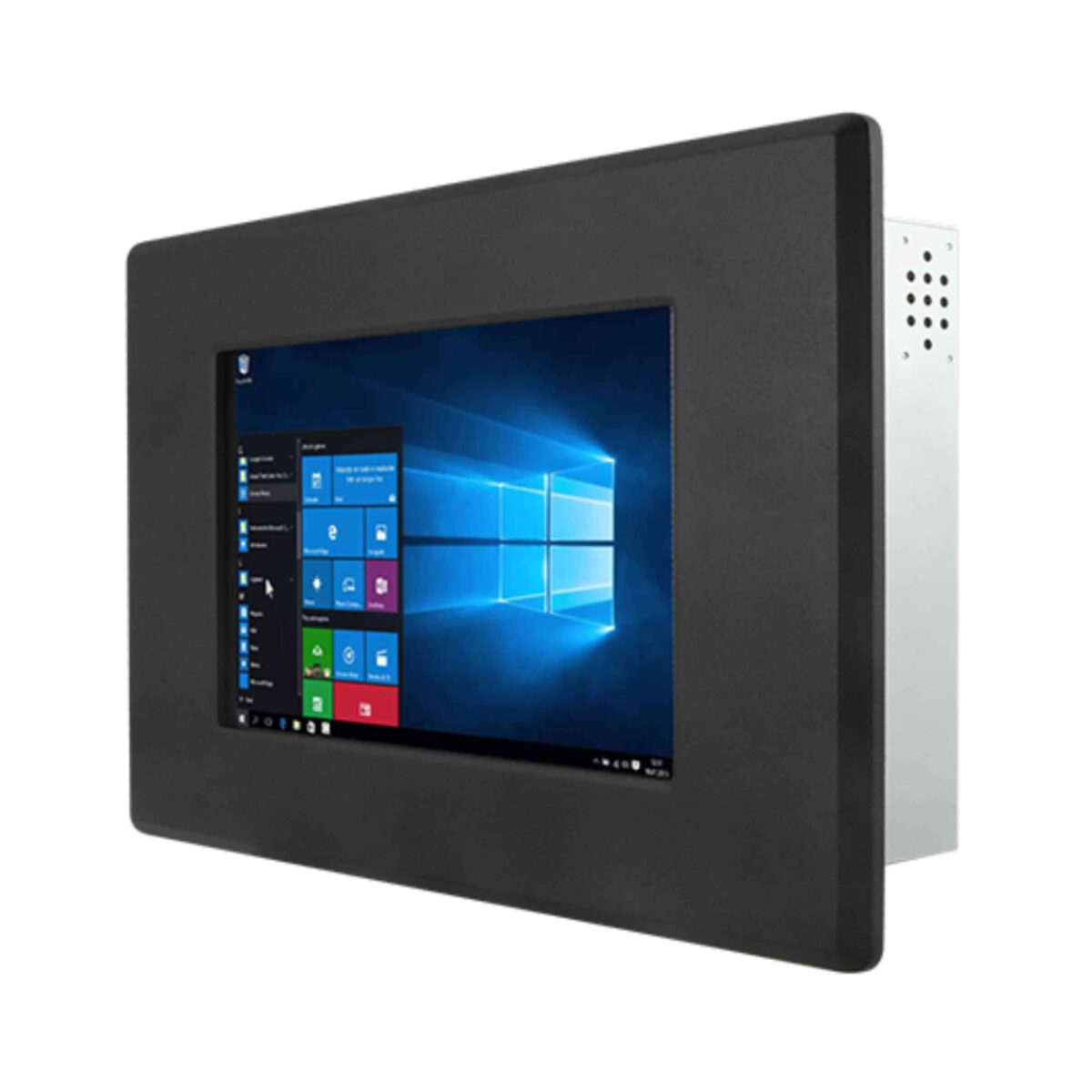

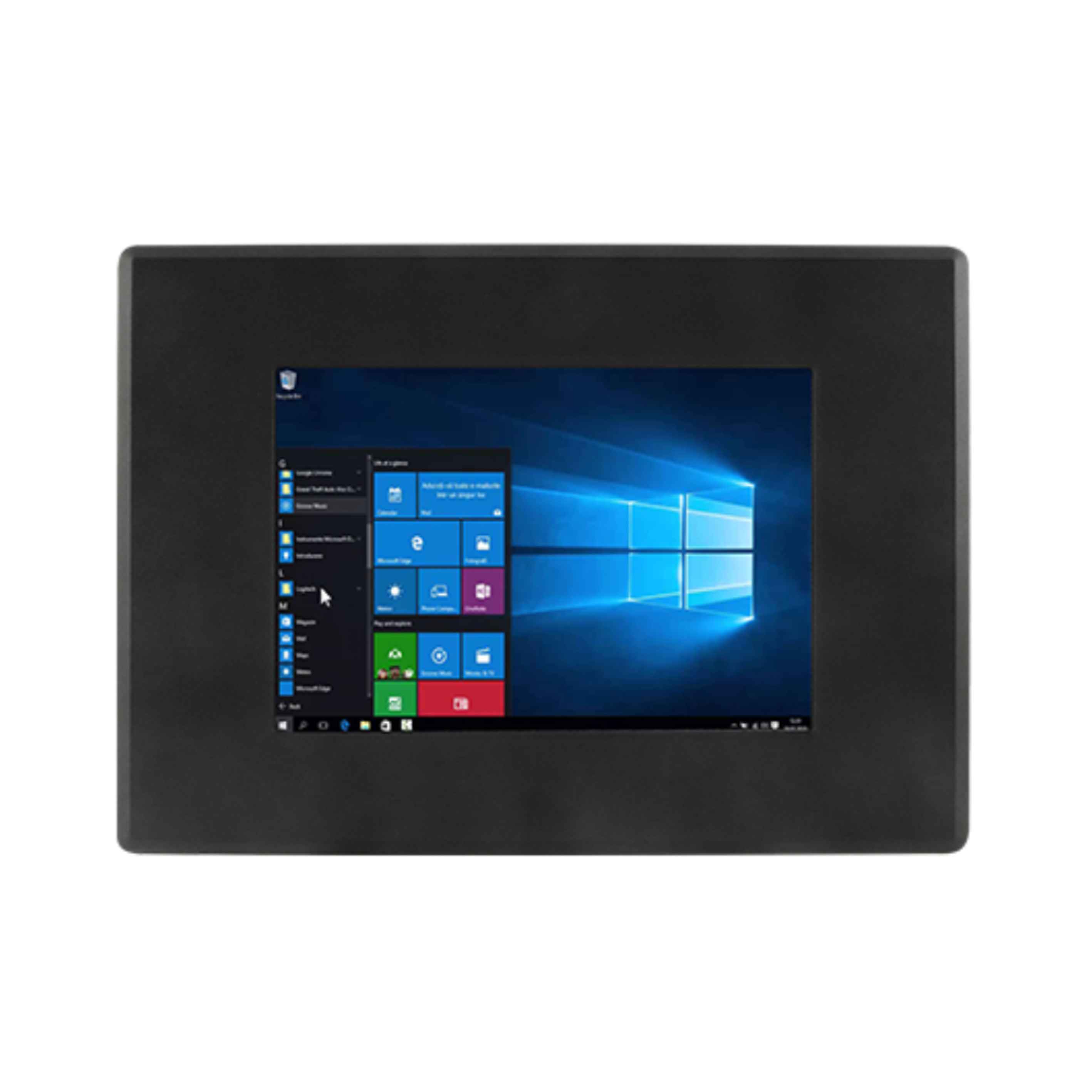

Setting a screen into a cabinet door keeps it flush with the enclosure and leaves the wiring inside, where it belongs. The W07IE3S-PMT1 is Winmate’s 7 inch panel mount panel PC for that, with a black front bezel, a fanless Intel Celeron N6211 and mounting clips for a 192 x 133 mm cut-out, offered as a standalone model.

The 7 inch panel runs at 1024 x 600 with 320 nits, a 1000:1 contrast ratio and 150° horizontal and 145° vertical viewing angles. Resistive touch or protection glass without touch are options, so it can take gloved input or show machine status only. The Intel Celeron N6211 runs at up to 3.0 GHz (the N6210 is an option), with one DDR4-3200 SO-DIMM with 4 GB as standard and 8 GB or 16 GB as options, a 128 GB M.2 2242 SSD that can go to 512 GB and an optional 2.5 inch SATA bay for up to 1 TB. That suits HMI, recipe and data collection software, with TPM 2.0 on board and Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise or Ubuntu 22.04 as options.

Two Gigabit LAN ports on Intel controllers, two USB 3.2 Gen 2 ports and two serial ports (one RS-232/422/485 and one RS-232) connect to PLCs, scanners and the plant network, with an optional HDMI 2.0 output and two speakers. An M.2 E-key slot takes an optional Wi-Fi and Bluetooth module. The W07IE3S-CHT1 is the 7 inch chassis build for VESA arms, and the W10IE3S-PMH2 is the 10.1 inch panel mount version.

Power is 12 V DC on a 2.5 mm DC jack, with a 12 V 50 W adapter supplied. The W07IE3S-PMT1 is fanless, operates from 0 to 50 °C at 10 to 90% humidity and carries CE and FCC marks. It measures 218 x 164.6 x 55.3 mm, weighs 1.5 kg and fits a 192 x 133 mm cut-out with the clips supplied, or mounts on 75 x 75 mm VESA.
