Winmate W07IE3S-CHT1 7″ Chassis Panel PC with Intel Celeron N6211, Front IP65 and Optional Resistive Touch

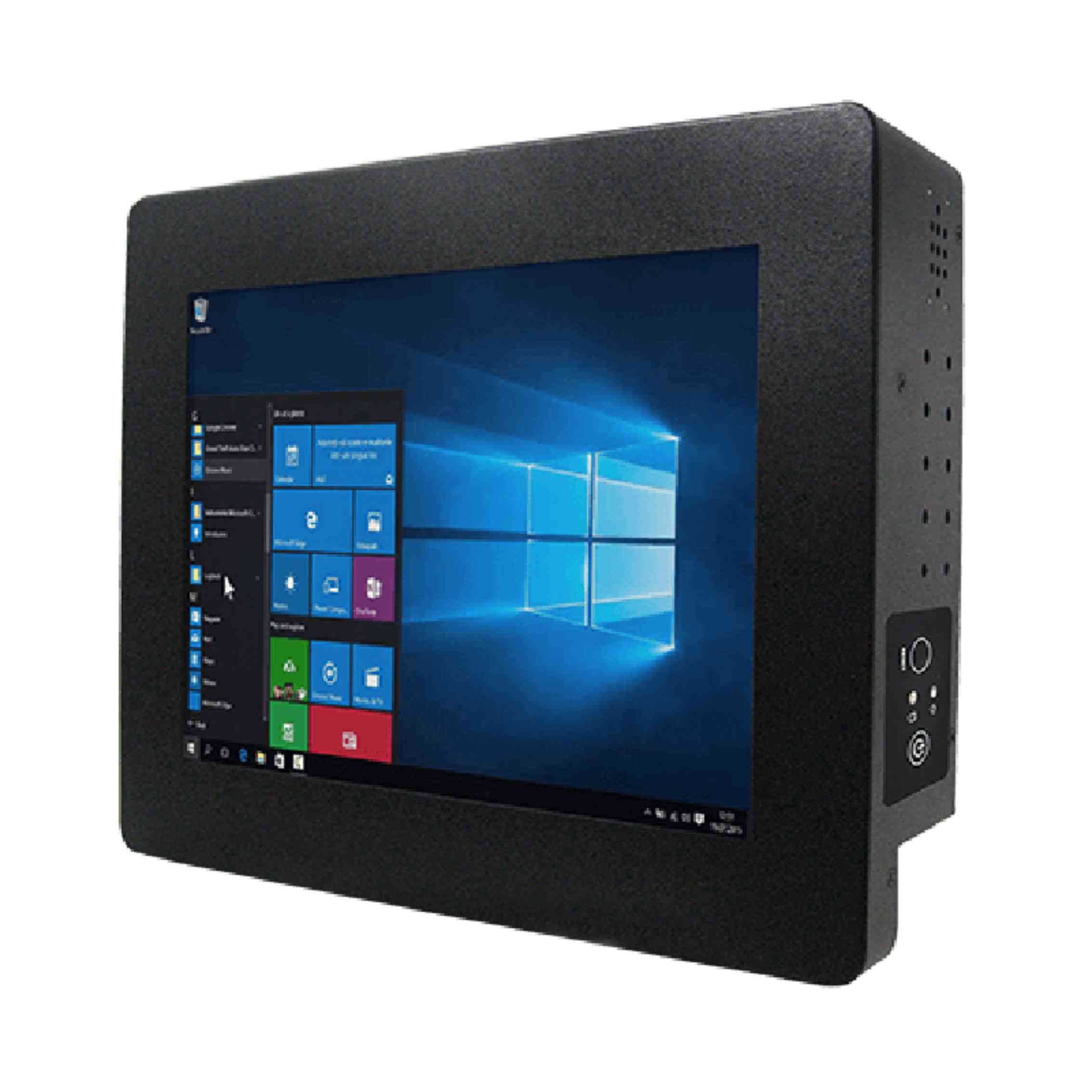

Small machines rarely have room for a large HMI, but they still need a screen that can take a splash on the front and talk to a PLC. The W07IE3S-CHT1 is Winmate’s 7 inch chassis panel PC for that job: a compact metal housing with a front rated IP65, a fanless Intel Celeron N6211 and a rear VESA mount, offered as a standalone model.

The 7 inch panel runs at 1024 x 600 with 320 nits, a 1000:1 contrast ratio and 150° horizontal and 145° vertical viewing angles. Resistive touch or protection glass without touch are options, so it can take gloved input or act as a status display. The Intel Celeron N6211 runs at up to 3.0 GHz (the N6210 is an option), with one DDR4-3200 SO-DIMM with 4 GB as standard and 8 GB or 16 GB as options, a 128 GB M.2 2242 SSD that can go to 512 GB and an optional 2.5 inch SATA bay for up to 1 TB. That suits HMI, recipe and data collection software, with TPM 2.0 on board and Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise or Ubuntu 22.04 as options.

Two Gigabit LAN ports on Intel controllers, two USB 3.2 Gen 2 ports and two serial ports (one RS-232/422/485 and one RS-232) connect to PLCs, scanners and the plant network, with an optional HDMI 2.0 output and two speakers. An M.2 E-key slot takes an optional Wi-Fi and Bluetooth module. The W07IE3S-PMT1 is the 7 inch panel mount build for cabinet doors, and the W07IE3S-PPT1 is the panel mount version with PCAP touch.

Power is 12 V DC on a 2.5 mm DC jack, with a 12 V 50 W adapter supplied. The W07IE3S-CHT1 is fanless, operates from 0 to 50 °C at 10 to 90% humidity and carries CE and FCC marks. It measures 210 x 160 x 64.7 mm, weighs 1.5 kg and mounts on 75 x 75 mm VESA.
