Winmate W07IAN3S-CHT1 7″ Chassis Panel PC with Intel N150 and Resistive Touch

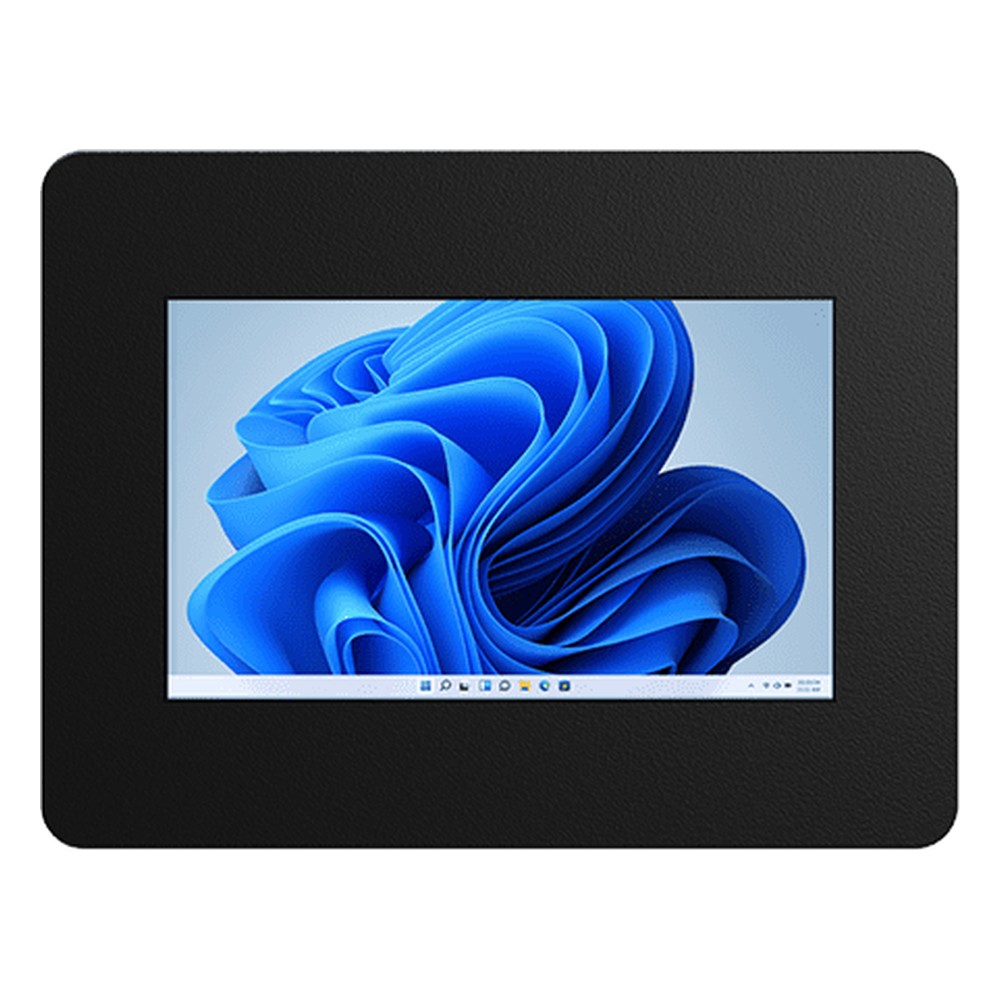

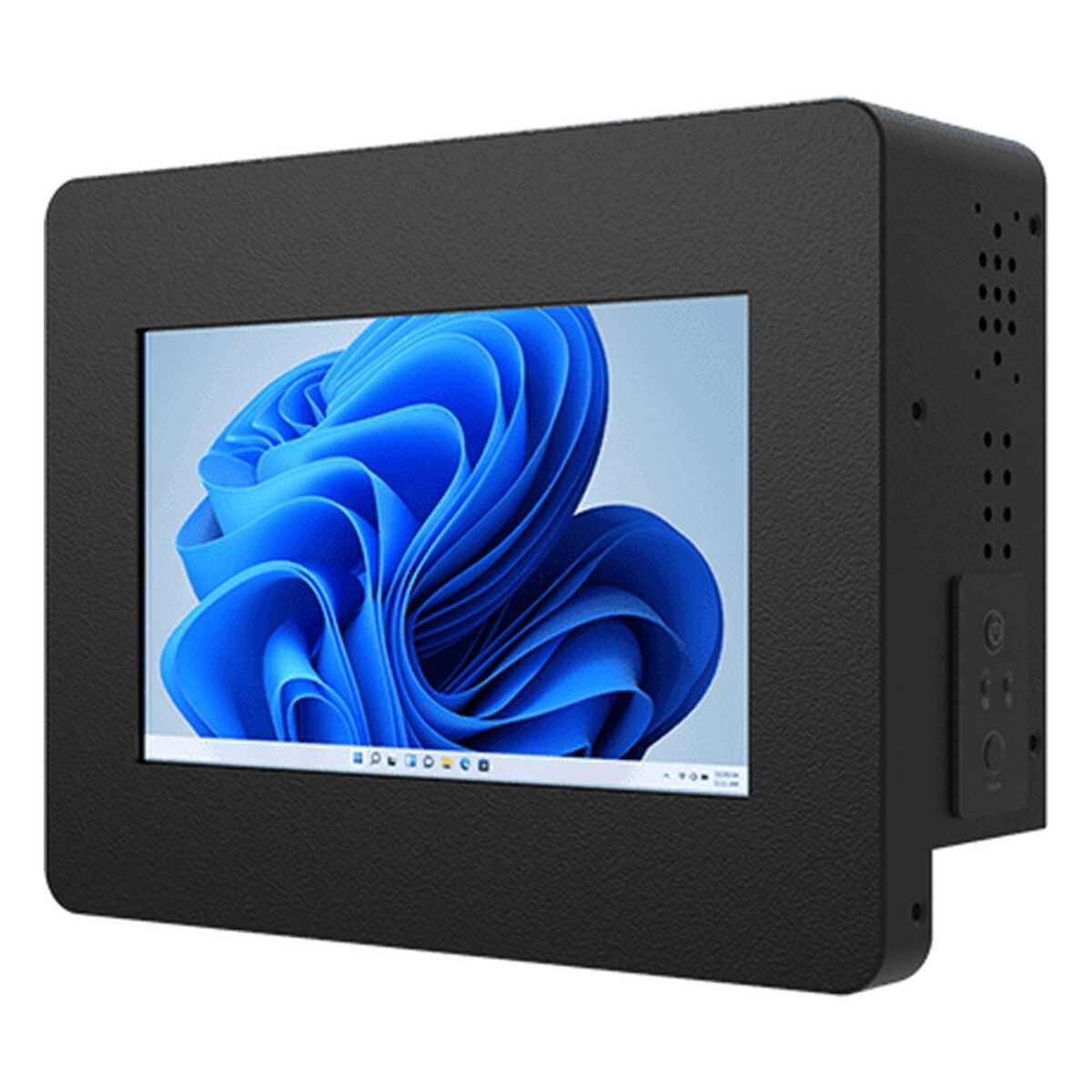

Small operator stations, such as a terminal on a machine arm or a wall-mounted control point, often need a full computer but only a small screen. The W07IAN3S-CHT1 is Winmate’s 7 inch chassis panel PC for those spots: an enclosed, fanless unit for VESA mounting with a quad-core Intel N150 and a 7″ 1024 x 600 display rated at 320 nits with 1000:1 contrast. Resistive touch or plain protection glass are options, and Winmate aims it at machine control, factory automation and operator HMI.

Compute comes from the Intel Processor N150, a quad-core Twin Lake part at up to 3.6 GHz with 6 MB cache, matched to one DDR5-4800 SO-DIMM (8 GB standard, 16 GB optional) and a 128 GB SSD with options to 2 TB. That is usually a good fit for HMI software and dashboards. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04 available.

I/O sits on the rear: two 2.5GbE RJ45 ports, two USB 3.2 Gen 1 Type-A ports, a USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode, and one RS-232/422/485 plus one RS-232 port on DB9 for PLCs and scanners. HDMI 2.0b is optional, as is Wi-Fi through an M.2 2230 E-key slot. The W07IE3S-CHT1 is the earlier 7 inch chassis model with an Intel Celeron N6211, and the W07IAN3S-PMT1 is the N150 panel mount version for cabinet cut-outs.

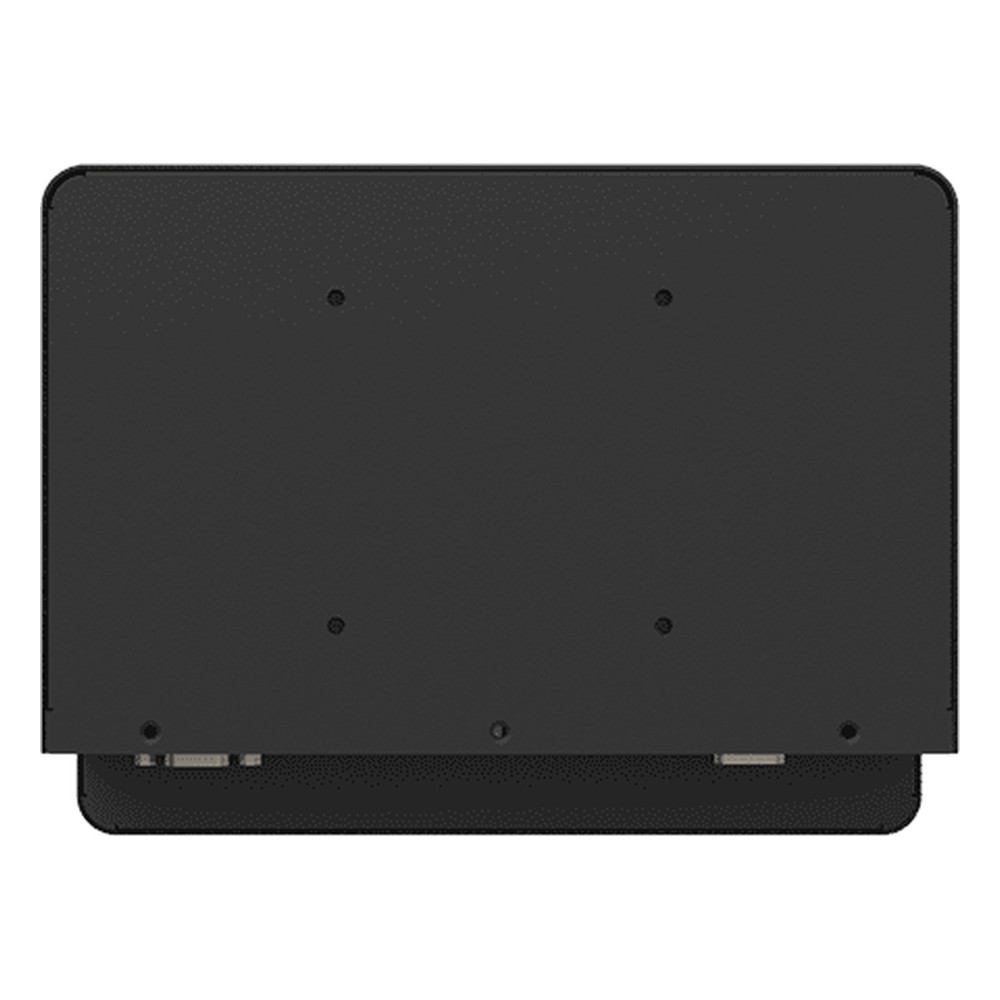

The enclosed chassis fixes to a VESA mount, which suits arm, desk or wall installations rather than a cabinet cut-out. A 100 to 240 V AC adapter is supplied for the 12 V DC input. The fanless metal housing runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with CE and FCC marks. We supply the W07IAN3S-CHT1 configured, with the OS installed, and tested before dispatch.
