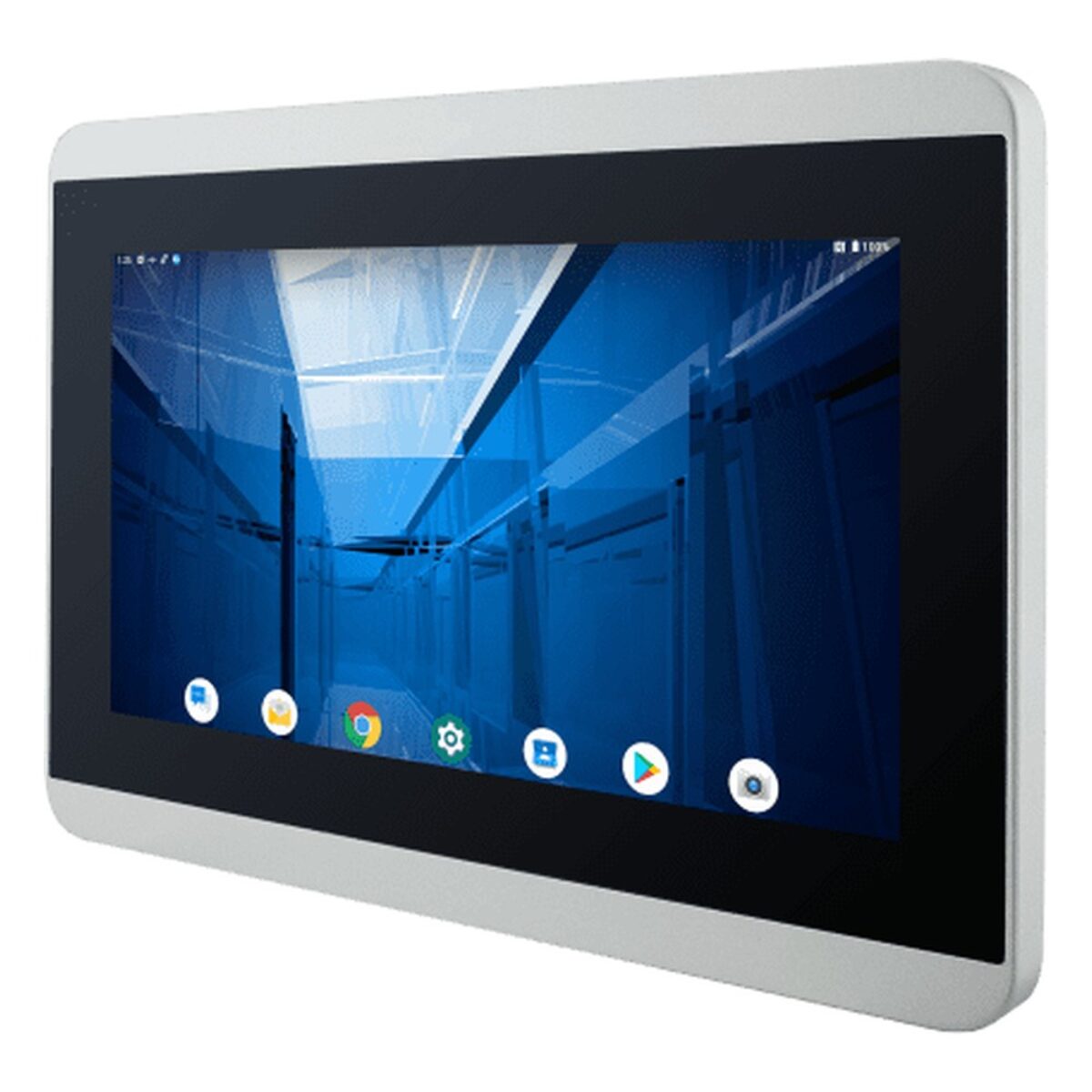

Winmate W07MG3S-GSO1 7″ Full IP65 Rugged Panel PC with MediaTek Genio 510 and MIL-STD-810H

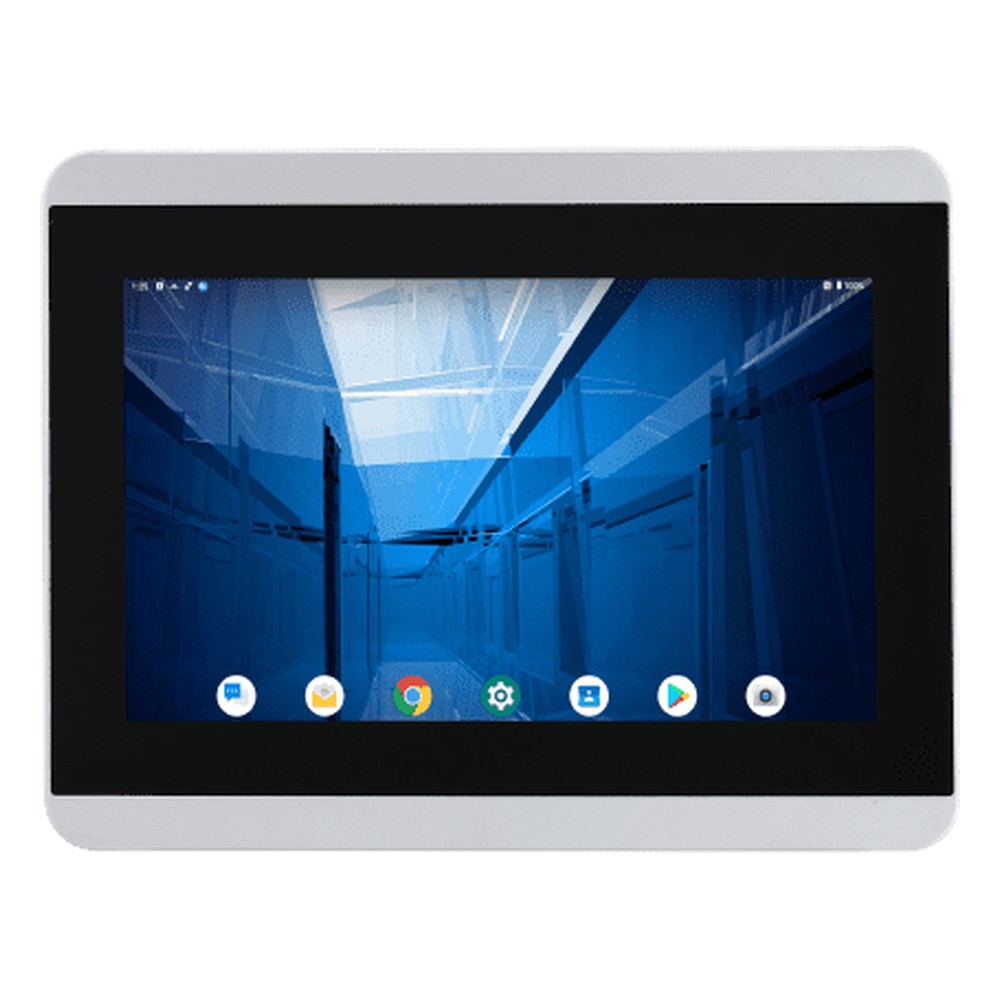

A small HMI on a machine that gets hosed down, or a kiosk outside a warehouse door, needs sealed connectors as much as a sealed front. The W07MG3S-GSO1 is Winmate’s 7 inch G-WIN GS panel PC for that kind of site: a metal housing with an aluminum bezel, sealed to IP65 all round, with M12 connectors on every external port and a 7″ 1024 x 600 projected capacitive touchscreen at 1000 nits with 700:1 contrast.

Processing comes from a MediaTek Genio 510, a six-core Arm processor with two Cortex-A78 and four Cortex-A55 cores at 2.0 GHz. It has 4 GB of LPDDR4, 32 GB of onboard eMMC and a Micro SD slot. Android 13 is the default operating system, with Yocto Linux (kernel 5.15.47 with Qt 5.15) or Ubuntu 22.04 as options. That suits HMI front ends, data collection screens and kiosk apps more than heavy local processing, and the low power draw is what lets the 7 inch housing stay fanless and sealed.

All connections are sealed: one Gigabit LAN, one USB 2.0 and one RS-232 port on M12 connectors, with RS-422/485 available as an option on the serial port, plus one USB Type-C port and a Micro SD slot. One speaker is built in. M12 power, serial and USB/LAN cables and three protective caps are supplied. The W07MG3S-GST1 is the same 7 inch GS design with a 320 nit panel and 1000:1 contrast for indoor lighting, and the W07MG3S-GCO1 is the 7 inch G-WIN GC model, rated IP65 at the front with standard connectors.

Power is 9 to 24 V DC on an M12 connector. The unit operates from -15 °C to 55 °C at 10 to 95% humidity, non-condensing, stores from -30 °C to 60 °C, and is tested to MIL-STD-810H Method 516.8 for shock and Method 514.8 for vibration. It mounts in a panel or on VESA and carries CE and FCC marks. We supply the W07MG3S-GSO1 configured, with the OS installed, and tested before dispatch.
