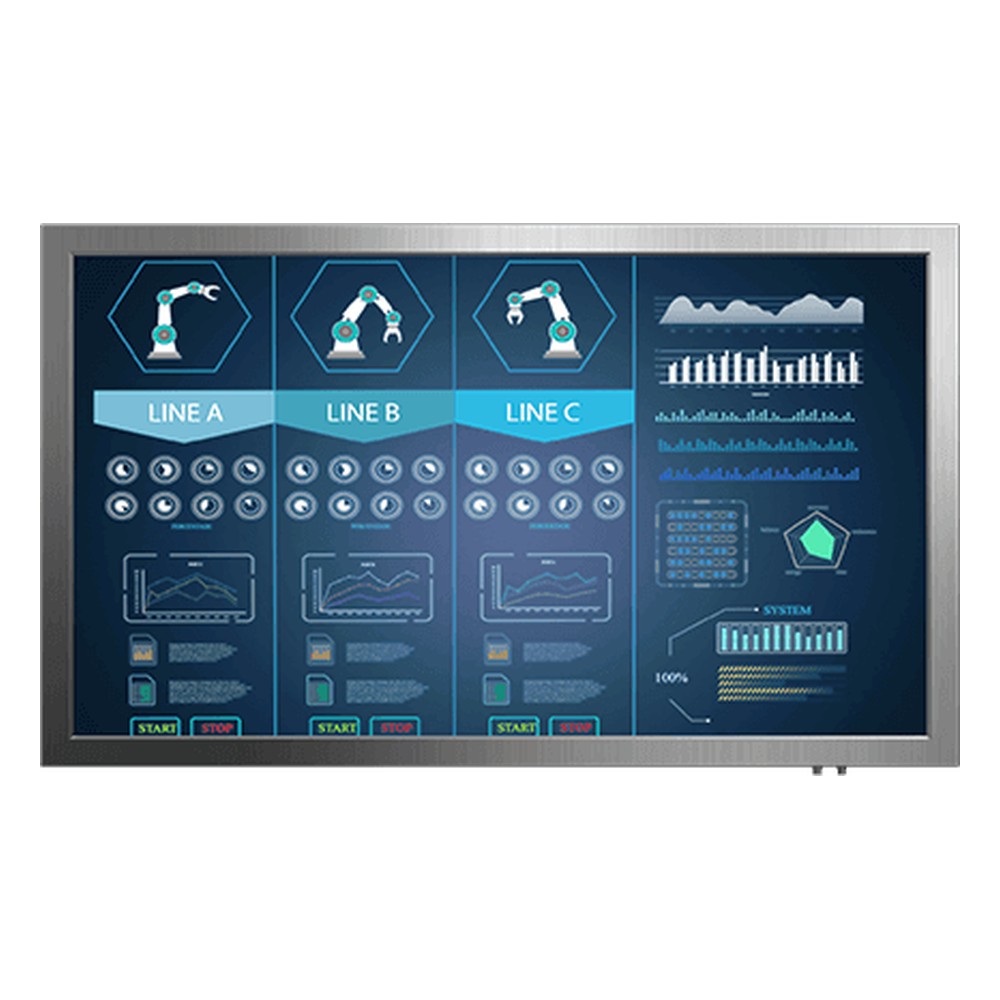

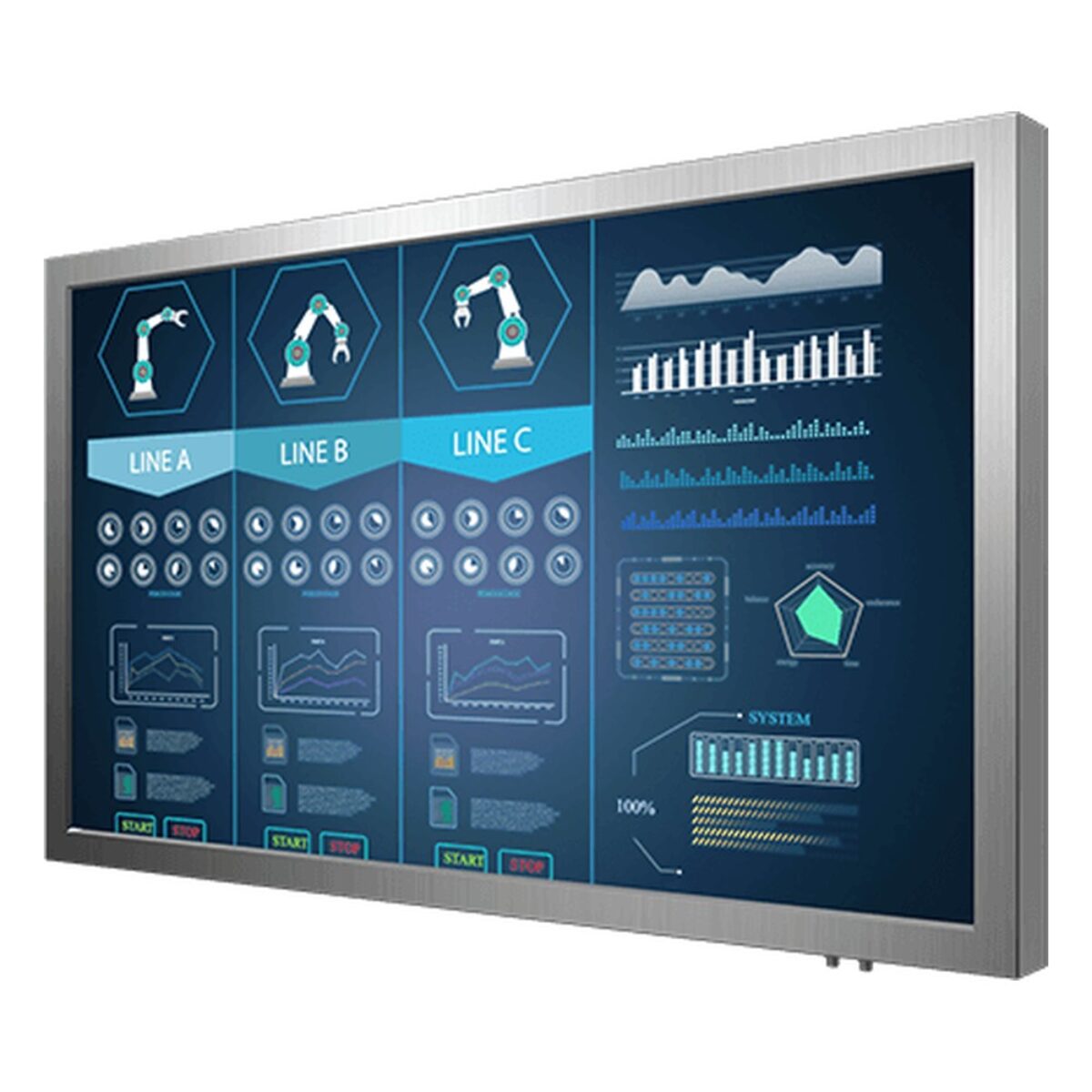

Winmate W55L100-65T1 55″ IP65 Stainless Steel Monitor with M12 Connectors and 4K UHD LCD

A wall screen in a food plant, wash bay or other wet area has to stay sealed through daily cleaning while showing detail that people can read from across the hall. The W55L100-65T1 is Winmate’s 55 inch IP65 stainless steel monitor for that role, with M12 connectors, a 4K UHD panel and a protection glass front, and it connects to a separate PC or signage player for status boards and digital signage.

The 55″ panel shows 3840 x 2160 (4K UHD) at 500 nits, with 1300:1 contrast, 1.07 billion colors and viewing angles of 178 degrees horizontal and 178 degrees vertical. The front is protection glass without touch, which suits wall-mounted status and process screens that staff read rather than press. A power button, up and down adjust buttons, ESC and OK keys handle the menu, with LEDs for power and status.

The W55L100-65T1 connects to a separate PC or controller over VGA on an M12 connector as standard, with waterproof DVI or HDMI inputs as options, and an external VGA cable with a waterproof connector and waterproof caps for unused ports are supplied. Within the Winmate range the W43L100-65A1 is the 42.5″ IP65 stainless steel model with a Full HD panel and 24 V DC input, and the W55L100-PCA3OD is the 55 inch sunlight readable PCAP touch monitor with 2500 nits and an IP65 front.

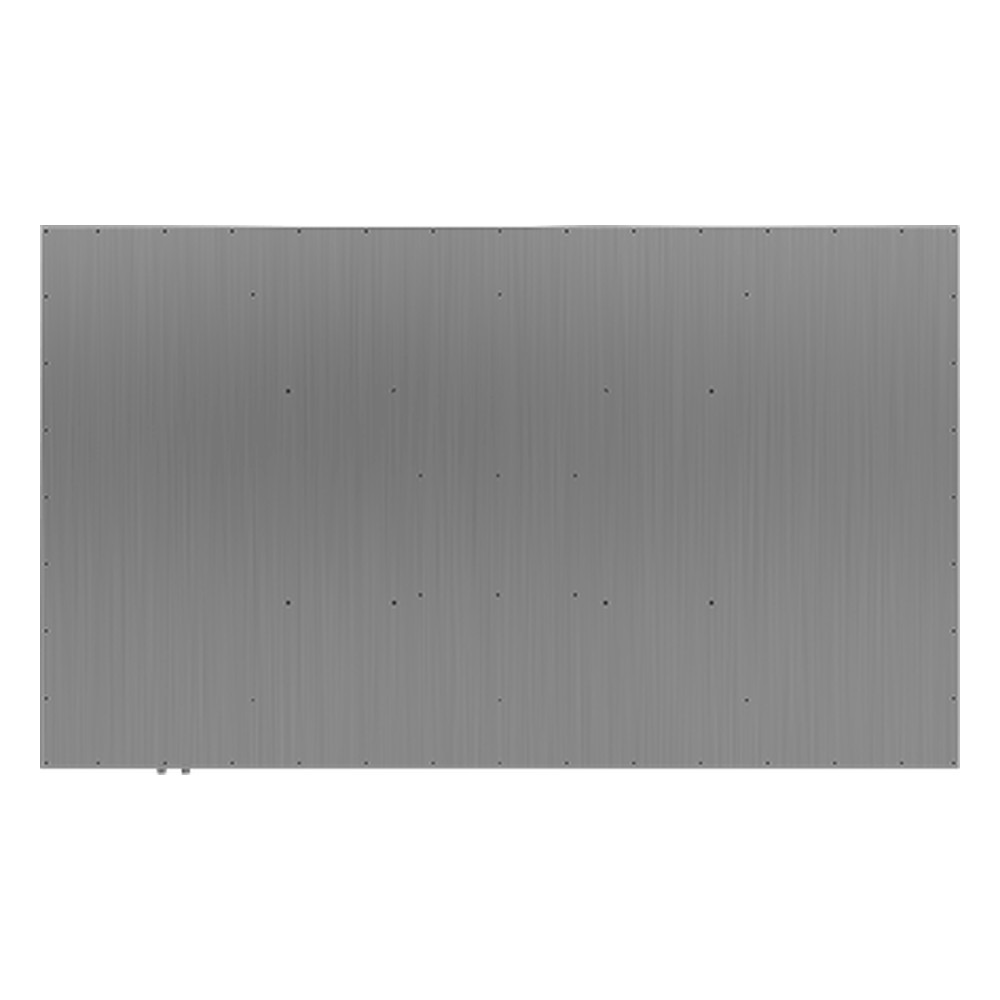

Power is 100 to 240 V AC straight into an M12 waterproof connector, with an external power cable with a waterproof connector supplied. Winmate rates the whole enclosure IP65 against dust and water jets, in SUS 316 / AISI 316 stainless steel with fully sealed connectors and a fanless design. It runs from 0 to 45 °C at 10 to 90% humidity, non-condensing, and stores from -20 °C to 60 °C. It mounts on VESA, with VESA screws supplied. It carries CE and FCC marks. We supply the W55L100-65T1 configured and tested before dispatch.
