Winmate W43L100-MLA2FP 42.5″ Rack Mount PCAP Touch Defense Monitor with 3840 x 2160 and 500 Nits
PCAP
CE
FCCW43L100-MLA2FP Overview

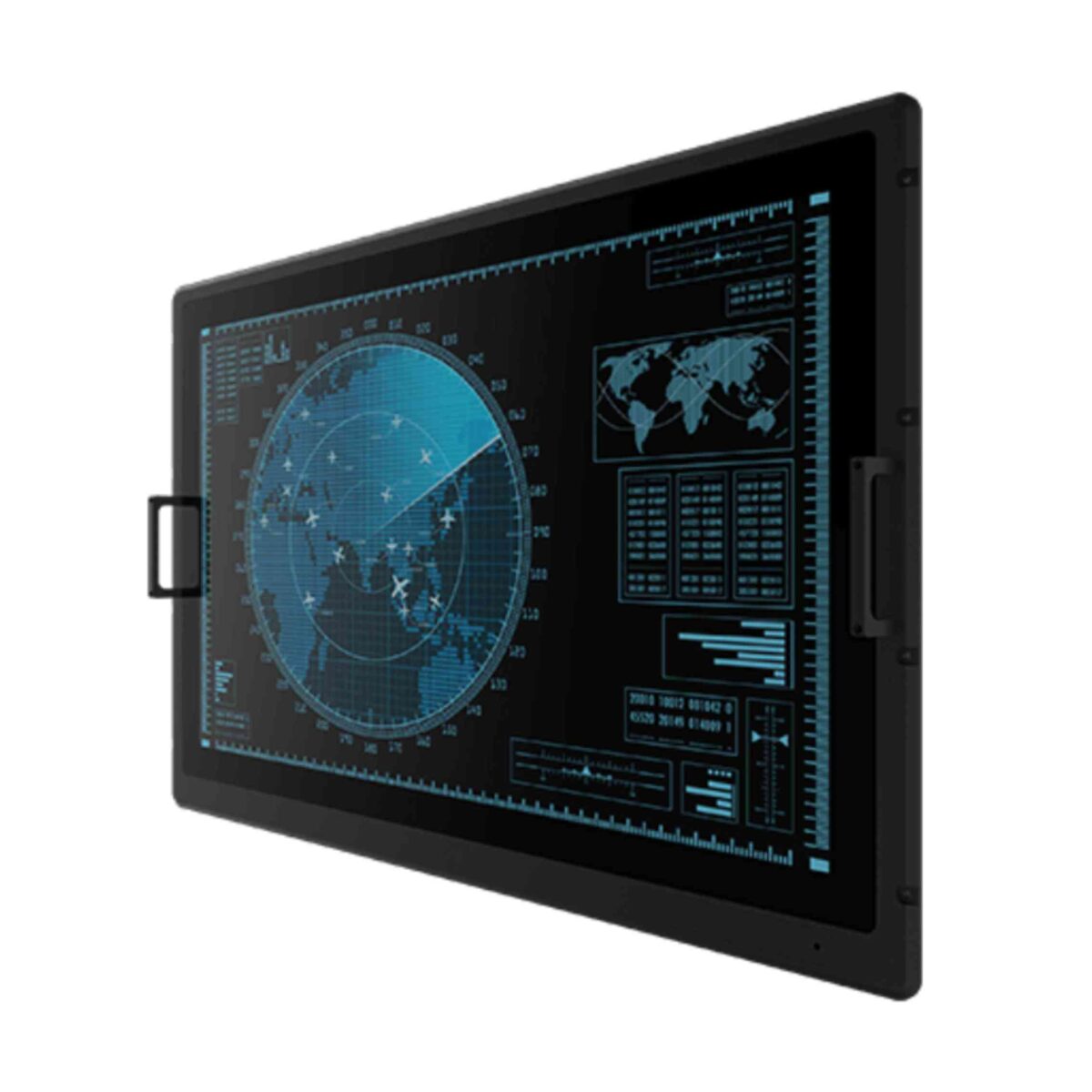

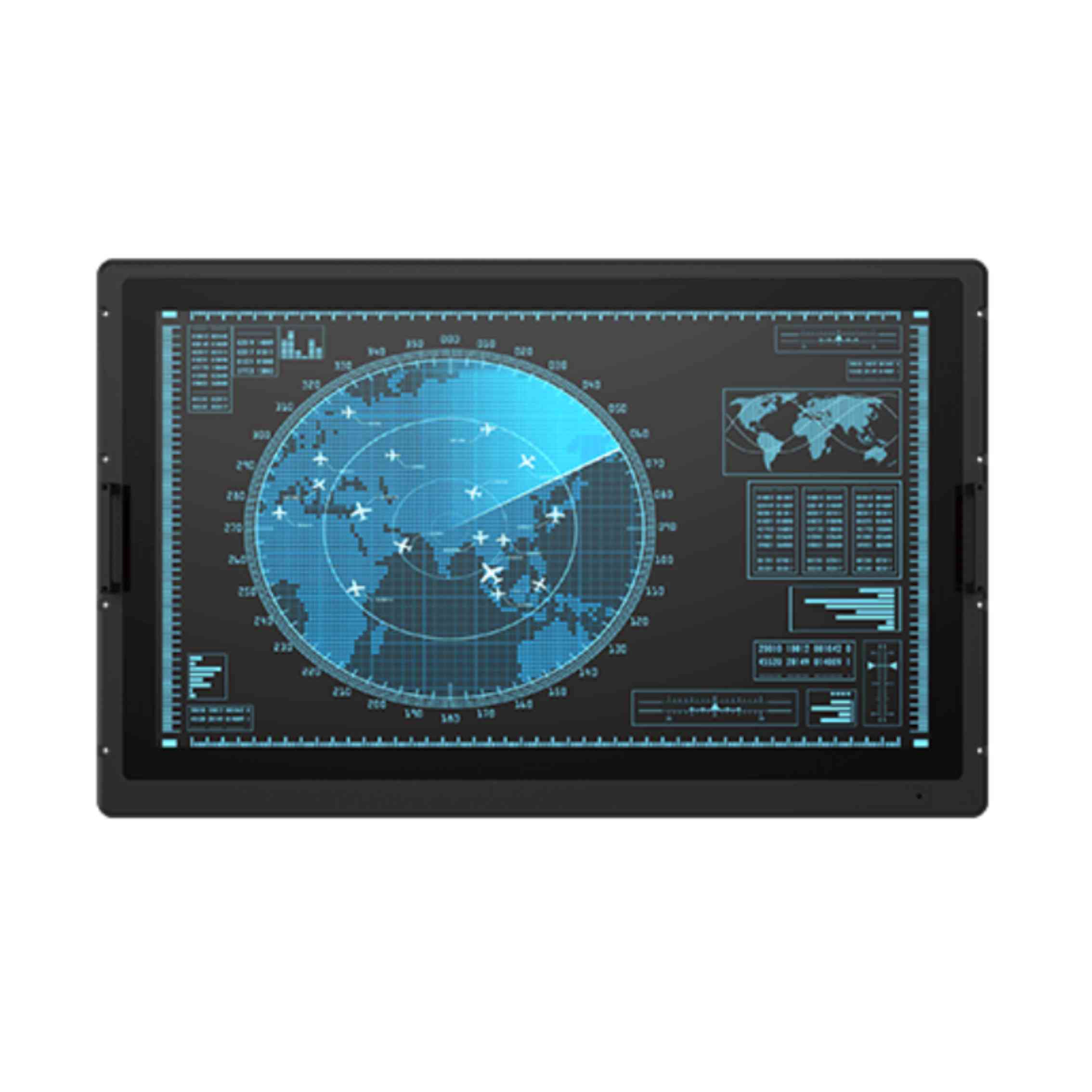

A command team briefing around one screen needs a picture large enough to read from the back of the room and sharp enough to show fine map detail up close. The W43L100-MLA2FP is Winmate’s 42.5 inch rack mount defense monitor with PCAP multi-touch: a fanless 3840 x 2160 display with a defence-grade power connector.
The 16:9 panel runs at 3840 x 2160 with 500 nits brightness, a 4000:1 contrast ratio, 178° viewing angles and 1.07 billion colors. Projected capacitive multi-touch connects over USB, and a build with ITO film is an option. Five capacitive keys on the bezel handle power, brightness, OSD and escape.
Video inputs are VGA, DVI and DisplayPort 1.2 as standard, with HDMI 1.4 and HDMI 2.0 as options, plus an optional RS-232 port for remote control and an optional audio line in, and USB carries the touch signal. The W55L100-MLA1FP is the 55 inch version of this monitor, and the W32L100-MLA1FP gives the same 3840 x 2160 resolution with PCAP touch at 32 inches.

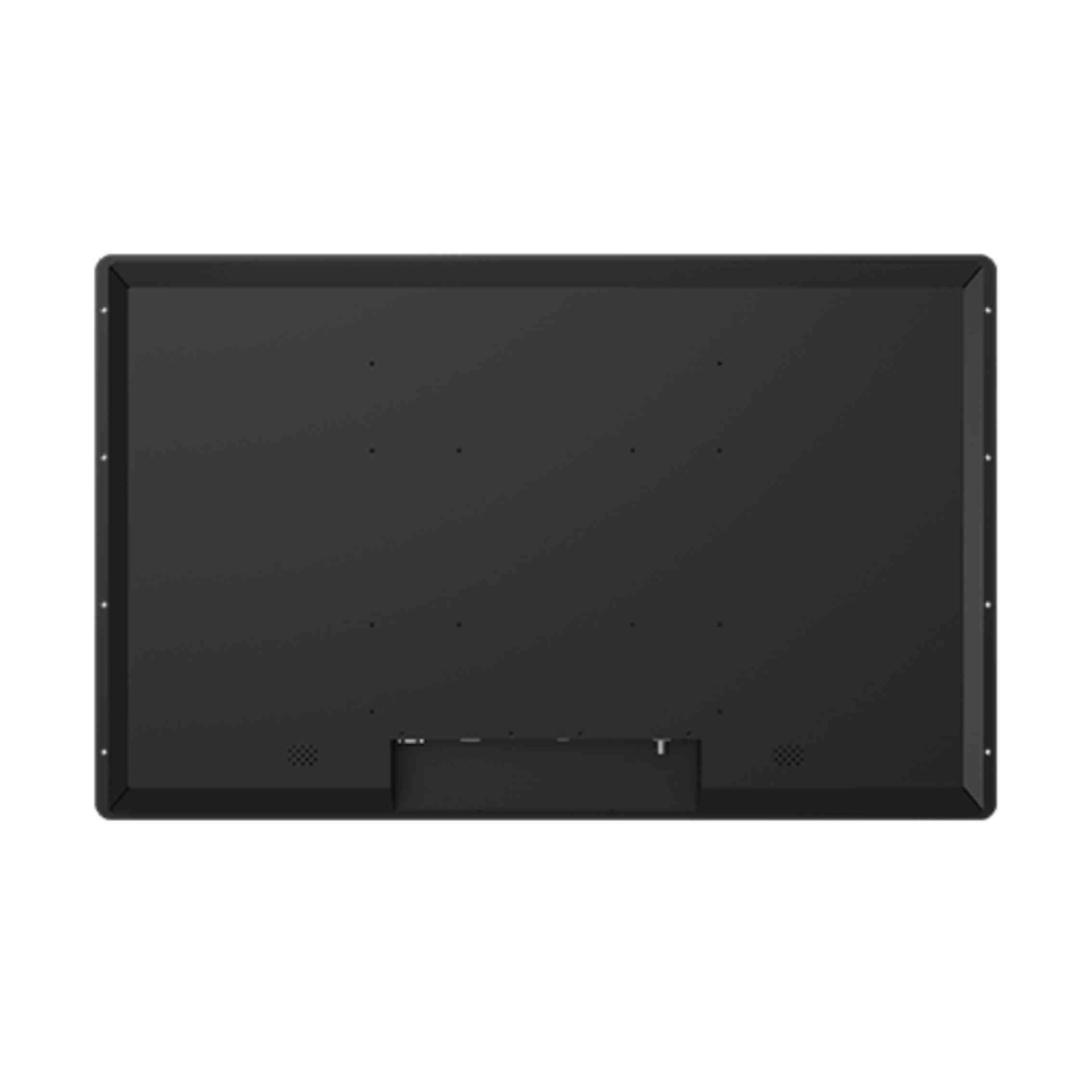

Power is 100 to 240 V AC universal on a MIL-DTL-38999/1 defence-grade connector, with 9 to 36 V DC as an ordering option for vehicle and shelter supplies. Winmate lists compliance with MIL-STD-810G/H methods for vibration (514.6), humidity (507.5) and transit drop (516.6) and with MIL-STD-461 emissions and susceptibility tests including RE101/RE102, CE101/CE102 and RS101/RS103. The monitor measures 1088.2 x 681.4 x 84.6 mm, runs fanless from 0 to 50 °C at 10 to 95% humidity and carries CE and FCC marks. It mounts in a rack on its handles or on VESA 400 x 400 and 200 x 200 holes and fits a 1036 x 648 mm cut-out on Winmate’s drawing.
W43L100-MLA2FP Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W43L100-MLA2FP |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 42.5"[16:9, 3840 x 2160, UHD] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 500 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 4000:1 |
| Number of Display Inputs | 5x Display Ports |
| Video Inputs | 1x Display Port Input 1x DVI Input 1x VGA Input 2 x Optional HDMI |
| Power | |
| Power Input | 9-36V DC Input [MIL-STD] Optional AC Power Supply |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 1088mm x 681mm x 85mm (42.83" x 26.81" x 3.35") |
- W43L100-MLA2FP Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W43L100-MLA2FP configured for USA defense programs. Within the Winmate range the W55L100-MLA1FP gives the same PCAP touch build at 55 inches, and the W32L100-MLA1FP brings 3840 x 2160 touch down to 32 inches for smaller consoles.
At 42.5 inches with a 3840 x 2160 panel, the W43L100-MLA2FP sits among our large format industrial monitors, our military monitors and our rugged displays. Where a command room needs one large UHD screen the whole team can touch, this is the model to specify.
