Neousys PB-4600J-SA 4600 W·s SuperCAP Rugged UPS Module with 100 W Output, Wide Temperature and EN 50155

The PB-4600J-SA is a rugged UPS module for box PCs drawing up to 100 W. Four 370 F supercapacitors store 4600 W·s, enough to ride through short dips and shut the PC down cleanly after a longer outage, from a 12 to 35 V DC supply and across -25 to 65 °C.

  • 4600 W·s from Four 370 F Supercapacitors: Half the cells of the PB-9250J-SA in the same housing, sized for compact fanless PCs and controllers.
  • 100 W Output on 12 to 35 V DC: Input passes straight through while charging; during an outage the module regulates 12 or 24 V to the PC.
  • Safe Shutdown Handled On Board: CAP energy management estimates the time left and signals shutdown through an isolated PWR_BTN# output, with no software.
  • Ignition Control for Vehicles: User-set power-on and power-off delays follow an IGN input, alongside the normal backup mode for fixed sites.
  • Wide Temperature and Rail-Grade Shock: Operates from -25 to 65 °C, or -40 to 85 °C at reduced capacity, with IEC 61373 shock and vibration.
Ignition Sensing: Supports Ignition ControlIgnition Control
Operating Temperature: Wide Temperature [-40 to 85°C]Wide Temp
Certification: CECE
Certification: EN50155EN50155
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

PB-4600J-SA Overview

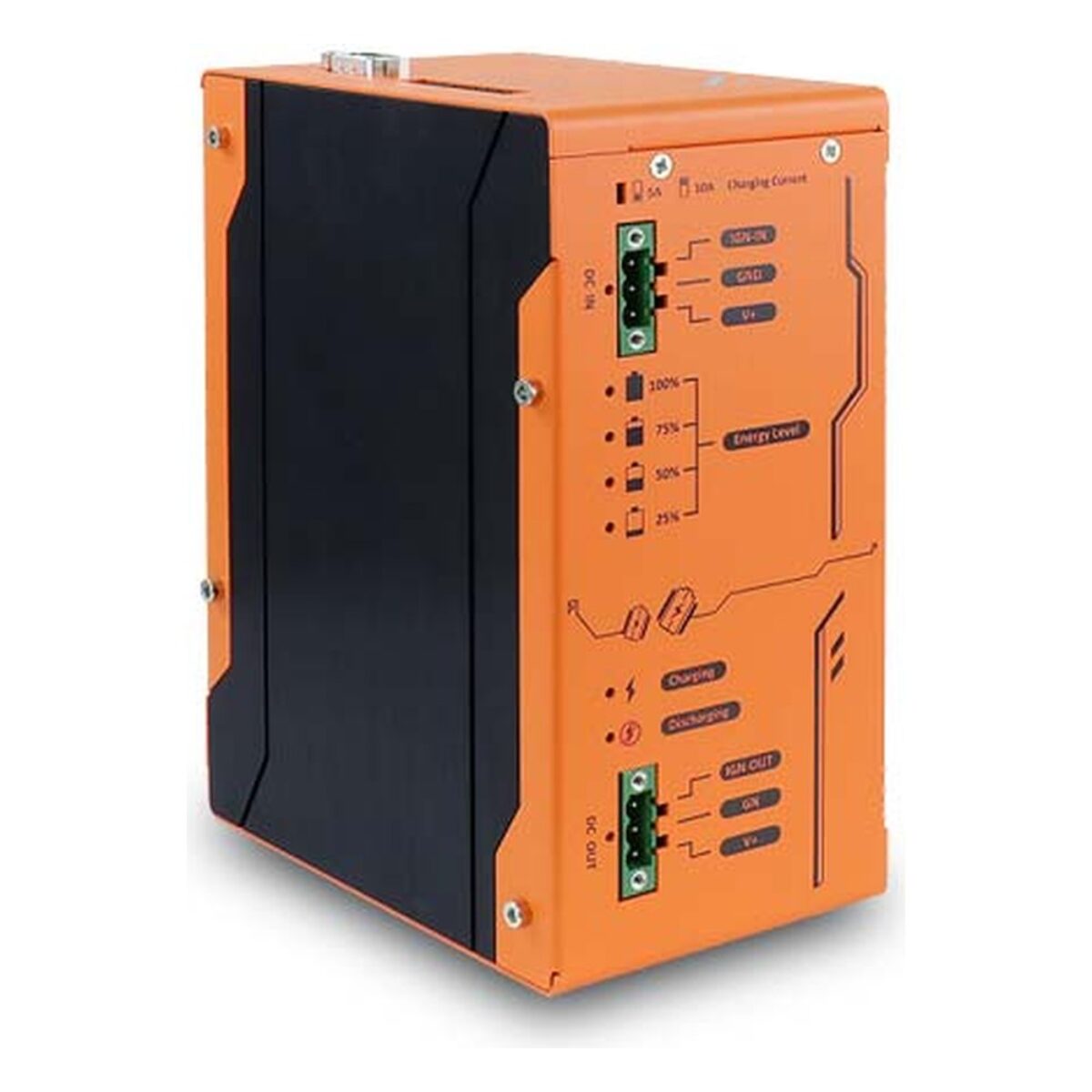

Many fanless box PCs draw well under 100 W, so a full-size UPS is more energy than the job needs. The Neousys PB-4600J-SA is a rugged UPS module with four 370 F, 3.0 V supercapacitors storing 4600 W·s, in the same DIN rail housing as the larger PB-9250J-SA. Like the rest of the SuperCAP range, it is rated for more than 10 years and 500,000 charge cycles, with no battery to replace.

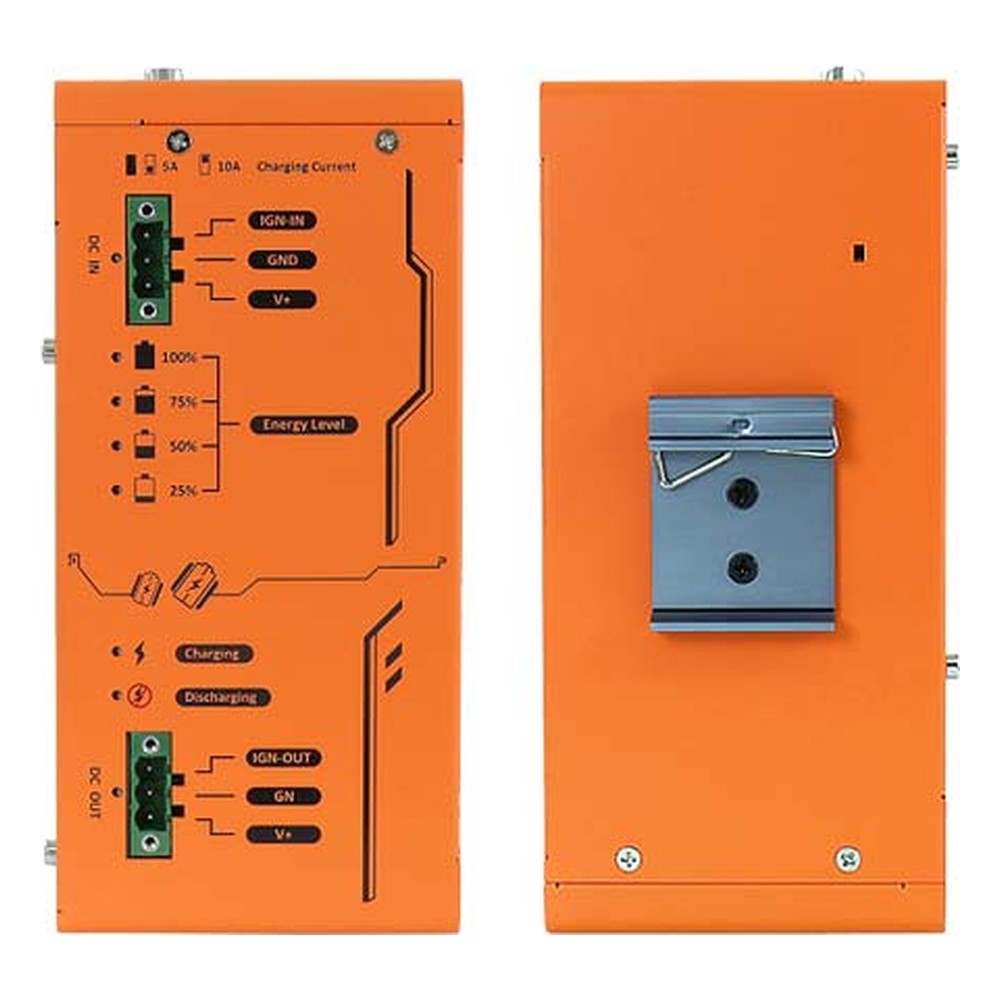

The PB-4600J-SA takes a 12 to 35 V DC supply on a pluggable three-pin terminal block and passes it straight through to the PC while it charges. If the supply fails, it regulates 12 or 24 V at up to 100 W. Neousys CAP energy management tracks the energy left and the load, then starts a clean shutdown in time, so the PC never loses power mid-write.

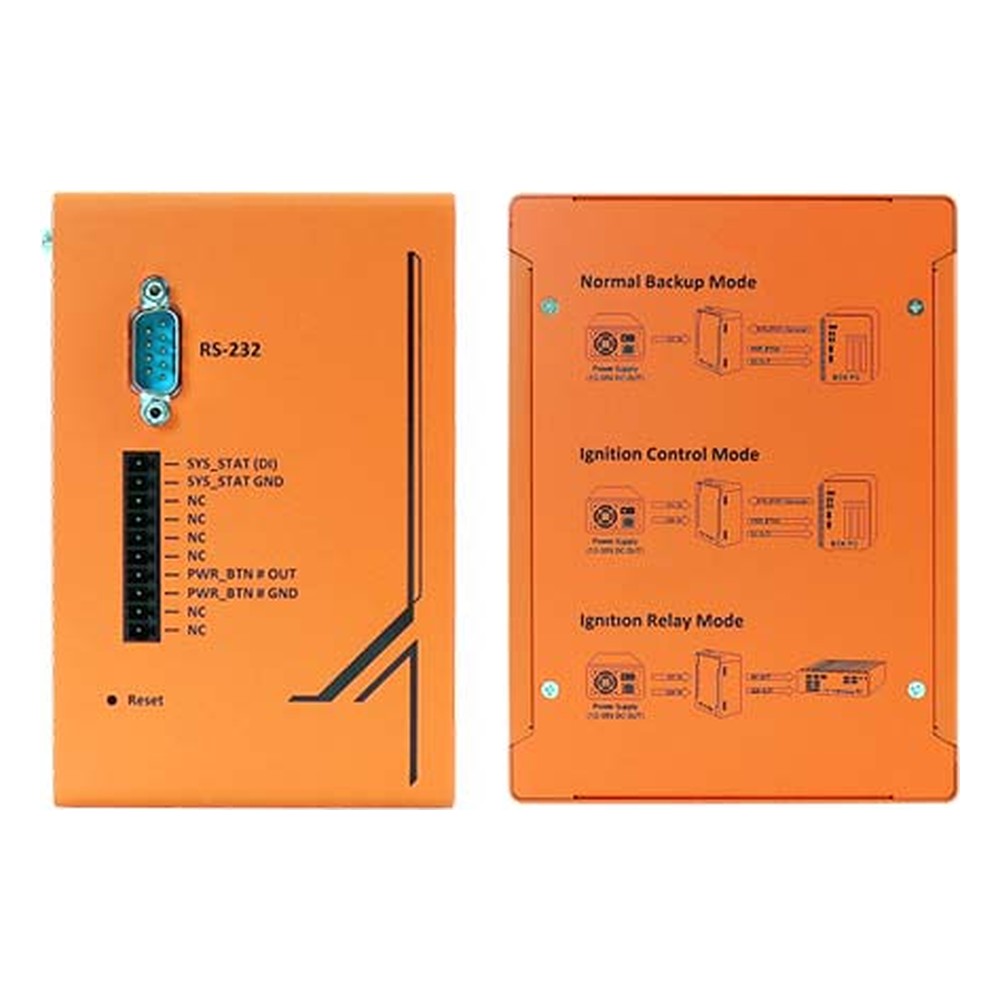

An isolated 10-pin terminal block provides the PWR_BTN# output and SYS_STAT input, and a DB9 port carries three-wire RS-232 for the configuration utility. Alongside the normal backup mode, two ignition control modes apply user-set power-on and power-off delays from an IGN signal, which suits vehicle PCs that must outlast the engine being switched off.

It operates from -25 to 65 °C, or -40 to 85 °C with reduced energy capacity, meets IEC 61373 Category 1 Class B shock and vibration, and has an EMC design to EN 50155 requirements with CE and FCC Class A. The housing is 82.5 x 175.2 x 128.2 mm and 1.68 kg, DIN rail mounted with an optional wall-mount kit. For a slimmer module at 70 W, see the PB-2580J-SA.

PB-4600J-SA Specifications

Overview
Brand & ModelNeousys PB-4600J-SA
FeaturesFanless
Industrial
Rugged
Uninterruptible Power Supply (UPS)
I/O
Serial1x Serial Ports
1x RS232 [DB9]
Power
Power Input12-35V DC [Terminal Block]
Power Support ModesATX: Press Button to Power
Ignition SensingSupports Ignition Control
Environmental Conditions
Operating Temperature-25°C to 65°C [-13°F to 149°F]
Storage Temperature-40°C to 85°C [-40°F to 185°F]
ShockIEC 61373
VibrationIEC 61373
EMCEN55032
EN55035
CertificationCE
EN50155
FCC
Mechanical Properties
Weight1.7 Kg (3.7 Lbs)
Dimensions83mm x 175mm x 128mm (3.25" x 6.90" x 5.05")
Mounting OptionsDIN Mount
Wall Mount

Official Neousys USA Distributor

Things Embedded is an official Neousys USA distributor, supplying the PB-4600J-SA configured with the PC it backs up, so the shutdown timing and ignition delays are set and tested before delivery. Within the Neousys SuperCAP range, the PB-9250J-SA doubles the energy for loads up to 180~W, and the PB-2580J-SA fits 70~W systems in a 32.8~mm wide module.

Across our range, the PB-4600J-SA sits with our rugged UPS modules and industrial power supplies, and suits our in-vehicle computers.
