Neousys PB-9250J-110V 110 V DC Railway UPS with 9250 W·s Supercapacitor Storage, 24 V Output, EN 50155 and EN 45545-2
Extended Temp
CE
EN50155
FCCPB-9250J-110V Overview
Rolling stock power is rarely clean: the supply can drop for a moment as a train passes a level crossing or a set of points, and an onboard computer that browns out can lose data or reboot. The Neousys PB-9250J-110V is a railway UPS built for that supply, accepting 43 to 160 V DC so it runs directly from a nominal 110 V train battery line.
Eight 370 F, 3.0 V supercapacitors store 9250 W·s and feed a regulated 24 V DC output at up to 120 W, carrying the protected equipment from seconds to minutes depending on its load. Neousys CAP energy management monitors the energy and power draw in real time, protects against high and low voltage and starts an automatic or manual shutdown before the energy runs out.

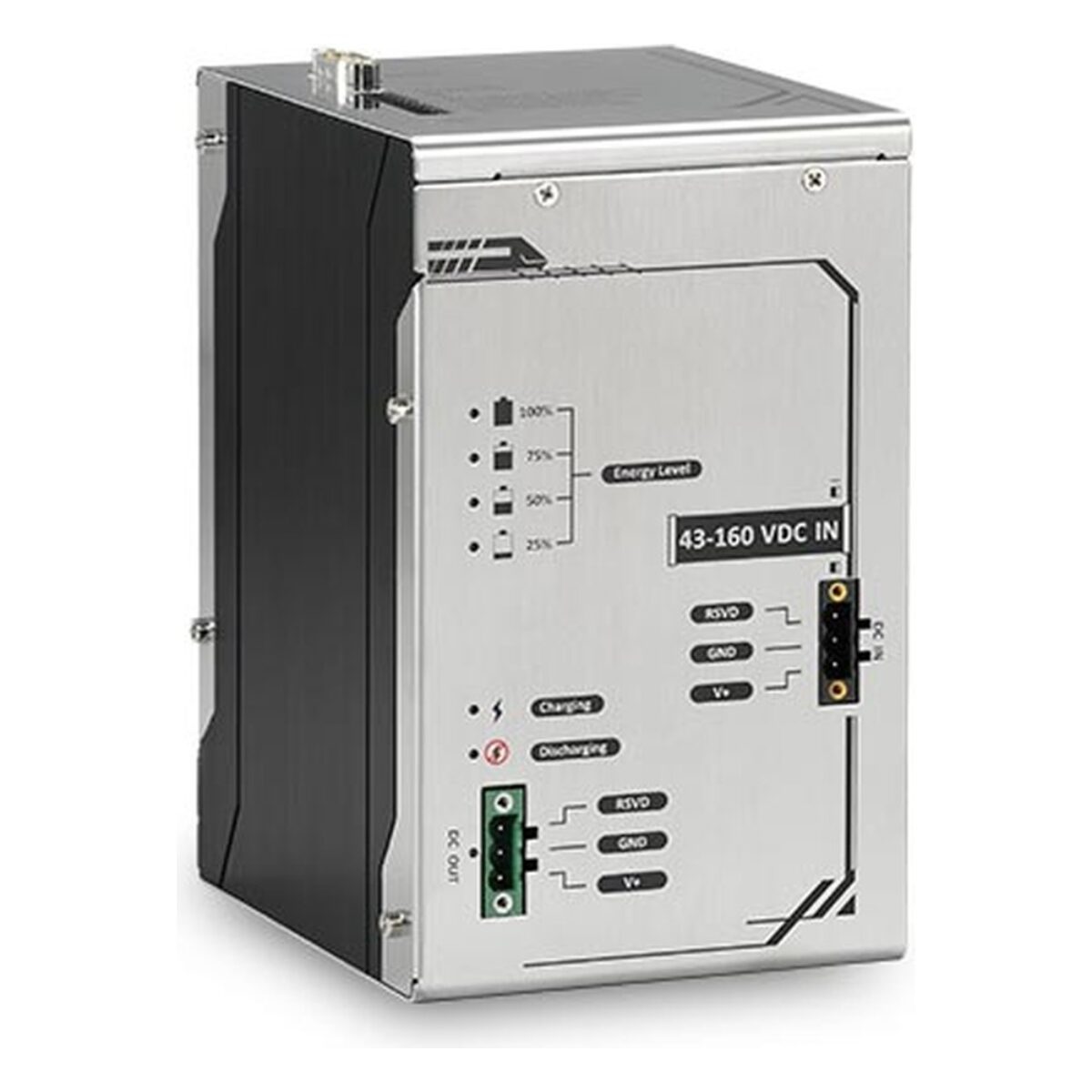

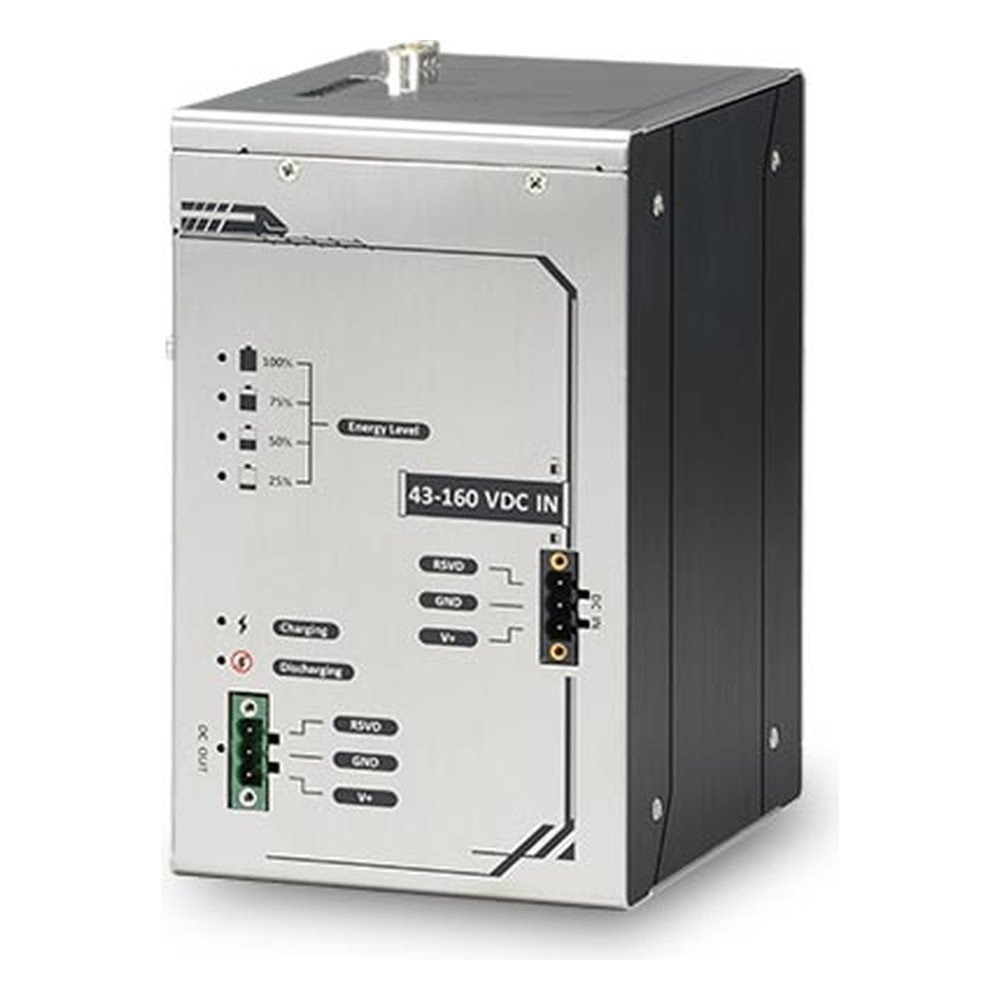

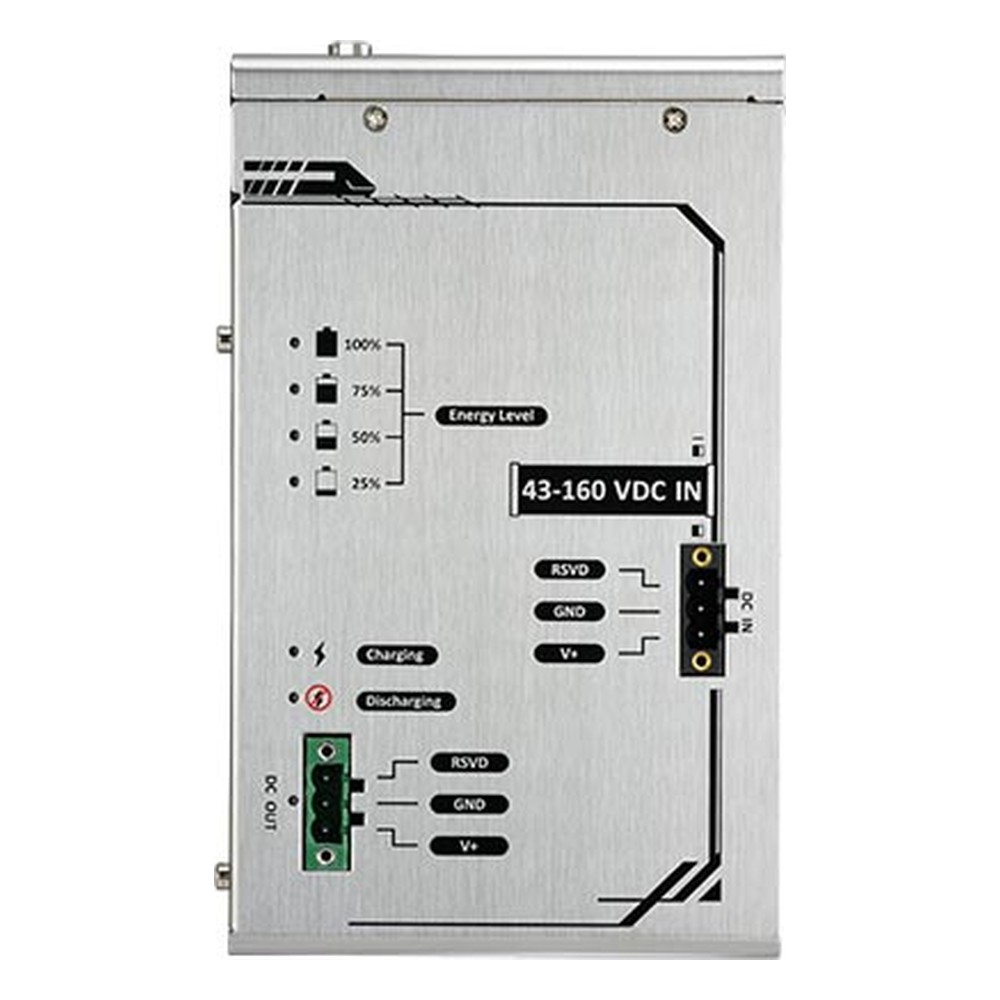

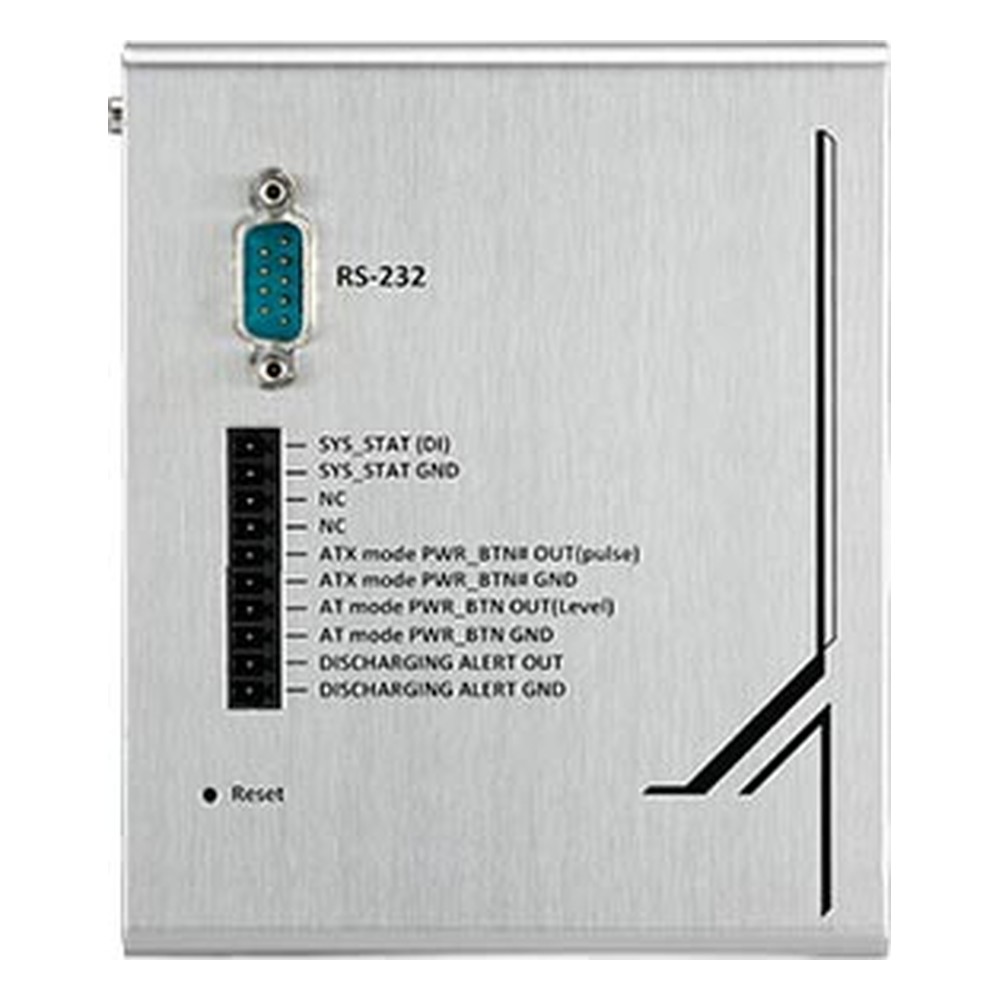

Both power connections use pluggable three-pin terminal blocks. A DB9 port carries isolated three-wire RS-232, and an isolated 10-pin terminal block provides an ATX pulse-type PWR_BTN# output, an AT level-type power output, a discharging alert and a SYS_STAT input, so the PB-9250J-110V can shut down either type of PC and report its state to the train systems.
It is designed to all mandatory sections of EN 50155:2017 with OT4 operation from -40 to 70 °C, and to EN 45545-2 for fire protection, with IEC 61373 Category 1 Class B shock and vibration. The module measures 110 x 175.2 x 128.2 mm, weighs 2.33 kg and mounts on DIN rail, with an optional vertical wall-mount kit. For 12 to 35 V DC sites, see the PB-9250J-SA.
PB-9250J-110V Specifications
| Overview | |
|---|---|
| Brand & Model | Neousys PB-9250J-110V |
| Features | Fanless Industrial Rugged Uninterruptible Power Supply (UPS) |
| I/O | |
| Serial | 1x Serial Ports |
| 1x Isolated RS232 [DB9] | |
| Power | |
| Power Input | 43-160V DC [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Operating Temperature | -40°C to 70°C [-40°F to 158°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Shock | IEC 61373 |
| Vibration | IEC 61373 |
| EMC | EN55032 EN55035 |
| Certification | CE EN45545-2 EN50155 FCC |
| Mechanical Properties | |
| Weight | 2.3 Kg (5.1 Lbs) |
| Dimensions | 110mm x 175mm x 128mm (4.33" x 6.90" x 5.05") |
| Mounting Options | DIN Mount Wall Mount |
Official Neousys USA Distributor
Things Embedded is an official Neousys USA distributor, supplying the PB-9250J-110V configured with the onboard computer it protects, with the shutdown signals wired and tested before it ships. Within the Neousys SuperCAP range, the PB-9250J-SA stores the same 9250~W·s for 12 to 35~V DC systems at up to 180~W, and the PB-2580J-SA covers smaller 70~W loads.
Across our range, the PB-9250J-110V sits with our railway and industrial UPS modules and power supplies, and pairs with our EN 50155 railway computers.
