Yuan SC710N1 HDV PCIe HDMI, DVI and DisplayPort Frame Grabber with 4K60 Input
PCI ExpressSC710N1 HDV Overview
Capturing the output of a computer, simulator or graphics system is complicated by connectors: one source offers HDMI, another DisplayPort, an older one dual-link DVI. The SC710N1 HDV is Yuan’s PCIe HDMI, DVI and DisplayPort frame grabber, taking all three on one channel, capturing up to 4096 x 2160 at 60/50 fps and high frame rate modes for fast screen content. It is a good fit for recording displays, graphics output and presentation sources.
The inputs are single-link HDMI 2.0, DisplayPort 1.2 in single-stream or multi-stream transport, and DVI-D in single or dual link. Single-link DVI-D captures up to 1080p60 and dual-link up to 4K30. HDMI 2.0 modes run from 4096 x 2160 and 3840 x 2160 at 60/50/30/25/24 fps through 2560 x 1440p at 144 fps and 1920 x 1080p at up to 240 fps, down to SD and PC modes such as 720 x 576i and 640 x 480, with the same modes over DisplayPort. HDMI 1.4b 3D is supported. Formats are RGB24 and RGB32 at 4:4:4 8-bit, YUY2 at 4:2:2 8-bit, YV12 and NV12 at 4:2:0 8-bit, and P010 at 4:2:0 10-bit. Audio arrives as one embedded stereo stream.
The card uses a PCIe x4 Gen2 slot, and on-board processing covers cropping and scaling, automatic signal detection and deinterlacing. There is no built-in hardware encoder, so compression runs on the host or a GPU. Yuan’s Windows and Linux SDK supports multiple instances and multiple cards, and DirectShow and V4L2 support opens it to vMix, OBS, Zoom and Teams as well as custom software. The SC710N1-L HDMI2.0 is the low profile HDMI 2.0 card with HDR and loop-through, and the SC710N1 M2 DVI-DL brings dual-link DVI capture to M.2.

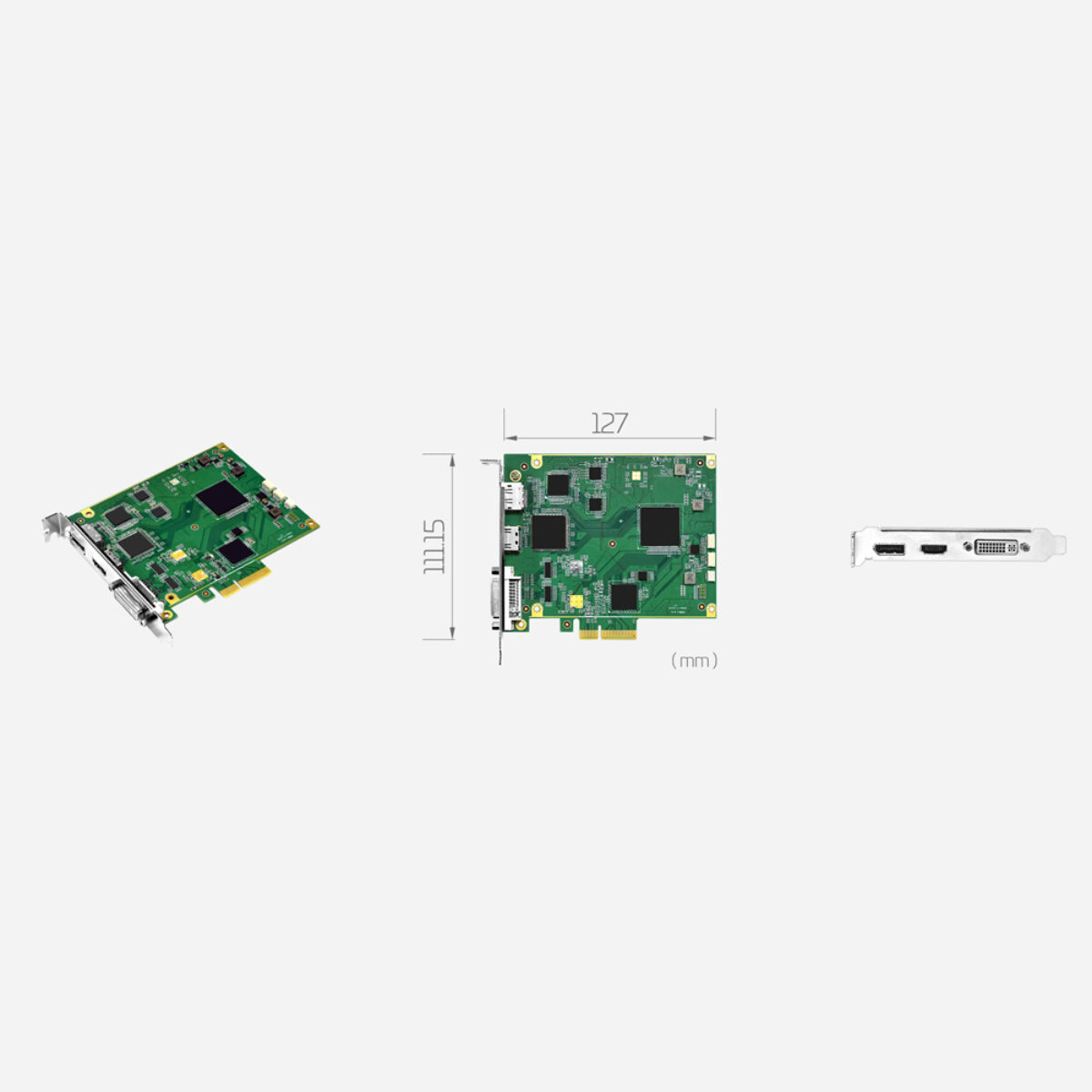

Yuan lists support for Windows 7, 8, 8.1 and 10, Linux 4.8 or higher in 32-bit and 64-bit builds, Linux ARM and NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX. The full-height board measures 127 x 111.15 mm, with DisplayPort, HDMI and DVI connectors on one bracket.
SC710N1 HDV Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC710N1 HDV |
| Video Capture | |
| Host Interface | PCIe [x4, Gen2] |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x DP 1x DVI-D 1x HDMI2.0 |
| Video Resolution Input | 4K60 [4096×2160p @ 60/50fps] |
| Video Resolution Output | 4K60 [4096x2160p @ 60/50/30/25/24fps] |
| Color Format | NV12 4:2:0 8Bit P010 4:2:0 10Bit RGB24 4:4:4 8Bit RGB32 4:4:4 8Bit YUY2 4:2:2 8Bit YV12 4:2:0 8Bit |
| Audio Input | 1x Stereo Input |
