US 12G-SDI Capture Cards
12G-SDI Frame Grabbers for 4K60 Video
A 12G-SDI capture card takes 4K60 video from a camera or switcher over one SDI cable instead of four, which keeps cabling simple in 4K broadcast, medical and defense systems. Available as PCIe and M.2 cards with one, two or four 12G-SDI inputs, plus quad-link and combined 12G-SDI and HDMI 2.0 models.
Options include multi-input capture on one card and Windows and Linux SDKs, suited to 4K broadcast recording, surgical imaging and high-resolution inspection systems.
Speak to a video capture specialist to match the input count and host interface to your 4K system.
Browse Our 12G-SDI Capture Cards
- Video Input: 1x 12G-SDI
- Host: M.2 [3080, M-Key]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Video Input: 1x 12G-SDI
- Host: PCIe [x4, Gen3]
- Simultaneous Video Inputs: 1
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x 12G-SDI
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]

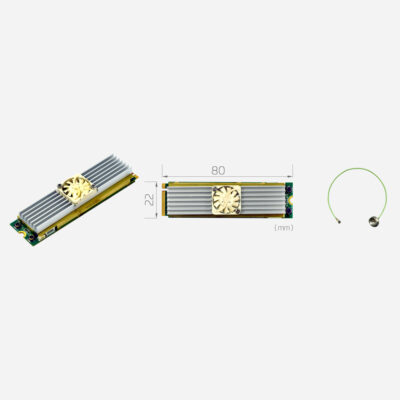

- Video Input: 1x 12G-SDI
- Host: M.2 [3080, M-Key]
- Simultaneous Video Inputs: 4
- Video Input: 1x 6G-SDI, 2x 3G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Video Input: 1x 12G-SDI
- Host: M.2 [2280, M-Key]
- Simultaneous Video Inputs: 1
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x 12G-SDI
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

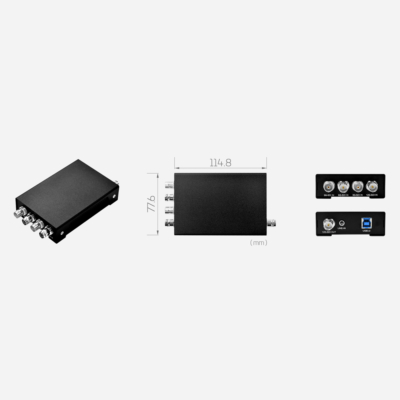

- Video Input: 1x 12G-SDI
- Host: USB3.0
- Simultaneous Video Inputs: 4
- Video Input: 4x 3G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 4x 3G-SDI
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: I420, NV12, P010, YUY2
- Video Input: 1x 12G-SDI
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Video Input: 1x 6G-SDI, 2x 3G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

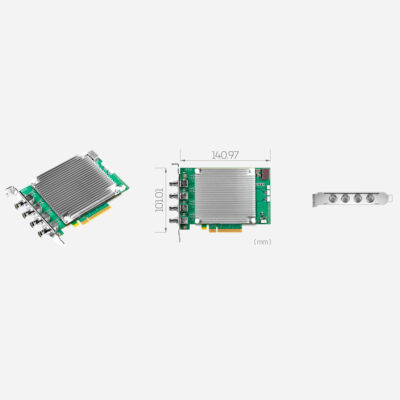

- Video Input: 4x 12G-SDI
- Host: PCIe [x8, Gen2]
- Simultaneous Video Inputs: 4
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Video Input: 2x 12G-SDI
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 8
- Video Input: 2x 6G-SDI, 4x 3G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Video Input: 1x 12G-SDI
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
12G-SDI Capture Card Ranges Configured by Things Embedded
We work with a leading manufacturer of 12G-SDI capture cards, so the ranges below are the ones we specify for 4K broadcast, medical and defense systems. Compare them by input count and host interface, then browse the models above or ask a video capture specialist which range suits your system.
SC710, SC720 and SC750 Yuan 4K and 8K Capture Cards
HDMI 2.0, HDMI 2.1, 12G-SDI, DisplayPort 1.4a and SDVoE capture at 4K60 and up to 8K on PCIe and M.2.
PD570, PD575 and UB5 Yuan USB Capture Cards
External USB 3.0 capture for HDMI, SDI and TVI sources, from 1080p60 to HDMI 2.0 and 2.1 4K models, working as UVC devices.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a 12G-SDI Capture Card
Our video capture specialists specify every 12G-SDI capture card against the sources, the host system and the software that will use the video. These are the choices we work through with you before recommending a range.
Single or Quad Link
12G-SDI carries 4K60 on one cable; quad-link cards take four 3G-SDI links from older 4K kit.
Inputs
One, two or four 12G-SDI inputs, depending on how many 4K sources the system records.
Host Interface
PCIe for workstations and servers, M.2 for compact embedded 4K systems.
Explore Video Capture by Standard and Interface
Compare every video capture category by signal, SDI and HDMI standard or form factor, and jump straight to the cards that fit your sources and host system.
12G-SDI Capture Innovation & 4K Video Insights
Speak to a 12G-SDI Specialist.
Tell us the resolution and frame rate your sources output, the host system and how the video will be recorded or processed. We will recommend the right card for the bandwidth, then configure and test it with your system before it ships.
